018 - Clutch and Controls

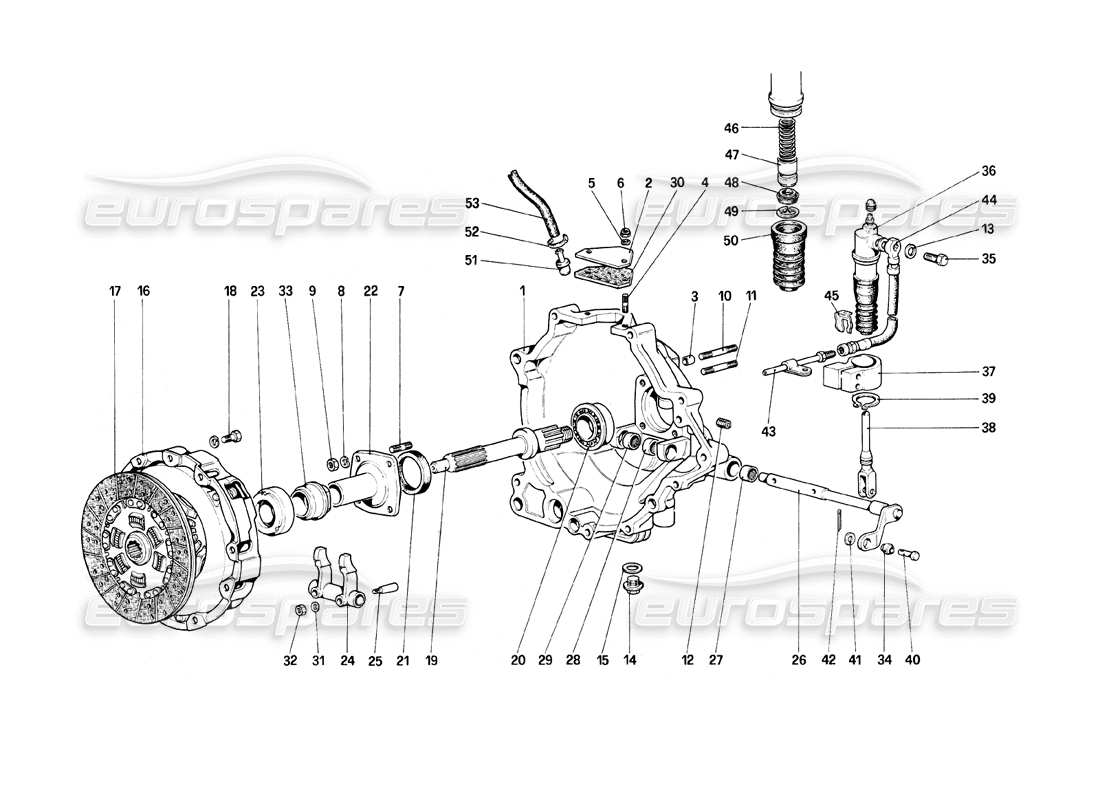

Ferrari Mondial 8 (1981) Clutch and Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 112391
CAMPANA FRIZIONE
Col complessivo n. 118069
Supersession
Supersession
# 001
MPN: 118069
CAMPANA FRIZIONE COMPLETA
Supersession
Supersession
This part replaces part number 112391
# 002
MPN: 109404
COVER
from £36.46
from £36.46
This part replaces part number 40361107
# 003
MPN: 102704
GRANO DI CENTRAGGIO COPERCHIO
from £1.77
from £1.77
This part replaces part number 500805
# 004
MPN: 13539024

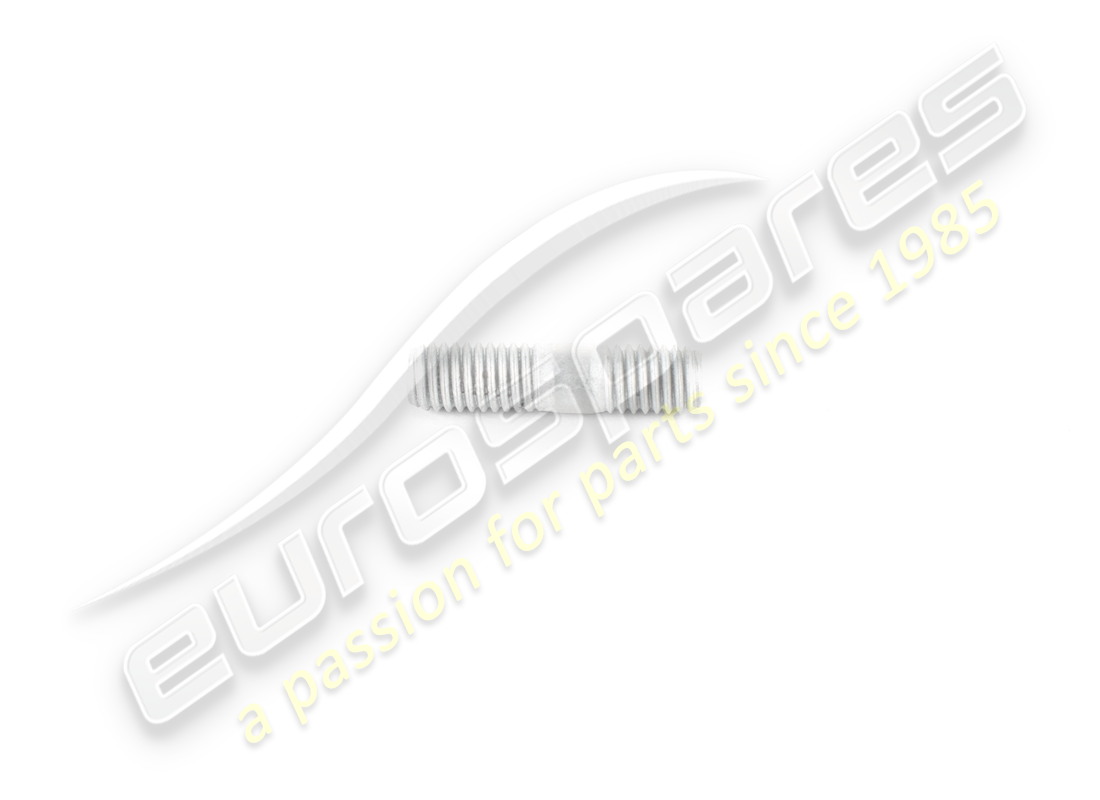

THREADED STUD
from £0.75
from £0.75
This part replaces part number 13539021
# 005
MPN: 12601171
WASHER
from £0.47
from £0.47
# 006
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 007
MPN: 13516521
THREADED STUD
Supersession
Supersession
This part replaces part number 102682 - and 1 more. Click to view details
# 008
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 009
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 010
MPN: 13517621
THREADED STUD
from £9.04
from £9.04
# 011
MPN: 13517521
THREADED STUD
from £6.77
from £6.77
# 012
MPN: 14326150

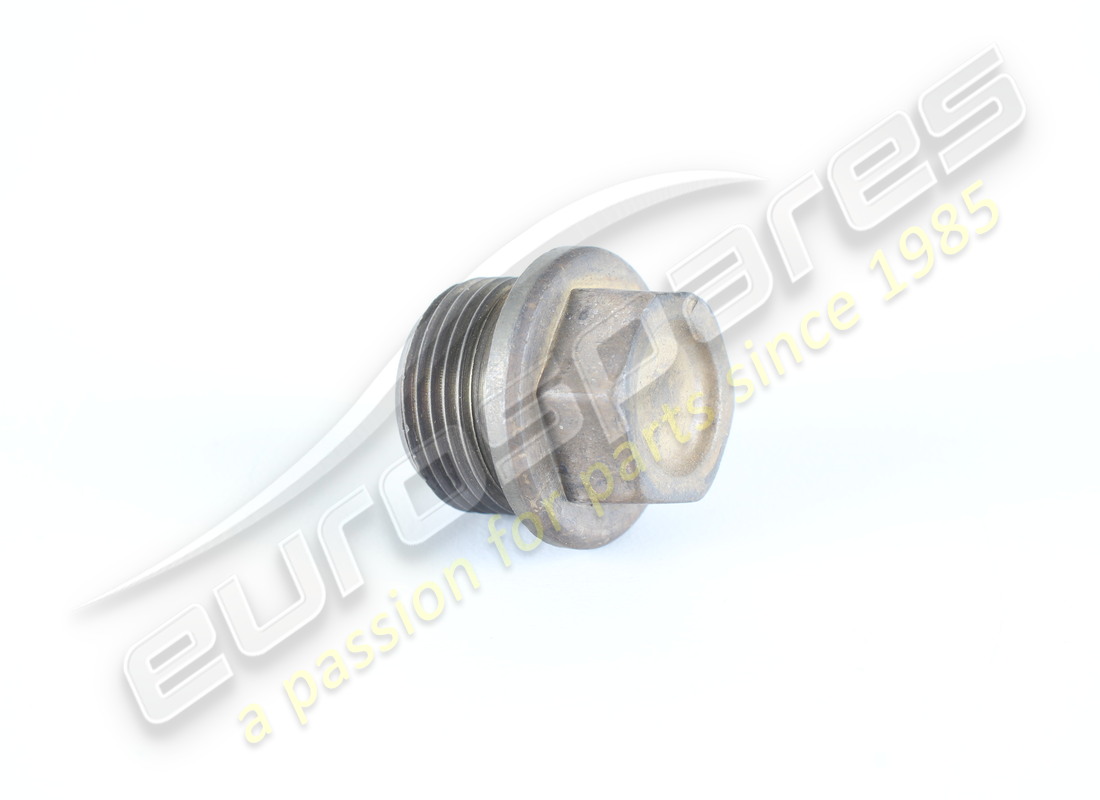

PLUG
from £0.53
from £0.53
This part replaces part number 12326150
# 013
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 014
MPN: 14326540
TAPPO SCARICO OLIO
from £35.89
from £35.89
# 015
MPN: 10261860
GASKET
from £0.53
from £0.53
This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
# 016
MPN: 121562

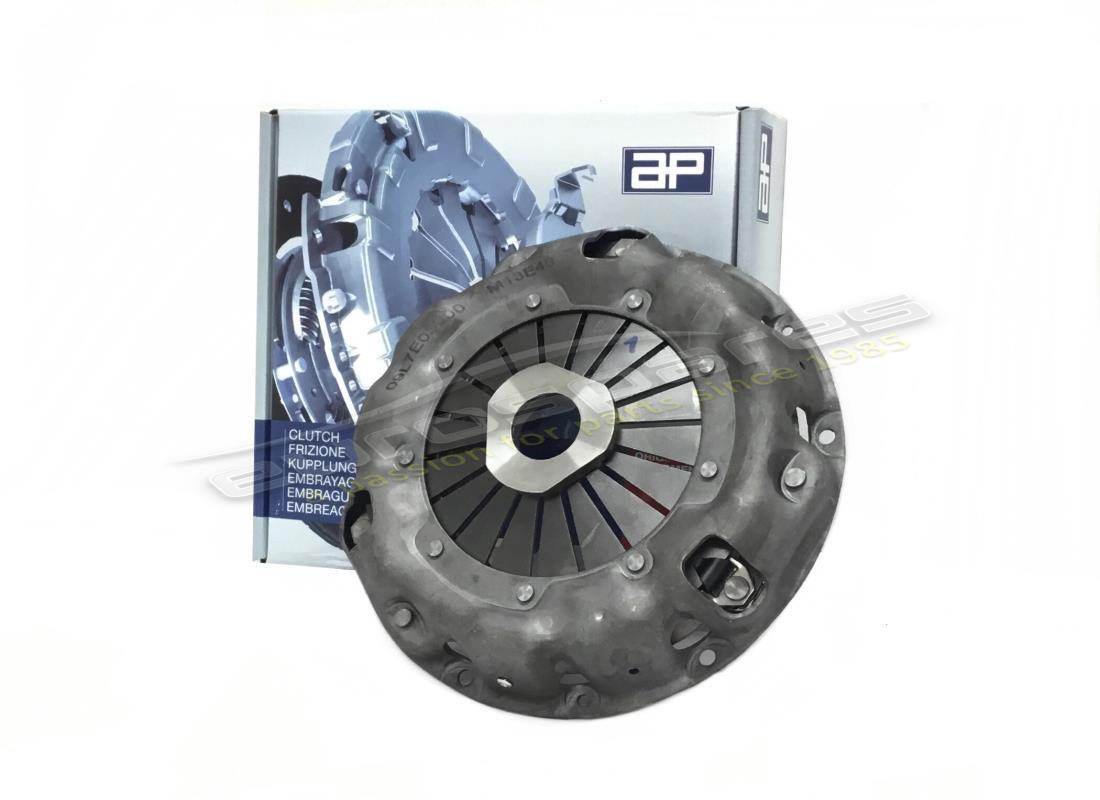

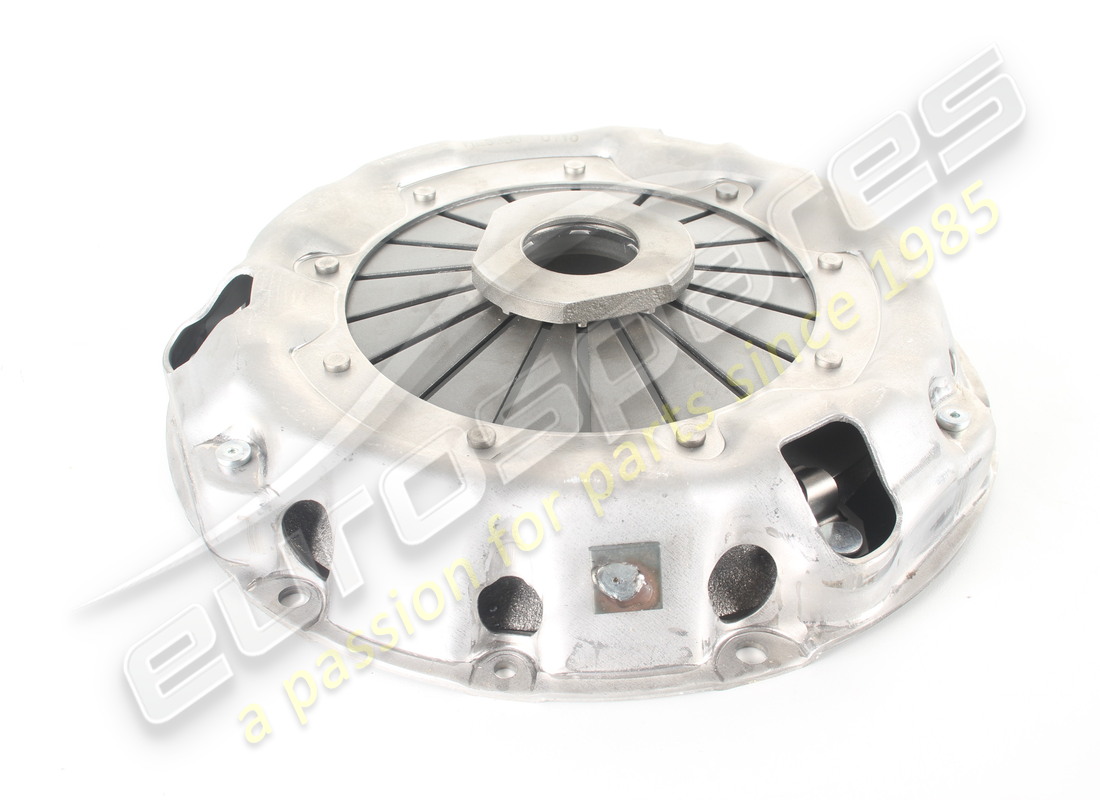

CLUTCH PRESSURE PLATE
from £138.99
from £138.99
This part replaces part number 101533 - and 5 more. Click to view details
# 016
MPN: FCLK001
Clutch Kit - 3 Piece
Pressure plate & bearing (121562-110558-100849)
# 017
MPN: 110296
DISCO FRIZIONE
not as spare part - use part number: 110558
Supersession
Supersession
# 017
MPN: 110558

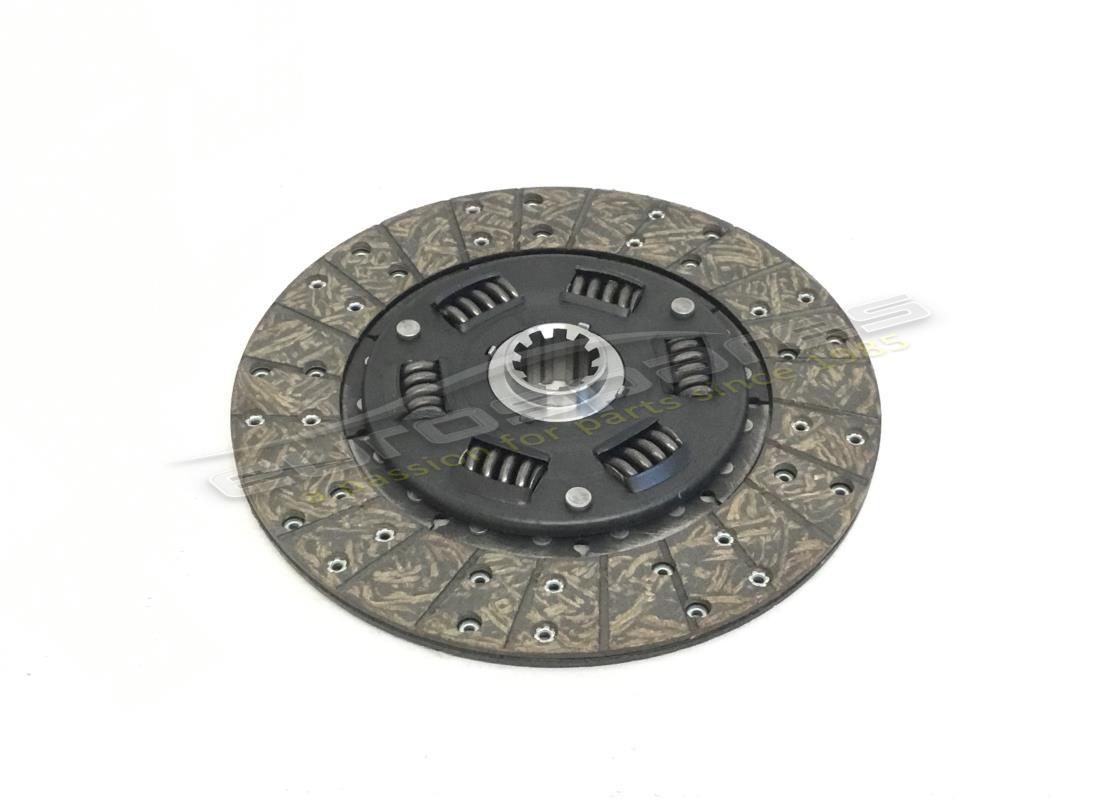

CLUTCH DISC
Replaces 110296
from £220.34
from £220.34
This part replaces part number 105709 - and 4 more. Click to view details
# 018
MPN: 13525821
BOLT
# 019
MPN: 109400

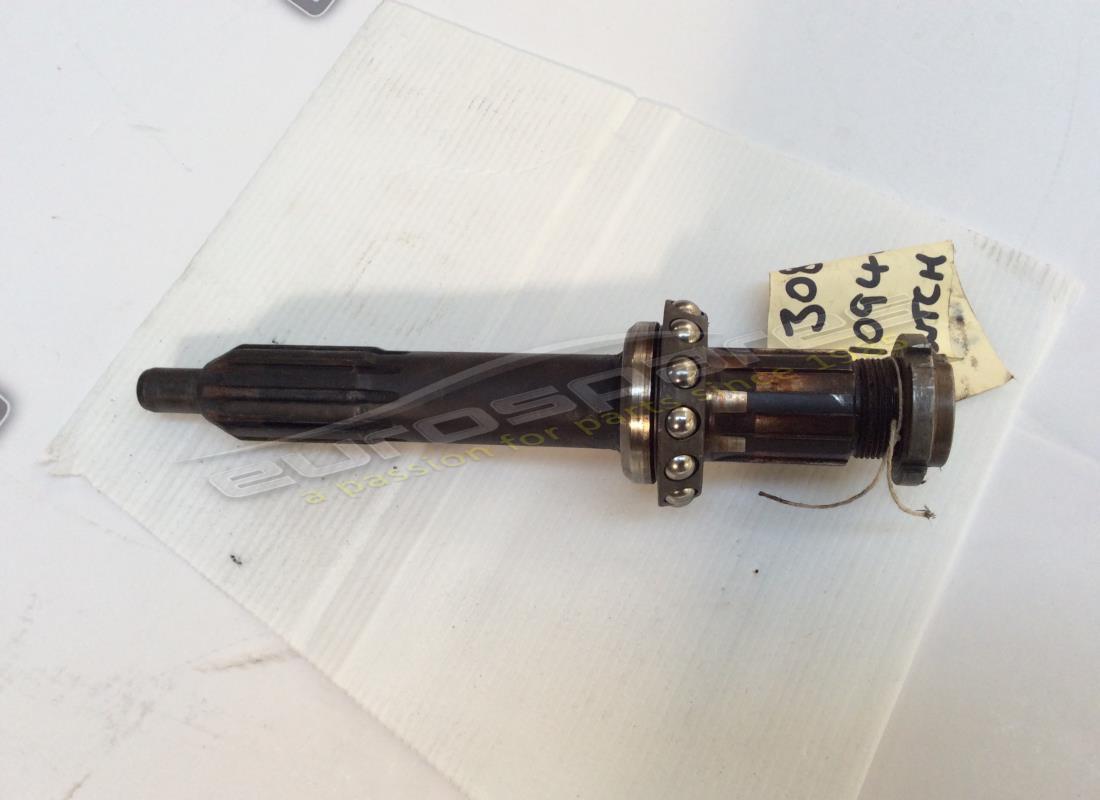

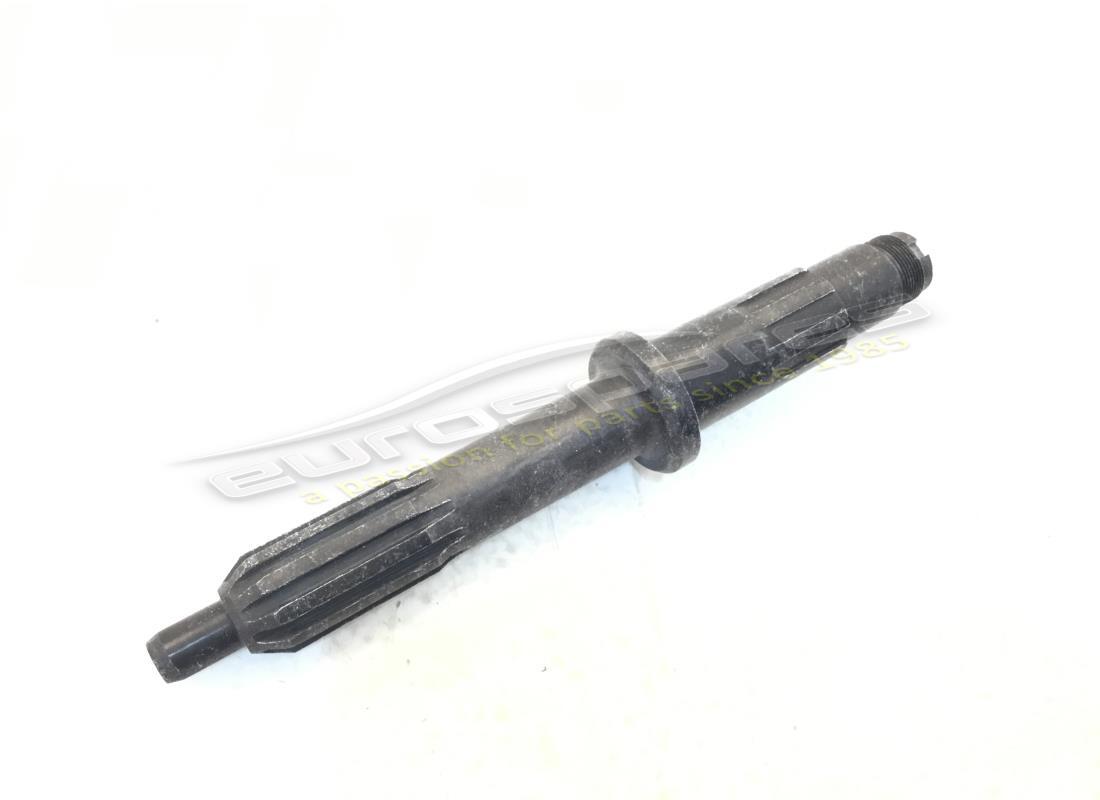

ALBERO FRIZIONE
from £577.50
from £577.50
This part replaces part number 105129 - and 2 more. Click to view details
# 020
MPN: 103042
BEARING
from £153.66
from £153.66
# 021
MPN: 134714

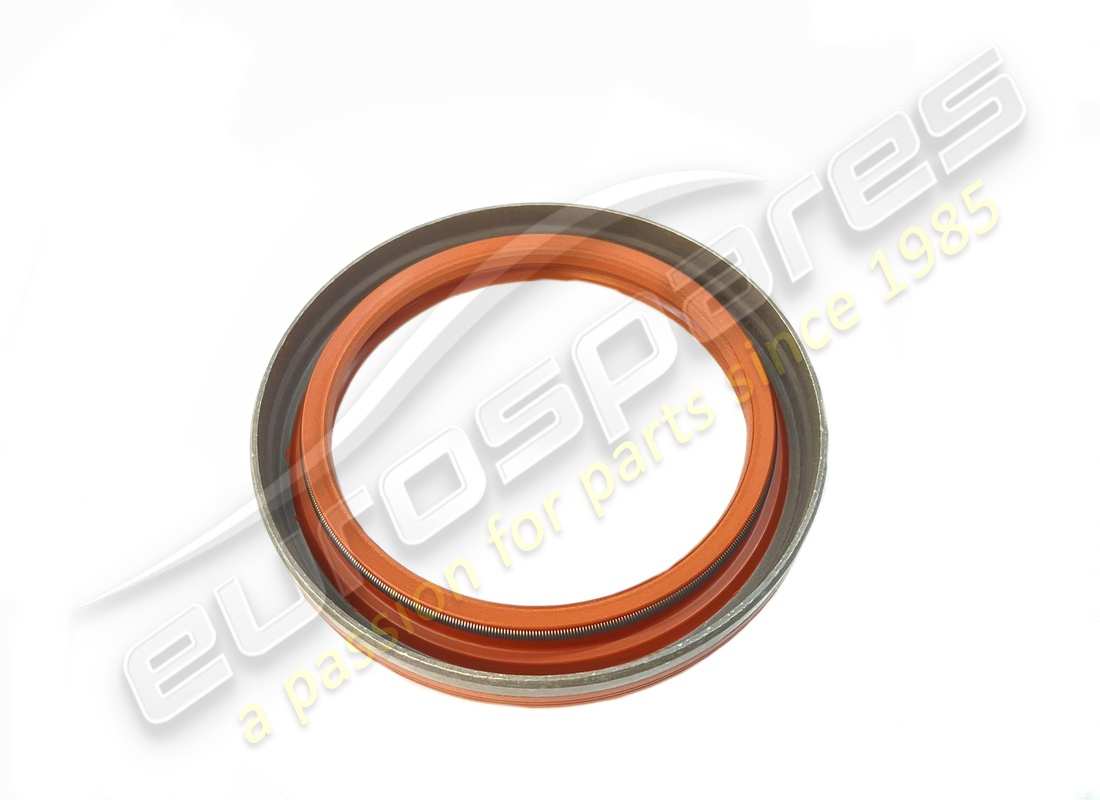

OIL SEALS
from £10.35
from £10.35
This part replaces part number 110314
# 022
MPN: 112399
FLANGIA CON MANICOTTO
from £126.78
from £126.78
# 023

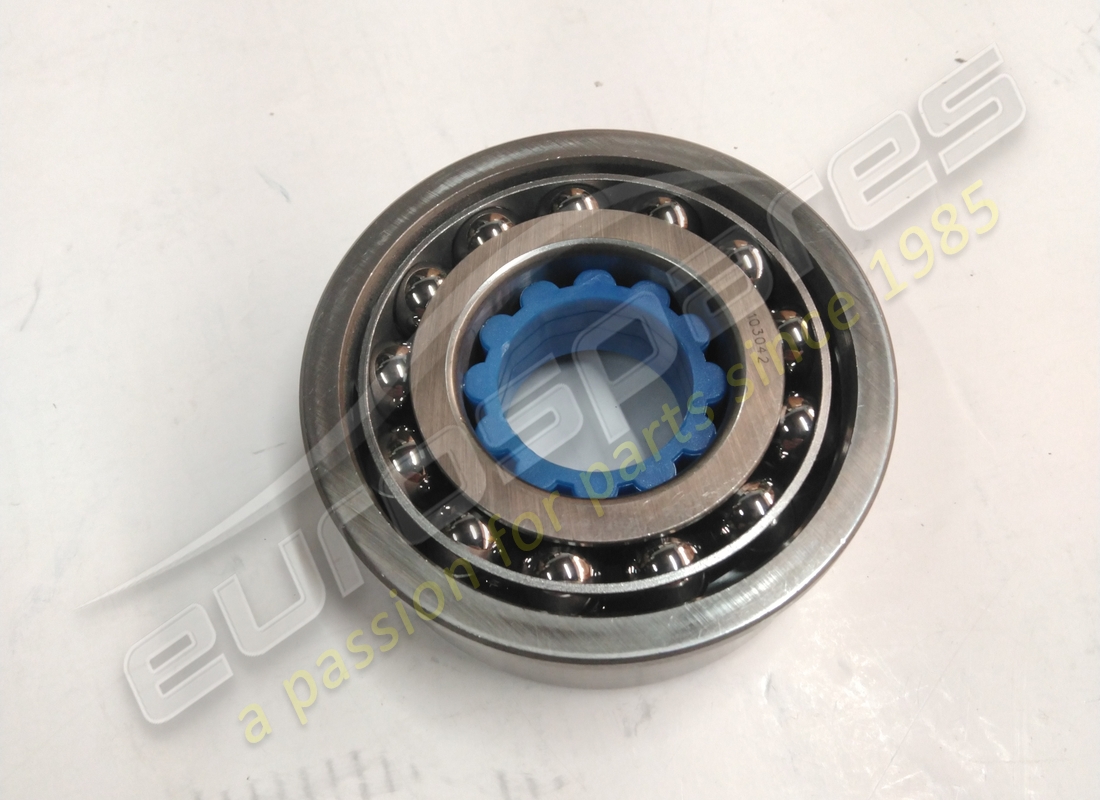

MPN: 100849

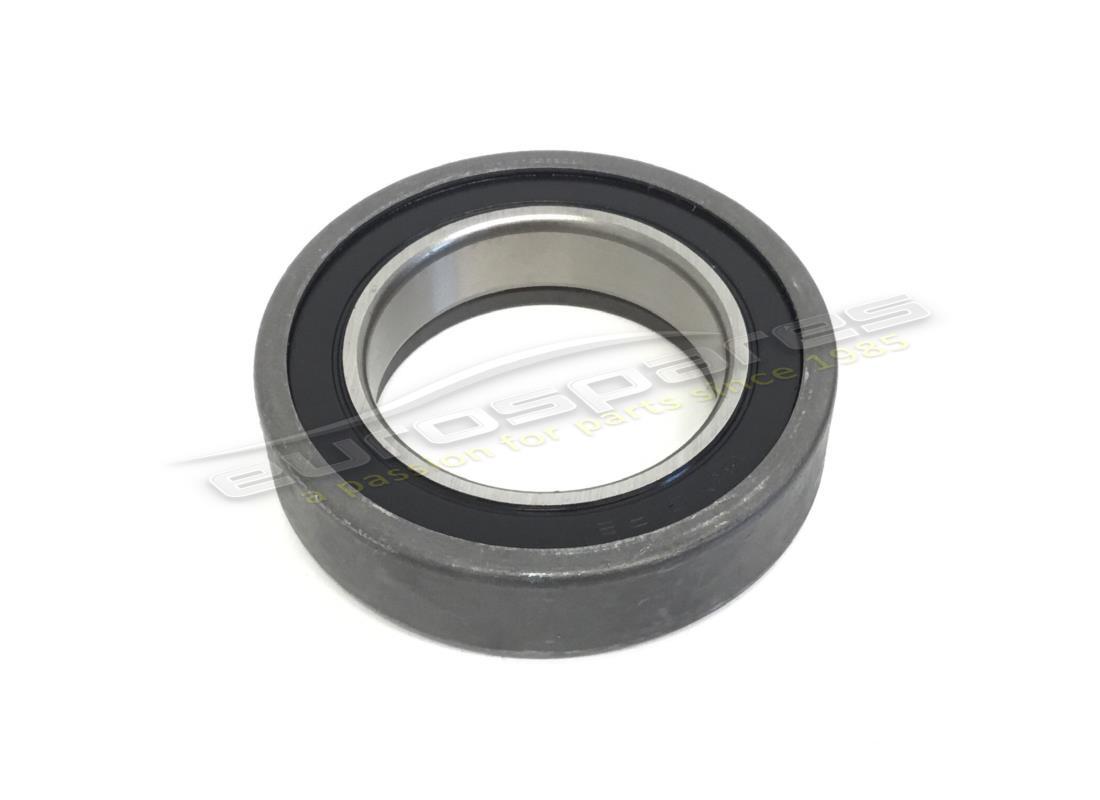

CUSCINETTO REGGISPINTA
from £45.00
from £45.00
This part replaces part number 100845 - and 3 more. Click to view details
# 024

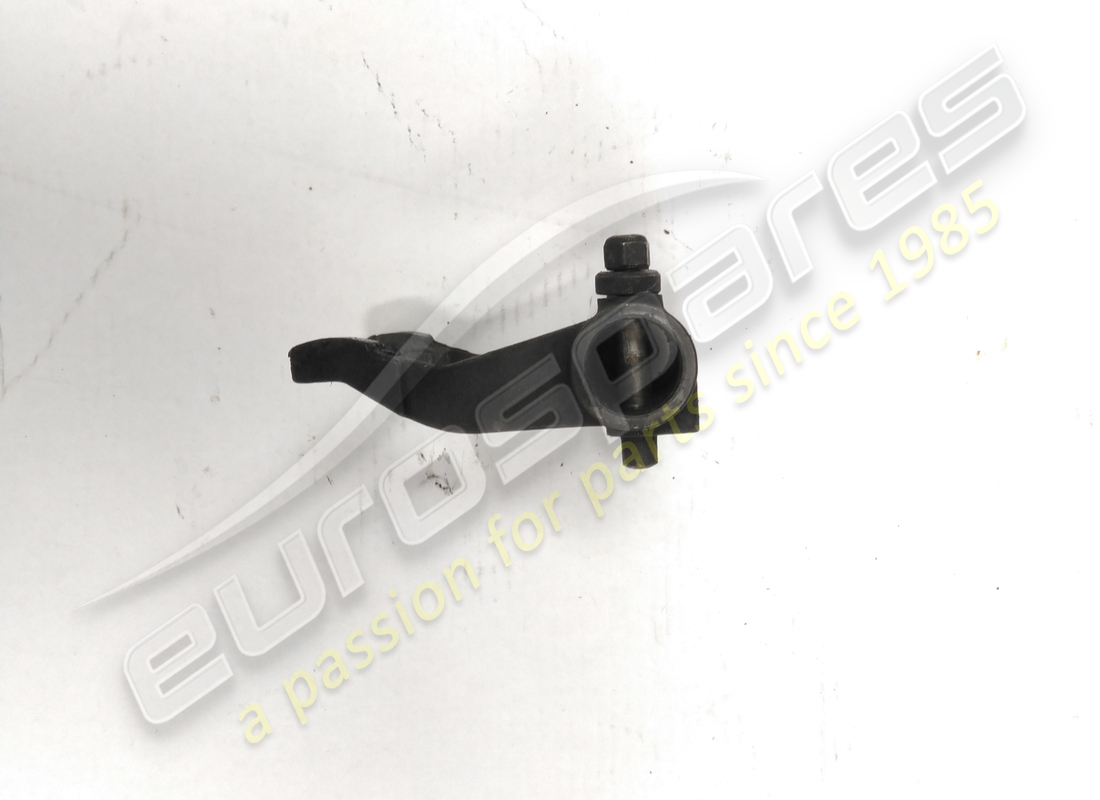

MPN: 108428
LEVER
Con I 'assieme n. 112398
from £871.24
from £871.24
# 025
MPN: 108429
PIN
from £44.52
from £44.52
# 026
MPN: 112398
ASSIEME LEVA E ALBERINO COMANDO FRIZIONE
from £387.73
from £387.73
# 027
MPN: 107924
BUSH
from £18.87
from £18.87
# 028
MPN: 107925
BUSH
from £16.65
from £16.65
# 029
MPN: 107926
BUSH
from £4.98
from £4.98
# 030
MPN: 109405
GASKET OR SEAL
from £9.48
from £9.48
# 031
MPN: 108430
WASHER
from £4.61
from £4.61
# 032
MPN: 12574121
NUT
Supersession
Supersession
This part replaces part number 12574111 - and 2 more. Click to view details
# 033
MPN: 112400
BUSH
Dopo esaurimento vale n. 116326
from £173.75
from £173.75
# 034
MPN: 100860
SNODOSFERICO
from £66.39
from £66.39
This part replaces part number SERIE SS6 - and 1 more. Click to view details
# 035
MPN: 108868
UNION
from £39.10
from £39.10
# 036
MPN: 107867

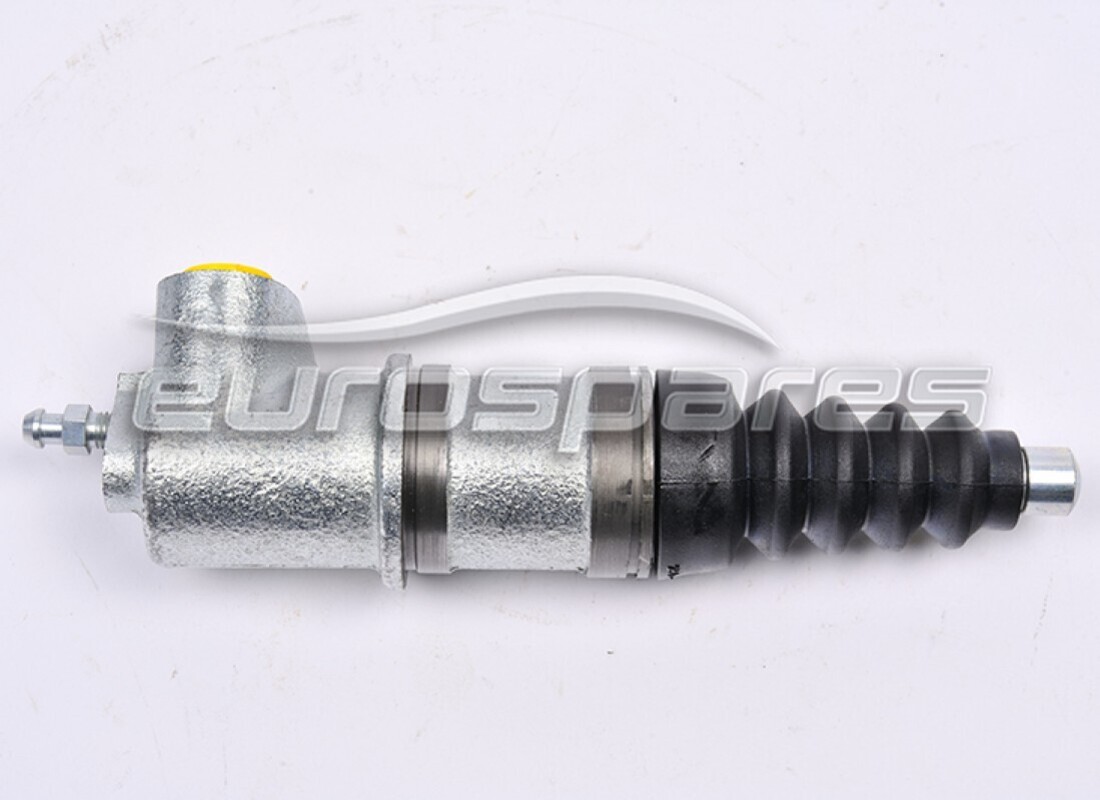

CLUTCH SLAVE CYLINDER Ø 13/16
from £211.85
from £211.85
This part replaces part number 111272 - and 1 more. Click to view details
# 037
MPN: 112293
SUPPORT
# 038
MPN: 109527
PUNTALINO
from £119.07
from £119.07
# 039
MPN: 11068475
SEEGER RING
Supersession
Supersession
# 040
MPN: 103218
PIVOT
from £16.94
from £16.94
This part replaces part number 100857 - and 1 more. Click to view details
# 041
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 042
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 043
MPN: 112895

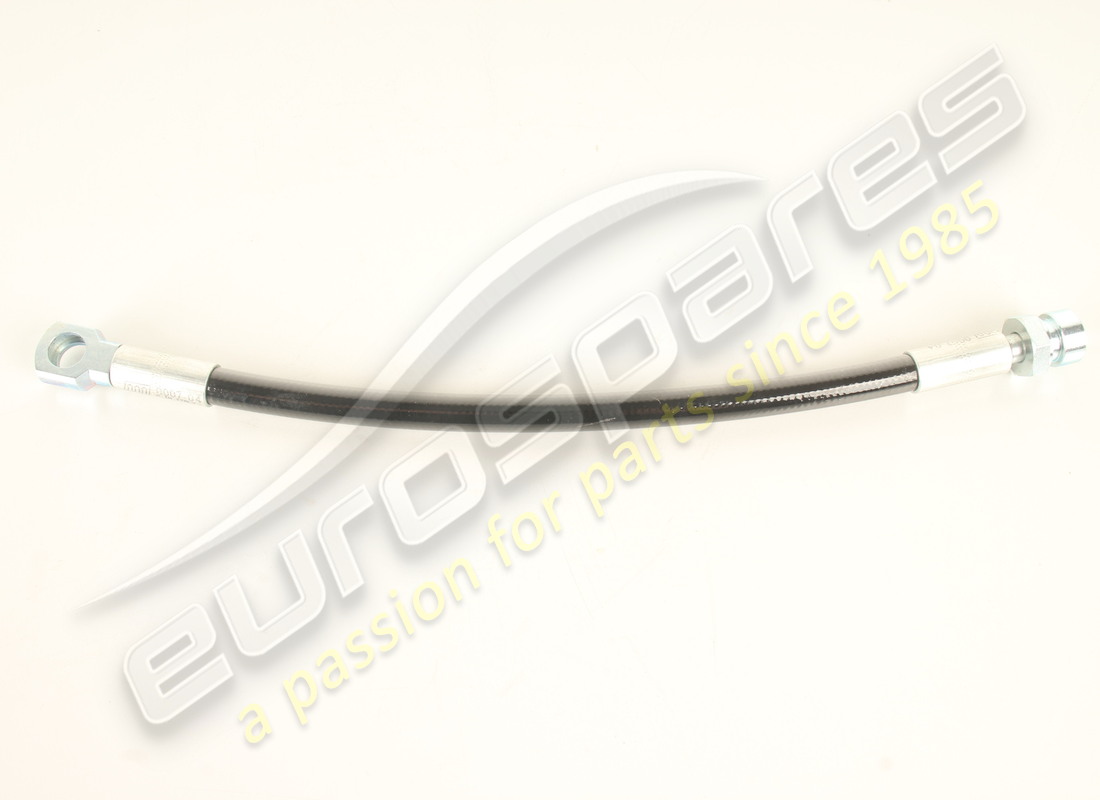

CLUTCH CONTROL HOSE
from £75.11
from £75.11
# 044
MPN: 108865
PIPE / TUBE / HOSE
from £170.27
from £170.27
This part replaces part number 4035953

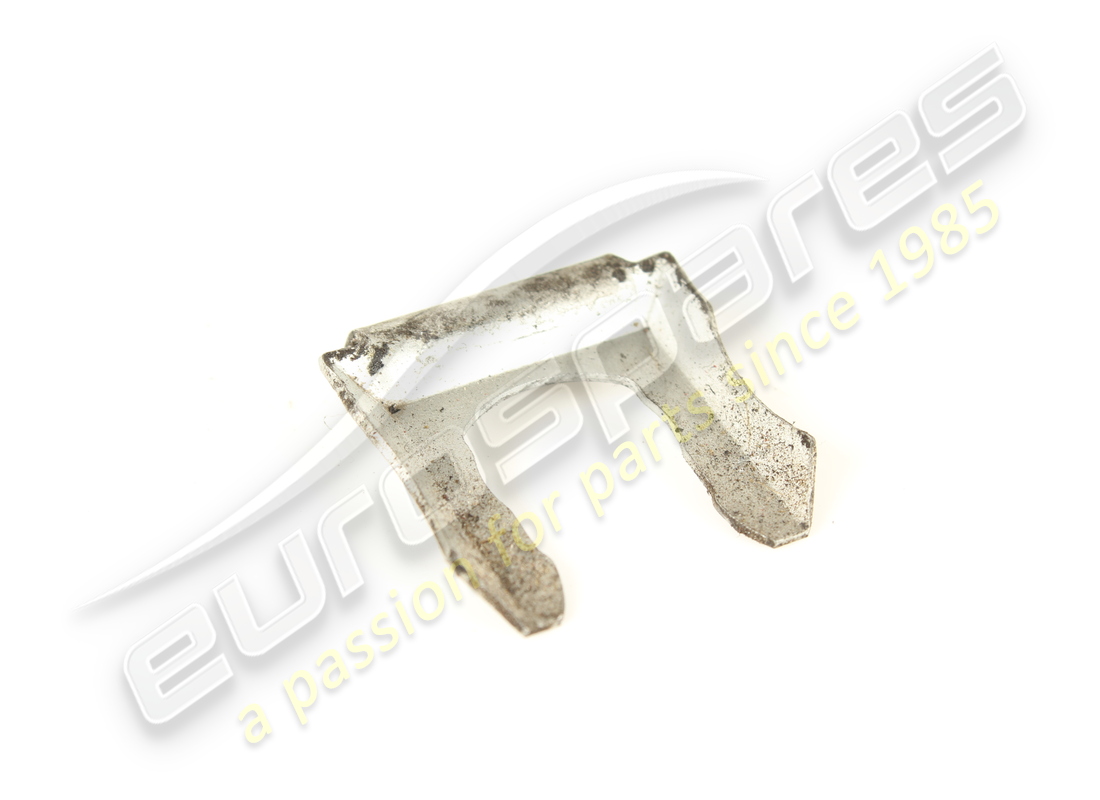

# 045
MPN: 110810
PLATE
from £1.40
from £1.40
This part replaces part number 994922
# 046
MPN: 111273
SPRING
from £8.91
from £8.91
# 047
MPN: 107867
CLUTCH SLAVE CYLINDER Ø 13/16
from £211.85
from £211.85
This part replaces part number 111272 - and 1 more. Click to view details
# 048
MPN: 111275
SEAL
from £65.17
from £65.17
# 049
MPN: 111277
SEEGER RING
from £0.98
from £0.98
# 050
MPN: 111276
SOFFIETTO
from £29.44
from £29.44
# 051
MPN: 115463
UNION
from £8.75
from £8.75
# 052
MPN: 102604
JUBILEE CLIP
Supersession
Supersession
# 053
MPN: 115366
TUBO SFIATO
from £17.85
from £17.85
