030 - Hand-Brake Control

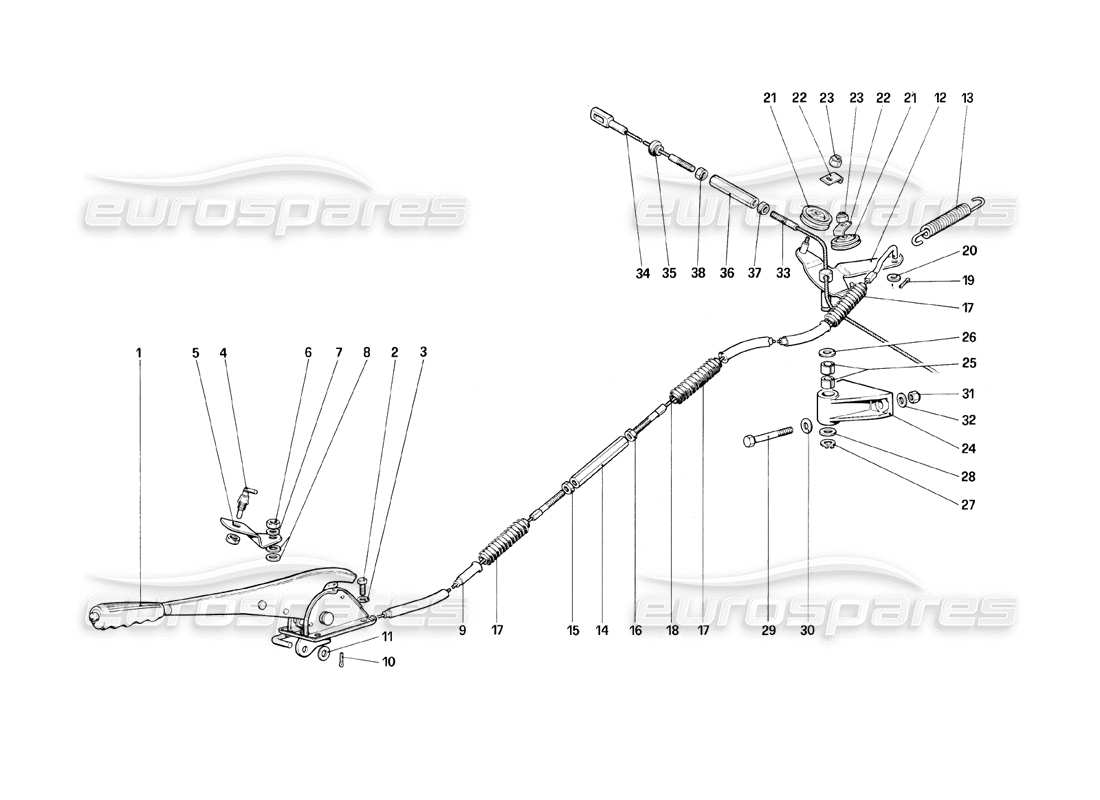

Ferrari Mondial 8 (1981) Hand-Brake Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 114313
LEVER
from £490.09
from £490.09
# 002
MPN: 10902121
SCREW
from £0.71
from £0.71
This part replaces part number 20146601
# 003
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 004
MPN: 114318
SWITCH
In alternativa n. 114319
from £9.41
from £9.41
This part replaces part number 114319
# 005
MPN: 114320
BRACKET / SUPPORT
Supersession
Supersession
This part replaces part number 114320 N/L/A
# 006
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 007
MPN: 12605270
WASHER
Supersession
Supersession
# 008
MPN: 10519301
WASHER
Di eventuale montaggio
from £12.79
from £12.79
This part replaces part number 10517377 - and 2 more. Click to view details
# 009
MPN: 116418
CAVO ANTERIORE
from £101.39
from £101.39
# 010
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 011
MPN: 12646701
WASHER
from £0.54
from £0.54
# 012
MPN: 115064
LEVER
Per GD vale n. 116537
from £44.10
from £44.10
# 013
MPN: 105260
SPRING
from £53.82
from £53.82
# 014
MPN: 10092511
SLEEVE
from £5.25
from £5.25
# 015
MPN: 16102311
RH THREAD LOCKNUT.
from £0.43
from £0.43
This part replaces part number 16102315
# 016
MPN: 16102911
CONTRODADO FILETTO SX.
Supersession
Supersession
# 017
MPN: 110947

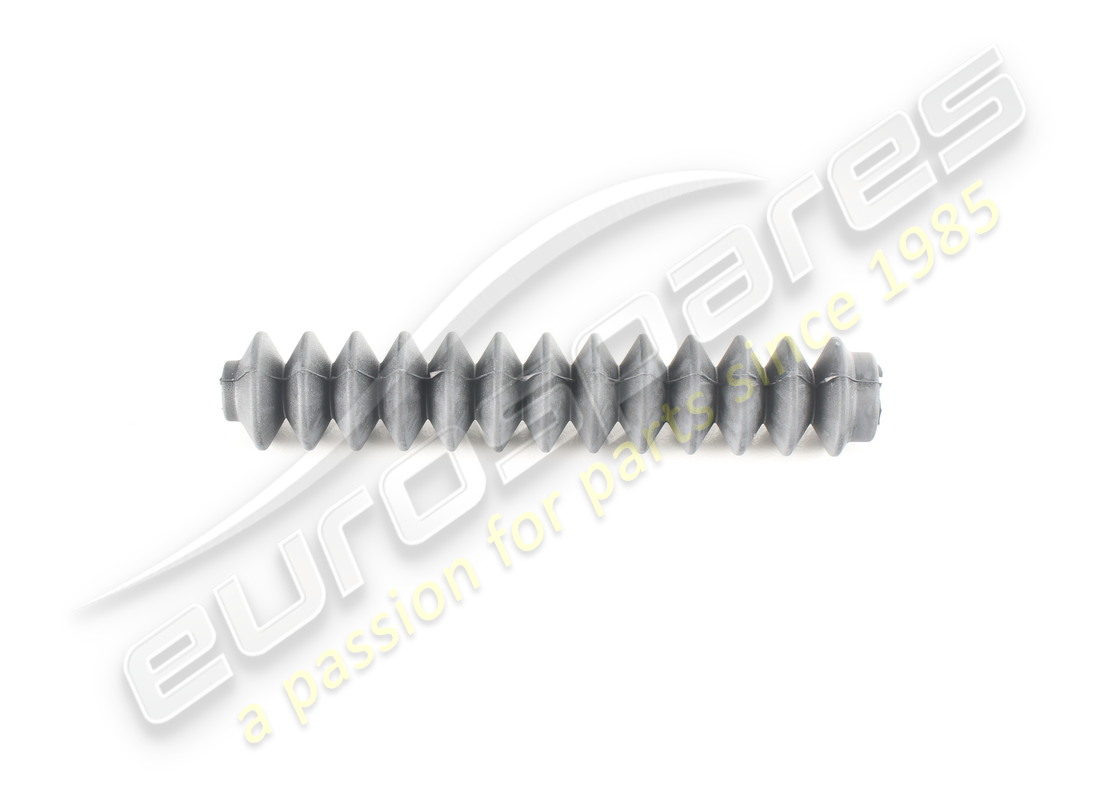

SOFFIETTO
from £32.71
from £32.71
# 018
MPN: 116419
CAVO POSTERIORE
Per GD vale n. 118162
from £33.76
from £33.76
# 019
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 020
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 021
MPN: 104006
CARRUCOLA
This part replaces part number 9182019
# 022
MPN: 105790
PLATE
from £7.80
from £7.80
This part replaces part number 40360802
# 023
MPN: 12574211
NUT
from £0.71
from £0.71
# 024
MPN: 106415
SUPPORT
from £95.52
from £95.52
# 025
MPN: 103227
BUSH
from £2.48
from £2.48
# 026
MPN: 106416
WASHER
from £1.35
from £1.35
# 027
MPN: 11066476
SEEGER RING
from £0.47
from £0.47
# 028
MPN: 106416
WASHER
from £1.35
from £1.35
# 029
MPN: 16044621
SCREW
from £0.71
from £0.71
# 030
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 031
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 032
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 033
MPN: 112854
REAR CABLE LONG
from £87.34
from £87.34
# 034
MPN: 112855
REAR CABLE SHORT
from £75.86
from £75.86
# 035
MPN: 105794
CABLE GROMMET
from £9.50
from £9.50
This part replaces part number 680876
# 036
MPN: 10091014
SLEEVE
from £46.19
from £46.19
This part replaces part number 10091011
# 037
MPN: 10725911
RH THREAD LOCKNUT.
Supersession
Supersession
This part replaces part number 95900403
# 038
MPN: 10727311
CONTRODADO FILETTO SX.
Supersession
Supersession
This part replaces part number 95560
