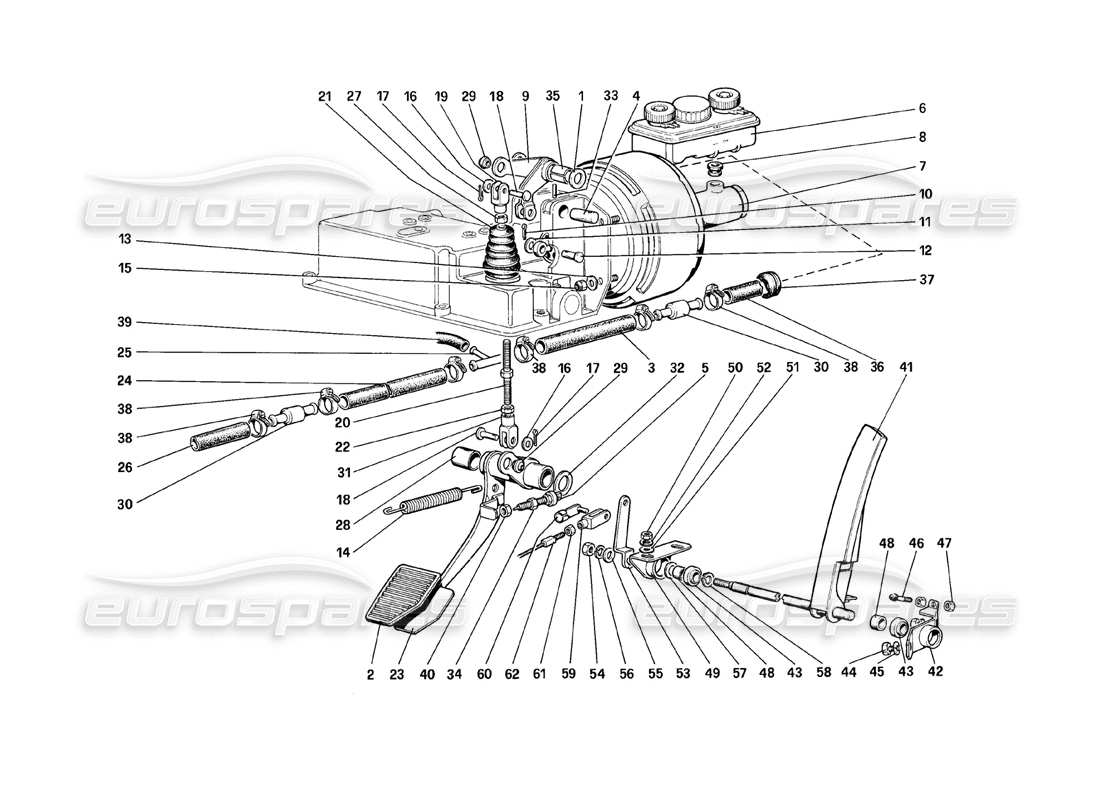

043 - Throttle Control and Brake Hydraulic System (Variants for RHD Versions)
Ferrari Mondial 8 (1981) Throttle Control and Brake Hydraulic System (Variants for RHD Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 112126
WASHER
from £0.47
from £0.47
# 002
MPN: 106950
GOMMINO COPRIPEDALE
from £11.63
from £11.63
# 003
MPN: 111023
PIPE FROM VALVE TO 3 WAY
from £50.87
from £50.87
# 004
MPN: 112165
PIVOT SUPPORT
from £10.01
from £10.01
# 005
MPN: 101663
STOP LIGHT SWITCH (2 TERMINALS)
from £23.05
from £23.05
This part replaces part number 4177124 - and 13 more. Click to view details
# 006
MPN: 108802/A
BRAKE RESERVOIR
(Benditalia)
from £74.27
from £74.27
This part replaces part number 119566 which we have in stock - and 1 more. Click to view details
# 006
MPN: 108802/B
BRAKE RESERVOIR FLOAT KIT
# 007
MPN: 151471
LHD BRAKE SERVO & PUMP
from £1,200.00
from £1,200.00
This part replaces part number 133568 - and 7 more. Click to view details
# 008
MPN: 175189
SEALING RING
from £12.93
from £12.93
This part replaces part number 106625
# 009
MPN: 116884
LEVER
from £262.61
from £262.61
# 010
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 011
MPN: 10730521
WASHER
from £2.78
from £2.78
This part replaces part number 10730501 which we have in stock
# 012
MPN: 10033411
PIVOT
from £42.00
from £42.00
This part replaces part number 10033441 - and 3 more. Click to view details
# 013
MPN: 12601371
WASHER
Supersession
Supersession
# 014
MPN: 104895
SPRING
from £3.06
from £3.06
# 015
MPN: 16104411
NUT
from £0.53
from £0.53
# 016
MPN: 103167
WASHER
from £1.96
from £1.96
# 017
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 018
MPN: 10033411
PIVOT
from £42.00
from £42.00
This part replaces part number 10033441 - and 3 more. Click to view details
# 019
MPN: 104910
FORK (RH THREAD)
from £4.22
from £4.22
# 020
MPN: 112178
TIE ROD
from £21.73
from £21.73
# 021
MPN: 112157
SOFFIETTO
from £0.50
from £0.50
# 022
MPN: 103157
NUT
from £1.05
from £1.05
# 023
MPN: 113829
PEDALE FRENO
from £218.14
from £218.14
# 024
MPN: 117253
PIPE FROM 3 WAY TO REAR VALVE
from £113.83
from £113.83
# 025
MPN: 117759
TRE VIE
from £24.05
from £24.05
# 026
MPN: 107982
SERVO HOSE
from £7.84
from £7.84
This part replaces part number 107041 - and 1 more. Click to view details
# 027
MPN: 103160
NUT
from £1.16
from £1.16
# 028
MPN: 103163
BUSH
from £2.99
from £2.99
# 029
MPN: 100424
SNODO SFERICO
from £62.27
from £62.27
# 030
MPN: 128435
VALVOLA NON RITORNO
from £148.52
from £148.52
This part replaces part number 101538 - and 3 more. Click to view details
# 031
MPN: 104911
FORK (LH THREAD)
from £10.33
from £10.33
# 032
MPN: 106083
WASHER
from £0.71
from £0.71
# 033
MPN: 112166
SPIROL
from £0.51
from £0.51
# 034
MPN: 10791211
NUT
from £0.47
from £0.47
This part replaces part number 10791215 - and 1 more. Click to view details
# 035
MPN: 112161
BUSH
from £12.06
from £12.06
# 036
MPN: 110748
TUBO DAL SERVOFRENO ALLA VALVOLA NON RITORNO
from £38.89
from £38.89
# 037
MPN: 10396880
CABLE GROMMET
from £2.42
from £2.42
# 038
MPN: 13000390
JUBILEE CLIP
from £0.48
from £0.48
This part replaces part number 12179590 - and 1 more. Click to view details
# 039
MPN: 111463
AIR CONDITIONING SYSTEM VACUUM SOCKET
from £156.83
from £156.83
# 040
MPN: 101662
NUT
from £2.53
from £2.53
This part replaces part number 660523
# 041
MPN: 116522
PEDALE ACCELERATORE
from £221.39
from £221.39
# 042
MPN: 116526
SUPPORT
from £44.82
from £44.82
# 043
MPN: 107620
SNODO
from £30.87
from £30.87
# 044
MPN: 16043221
SCREW
from £0.54
from £0.54
This part replaces part number 13842414 - and 1 more. Click to view details
# 045
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 046
MPN: 116527
SCREW
from £7.19
from £7.19
# 047
MPN: 16102311
NUT
from £0.45
from £0.45
This part replaces part number 16102315
# 048
MPN: 116529
SPACER
from £7.06
from £7.06
# 049
MPN: 116528
SUPPORT
from £43.20
from £43.20
# 050
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 051
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 4 more. Click to view details
# 052
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 053
MPN: 115399
LEVER
from £11.86
from £11.86
# 054
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 055
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 056
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 057
MPN: 105929
WASHER
from £0.73
from £0.73
# 057
MPN: 105930
IDEM SPESSORE MM. 0,5
from £1.69
from £1.69
# 057
MPN: 105931
IDEM SPESSORE MM. 0,7
from £0.54
from £0.54
# 058
MPN: 11066075
SEEGER RING
Supersession
Supersession
# 059
MPN: 100655
FORK
from £56.31
from £56.31
This part replaces part number 550015 - and 2 more. Click to view details
# 060
MPN: 100656
PIVOT
from £2.25
from £2.25
# 061
MPN: 10725911
NUT
Supersession
Supersession
This part replaces part number 95900403
# 062
MPN: 116521
CAVO COMANDO ACCELERATORE
from £67.19
from £67.19
