D.29 - COMPLETE WHEELS
Ferrari Portofino M COMPLETE WHEELS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

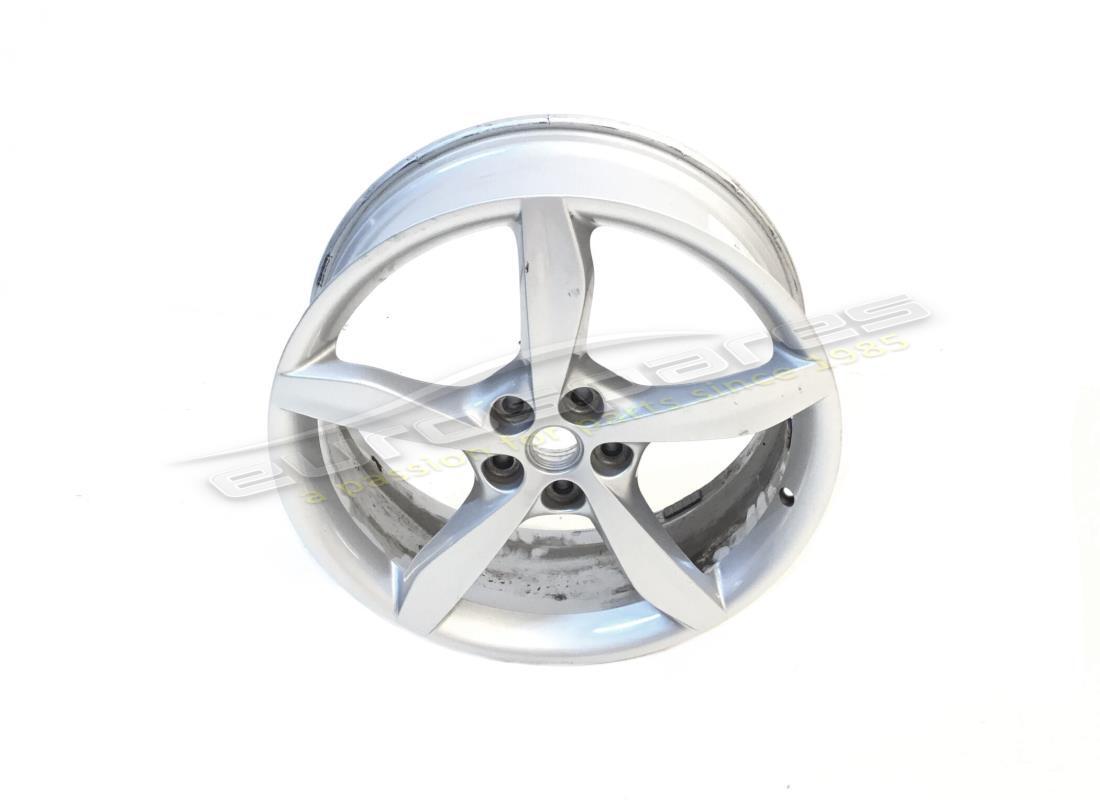

# 001
MPN: 336550

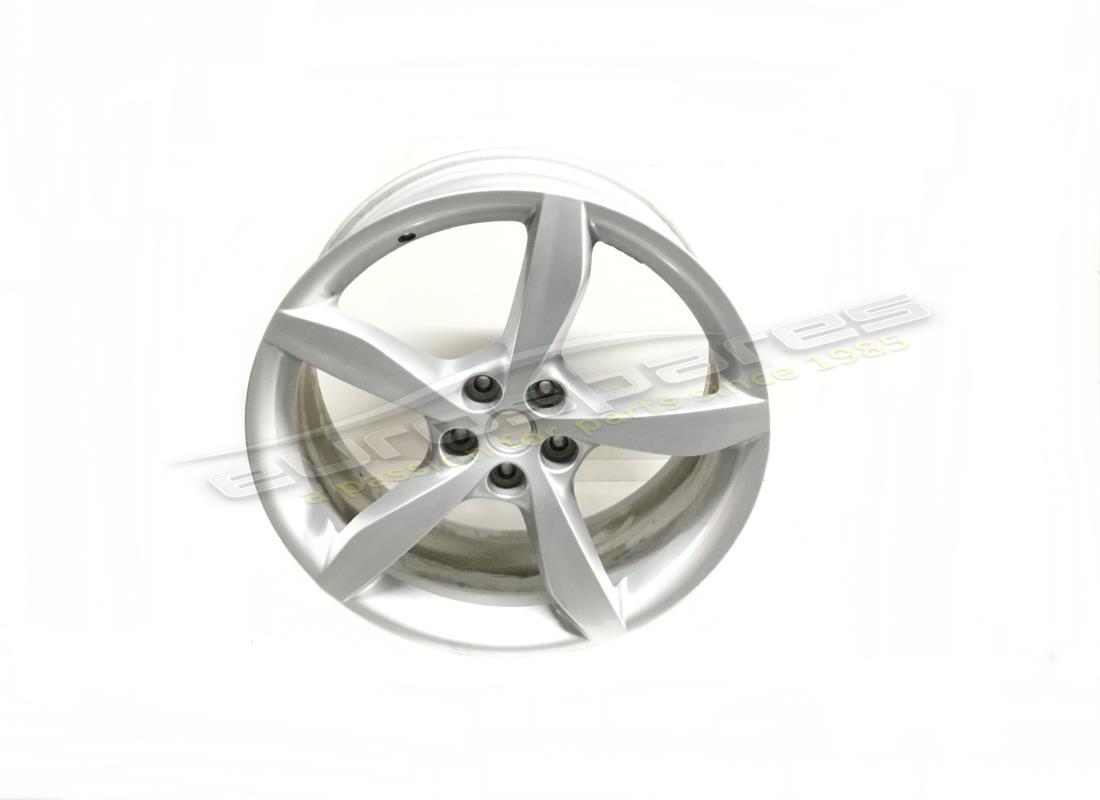

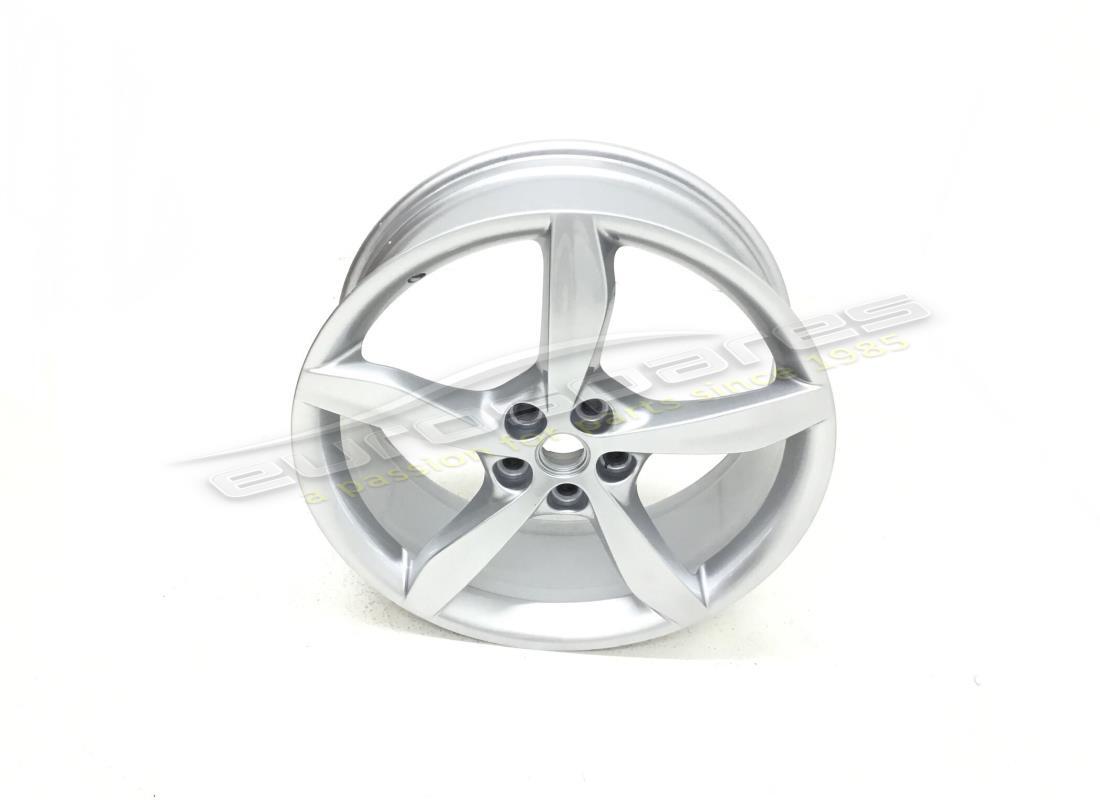

FRONT WHEEL
| See box A - Modis code STANDARD |
from £704.83
from £704.83
# 001
MPN: 336551
REAR WHEEL
| See box A - Modis code STANDARD |
from £392.90
from £392.90
# 001
MPN: 336560
FRONT WHEEL
| Matte Corsa grey paint finish cast - See box C - Modis code RMSC |
from £1,008.84
from £1,008.84
# 001
MPN: 336561
REAR WHEEL
| Matte Corsa grey paint finish cast - See box C - Modis code RMSC |
from £1,065.87
from £1,065.87
# 001
MPN: 336562
FRONT WHEEL
| Cast, chrome paint finish - See box B - Modis code RICS |
from £593.19
from £593.19
# 001
MPN: 336563
REAR WHEEL
| Cast, chrome paint finish - See box B - Modis code RICS |
from £1,109.90
from £1,109.90
# 001
MPN: 70006529
FRONT WHEEL
| 8J X 20 |
from £2,862.75
from £2,862.75
# 001
MPN: 70006531
REAR WHEEL
| 10J X 20 |
from £2,918.51
from £2,918.51
# 001
MPN: 855336
FRONT WHEEL
| Forged painted silver - See box D - Modis code RMSV |
from £2,073.44
from £2,073.44
This part replaces part number 336552
# 001
MPN: 855337
REAR WHEEL
| Forged painted silver - See box D - Modis code RMSV |
from £2,149.24
from £2,149.24
This part replaces part number 336553
# 001
MPN: 855338
FRONT WHEEL
| Forged painted matt Corsa grey - See box E - Modis code RIFS |
from £2,186.70
from £2,186.70
This part replaces part number 336564
# 001
MPN: 855339
REAR WHEEL
| Forged painted matt Corsa grey - See box E - Modis code RIFS |
from £2,224.16
from £2,224.16
This part replaces part number 336565
# 001
MPN: 855340
FRONT WHEEL

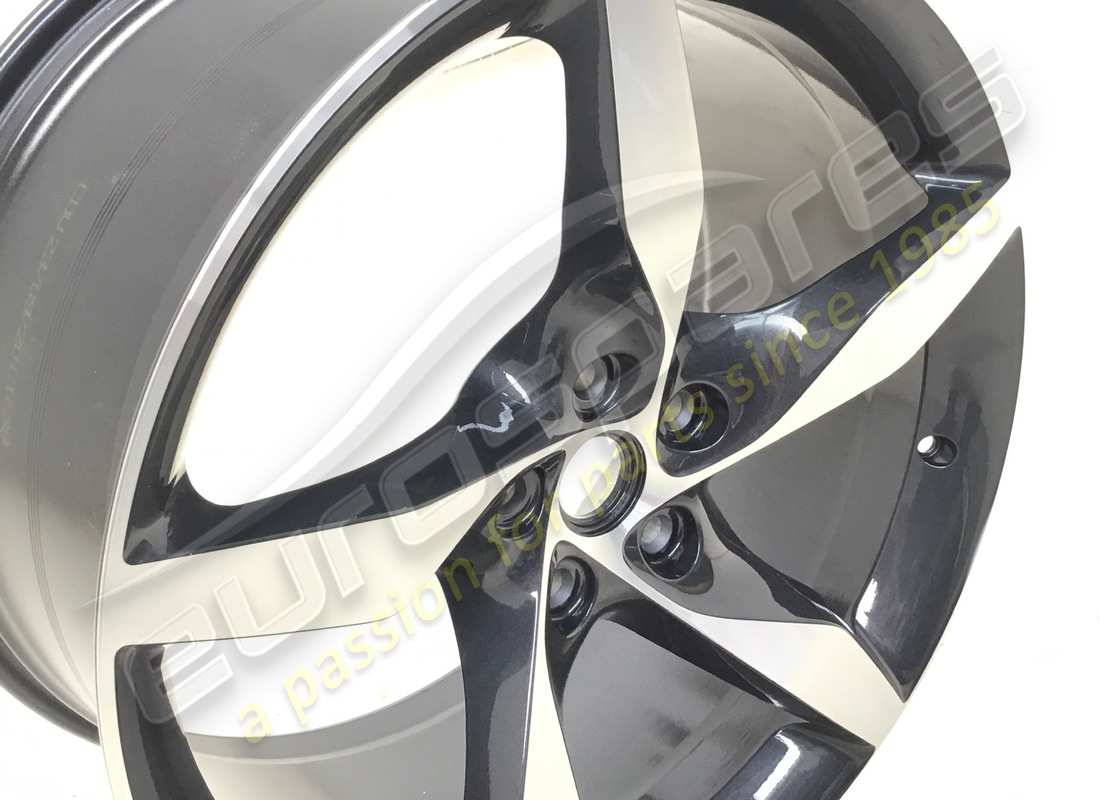

| Forged, diamond cut - See box F - Modis code RSFD |
from £1,260.18
from £1,260.18
This part replaces part number 336566 - and 2 more. Click to view details
# 001
MPN: 855341
REAR WHEEL
| Forged, diamond cut - See box F - Modis code RSFD |
from £1,301.39
from £1,301.39
This part replaces part number 336567 - and 3 more. Click to view details
# 001
MPN: 965809
LH FRONT WHEEL
| Forged, rotor style - See box G - Modis code RSVD |
from £3,533.58
from £3,533.58
# 001
MPN: 965810
LH REAR WHEEL
| Forged, rotor style - See box G - Modis code RSVD |
from £3,595.43
from £3,595.43
# 001
MPN: 965811
RH FRONT WHEEL
| Forged, rotor style - See box G - Modis code RSVD |
from £1,943.47
from £1,943.47
# 001
MPN: 965812
RH REAR WHEEL
| Forged, rotor style - See box G - Modis code RSVD |
from £2,696.57
from £2,696.57
# 002
-
HUB CAP
| Not available as spare part |
# 002
MPN: 340066
HUB CAP
from £16.03
from £16.03
This part replaces part number 226245
# 003
MPN: 11096693
ADHESIVE WHEEL BALANCER WEIGHT
from £6.45
from £6.45
# 004
MPN: 314818
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
| No longer supplied - Replaced by 777770 | | Not applicable for: J-GS, J-GD |
from £113.30
from £113.30
# 004
MPN: 314818
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
| Applicable after depletion of 777770 | | Not applicable for: J-GD, J-GS |
from £113.30
from £113.30
# 004
MPN: 314821
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
| Applicable for: J-GD, J-GS |
from £127.15
from £127.15
# 004
MPN: 314821
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
| No longer supplied - Replaced by 777804 | | Applicable for: J-GS, J-GD |
from £127.15
from £127.15
# 004
MPN: 777770
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
| Applies until depletion | | Not applicable for: J-GD, J-GS |
from £111.79
from £111.79
This part replaces part number 314818 which we have in stock
# 004
MPN: 777804
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR
| No longer supplied - Replaced by 314821 | | Applicable for: J-GD, J-GS |
from £111.79
from £111.79
This part replaces part number 314821
# 005
MPN: 185328
VALVE
from £6.06
from £6.06
# 005
MPN: 913102
VALVE
from £8.67
from £8.67
# 006
MPN: 803384
WHEEL STUD BOLT
from £9.86
from £9.86
This part replaces part number 247702 which we have in stock - and 4 more. Click to view details
# 007
-
FRONT TYRE
| Check available tyres for this vehicle from DAD platform |
# 007
-
REAR TYRE
| Check available tyres for this vehicle from DAD platform |
