ferrari purosangue exhaust system - rear parts diagram

0058 - EXHAUST SYSTEM - REAR

Ferrari Purosangue EXHAUST SYSTEM - REAR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 902424
                                                              COMPL. RH REAR EXTENSION
                                                              from £197.65
                                                              from £197.65
                                                              # 002
                                                              MPN: 902428
                                                              COMPL. LH REAR EXTENSION
                                                              from £197.65
                                                              from £197.65
                                                              # 003
                                                              -
                                                              COMPL. RH EXHAUST SILENCER
                                                              | Black sports tailpipe tips | | No longer supplied - Replaced by 870457 |
                                                              # 003
                                                              -
                                                              COMPL. RH EXHAUST SILENCER
                                                              | No longer supplied - Replaced by 857055 |
                                                              # 003
                                                              -
                                                              COMPL. RH EXHAUST SILENCER
                                                              | Titanium sports tailpipe tips | | No longer supplied - Replaced by 870454 |

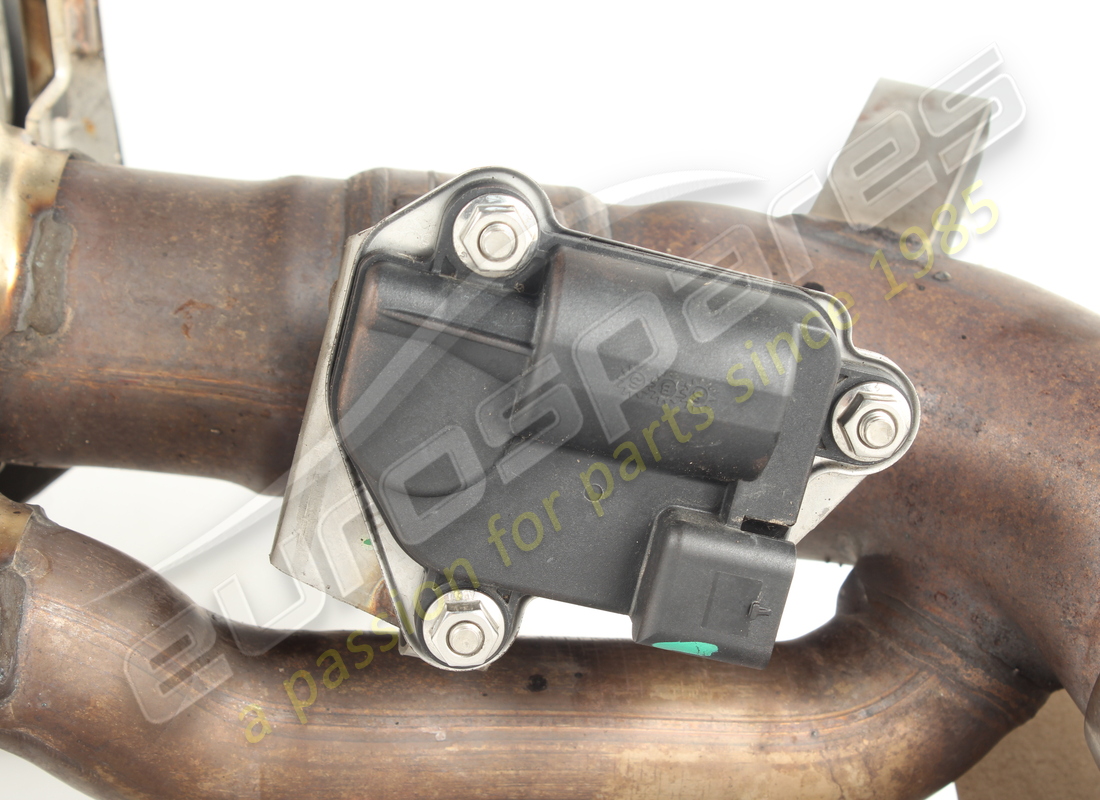

                                                              # 003
                                                              MPN: 857055

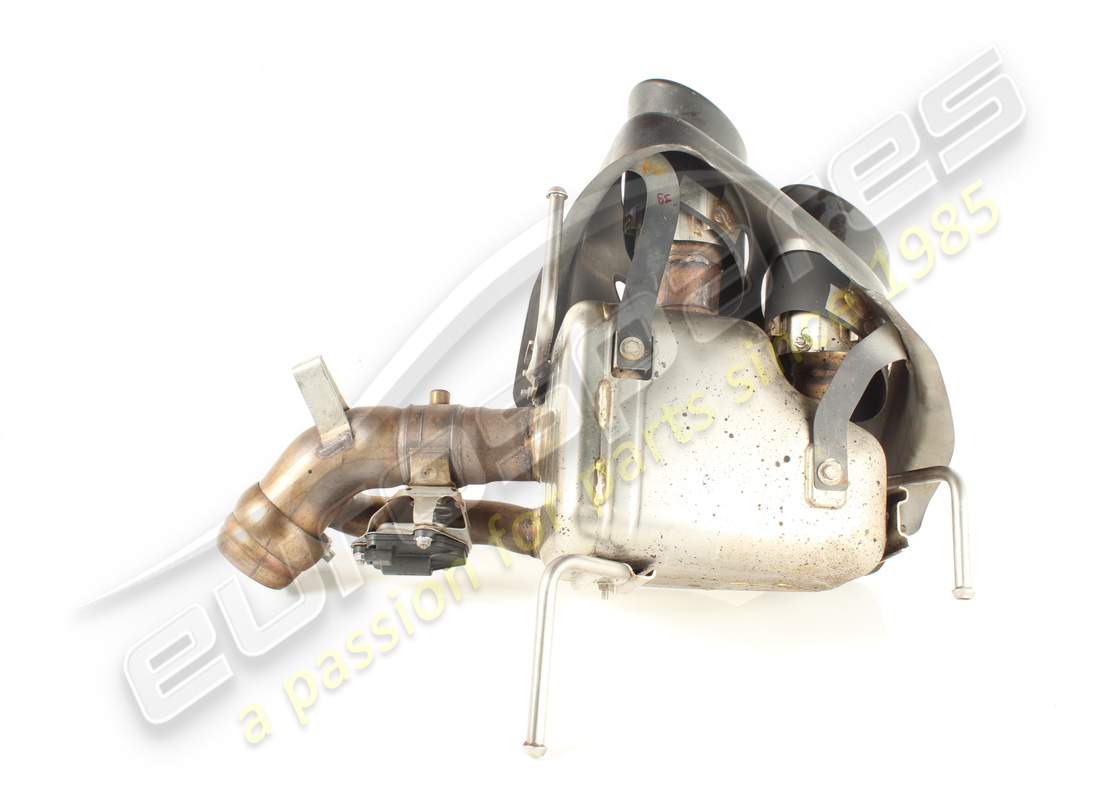

                                                              COMPL. RH EXHAUST SILENCER
                                                              from £3,773.37
                                                              from £3,773.37
                                                              # 003
                                                              MPN: 870454
                                                              COMPL. RH EXHAUST SILENCER
                                                              | Titanium sports tailpipe tips |
                                                              from £3,773.37
                                                              from £3,773.37
                                                              # 003
                                                              MPN: 870457
                                                              COMPL. RH EXHAUST SILENCER
                                                              | Black sports tailpipe tips |
                                                              from £2,075.35
                                                              from £2,075.35
                                                              # 004
                                                              -
                                                              COMPL.LH EXHAUST SILENCER
                                                              | Black sports tailpipe tips | | No longer supplied - Replaced by 870458 |
                                                              # 004
                                                              -
                                                              COMPL.LH EXHAUST SILENCER
                                                              | No longer supplied - Replaced by 857061 |
                                                              # 004
                                                              -
                                                              COMPL.LH EXHAUST SILENCER
                                                              | Titanium sports tailpipe tips | | No longer supplied - Replaced by 870456 |
                                                              # 004
                                                              MPN: 857061
                                                              COMPL.LH EXHAUST SILENCER
                                                              from £3,773.37
                                                              from £3,773.37
                                                              # 004
                                                              MPN: 870456
                                                              COMPL.LH EXHAUST SILENCER
                                                              | Titanium sports tailpipe tips |
                                                              from £3,773.37
                                                              from £3,773.37
                                                              # 004
                                                              MPN: 870458
                                                              COMPL.LH EXHAUST SILENCER
                                                              | Black sports tailpipe tips |
                                                              from £2,075.35
                                                              from £2,075.35

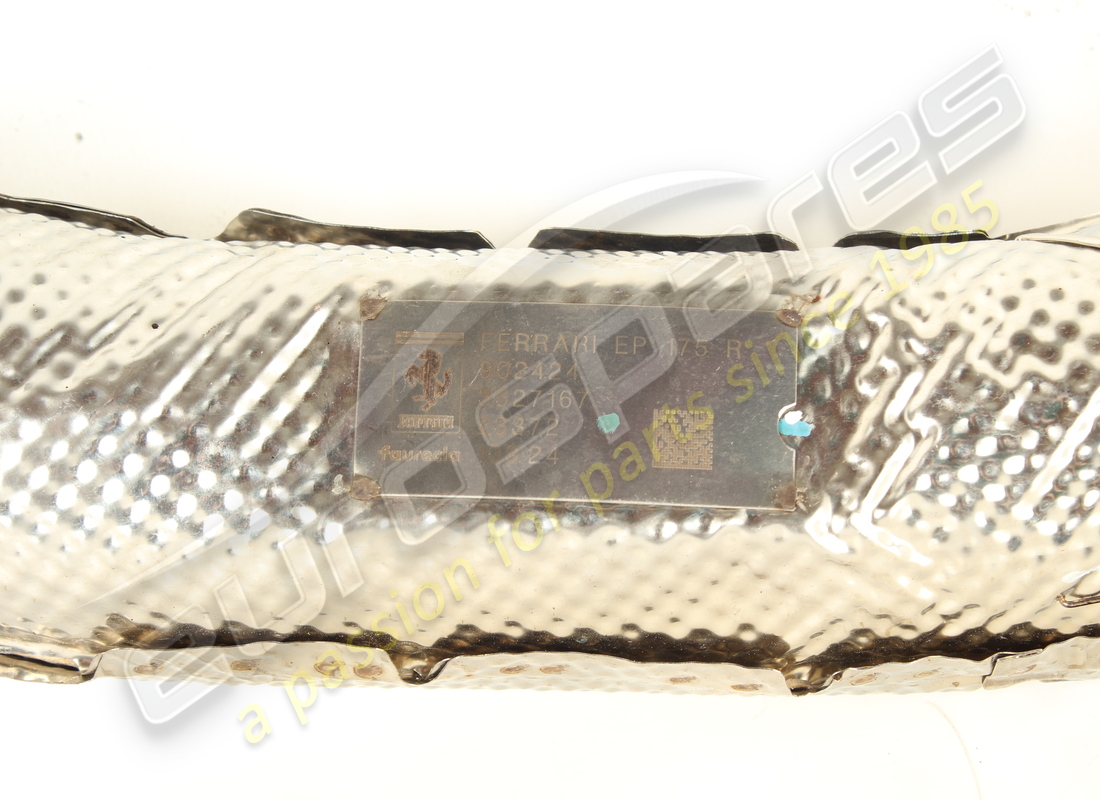

                                                              # 005
                                                              MPN: 861130

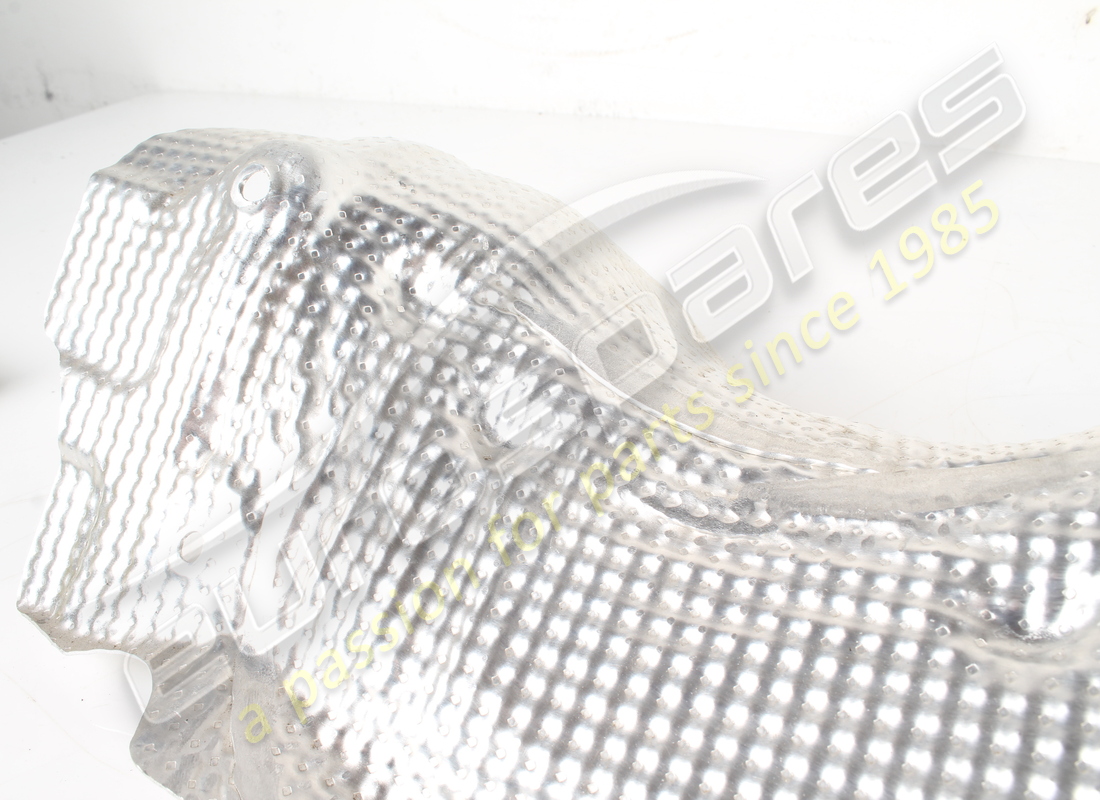

                                                              COMPL. RH GEARBOX HEAT SHIELD
                                                              from £72.67
                                                              from £72.67
                                                              # 006
                                                              MPN: 861336

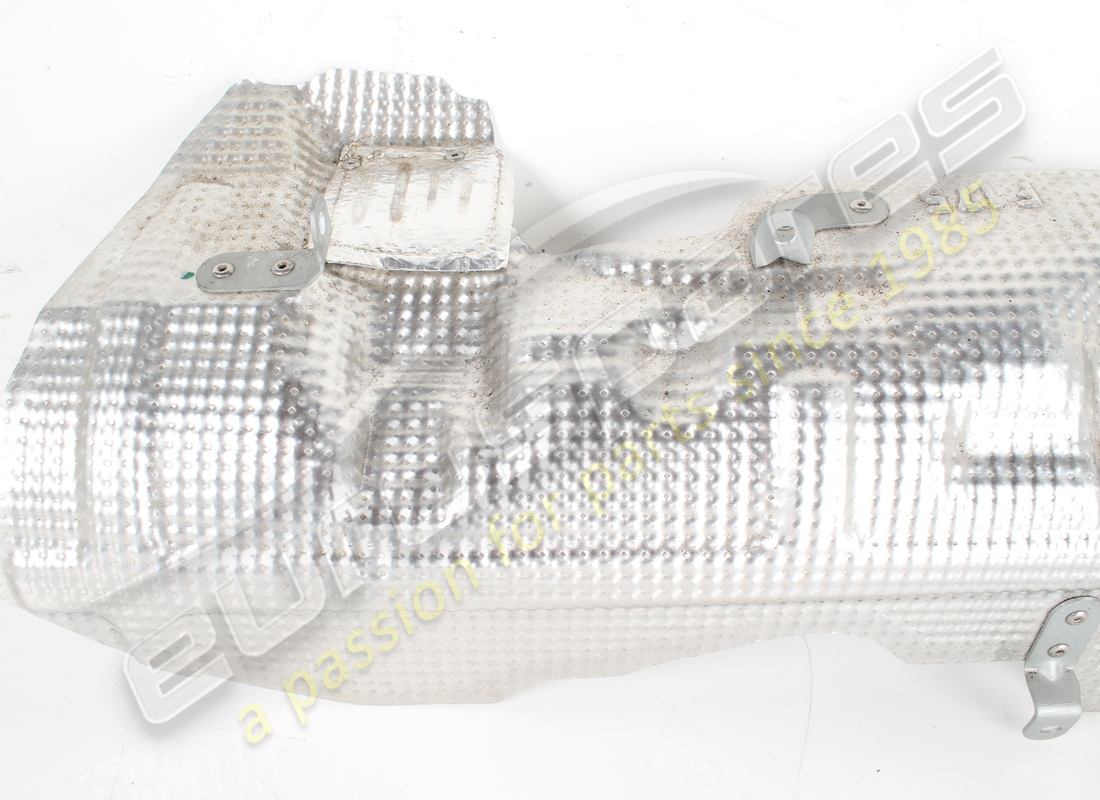

                                                              COMPL. LH GEARBOX HEAT SHIELD
                                                              from £81.88
                                                              from £81.88
                                                              # 007
                                                              MPN: 985134

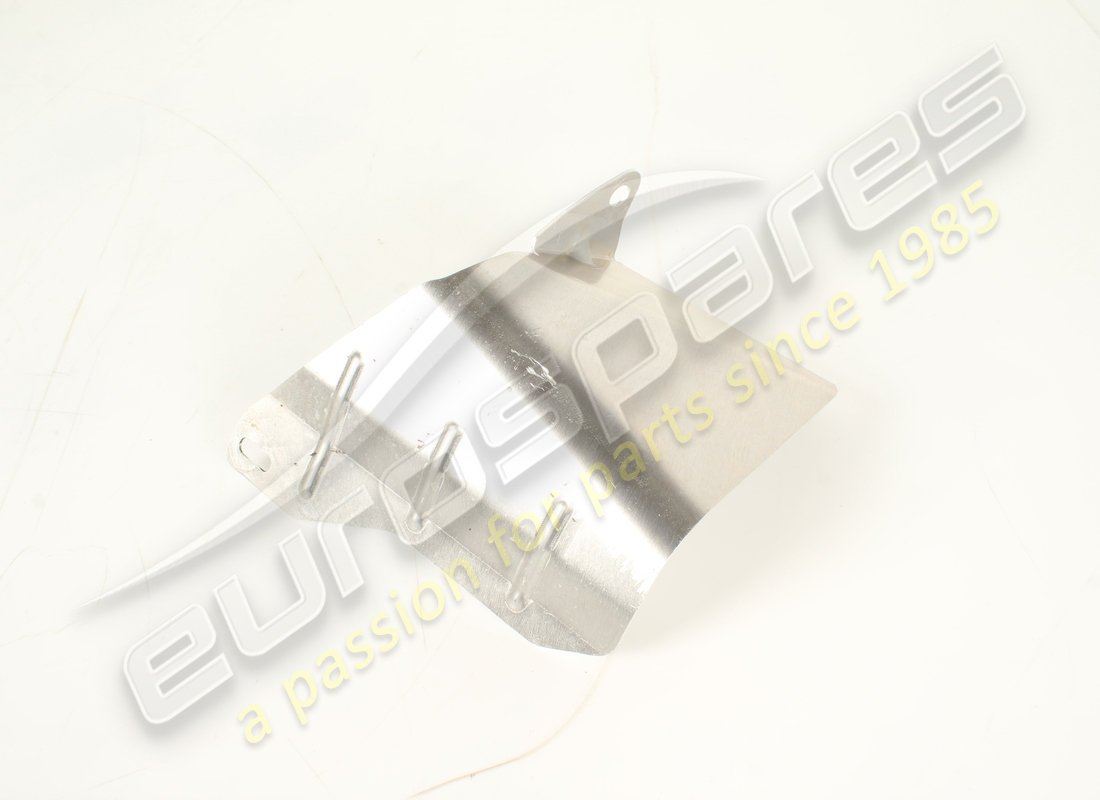

                                                              RH GEARBOX FRONT MOUNT HEAT SHIELD
                                                              from £15.05
                                                              from £15.05
                                                              # 008
                                                              MPN: 985927

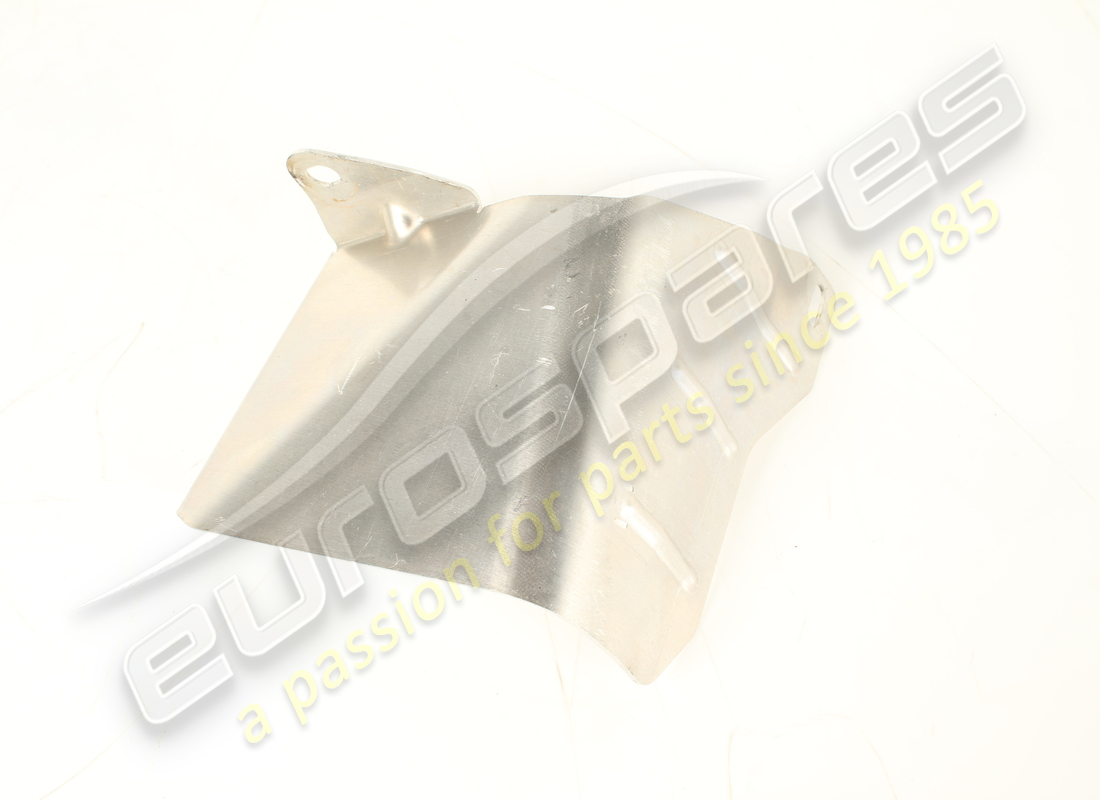

                                                              LH GEARBOX FRONT MOUNT HEAT SHIELD
                                                              from £15.05
                                                              from £15.05

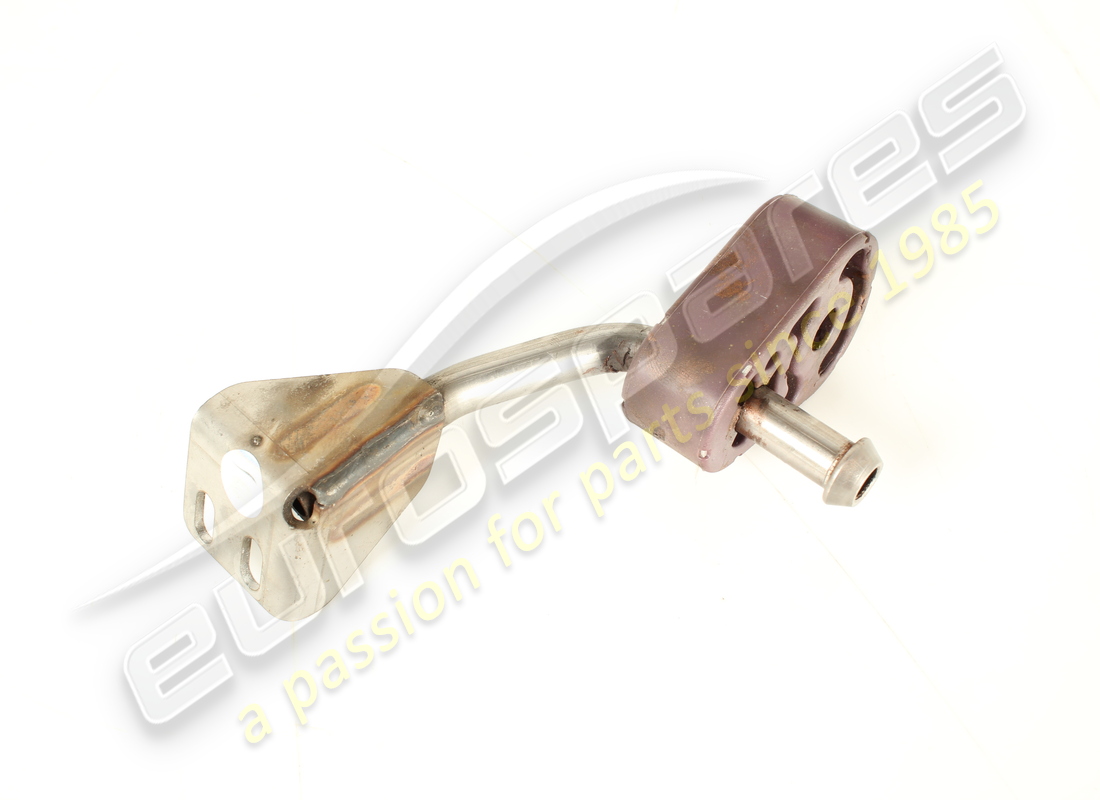

                                                              # 009
                                                              MPN: 750137
                                                              RH EXTENSION FASTENER BRACKET
                                                              from £26.99
                                                              from £26.99

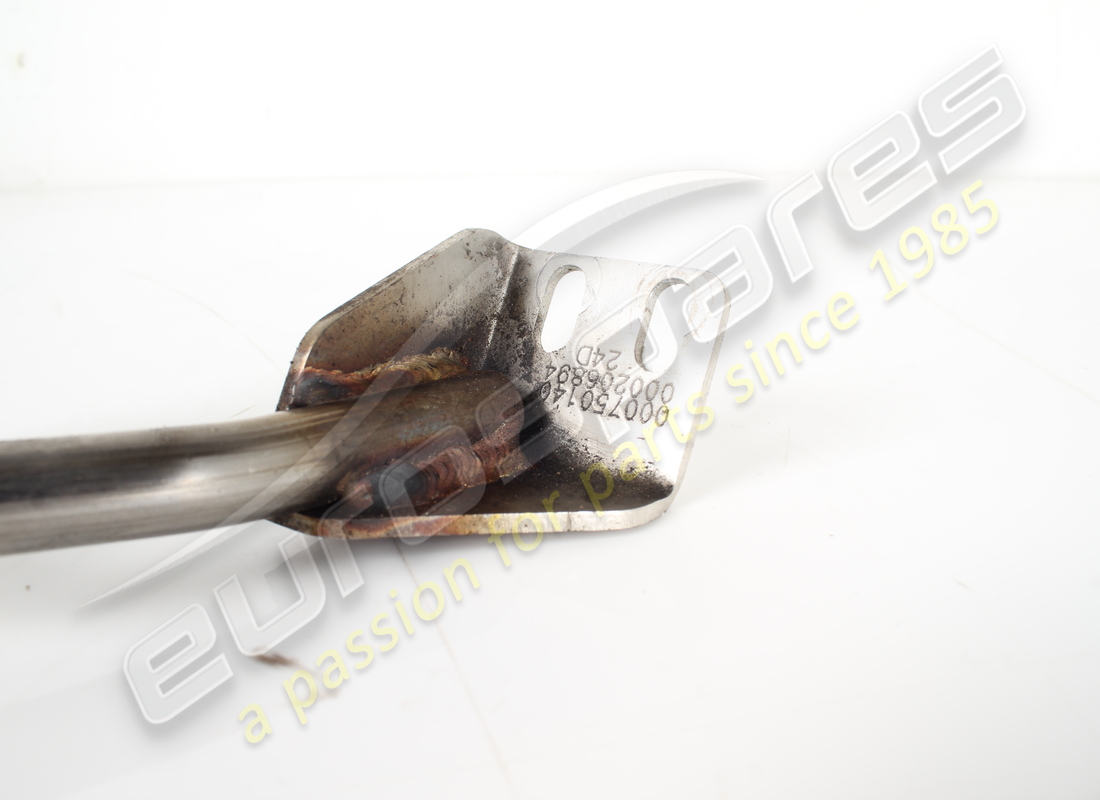

                                                              # 010
                                                              MPN: 750140
                                                              LH EXTENSION FASTENER BRACKET
                                                              from £26.99
                                                              from £26.99
                                                              # 011
                                                              MPN: 307258
                                                              BUSH
                                                              from £8.18
                                                              from £8.18
                                                              # 012
                                                              MPN: 231619
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 013
                                                              MPN: 918728
                                                              FRONT BRACKET
                                                              from £11.31
                                                              from £11.31
                                                              # 014
                                                              MPN: 231616
                                                              SCREW
                                                              from £0.50
                                                              from £0.50
                                                              # 015
                                                              MPN: 814799
                                                              STUD BOLT
                                                              from £6.50
                                                              from £6.50
                                                              # 016
                                                              MPN: 950180
                                                              RH OUTER SILENCER BRACKET
                                                              from £53.78
                                                              from £53.78

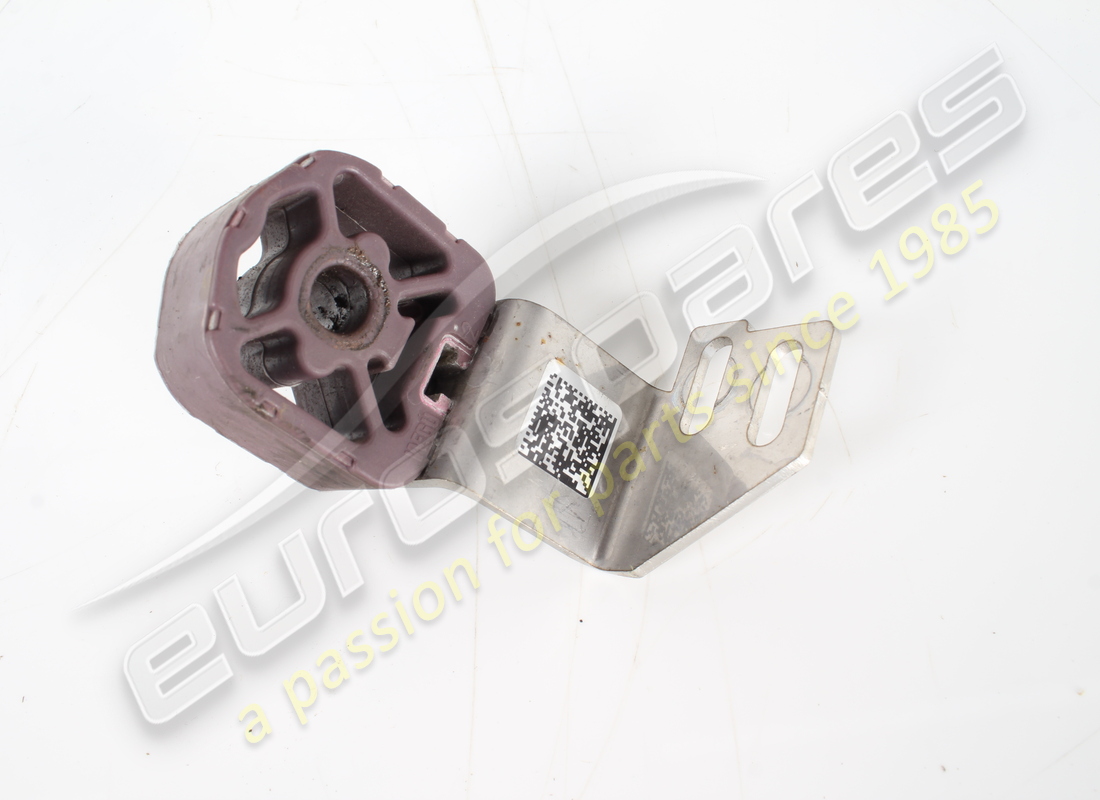

                                                              # 017
                                                              MPN: 950181
                                                              LH OUTER SILENCER BRACKET
                                                              from £53.78
                                                              from £53.78

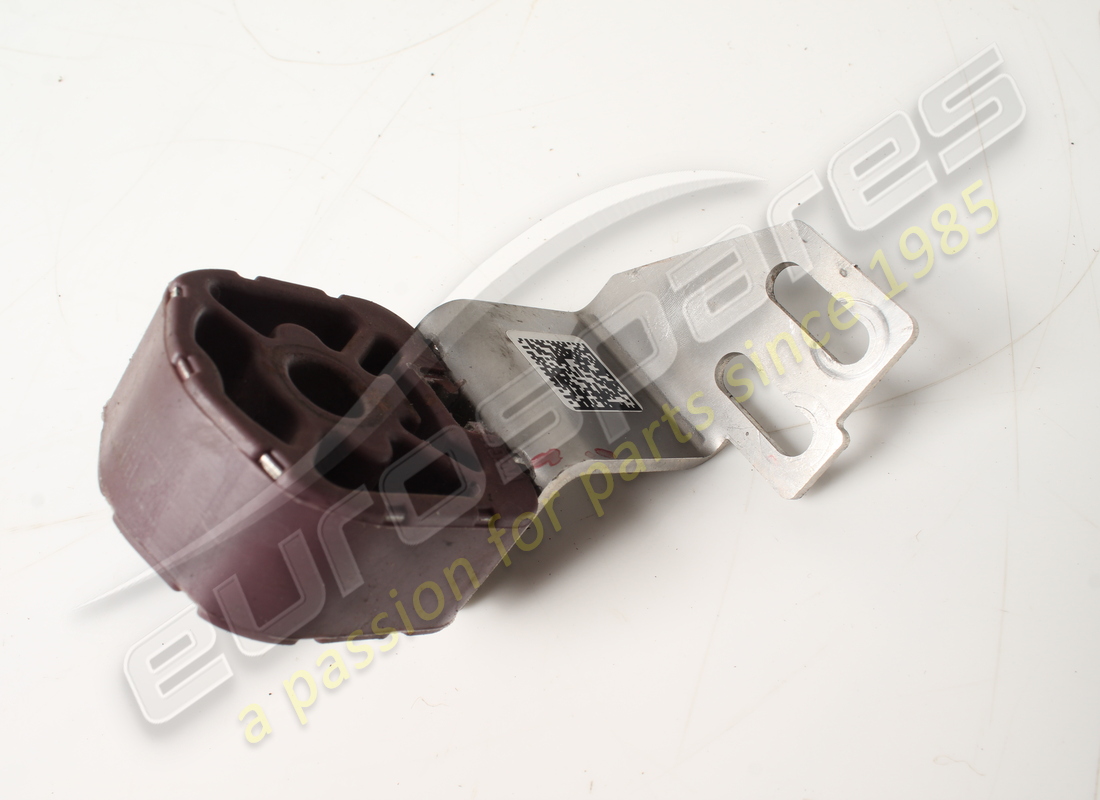

                                                              # 018
                                                              MPN: 327762
                                                              PLATE
                                                              from £4.71
                                                              from £4.71
                                                              # 019
                                                              MPN: 14059211
                                                              NUT
                                                              from £0.47
                                                              from £0.47

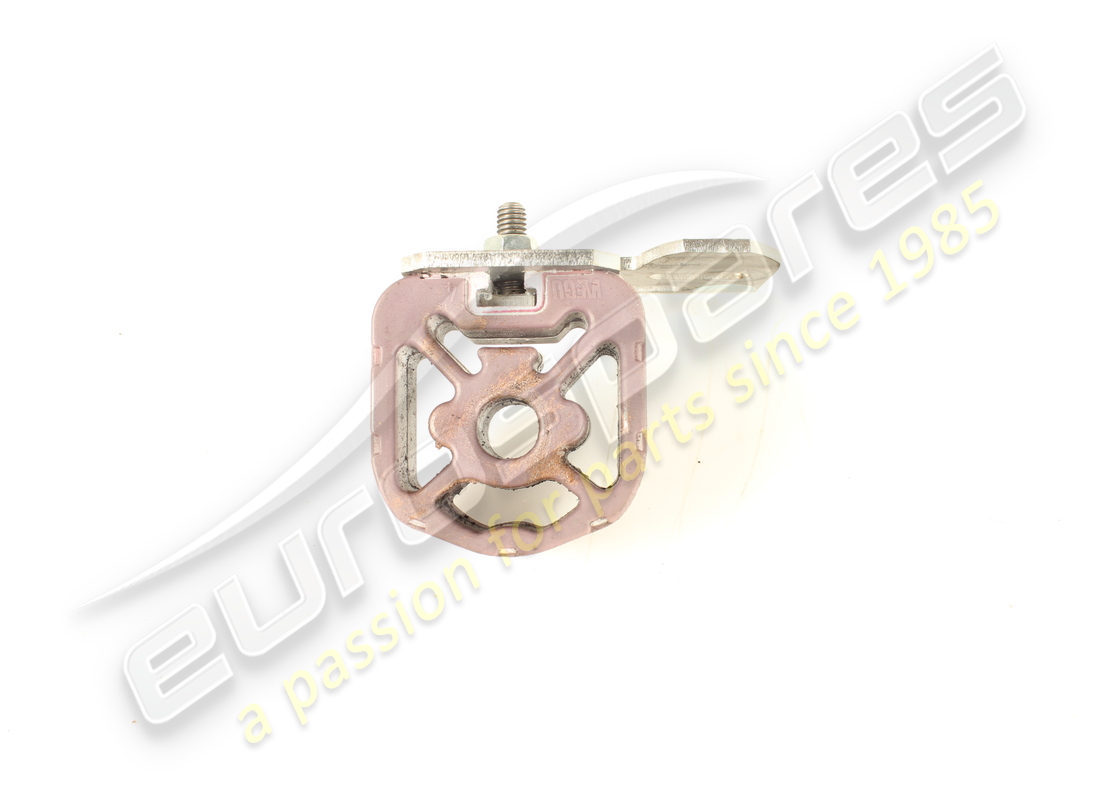

                                                              # 020
                                                              MPN: 289529

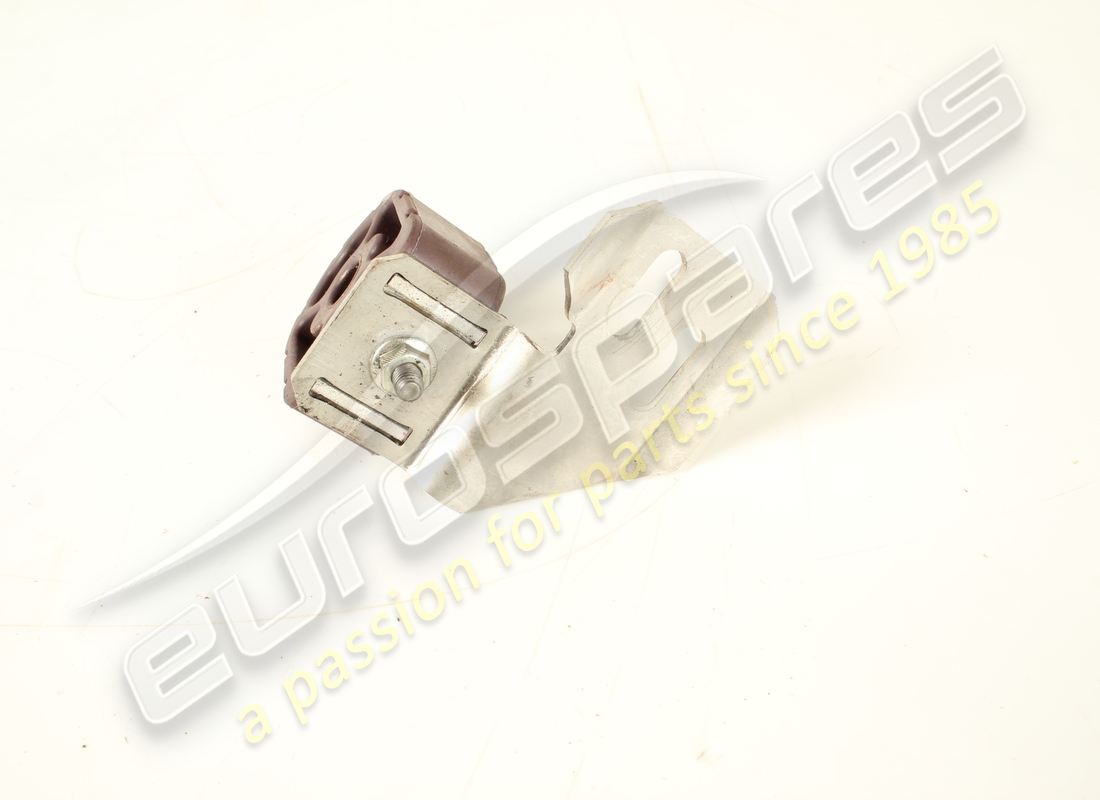

                                                              FLEXIBLE SILENCER MOUNTING BUSH
                                                              from £15.57
                                                              from £15.57
                                                              # 021
                                                              MPN: 950176
                                                              RH OUTER SILENCER BRACKET
                                                              from £10.37
                                                              from £10.37
                                                              # 022
                                                              MPN: 950179
                                                              LH OUTER SILENCER BRACKET
                                                              from £12.28
                                                              from £12.28
                                                              # 023
                                                              MPN: 250222
                                                              SCREW
                                                              from £1.70
                                                              from £1.70
                                                              # 024
                                                              MPN: 14058421
                                                              NUT
                                                              from £0.62
                                                              from £0.62
                                                              This part replaces part number 14075721
                                                              # 025
                                                              MPN: 55042918
                                                              RH INNER SILENCER BRACKET
                                                              # 025
                                                              MPN: 903595
                                                              RH INNER SILENCER BRACKET
                                                              | Not for version with remote MCM control unit |
                                                              from £54.73
                                                              from £54.73

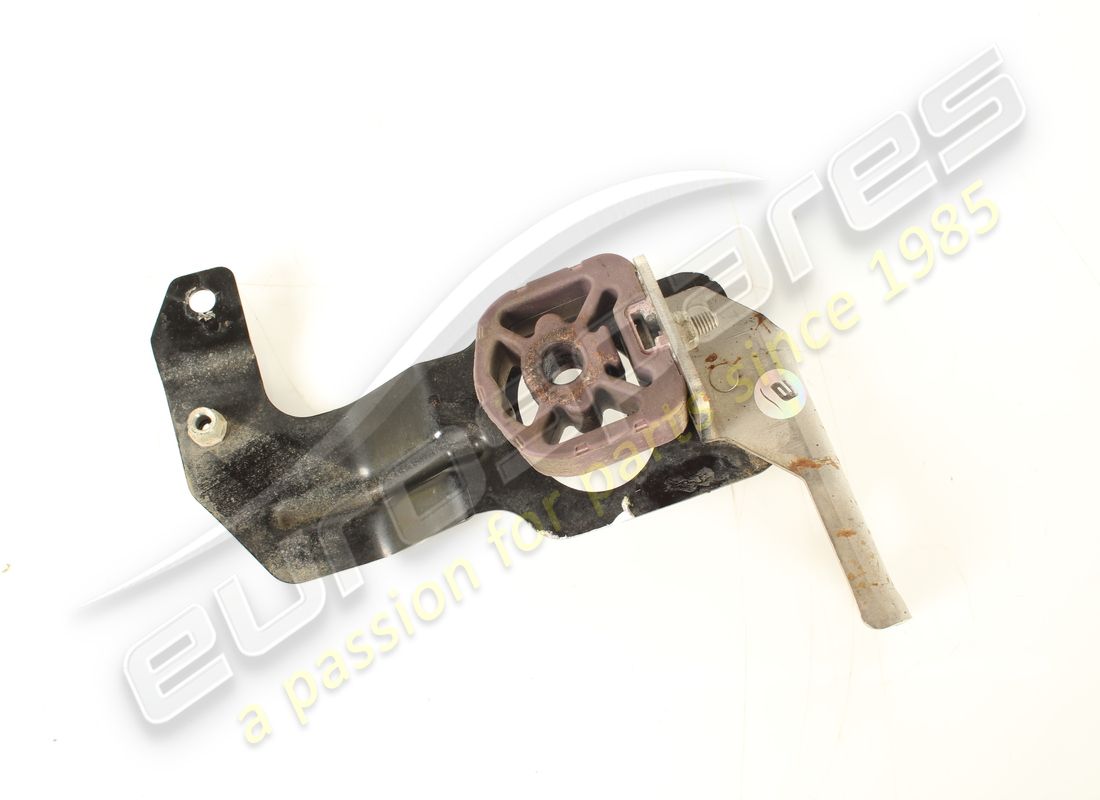

                                                              # 026
                                                              MPN: 903596
                                                              LH INNER SILENCER BRACKET
                                                              from £54.73
                                                              from £54.73
                                                              # 027
                                                              MPN: 55042922
                                                              RH INNER SILENCER MOUNTING BRACKET
                                                              # 027
                                                              MPN: 903603
                                                              RH INNER SILENCER BRACKET
                                                              | Not for version with remote MCM control unit |
                                                              from £7.78
                                                              from £7.78
                                                              # 028
                                                              MPN: 903604
                                                              LH INNER SILENCER BRACKET
                                                              from £7.78
                                                              from £7.78
                                                              # 029
                                                              MPN: 55043048
                                                              RH BODYSHELL MOUNT BRACKET
                                                              # 029
                                                              MPN: 745969
                                                              RH BODYSHELL MOUNT BRACKET
                                                              | Not for version with remote MCM control unit |
                                                              from £24.53
                                                              from £24.53
                                                              # 030
                                                              MPN: 748264
                                                              SILENCER CROSS PIECE
                                                              from £37.89
                                                              from £37.89
                                                              # 031
                                                              MPN: 55030272
                                                              LOWER GEARBOX SHIELD
                                                              | Applicable after depletion of 913865 |
                                                              from £57.06
                                                              from £57.06
                                                              # 031
                                                              MPN: 913865
                                                              LOWER GEARBOX SHIELD
                                                              | Applies until depletion |
                                                              from £45.29
                                                              from £45.29
                                                              # 032
                                                              MPN: 55026307
                                                              RH GEARBOX SHIELD BRACKET
                                                              | Applicable after depletion of 945169 |
                                                              from £17.92
                                                              from £17.92
                                                              # 032
                                                              MPN: 913867
                                                              LH GEARBOX SHIELD BRACKET
                                                              from £16.54
                                                              from £16.54
                                                              # 032
                                                              MPN: 945169
                                                              RH GEARBOX SHIELD BRACKET
                                                              | Applies until depletion |
                                                              from £17.92
                                                              from £17.92
                                                              # 033
                                                              MPN: 849226
                                                              PLATE
                                                              from £5.75
                                                              from £5.75
                                                              # 034
                                                              MPN: 849202
                                                              UPPER REAR BRACKET FOR RH SILENCER
                                                              from £8.64
                                                              from £8.64
                                                              # 035
                                                              MPN: 849201
                                                              UPPER REAR BRACKET FOR LH SILENCER
                                                              from £8.64
                                                              from £8.64
                                                              # 036
                                                              -

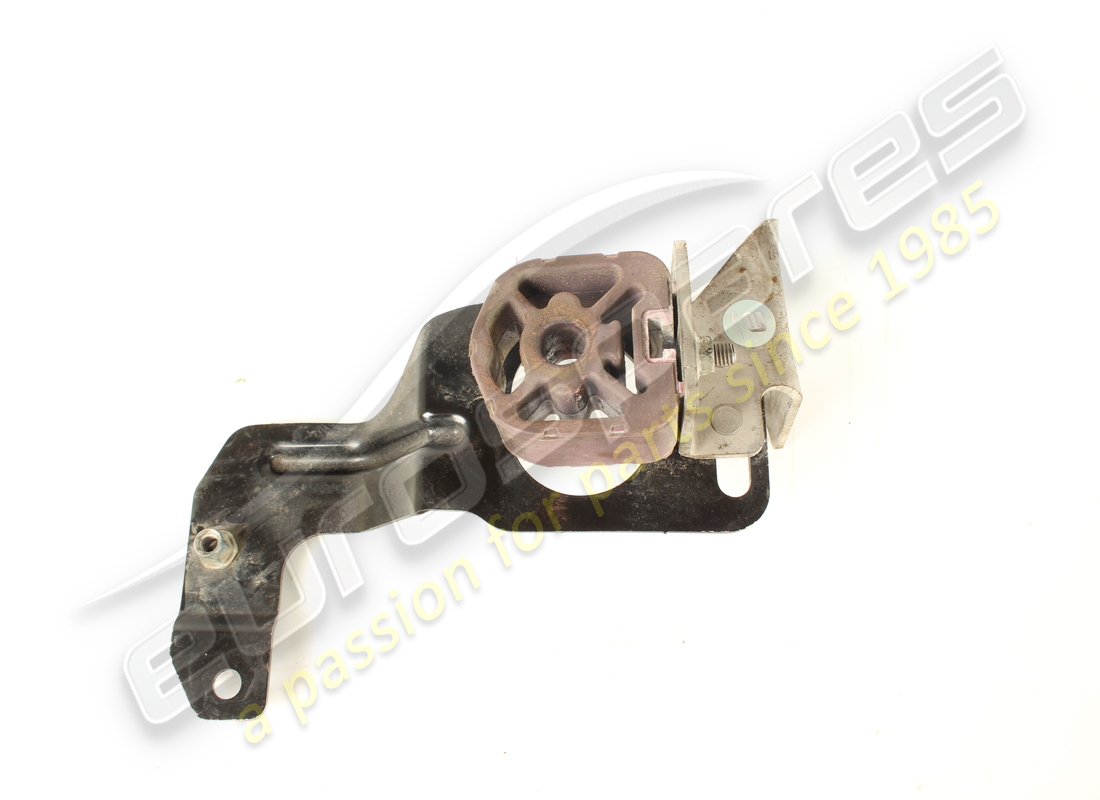

                                                              INNER REAR BRACKET FOR RH SILENCER
                                                              | No longer supplied - Replaced by 960174 |
                                                              # 036
                                                              MPN: 960174
                                                              INNER REAR BRACKET FOR RH SILENCER
                                                              from £61.33
                                                              from £61.33
                                                              # 037
                                                              -
                                                              INNER REAR BRACKET FOR LH SILENCER
                                                              | No longer supplied - Replaced by 960196 |
                                                              # 037
                                                              MPN: 960196
                                                              INNER REAR BRACKET FOR LH SILENCER
                                                              from £61.33
                                                              from £61.33
                                                              # 038
                                                              MPN: 282998
                                                              CLAMP
                                                              from £17.94
                                                              from £17.94
                                                              # 039
                                                              MPN: 270454
                                                              CLAMP
                                                              from £7.68
                                                              from £7.68
                                                              # 040
                                                              MPN: 870498
                                                              RH COSMETIC SHIELD
                                                              | Titanium sports tailpipe tips |
                                                              from £3,780.47
                                                              from £3,780.47
                                                              # 040
                                                              MPN: 870521
                                                              RH COSMETIC SHIELD
                                                              | Black sports tailpipe tips |
                                                              from £3,780.47
                                                              from £3,780.47
                                                              # 040
                                                              MPN: 914211
                                                              RH COSMETIC SHIELD
                                                              | Chromed tailpipe tips |
                                                              from £3,780.47
                                                              from £3,780.47
                                                              # 041
                                                              MPN: 870531
                                                              LH COSMETIC SHIELD
                                                              | Titanium sports tailpipe tips |
                                                              from £3,780.47
                                                              from £3,780.47
                                                              # 041
                                                              MPN: 870533
                                                              LH COSMETIC SHIELD
                                                              | Black sports tailpipe tips |
                                                              from £3,780.47
                                                              from £3,780.47
                                                              # 041
                                                              MPN: 914240
                                                              LH COSMETIC SHIELD
                                                              | Chromed tailpipe tips |
                                                              from £3,780.47
                                                              from £3,780.47
