0105 - FRONT LID SUBSTRUCTURE

Ferrari Roma FRONT LID SUBSTRUCTURE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 985880497

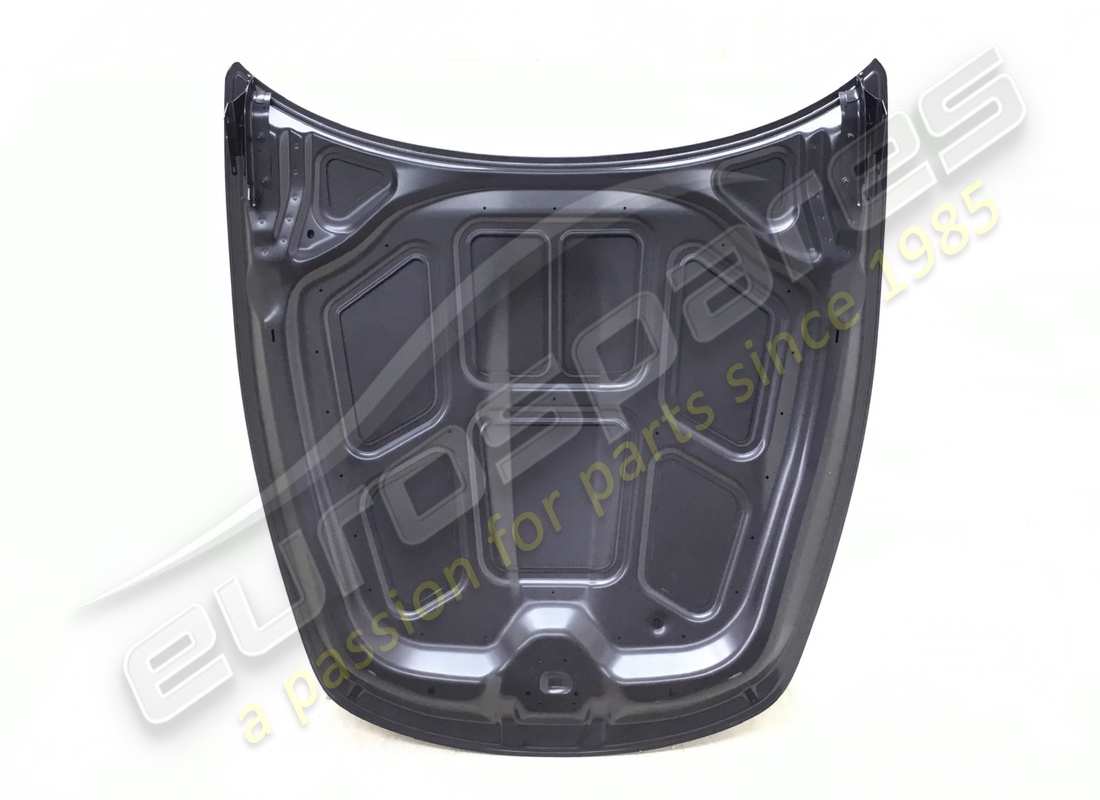

              COMPL. LID SKIN AND SUBSTRUCTURE
              from £2,137.26
              from £2,137.26
              # 002
              MPN: 69994300
              COMPL. RH LID HINGE
              from £47.74
              from £47.74
              # 003
              MPN: 69994200
              COMPL. LH LID HINGE
              from £47.74
              from £47.74
              # 004
              MPN: 12646724
              WASHER
              from £0.52
              from £0.52
              This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
              # 005
              MPN: 14059311
              NUT
              from £0.53
              from £0.53
              # 006
              MPN: 16287224
              SCREW
              from £0.51
              from £0.51
              This part replaces part number 16287221
