015 - Air Injection and Lines (for CH and SA)

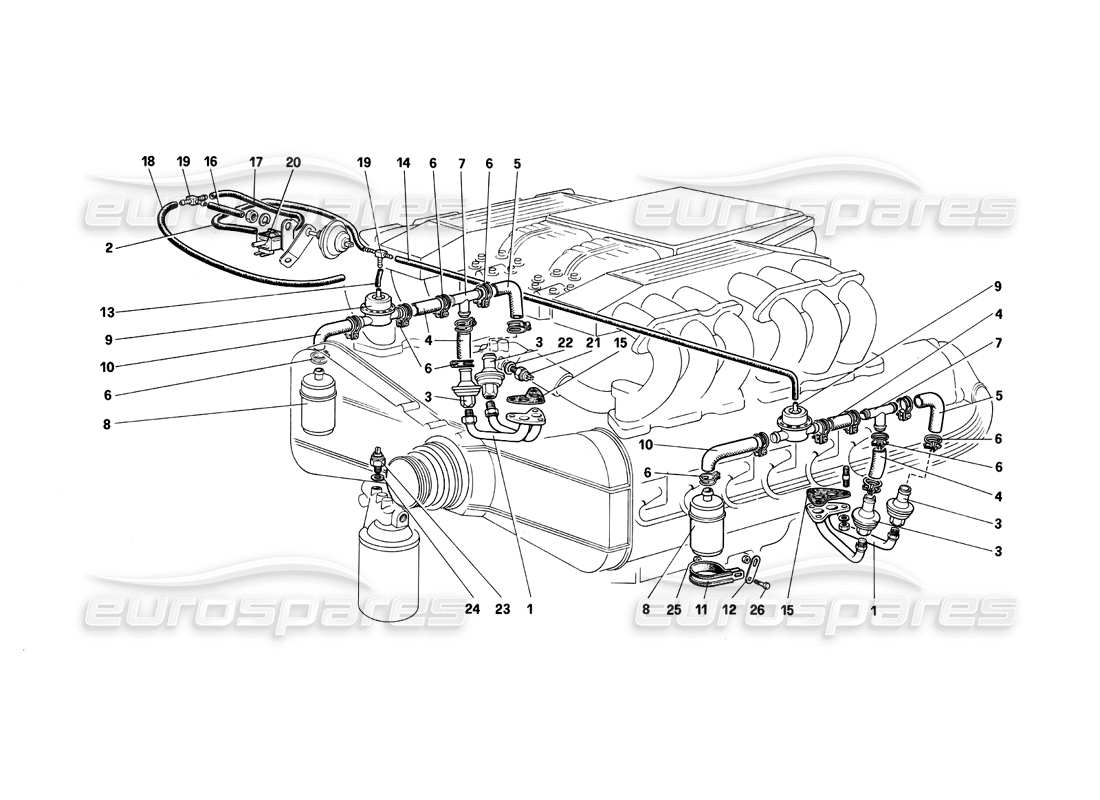

Ferrari Testarossa (1987) Air Injection and Lines (for CH and SA) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 126983
AIR INJECTION PIPE
from £195.83
from £195.83
# 002
MPN: 128907
PIPE
from £66.92
from £66.92
# 003
MPN: 148494
CHECK VALVE
from £402.05
from £402.05
This part replaces part number 121769 - and 15 more. Click to view details
# 004
MPN: 128714
PIPE
from £3.08
from £3.08
# 005
MPN: 123713
PIPE
# 006
MPN: 13000490
CLAMP
from £0.48
from £0.48
This part replaces part number 10169090 - and 3 more. Click to view details
# 007
MPN: 109887
T UNION
from £332.49
from £332.49
# 008
MPN: 127144
AIR INJECTION FILTER
from £245.57
from £245.57
# 009
MPN: 147390
CUT-OFF VALVE
from £264.41
from £264.41
This part replaces part number 121751 - and 3 more. Click to view details
# 010
MPN: 123860
PIPE
from £898.35
from £898.35
# 011
MPN: 113909
BRACKET
# 012
MPN: 128827
BRACKET
from £2.00
from £2.00
# 013
MPN: 122759
PIPE
from £3.27
from £3.27
# 014
MPN: 127893
PIPE
from £10.14
from £10.14
# 015
MPN: 146193
GASKET
from £2.84
from £2.84
This part replaces part number 127143
# 016
MPN: 121831
PIPE
For C6 and S6
from £1.38
from £1.38
# 017
MPN: 121828
PIPE
For C6 and S6
from £2.92
from £2.92
# 018
MPN: 122761
PIPE
from £54.83
from £54.83
This part replaces part number 169700 - and 1 more. Click to view details
# 019
MPN: 121793
3 WAY UNION
For C7 and S7 Q.ty=1
from £0.53
from £0.53
# 020
MPN: 121782
ELECTROVAIVE
For C7 and S7 use PN. 129059
from £39.02
from £39.02
# 021
MPN: 121777
BIMETALLIC THERMOSWITCH
For C7 and S7 use PN. 128878
from £168.47
from £168.47
# 022
MPN: 10260060
GASKET
from £0.79
from £0.79
# 023
MPN: 127155
OIL TEMPERATURE SENSOR
Not for C7-S7
from £12.98
from £12.98
# 024
MPN: 10260060
GASKET
Not for C7 and S7
from £0.79
from £0.79
# 025
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 026
MPN: 16043321
SCREW
from £0.47
from £0.47
