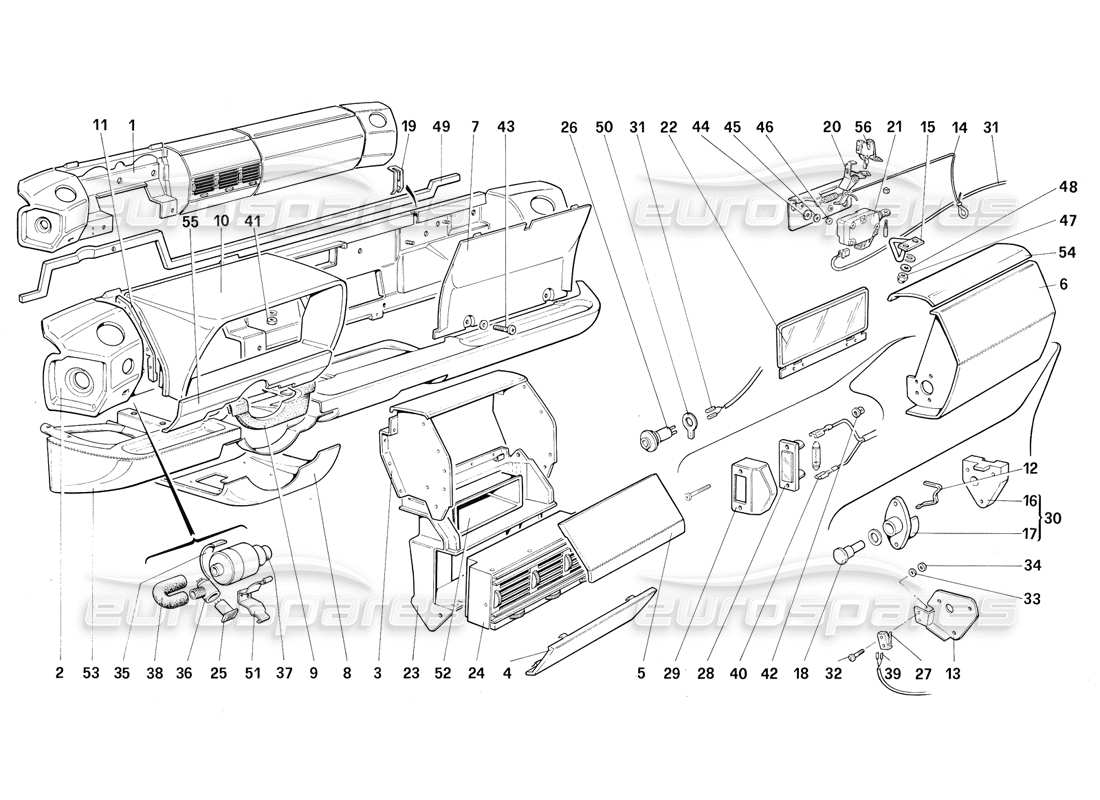

116A - Dashboard (for U.S. Version MY 1987)
Ferrari Testarossa (1987) Dashboard (for U.S. Version MY 1987) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61553600
DASH BOARD ASSEMBLY
With instruments seat
from £7,454.38
from £7,454.38
# 001
MPN: 61553700
DASH BOARD ASSEMBLY
Without instruments seat
from £3,034.41
from £3,034.41
# 002
MPN: 61553800
DASH BOARD FRAME
from £1,522.44
from £1,522.44
# 003
MPN: 61520800
DASH BOARD CENTRAL SECTION
from £314.00
from £314.00
# 004
MPN: 61553900
DASH BOARD CENTRAL PANEL
from £608.75
from £608.75
# 005
MPN: 61521100
DASH BOARD CENTRAL COVER
from £350.96
from £350.96
# 006
MPN: 61554100
DASH BOARD BOX
from £1,799.66
from £1,799.66
This part replaces part number 61554112
# 006
MPN: 61554112
DASH BOARD BOX
See also 61554100
Supersession
Supersession
# 007
MPN: 61554200
DASH BOARD BOX PANEL
Supersession
Supersession
This part replaces part number 61554212
# 008
MPN: 61554900
STEERING COLUMN COVER
from £108.92
from £108.92
# 009
MPN: 61565300
PROTECTION RUBBER FOR STEERING COLUMN
from £103.53
from £103.53
# 010
MPN: 61558900
HOUSING INSTRUMENTS
from £1,321.29
from £1,321.29
# 011
MPN: 61521800
RIGHT ANGLE PIECE
from £6.31
from £6.31
# 011
MPN: 61521900
LEFT ANGLE PIECE
from £6.31
from £6.31
# 012
MPN: 61522000
CLIP
from £1.25
from £1.25
# 013
MPN: 61554500
BRACKET
from £11.89
from £11.89
# 014
MPN: 61554400

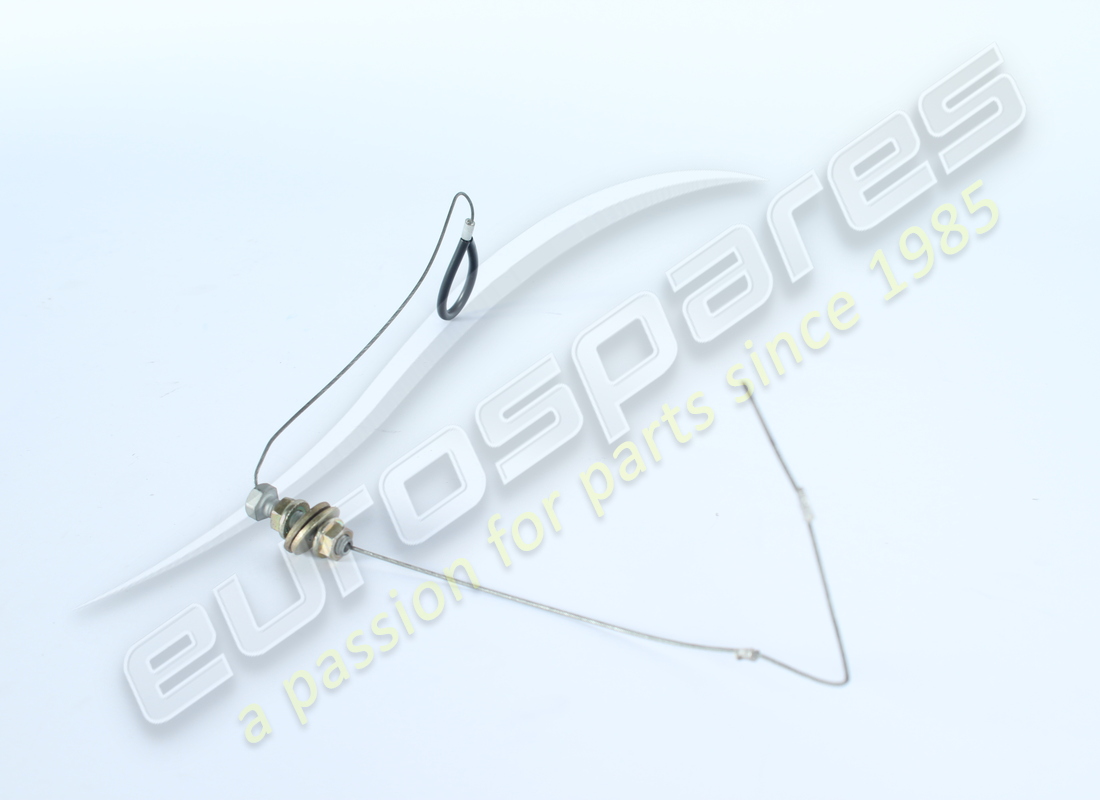

SAFETY CABLE
from £9.53
from £9.53
# 015
MPN: 61554600
LOCK STRIKER
from £74.23
from £74.23
# 016
MPN: 61522400
RIGHT FIXED HINGE
from £7.44
from £7.44
# 016
MPN: 61522500
LEFT FIXED HINGE
Supersession
Supersession
# 017
MPN: 61522600
RIGHT MOBILE HINGE
from £2.10
from £2.10
# 017
MPN: 61522700
LEFT MOBILE HINGE
from £2.10
from £2.10
# 018
MPN: 61522800
PIN
from £10.51
from £10.51
# 019
MPN: 61554700
Frame
from £12.74
from £12.74
# 020
MPN: 61545800
LOCK BRACKET
from £57.33
from £57.33
# 021
MPN: 61523100
LOCK MAGNET
from £1,043.90
from £1,043.90
# 022
MPN: 61523200
COURTESY MIRROR
from £22.53
from £22.53
# 023
MPN: 61523300
FRAME WORK
from £681.59
from £681.59
# 024
MPN: 61523500
CENTRAL AIR OUTLET
from £1,203.25
from £1,203.25
This part replaces part number 61523566
# 025
MPN: 61079100
SENSOR FOR INTERNAL TEMPERATURE
from £467.50
from £467.50
# 026
MPN: 61523600
SOCKET
from £9.45
from £9.45
# 027
MPN: 61523700

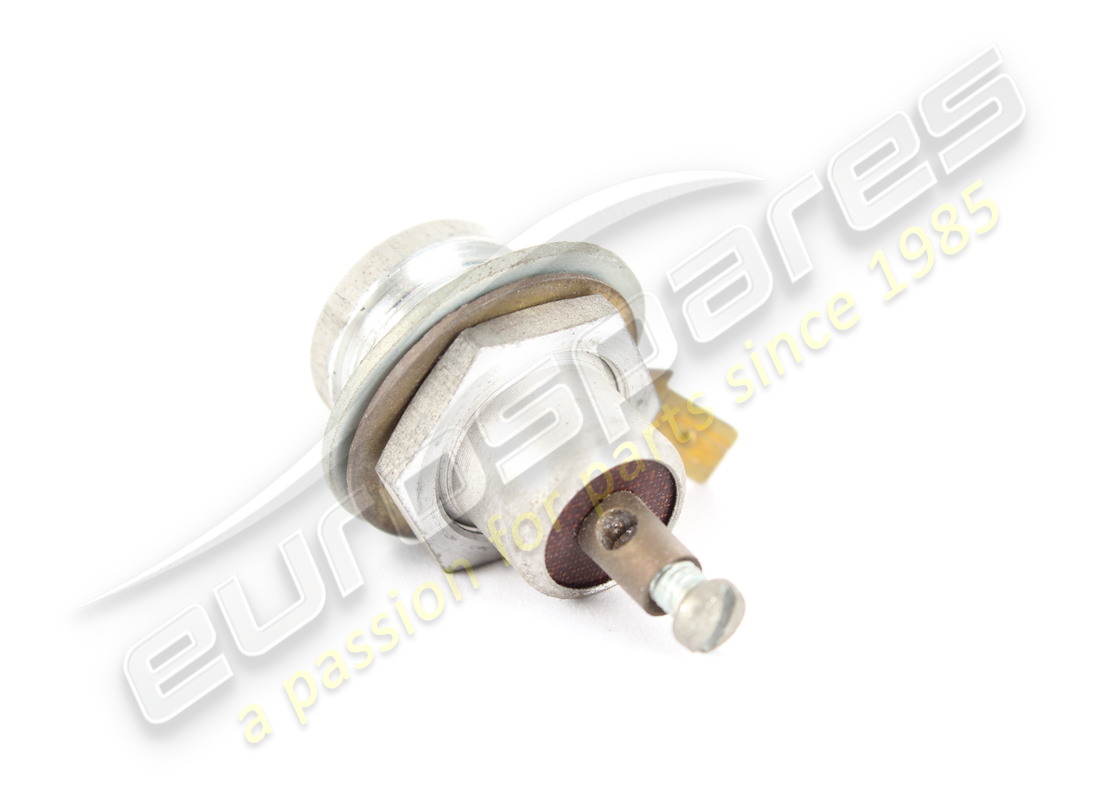

SWITCH
from £101.18
from £101.18
# 028
MPN: 61647200

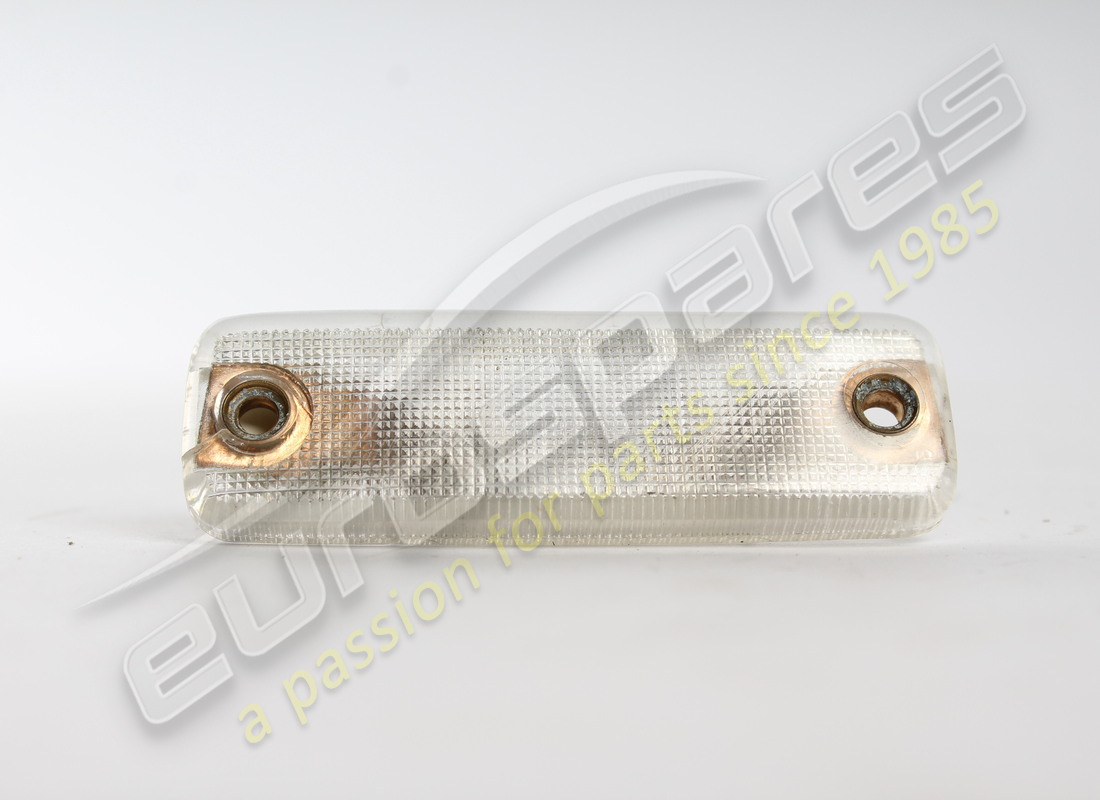

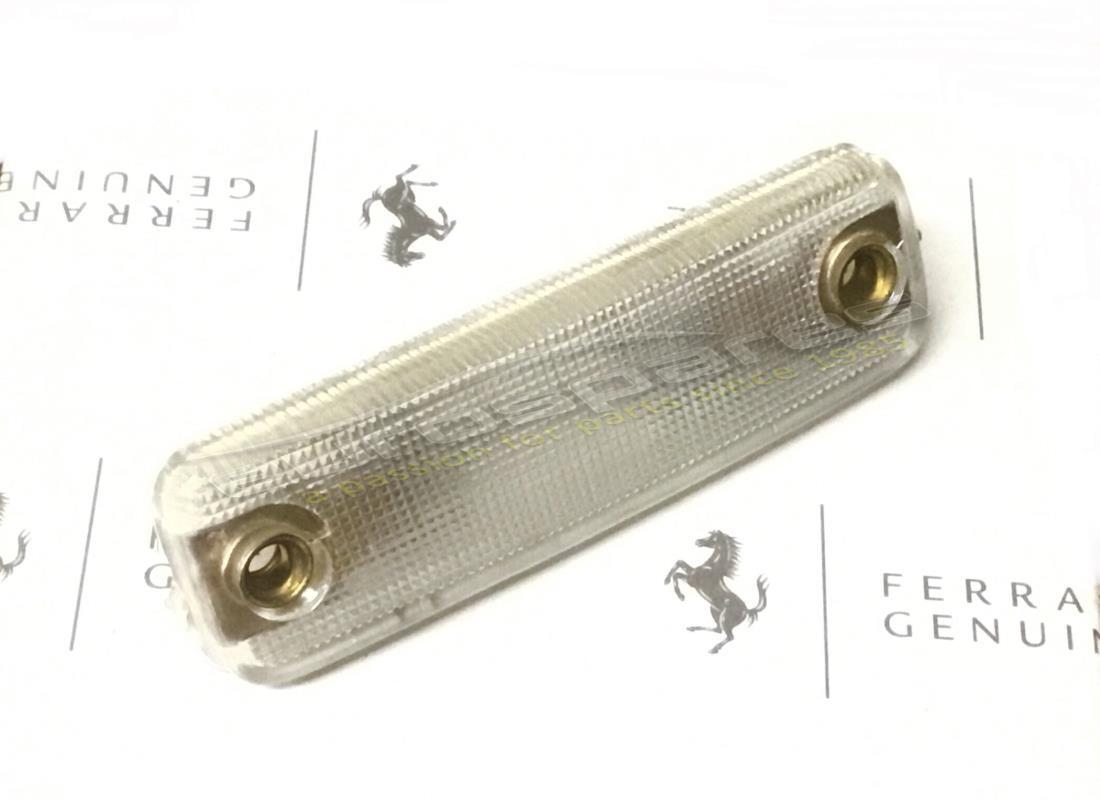

DASH BOARD BOX LAMP
from £31.94
from £31.94
This part replaces part number 61496800 - and 1 more. Click to view details
# 029
MPN: 61523800
DASH BOARD BOX LAMP FRAME
from £18.28
from £18.28
# 030
MPN: 61523900
RIGHT DASHBOARD BOX HINGE
from £11.38
from £11.38
This part replaces part number 61522400 which we have in stock
# 030
MPN: 61524000
LEFT DASHBOARD BOX HINGE
from £11.51
from £11.51
This part replaces part number 61522500
# 031
MPN: 124410
SOCKET CABLES
from £5.60
from £5.60
# 032
MPN: 61524100
SCREW
from £1.53
from £1.53
# 033
MPN: 61524200
WASHER
from £0.54
from £0.54
# 034
MPN: 61524300
NUT
from £0.54
from £0.54
# 035
MPN: 120065
SENSOR RING
from £0.86
from £0.86
# 036
MPN: 61079200
BOX SENSOR
from £4.23
from £4.23
# 037
MPN: 61079300
SUCTION FAN FOR SENSOR
Supersession
Supersession
# 038
MPN: 124039

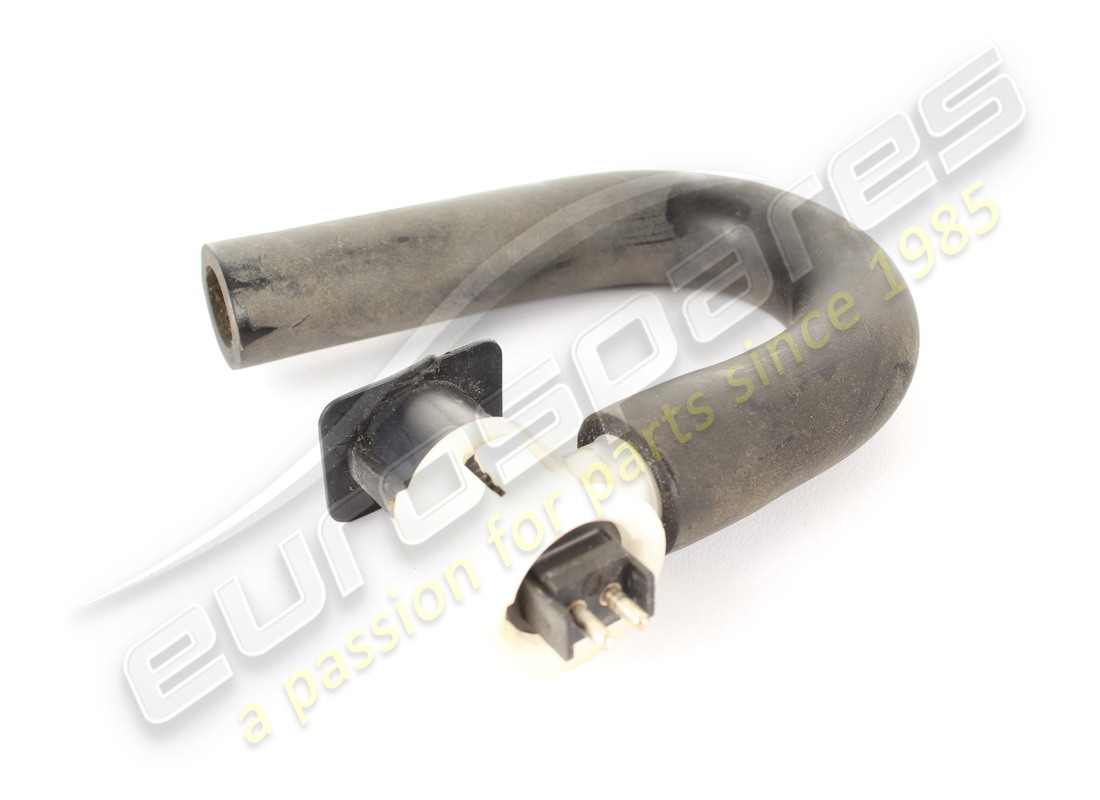

TUBE FROM SUCTION FAN TO SENSOR
from £13.34
from £13.34
# 039
MPN: 124409
SWITCH CABLES
from £19.88
from £19.88
# 040
MPN: 124411
LAMP CABLES
from £11.88
from £11.88
# 041
MPN: 14084111
NUT
from £0.53
from £0.53
This part replaces part number 14084100
# 042
MPN: 12611342
FEMALE SCREW
Supersession
Supersession
This part replaces part number 12611107
# 043
MPN: 15688301
SCREW
Supersession
Supersession
# 044
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 045
MPN: 10519401
WASHER
from £0.71
from £0.71
# 046
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 047
MPN: 14051811
NUT
from £2.44
from £2.44
This part replaces part number 14051611
# 048
MPN: 10519201
WASHER
from £0.47
from £0.47
This part replaces part number 10519281
# 049
MPN: 61554300
DASHBOARD SUPPORT STRUCTURE
from £229.55
from £229.55
# 050
MPN: 61524800
NEGATIVE TERMINAL
from £1.61
from £1.61
# 051
MPN: 61089500
BRACKET
from £3.47
from £3.47
# 052
MPN: 61541600
RADIO SEAT
from £16.11
from £16.11
# 053
MPN: 61554800
KNEE PROTECTION
from £1,205.77
from £1,205.77
# 054
MPN: 61554000
BOX COVER
from £160.54
from £160.54
# 055
MPN: 61561900
LOWER COVER
from £123.38
from £123.38
# 056
MPN: 61545600
GLOVE BOX LOCK
