008 - fuel tanks (not for us - sa and CH88)

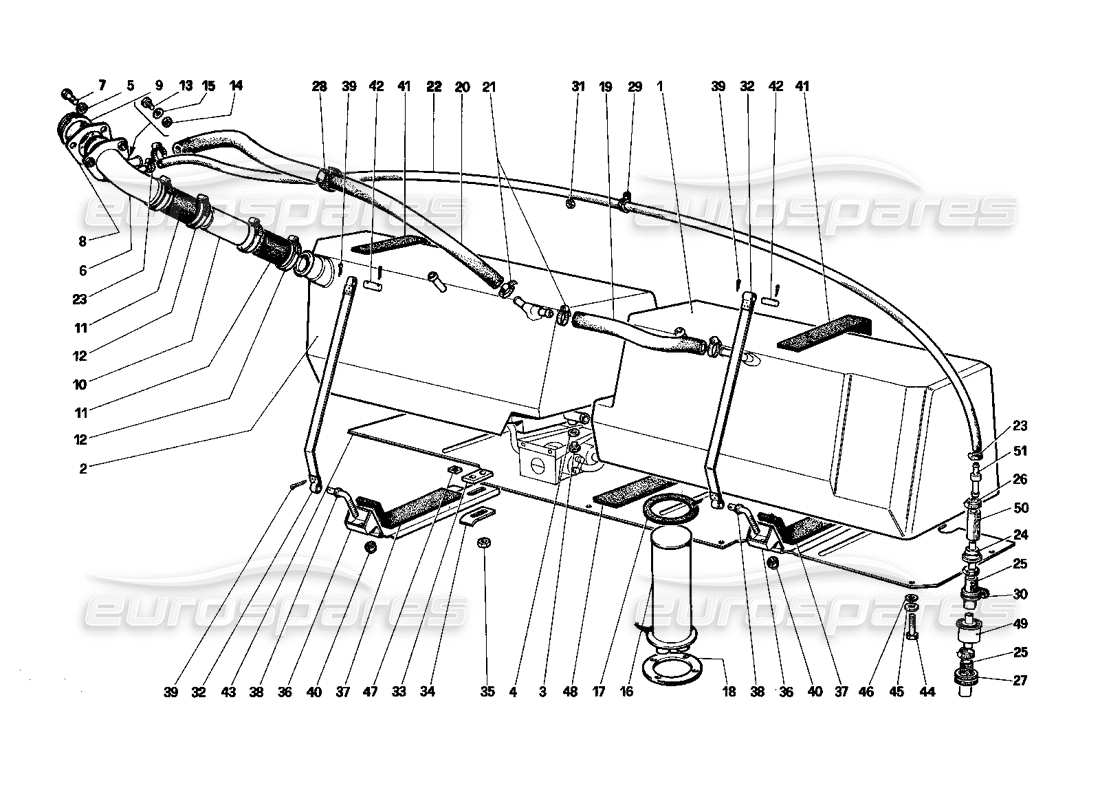

Ferrari Testarossa (1990) Fuel Tanks (Not for US - SA and CH88) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 119139

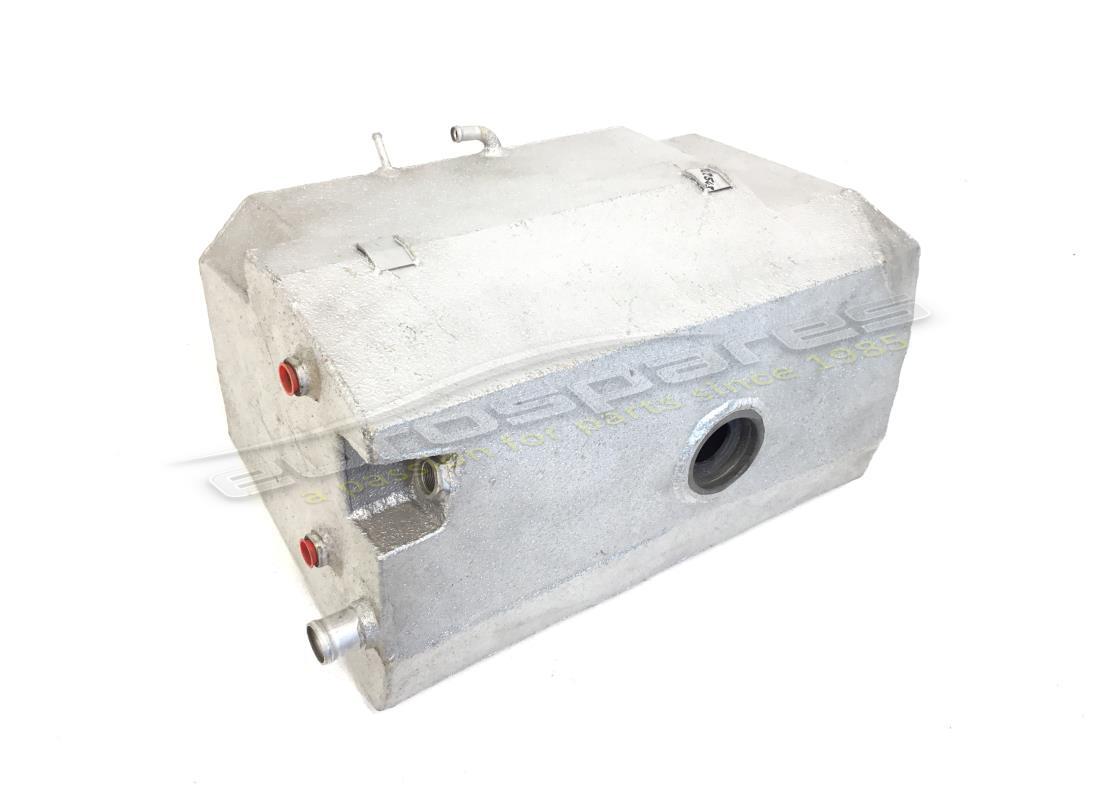

RIGHT FUEL TANK
Not for CAT.
from £865.40
from £865.40
# 001
MPN: 142543
RIGHT FUEL TANK
For CAT.
from £1,910.99
from £1,910.99
# 002
MPN: 119140
LEFT FUEL TAN
from £778.92
from £778.92
# 003
MPN: 10300771
FUEL DRAIN PLUG
from £0.58
from £0.58
# 004
MPN: 10278650
GASKET
from £0.47
from £0.47
# 005
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 006
MPN: 122793
FUEL FILLE
After exhaustion use no. 129527 - Not for C7 and CAT.
Supersession
Supersession
# 006
MPN: 132285
FUEL FILLER
for C7
from £129.37
from £129.37
# 006
MPN: 142119
FUEL FILLER
For CAT.
from £246.73
from £246.73
# 007
MPN: 14064511
SCREW
from £0.80
from £0.80
# 008
MPN: 123897
GASKET
Supersession
Supersession
# 009
MPN: 113401
FUEL FILLER CAP
from £62.89
from £62.89
This part replaces part number 101453 - and 2 more. Click to view details
# 010
MPN: 122795
PIPE
from £13.66
from £13.66
# 011
MPN: 115677
SLEEVE
Supersession
Supersession
This part replaces part number 101455
# 012
MPN: 12174790
CLAMP
from £1.62
from £1.62
This part replaces part number 50188200
# 013
MPN: 10902221
SCREW
from £0.60
from £0.60
# 014
MPN: 12574211
NUT
from £0.71
from £0.71
# 015
MPN: 12646601
WASHER
from £0.71
from £0.71
# 016
MPN: 144849
CONTROL FOR FUEL LEVEL GAUGE
From car no. 67547
from £300.00
from £300.00
This part replaces part number 132134
# 017
MPN: 154802
GASKET
With part no. 122621
from £17.92
from £17.92
This part replaces part number 116792 - and 2 more. Click to view details
# 017
MPN: 154802
GASKET
With part no. 132134
from £17.92
from £17.92
This part replaces part number 116792 - and 2 more. Click to view details
# 018
MPN: 121435
GAUGE SECURING RING NUT
from £46.19
from £46.19
This part replaces part number 116012 - and 7 more. Click to view details
# 019
MPN: 125032
BREATHER HOSE
Supersession
Supersession
# 020
MPN: 120469
BREATHER HOSE
from £61.26
from £61.26
This part replaces part number 125033
# 021
MPN: 13000390
CLAMP
from £0.51
from £0.51
This part replaces part number 12179590 - and 1 more. Click to view details
# 022
MPN: 116851
BREATHER HOSE
from £43.58
from £43.58
This part replaces part number 125034
# 023
MPN: 12179090
CLAMP
Supersession
Supersession
This part replaces part number 102721
# 024
MPN: 120444
TANK VENTILATION VALVE
Supersession
Supersession
# 025
MPN: 116760
BREATHER HOSE
Supersession
Supersession
This part replaces part number 105498 which we have in stock - and 1 more. Click to view details
# 026
MPN: 12179190
CLAMP
Supersession
Supersession
This part replaces part number 102604
# 027
MPN: 10396580
WIRE GUIDE
from £1.12
from £1.12
This part replaces part number 100286
# 028
MPN: 105550
COLSON TYPE CLAMP
from £1.28
from £1.28
# 029
MPN: 10441290
HOSE RETAINING CLAMP
from £0.27
from £0.27
# 030
MPN: 10441490
HOSE RETAINING CLAMP
from £0.53
from £0.53
# 031
MPN: 12574211
NUT
from £0.71
from £0.71
# 032
MPN: 122797
TANK SECURING SLRAP
from £11.08
from £11.08
# 033
MPN: 123867
SPACER
from £2.01
from £2.01
# 034
MPN: 115734
SMALL PLATE
from £2.00
from £2.00
# 035
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 036
MPN: 123866
TANK SUPPORTING BRACKET
from £9.79
from £9.79
# 037
MPN: 125035
SHIM
from £1.40
from £1.40
This part replaces part number 141261
# 038
MPN: 127529
TIE ROD
from £128.61
from £128.61
This part replaces part number 12311271 - and 15 more. Click to view details
# 039
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 040
MPN: 104030
SELF LOCKING NUT
from £0.50
from £0.50
This part replaces part number 16104125
# 041
MPN: 125036
SHIM
from £4.02
from £4.02
# 042
MPN: 103447
PIN
from £12.86
from £12.86
# 043
MPN: 122800
TANK PROTECTION PLATE - FOR LHD
After exhaustion use 138082 / 138083 / 138084
Supersession
Supersession
# 043
MPN: 124067
TANK PROTECTION PLATE - FOR RHD
Until exhaustion
from £353.39
from £353.39
# 043
MPN: 138082
CENTRAL PROTECTION PLATE
After exhaustion no. 122800
from £426.00
from £426.00
This part replaces part number 122800
# 043
MPN: 138082
CENTRAL PROTECTION PLATE
After exhaustion no. 124067
from £426.00
from £426.00
This part replaces part number 122800
# 043
MPN: 138083
LH PROTECTION PLATE
After exhaustion no. 122800
from £459.51
from £459.51
# 043
MPN: 138084
RH PROTECTION PLATE
After exhaustion no. 122800
from £646.42
from £646.42
# 043
MPN: 138085
LH PROTECTION PLATE
After exhaustion no. 124067
from £28.33
from £28.33
# 043
MPN: 138086
RH PROTECTION PLATE
After exhaustion no. 124067
from £41.44
from £41.44
# 044
MPN: 10902124
SCREW
from £0.50
from £0.50
This part replaces part number 10902111 - and 1 more. Click to view details
# 045
MPN: 12643724
FLAT WASHER
from £0.50
from £0.50
This part replaces part number 109684 - and 4 more. Click to view details
# 046
MPN: 127494
SPRING WASHER
from £0.50
from £0.50
This part replaces part number 10516470 - and 4 more. Click to view details
# 047
MPN: 60758600
GAGED NUT
from £0.51
from £0.51
# 048
MPN: 125037
SHIM
from £2.00
from £2.00
# 049
MPN: 129085
SILENCER
from £201.78
from £201.78
# 050
MPN: 133337
SLEEVE
Supersession
Supersession
# 051
MPN: 133338
UNION
from £0.71
from £0.71
