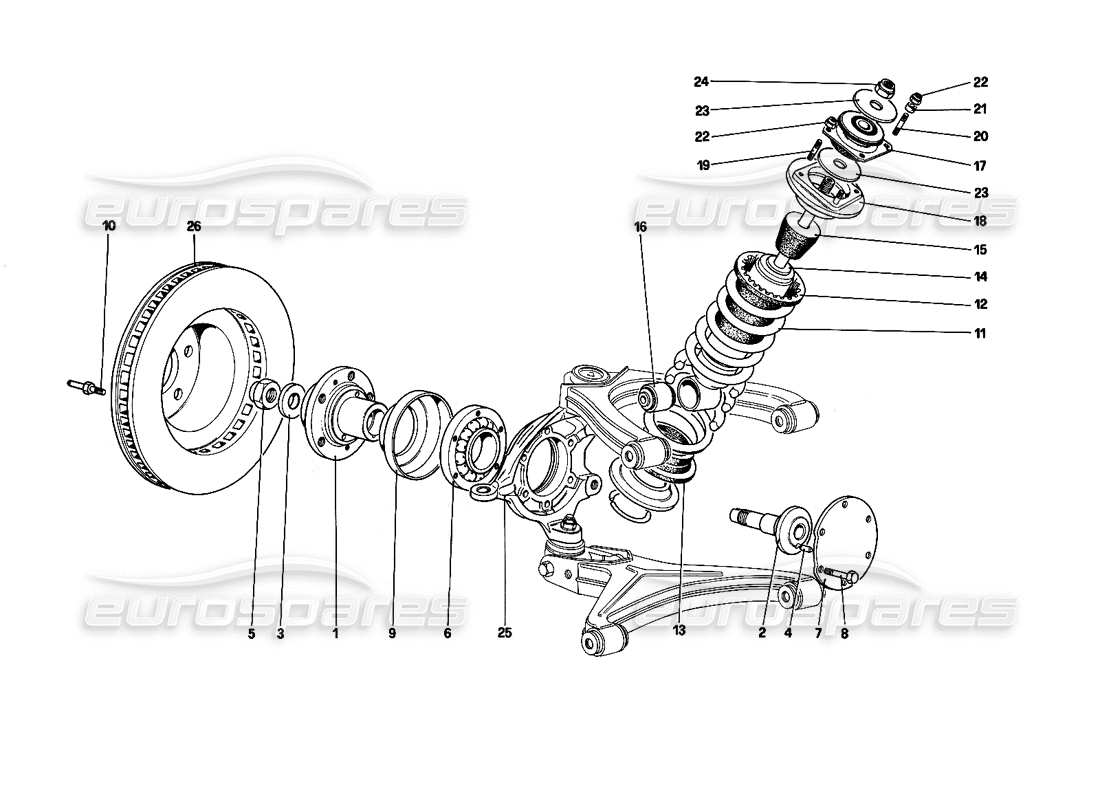

046 - Front SUSpension - Shock Absorber and Brake Disc (Until Car No. 75997)
Ferrari Testarossa (1990) Front SUSpension - Shock Absorber and Brake Disc (Until Car No. 75997) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 124463
FRONT WHEEL HUB
from £671.09
from £671.09
This part replaces part number 117507
# 002
MPN: 124465
SHAFT
from £325.37
from £325.37
# 003
MPN: 124464
WASHER
from £21.49
from £21.49
# 004
MPN: 13909870
'PIN
from £0.47
from £0.47
# 005
MPN: 124642
NUT
from £12.58
from £12.58
# 006
MPN: 112799
BEARING
from £686.20
from £686.20
# 007
MPN: 131278
COVER
from £9.17
from £9.17
# 008
MPN: 14238731
SCREW
from £0.34
from £0.34
# 009
MPN: 112823
BEARING COVER
from £48.42
from £48.42
# 010
MPN: 104370
CENTERING SCREW
from £5.12
from £5.12
This part replaces part number 139981
# 011
MPN: 124981
SUSPENSION SPRING
from £475.77
from £475.77
# 012
MPN: 113582
UPPER SPACER
from £100.65
from £100.65
# 013
MPN: 113581
LOWER SPACER
from £6.34
from £6.34
This part replaces part number 387000338 - and 2 more. Click to view details
# 014
MPN: 125048
SHOCK ABSORBER
from £697.95
from £697.95
# 015
MPN: 116358
RUBBER REBOUND BUNPER
from £29.32
from £29.32
# 016
MPN: 100809
ESTENDBLOCK
from £13.28
from £13.28
This part replaces part number 101051 - and 1 more. Click to view details
# 018
MPN: 151547
SPRING RETAINING CUP
from £63.94
from £63.94
This part replaces part number 114809 - and 1 more. Click to view details
# 019
MPN: 13543324
STUD .
from £0.84
from £0.84
This part replaces part number 13543321
# 020
MPN: 13543621
STUD
Supersession
Supersession
# 021
MPN: 13605811
SPACER
from £1.51
from £1.51
# 022
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 023
MPN: 114815
WASHER
from £0.86
from £0.86
# 024
MPN: 148020
SELF LOCKING NUT
from £2.53
from £2.53
This part replaces part number 102825 - and 3 more. Click to view details
# 025
MPN: 116721
LEFT STUB AXLE
from £871.68
from £871.68
# 025
MPN: 116722
RIGHT STUB AXLE
from £624.75
from £624.75
# 026
MPN: 134725
FRONT BRAKE DISC (BOLT ON TYPE)
(bolt on type)
from £331.48
from £331.48
