056 - Current Generation

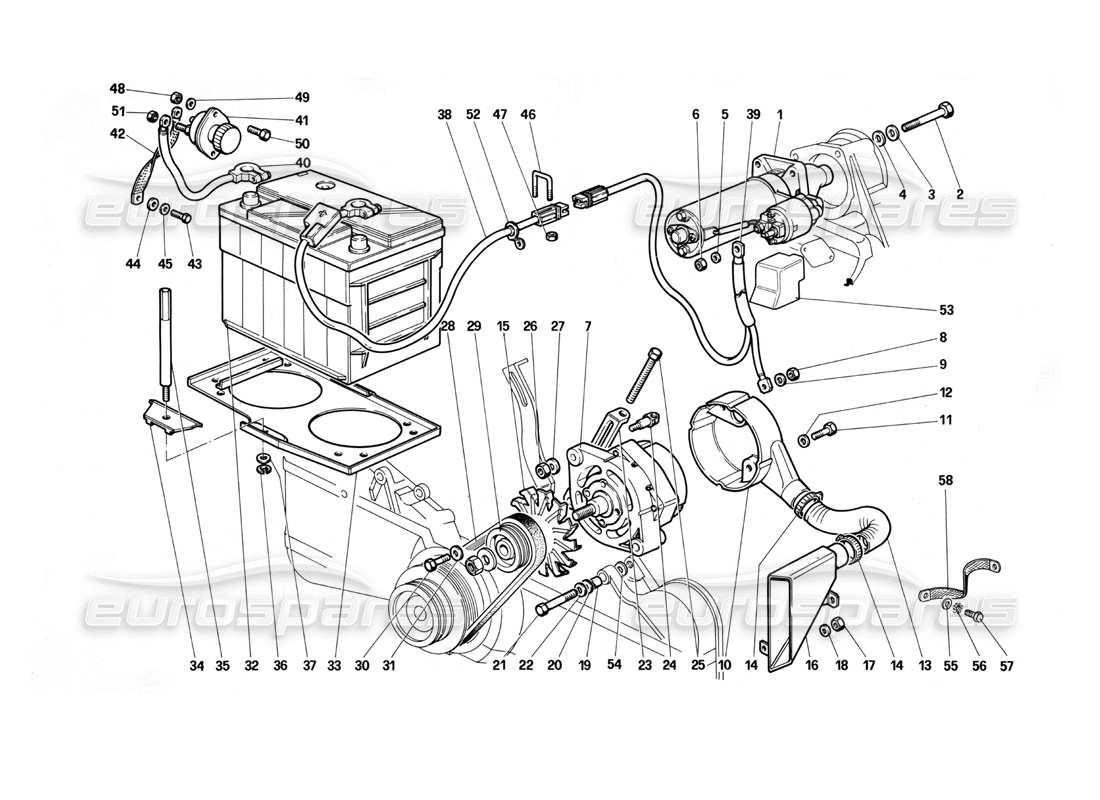

Ferrari Testarossa (1990) Current Generation Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 120967
STARTER MOTOR
from £809.47
from £809.47
# 002
MPN: 104189
STARTER SECURING SCREW
from £27.43
from £27.43
This part replaces part number 95565 - and 1 more. Click to view details
# 003
MPN: 11198074
WASHER
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 004
MPN: 10519621
FLAT WASHER
Supersession
Supersession
# 005
MPN: 102683
SPACER
from £10.44
from £10.44
This part replaces part number 95301
# 006
-
NUT
# 007
MPN: 144096

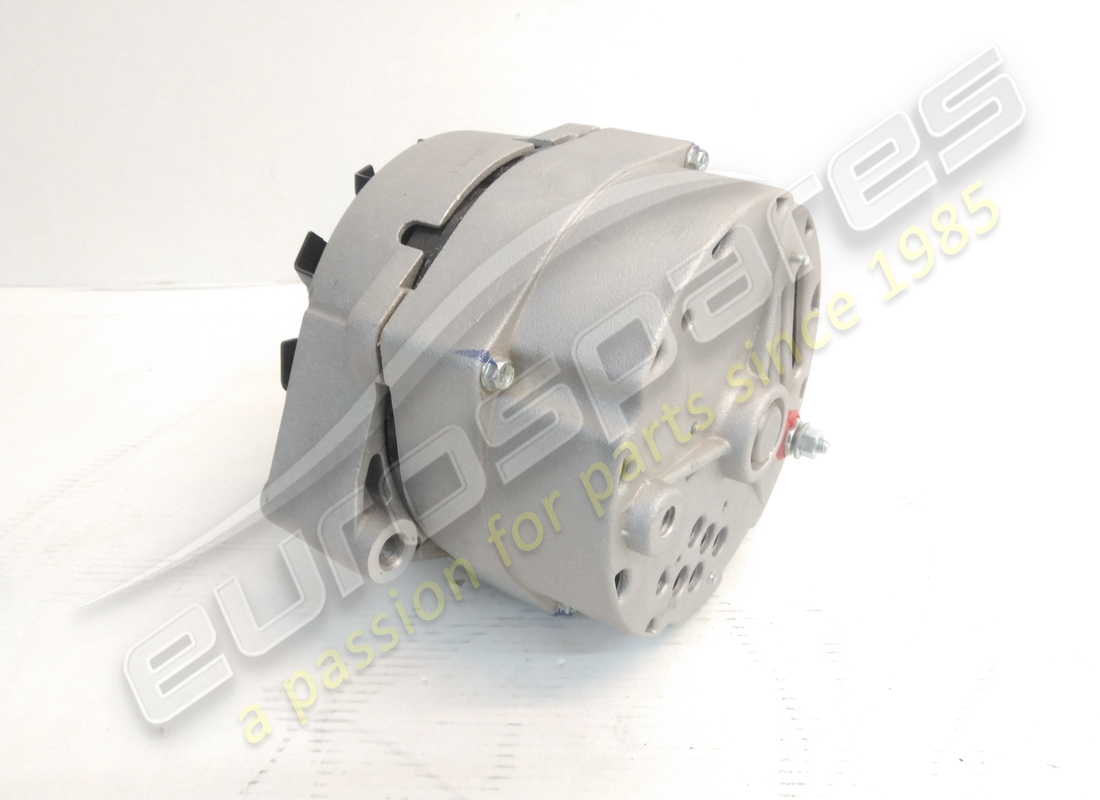

ALTERNATOR (DELCO)
from £900.00
from £900.00
This part replaces part number 125891 - and 1 more. Click to view details
# 008
MPN: 10725911
ALTERNATOR CABLES SECURING NUT
Supersession
Supersession
This part replaces part number 95900403
# 009
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 010
MPN: 125574
AIR CONVEYOR
Not for CAT. - Until car no. 84951
from £90.18
from £90.18
# 010
MPN: 143081
AIR CONVEYOR
For CAT. - Until car no. 84951
from £90.81
from £90.81
# 010
MPN: 144772
AIR CONVEYOR
Starting car no. 84952
from £395.85
from £395.85
# 011
MPN: 123295
SCREW
from £0.47
from £0.47
# 012
MPN: 12601471
WASHER
Supersession
Supersession
# 013
MPN: 123296
CONVEYOR FLEXIBLE HOSE
Until engine no.
from £55.33
from £55.33
# 013
MPN: 144770
CONVEYOR FLEXIBLE HOSE
Starting engine no.
from £325.50
from £325.50
# 014
MPN: 296782
CLAMP
from £4.99
from £4.99
This part replaces part number 12174090
# 015
MPN: 121282
FAN .
from £49.17
from £49.17
# 016
MPN: 124178
AIR-DELIVERY HOSE
Until engine no.
from £60.77
from £60.77
# 016
MPN: 144771
AIR-DELIVERY HOSE
Starting engine no.
from £77.77
from £77.77
# 017
MPN: 12575411
NUT
Supersession
Supersession
# 018
MPN: 160957
WASHER
from £0.53
from £0.53
This part replaces part number 10615476
# 019
MPN: 123172
BUSHING ON RH CRANKCASE COVER
from £1.08
from £1.08
# 020
MPN: 12638601
WASHER
from £0.47
from £0.47
This part replaces part number 20232104
# 021
MPN: 15971821
SCREW
from £3.19
from £3.19
# 022
MPN: 127497
WASHER
from £0.54
from £0.54
This part replaces part number 10516871 - and 2 more. Click to view details
# 023
MPN: 123173
ALTERNATOR BRACKET
from £39.77
from £39.77
# 024
MPN: 123193
THREADED PIN
from £8.95
from £8.95
# 025
MPN: 125668
VOLTAGE REGULATING SCREW
from £0.86
from £0.86
# 026
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 027
MPN: 14496501
WASHER
from £0.86
from £0.86
# 028
MPN: 127132
ALTERNATOR CONTROL BELT (CONTINENTAL)
For damper no. 125194
from £21.15
from £21.15
This part replaces part number 124395 - and 1 more. Click to view details
# 028
MPN: 199820

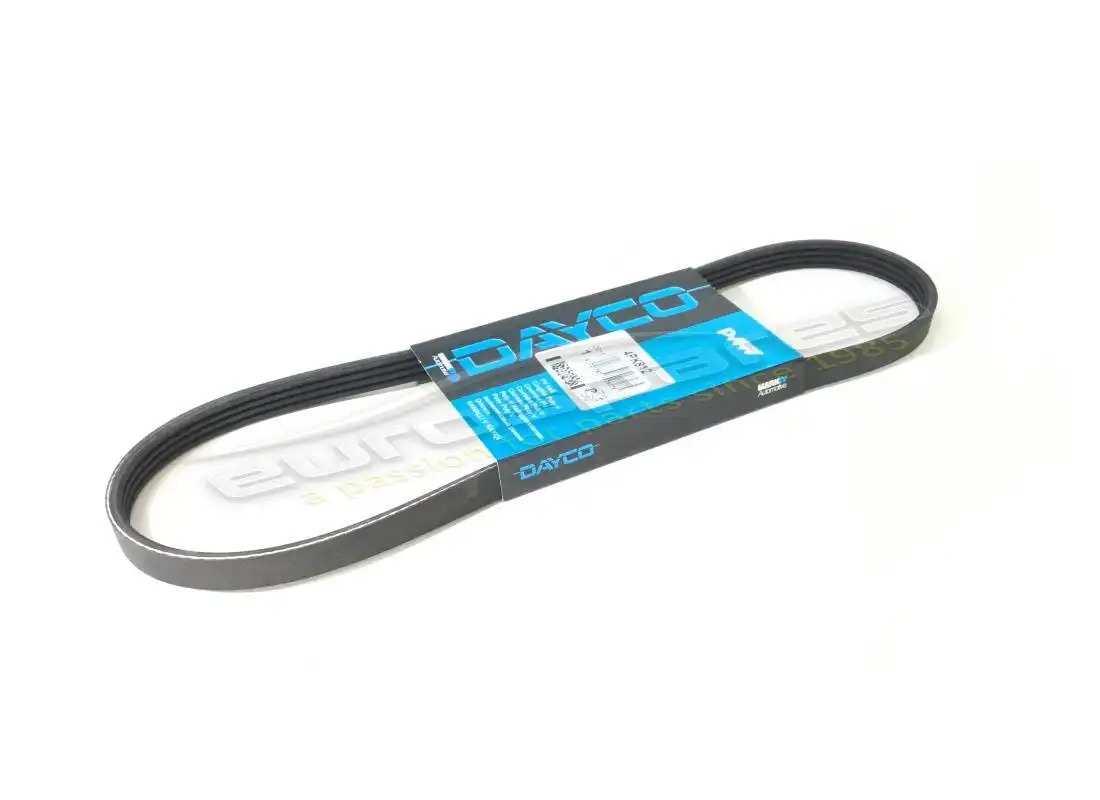

ALTERNATOR BELT
(replaces: 133262)
from £12.54
from £12.54
This part replaces part number 133262
# 029
MPN: 125910
PULLEY
For control belt no. 127132
from £204.75
from £204.75
# 029
MPN: 134147
PULLEY (4 GROOVES TYPE)
For control belt no. 133294 - 133262
from £70.03
from £70.03
# 030
MPN: 15970921
BRACKET SECURING SCREW
from £0.47
from £0.47
# 031
MPN: 127497
WASHER
from £0.54
from £0.54
This part replaces part number 10516871 - and 2 more. Click to view details
# 032
MPN: 118060
1 2 V - 66 AH - 300 A BATTERY
Supersession
Supersession
# 033
MPN: 125333
BATTERY SUPPORT PLATE
from £53.15
from £53.15
This part replaces part number 64675600
# 034
MPN: 62573400
BATTERY SECURING BRACKET
from £22.50
from £22.50
# 035
MPN: 125330
PIN
from £270.12
from £270.12
# 036
MPN: 11065676
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11065675 - and 1 more. Click to view details
# 037
MPN: 12642721
WASHER
from £1.21
from £1.21
# 038
MPN: 123674

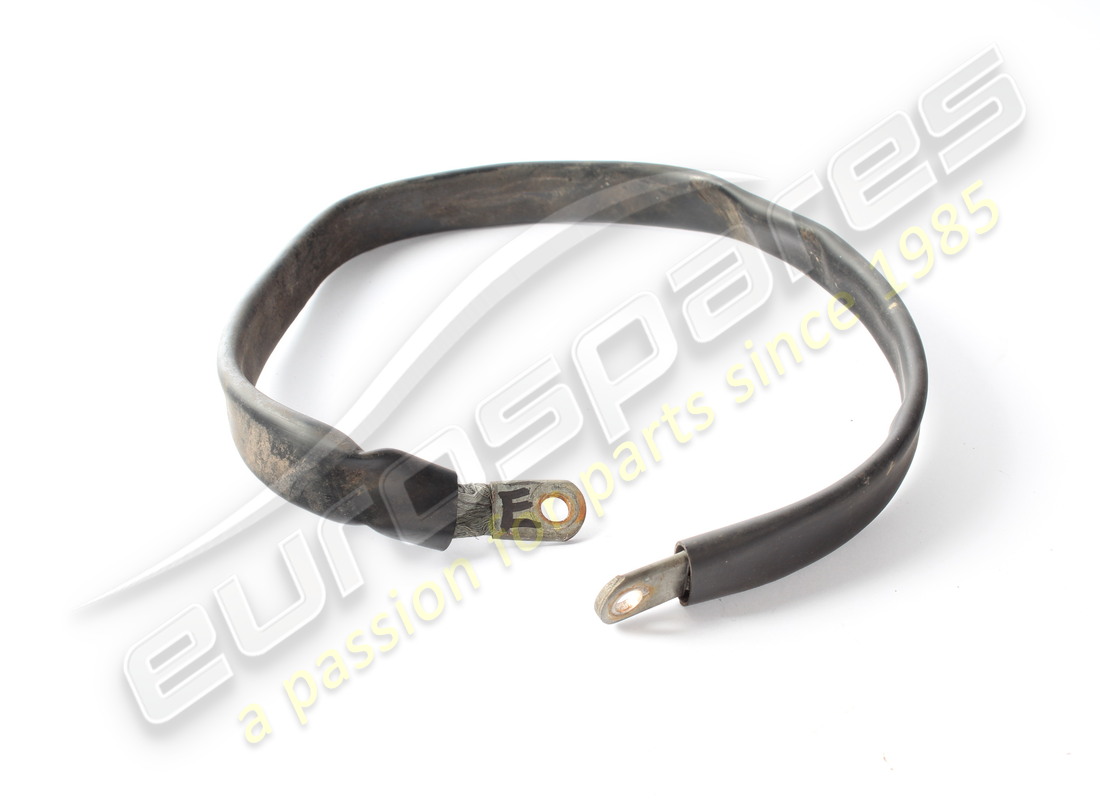

BATTERY POSITIVE CABLE
Not for CAT. and until car no. 84951
from £41.31
from £41.31
# 038
MPN: 144474
BATTERY POSITIVE CABLE
For CAT. and starting from car no. 84952
from £194.45
from £194.45
# 039
MPN: 131162
STARTER AND ALTERNATOR POSITIVE CABLE
Not for CAT. and until car no. 84951
from £99.23
from £99.23
# 039
MPN: 144468
STARTER AND ALTERNATOR POSITIVE CABLE
For CAT. and starting from car no. 84952
from £375.32
from £375.32
# 040
MPN: 123676
PLAIT FROM BATTERY TO SWITCH
from £22.64
from £22.64
# 041
MPN: 139607
BATTERY SWITCH
Supersession
Supersession
# 042
MPN: 123678
EARTHING PLAIT FOR BATT. DISCONN.
from £27.52
from £27.52
# 043
MPN: 16043121
SCREW
from £0.47
from £0.47
# 044
MPN: 10519601
WASHER
from £0.53
from £0.53
# 045
MPN: 10615679
TAB WASHER
Supersession
Supersession
# 046
MPN: 116591
POS. CABLE FASTENING U BOLT
from £20.30
from £20.30
# 047
MPN: 12574011
NUT
from £0.47
from £0.47
# 048
MPN: 12574011
NUT SECURING BATT. DISCONN. SWITCH
from £0.47
from £0.47
# 049
MPN: 14497701
WASHER
from £0.47
from £0.47
# 050
MPN: 14476078
NUT
# 051
MPN: 12575411
NUT
Supersession
Supersession
# 052
MPN: 10441490
CABLE SUPPORT BRACKET
from £0.47
from £0.47
# 053
MPN: 126505
PROTECTION
from £12.08
from £12.08
# 054
MPN: 121678
WASHER
from £6.73
from £6.73
# 055
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 056
MPN: 10615679
WASHER
Supersession
Supersession
# 057
MPN: 16043121
SCREW
from £0.47
from £0.47
# 058
MPN: 155073
EARTHING PLAIT FOR ENGINE
from £7.43
from £7.43
This part replaces part number 115668
-part-diagram-057.webp "FERRARI TESTAROSSA (1990) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-058.webp "FERRARI TESTAROSSA (1990) TOOL KIT PARTS DIAGRAM")
-part-diagram-059.webp "FERRARI TESTAROSSA (1990) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-060.webp "FERRARI TESTAROSSA (1990) BRAKE HYDRAULIC SYSTEM - ACCELERATOR CONTROL PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI TESTAROSSA (1990) BODY - EXTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI TESTAROSSA (1990) BODY - INTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI TESTAROSSA (1990) BODY - INTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI TESTAROSSA (1990) REAR FRAME PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI TESTAROSSA (1990) EXTERNAL FINISHING PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI TESTAROSSA (1990) BUMPERS PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI TESTAROSSA (1990) CARPET AND INSULATION PANELS PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI TESTAROSSA (1990) FRONT HOOD PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI TESTAROSSA (1990) REAR HOOD PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI TESTAROSSA (1990) DOOR PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI TESTAROSSA (1990) DOOR - LOCKING DEVICE PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI TESTAROSSA (1990) DOOR - POWER WINDOW PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI TESTAROSSA (1990) GLASS & WINDOWS PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI TESTAROSSA (1990) ACCESSORIES AND TRIMS PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI TESTAROSSA (1990) SEATS AND CARPETS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI TESTAROSSA (1990) DASHBOARD (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI TESTAROSSA (1990) DASHBOARD (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI TESTAROSSA (1990) CENTRAL TUNNEL (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI TESTAROSSA (1990) CENTRAL TUNNEL (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI TESTAROSSA (1990) INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI TESTAROSSA (1990) INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI TESTAROSSA (1990) FRONT HEADLIGHT LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI TESTAROSSA (1990) LAMPS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI TESTAROSSA (1990) ELECTRIC SYSTEM PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI TESTAROSSA (1990) VALVES AND RELAYS PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI TESTAROSSA (1990) WINDSHIELD WIPER, WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI TESTAROSSA (1990) HEATER UNIT PARTS DIAGRAM")
-part-diagram-a.webp "FERRARI TESTAROSSA (1990) SPARE PARTS ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI TESTAROSSA (1990) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI TESTAROSSA (1990) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI TESTAROSSA (1990) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI TESTAROSSA (1990) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI TESTAROSSA (1990) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI TESTAROSSA (1990) TIMING SYSTEM - VALVES PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI TESTAROSSA (1990) FUEL PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI TESTAROSSA (1990) FUEL TANKS (NOT FOR US - SA AND CH88) PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI TESTAROSSA (1990) FUEL TANKS (FOR US - SA AND CH88) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI TESTAROSSA (1990) ANTI - EVAPORATIVE EMMISION CONTROL SYSTEM (FOR US - SA AND CH88) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI TESTAROSSA (1990) FUEL DISTRIBUTORS LINES - KE - JETRONIC SYSTEM PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI TESTAROSSA (1990) ELECTRIC CONTROLS FOR KE - JETRONIC AND EXHAUST PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI TESTAROSSA (1990) FUEL INJECTION SYSTEM - VALVES AND LINES PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI TESTAROSSA (1990) SECONDARY AIR PUMP AND LINES (FOR U.S. AND CH88) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI TESTAROSSA (1990) AIR INJECTION AND LINES (FOR CH87 AND CAT) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI TESTAROSSA (1990) AIR INTAKE MANIFOLDS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI TESTAROSSA (1990) AIR INTAKE PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI TESTAROSSA (1990) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI TESTAROSSA (1990) EXHAUST SYSTEM (FOR B1 - GD1 VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI TESTAROSSA (1990) EXHAUST SYSTEM (FOR US - SA AND CAT VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI TESTAROSSA (1990) BLOW - BY PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI TESTAROSSA (1990) LUBRICATION PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI TESTAROSSA (1990) LUBRICATION -PUMPS AND OIL FILTER PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI TESTAROSSA (1990) ENGINE COOLING PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI TESTAROSSA (1990) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI TESTAROSSA (1990) WATER PUMP PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI TESTAROSSA (1990) CLUTCH CONTROLS (UNTIL CAR NO. 80094 - 80145 CH - 80176 US) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI TESTAROSSA (1990) CLUTCH CONTROLS (STARTING FROM CAR NO. 80095 - 80146 CH - 80177 US) PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI TESTAROSSA (1990) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI TESTAROSSA (1990) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI TESTAROSSA (1990) GEARBOX - MOUNTING AND COVERS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI TESTAROSSA (1990) GEARBOX PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI TESTAROSSA (1990) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI TESTAROSSA (1990) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI TESTAROSSA (1990) GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI TESTAROSSA (1990) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI TESTAROSSA (1990) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI TESTAROSSA (1990) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI TESTAROSSA (1990) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI TESTAROSSA (1990) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI TESTAROSSA (1990) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI TESTAROSSA (1990) STEERING COLUMN (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI TESTAROSSA (1990) STEERING COLUMN (STARTING FROM CAR NO. 75997 TO CAR NO. 80422) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI TESTAROSSA (1990) STERING COLUMN (STARTING FROM CAR NO. 80423) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UNTIL CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - WISHBONES (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - WISHBONES (STARTING FROM CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - BRAKE DISC (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - BRAKE DISC (STARTING FROM CAR NO.75997) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (STARTING FROM CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI TESTAROSSA (1990) WHEEL (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI TESTAROSSA (1990) WHEEL (STARTING FROM CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI TESTAROSSA (1990) ENGINE IGNITION PARTS DIAGRAM")
