ferrari testarossa (1990) front hood parts diagram

108 - Front Hood

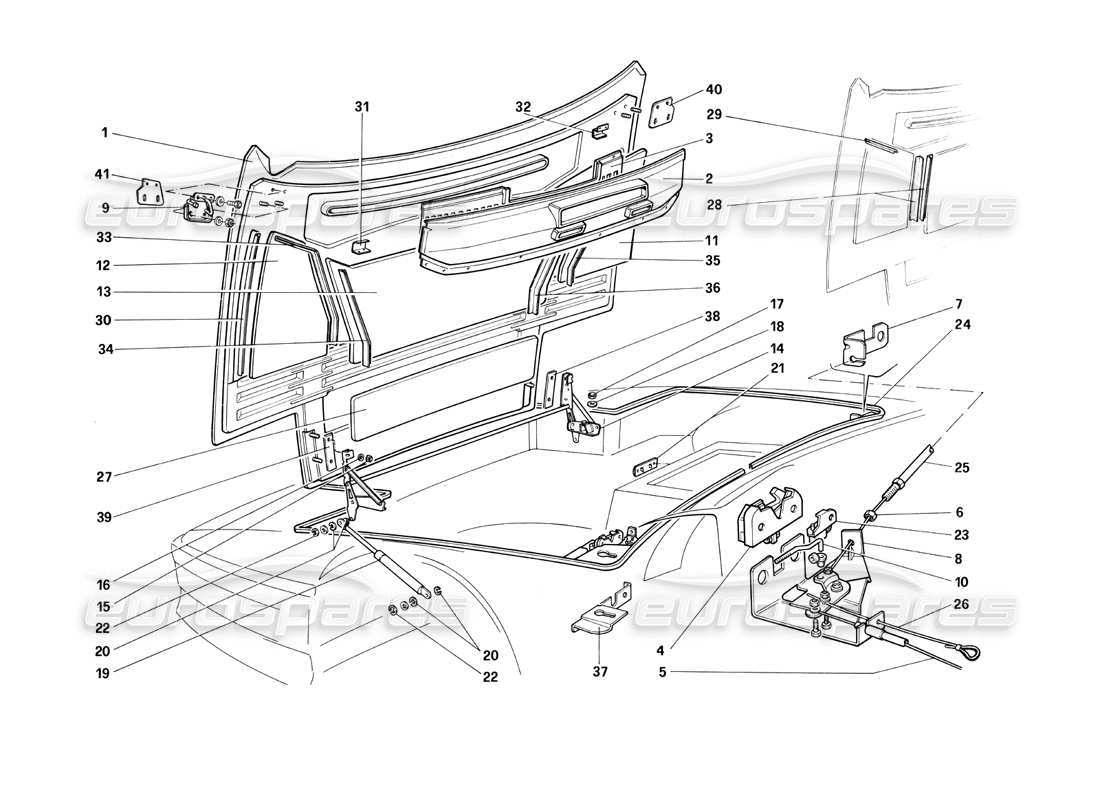

Ferrari Testarossa (1990) Front Hood Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Key
                                                                      Price
                                                                      # 001
                                                                      MPN: 61495400
                                                                      FRONT BONNET RHD
                                                                      from £6,206.90
                                                                      from £6,206.90
                                                                      FRONT BONNET RHD (61495400) Eurospares Approved Part - New In stock
                                                                      FRONT BONNET RHD Genuine Ferrari Part - New (to order)
                                                                      FRONT BONNET RHD Genuine Ferrari Part - Used In stock
                                                                      # 001
                                                                      MPN: 61495500
                                                                      FRONT BONNET LHD
                                                                      from £8,995.00
                                                                      from £8,995.00
                                                                      FRONT BONNET LHD (61495500) Eurospares Approved Part - New In stock
                                                                      FRONT BONNET LHD Genuine Ferrari Part - New (to order)
                                                                      # 002
                                                                      MPN: 61544000
                                                                      WATER SHIELD PANEL, LHD
                                                                      Until car no. 75133
                                                                      from £414.04
                                                                      from £414.04
                                                                      WATER SHIELD PANEL LHD Genuine Ferrari Part - New (to order)
                                                                      # 002
                                                                      MPN: 61546000
                                                                      WATER SHIELD PANEL, RHD
                                                                      Until car no. 75133
                                                                      from £106.68
                                                                      from £106.68
                                                                      WATER SHIELD PANEL RHD Genuine Ferrari Part - New (to order)
                                                                      # 002
                                                                      MPN: 61570000
                                                                      WATER SHIELD PANEL, LHD
                                                                      From car no. 75134
                                                                      from £696.99
                                                                      from £696.99
                                                                      WATER SHIELD PANEL LHD Genuine Ferrari Part - New (to order)
                                                                      # 002
                                                                      MPN: 61570800
                                                                      WATER SHIELD PANEL, RHD
                                                                      From car no. 75134
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Ferrari Part (no longer available to order)
                                                                      # 003
                                                                      MPN: 61495700
                                                                      GRILL
                                                                      Until exhausted
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Ferrari Part (no longer available to order)
                                                                      # 003
                                                                      MPN: 61558500
                                                                      GRILL
                                                                      With protection net - After exhaustion P.N. 61495700
                                                                      from £35.61
                                                                      from £35.61
                                                                      This part replaces part number 61495700 - and 1 more. Click to view details
                                                                      FRONT BONNET GRILLE Genuine Ferrari Part - New (to order)
                                                                      FRONT BONNET GRILLE Genuine Ferrari Part - Used In stock
                                                                      # 004
                                                                      MPN: 61497600
                                                                      BONNETLOCK
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 61499000
                                                                      Genuine Ferrari Part (no longer available to order)
                                                                      # 005
                                                                      MPN: 61497300
                                                                      CABLE FOR OPENING BONNET
                                                                      from £44.66
                                                                      from £44.66
                                                                      BONNET CABLE S/STEEL INNER Genuine Ferrari Part - New (to order)
                                                                      # 006
                                                                      MPN: 14084211
                                                                      NUT
                                                                      from £0.71
                                                                      from £0.71
                                                                      NUT Genuine Ferrari Part - New (to order)
                                                                      NUT (14084211) Genuine Maserati Part - New (to order)
                                                                      # 007
                                                                      MPN: 61495900
                                                                      RH SHEATH SUPPORT PLATE
                                                                      from £24.93
                                                                      from £24.93
                                                                      RH PLATE Genuine Ferrari Part - New In stock
                                                                      RH PLATE Genuine Ferrari Part - Used In stock
                                                                      # 008
                                                                      MPN: 61496000
                                                                      LH SHEATH SUPPORT PLATE
                                                                      from £22.91
                                                                      from £22.91
                                                                      LH PLATE Genuine Ferrari Part - New (to order)
                                                                      LH PLATE Genuine Ferrari Part - Used In stock
                                                                      LH BRACKET RHD
                                                                      # 009
                                                                      MPN: 61496100
                                                                      LOCK STRIKER LEFT
                                                                      Until car no. 75133 (75447 for US version)
                                                                      from £69.51
                                                                      from £69.51
                                                                      LH LOCK STRIKER Genuine Ferrari Part - New (to order)
                                                                      # 009
                                                                      MPN: 61541400
                                                                      LOCK STRIKER RIGHT
                                                                      Until car no. 75133 (75447 for US version)
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Ferrari Part (no longer available to order)
                                                                      # 009
                                                                      MPN: 61571700
                                                                      LOCK STRIKER RIGHT
                                                                      From car no. 75134 (75448 for US version)
                                                                      from £35.67
                                                                      from £35.67
                                                                      This part replaces part number 61541400 - and 1 more. Click to view details
                                                                      RH LOCK STRIKER Genuine Ferrari Part - New (to order)
                                                                      RH LOCK STRIKER Genuine Ferrari Part - Used In stock
                                                                      # 009
                                                                      MPN: 61571800
                                                                      LOCK STRIKER LEFT
                                                                      From car no. 75134 (75448 for US version)
                                                                      from £33.45
                                                                      from £33.45
                                                                      LH LOCK STRIKER Genuine Ferrari Part - New In stock
                                                                      LH LOCK STRIKER Genuine Ferrari Part - Used In stock
                                                                      # 010
                                                                      MPN: 61496200
                                                                      LH STRIKER ROD (LHD)
                                                                      from £9.91
                                                                      from £9.91
                                                                      LH STRIKER ROD LHD Genuine Ferrari Part - New In stock
                                                                      # 010
                                                                      MPN: 61532900
                                                                      RH STRIKER ROD (RHD)
                                                                      from £4.23
                                                                      from £4.23
                                                                      RH STRIKER ROD RHD Genuine Ferrari Part - New (to order)
                                                                      RH STRIKER ROD RHD Genuine Ferrari Part - Used In stock
                                                                      # 011
                                                                      MPN: 61496300
                                                                      RIGHT SOUND INSULATION
                                                                      Until car no. 75133 (75447 for US version)
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Ferrari Part (no longer available to order)
                                                                      # 012
                                                                      MPN: 61570300
                                                                      LEFT SOUND INSULATION
                                                                      From car no. 75134 (75448 for US version)
                                                                      from £128.18
                                                                      from £128.18
                                                                      LH BONNET INSULATION Genuine Ferrari Part - New (to order)
                                                                      # 013
                                                                      MPN: 61570100
                                                                      CENTRAL SOUND INSULATION
                                                                      From car N. 75134 (75448 for US version)
                                                                      from £475.26
                                                                      from £475.26
                                                                      CENTRAL BONNET INSULATION Genuine Ferrari Part - New (to order)
                                                                      # 014
                                                                      MPN: 61496600
                                                                      COMPLETE HINGE
                                                                      from £4,366.80
                                                                      from £4,366.80
                                                                      BONNET HINGE Genuine Ferrari Part - New (to order)
                                                                      # 015
                                                                      MPN: 14084211
                                                                      NUT
                                                                      from £0.71
                                                                      from £0.71
                                                                      NUT Genuine Ferrari Part - New (to order)
                                                                      NUT (14084211) Genuine Maserati Part - New (to order)
                                                                      # 016
                                                                      MPN: 12643724
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                      WASHER Genuine Ferrari Part - New In stock
                                                                      WASHER (12643724) Genuine Maserati Part - New In stock
                                                                      # 017
                                                                      MPN: 14084411
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      FLANGE NUT Genuine Ferrari Part - New (to order)
                                                                      # 019
                                                                      MPN: 61571600
                                                                      SUPPORT
                                                                      from £42.06
                                                                      from £42.06
                                                                      BONNET STAY Genuine Ferrari Part - New (to order)
                                                                      BONNET STAY (61571600) Original Equipment - New In stock
                                                                      # 020
                                                                      MPN: 12601371
                                                                      SPRING WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Ferrari Part (no longer available to order)
                                                                      # 021
                                                                      MPN: 61647200
                                                                      LAMP
                                                                      from £31.94
                                                                      from £31.94
                                                                      This part replaces part number 61496800 - and 1 more. Click to view details
                                                                      DASHBOARD BOX LAMP Genuine Ferrari Part - New In stock
                                                                      DASHBOARD BOX LAMP Genuine Ferrari Part - Used In stock
                                                                      # 022
                                                                      MPN: 11087976
                                                                      CIRCLIP
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 11087975
                                                                      Genuine Ferrari Part (no longer available to order)
                                                                      # 023
                                                                      MPN: 61496900
                                                                      WARNING LIGHT CONTROL
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Ferrari Part (no longer available to order)
                                                                      # 024
                                                                      MPN: 61497000

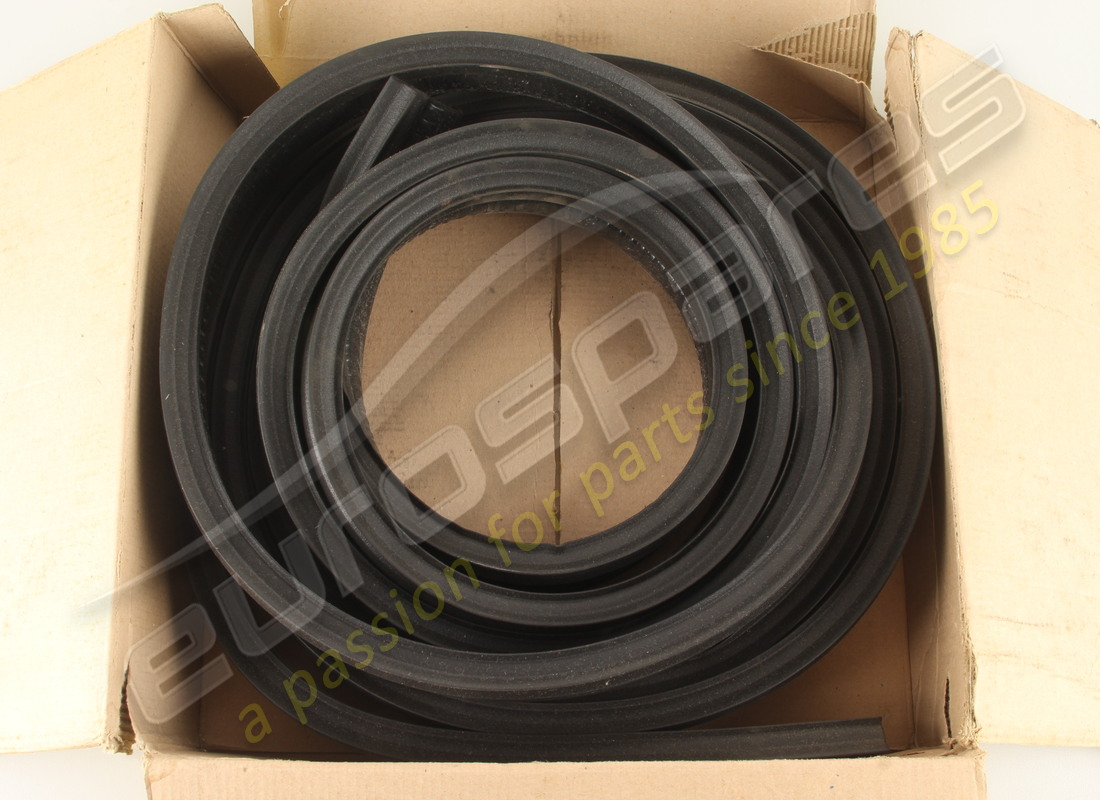

                                                                      BONNET GASKET
                                                                      USE 16335190
                                                                      from £45.92
                                                                      from £45.92
                                                                      BONNET WEATHERSTRIP Genuine Ferrari Part - New In stock
                                                                      BONNET WEATHERSTRIP Genuine Ferrari Part - Used In stock
                                                                      # 025
                                                                      MPN: 61497100
                                                                      RIGHT LOCK CABLE
                                                                      from £17.97
                                                                      from £17.97
                                                                      RIGHT CABLE FOR BONNET LOCK Genuine Ferrari Part - New In stock
                                                                      RIGHT CABLE FOR BONNET LOCK Genuine Ferrari Part - Used In stock
                                                                      # 026
                                                                      MPN: 61497200
                                                                      EMERGENCY CABLE
                                                                      from £9.66
                                                                      from £9.66
                                                                      BONNET EMERGENCY CABLE Genuine Ferrari Part - New In stock
                                                                      # 027
                                                                      MPN: 61548800
                                                                      SOUND INSULATION, CENTRAL LOWER
                                                                      from £184.11
                                                                      from £184.11
                                                                      Insulation Genuine Ferrari Part - New (to order)
                                                                      # 028
                                                                      MPN: 61563400
                                                                      CENTRAL ANGULAR (1 ST TYPE)
                                                                      from £19.26
                                                                      from £19.26
                                                                      CENTRAL ANGLE Genuine Ferrari Part - New In stock
                                                                      # 029
                                                                      MPN: 61563500
                                                                      ANGULAR, RH UPPER (1ST TYPE)
                                                                      from £24.96
                                                                      from £24.96
                                                                      RH UPPER ANGLE Genuine Ferrari Part - New In stock
                                                                      # 029
                                                                      MPN: 61563600
                                                                      ANGULAR, LH UPPER (1ST TYPE)
                                                                      from £24.96
                                                                      from £24.96
                                                                      LH UPPER ANGLE Genuine Ferrari Part - New In stock
                                                                      # 030
                                                                      MPN: 61563200
                                                                      RH ANGULAR
                                                                      from £61.66
                                                                      from £61.66
                                                                      This part replaces part number 61570400 which we have in stock
                                                                      RH ANGLE Genuine Ferrari Part - New In stock
                                                                      # 030
                                                                      MPN: 61563300
                                                                      LH ANGULAR
                                                                      from £59.68
                                                                      from £59.68
                                                                      This part replaces part number 61570500 which we have in stock
                                                                      LH ANGLE Genuine Ferrari Part - New In stock
                                                                      # 031
                                                                      MPN: 61546600
                                                                      CLIP FOR GRILLE
                                                                      from £2.62
                                                                      from £2.62
                                                                      CLIP Genuine Ferrari Part - New (to order)
                                                                      # 032
                                                                      MPN: 61546500
                                                                      BRACKET FOR REAR GRILLE
                                                                      from £25.08
                                                                      from £25.08
                                                                      BRACKET Genuine Ferrari Part - New (to order)
                                                                      # 033
                                                                      MPN: 61572000
                                                                      ANGULAR (LAST TYPE)
                                                                      from £10.26
                                                                      from £10.26
                                                                      MOULDING Genuine Ferrari Part - New (to order)
                                                                      # 034
                                                                      MPN: 61572100
                                                                      ANGULAR (LAST TYPE)
                                                                      from £47.00
                                                                      from £47.00
                                                                      MOULDING Genuine Ferrari Part - New (to order)
                                                                      # 035
                                                                      MPN: 61572200
                                                                      ANGULAR (LAST TYPE)
                                                                      from £10.26
                                                                      from £10.26
                                                                      MOULDING Genuine Ferrari Part - New (to order)
                                                                      # 036
                                                                      MPN: 61572300
                                                                      ANGULAR (LAST TYPE)
                                                                      from £10.26
                                                                      from £10.26
                                                                      MOULDING Genuine Ferrari Part - New (to order)
                                                                      # 037
                                                                      MPN: 61577700
                                                                      RH BRACKET FOR LOCK
                                                                      from £35.07
                                                                      from £35.07
                                                                      RH BRACKET Genuine Ferrari Part - New In stock
                                                                      # 037
                                                                      MPN: 61577800
                                                                      LH BRACKET FOR LOCK
                                                                      from £35.07
                                                                      from £35.07
                                                                      LH BRACKET Genuine Ferrari Part - New (to order)
                                                                      # 038
                                                                      MPN: 61579800
                                                                      ZINCFOIT, RH
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Ferrari Part (no longer available to order)
                                                                      # 039
                                                                      MPN: 61579900
                                                                      ZINCFOIL, LH
                                                                      LH ZINC FOIL HINGE Genuine Ferrari Part - New (to order)
                                                                      # 040
                                                                      MPN: 61580000
                                                                      ZINCFOIL, RH
                                                                      RH ZINC FOIL Genuine Ferrari Part - New (to order)
                                                                      # 041
                                                                      MPN: 61580100
                                                                      ZINCFOIL, LH
                                                                      LH ZINC FOIL Genuine Ferrari Part - New (to order)
