120 - Instruments and Passenger Compartment Accessories (Not for US Version)

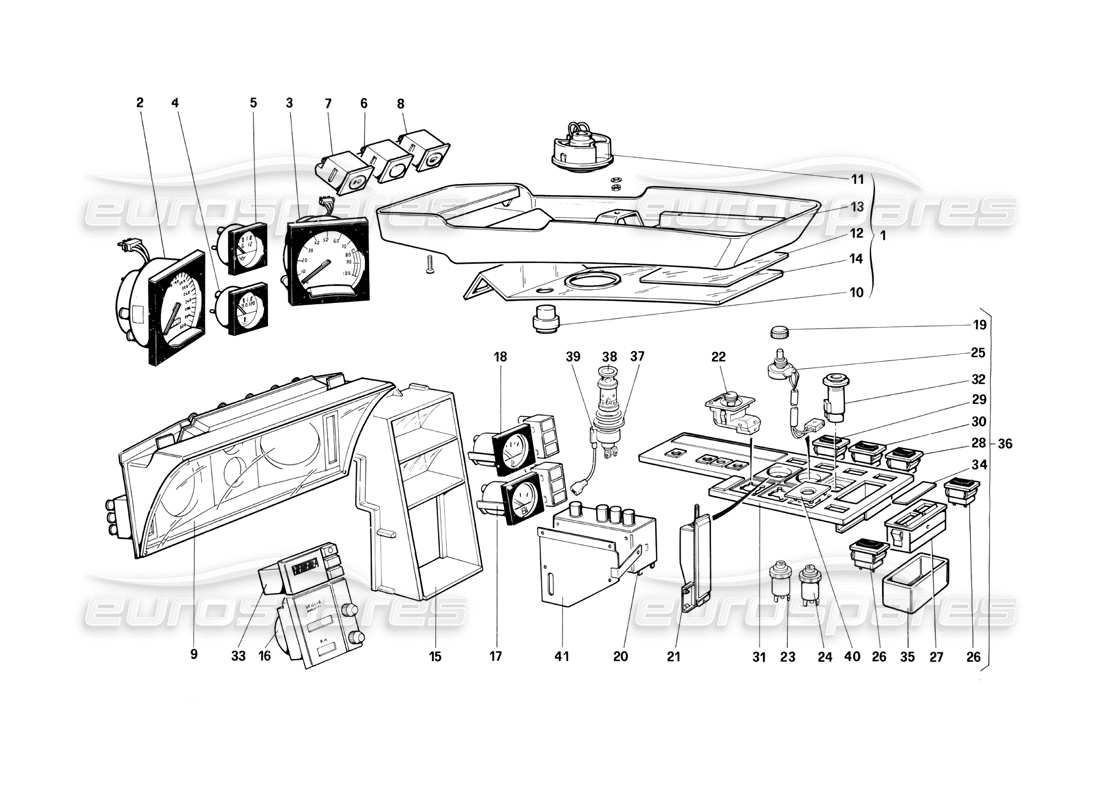

Ferrari Testarossa (1990) Instruments and Passenger Compartment Accessories (Not for US Version) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61548300
UPPER CONSOLE, COMPLETE
Supersession
Supersession
This part replaces part number 615483.. which we have in stock - and 2 more. Click to view details
# 002
MPN: 119729

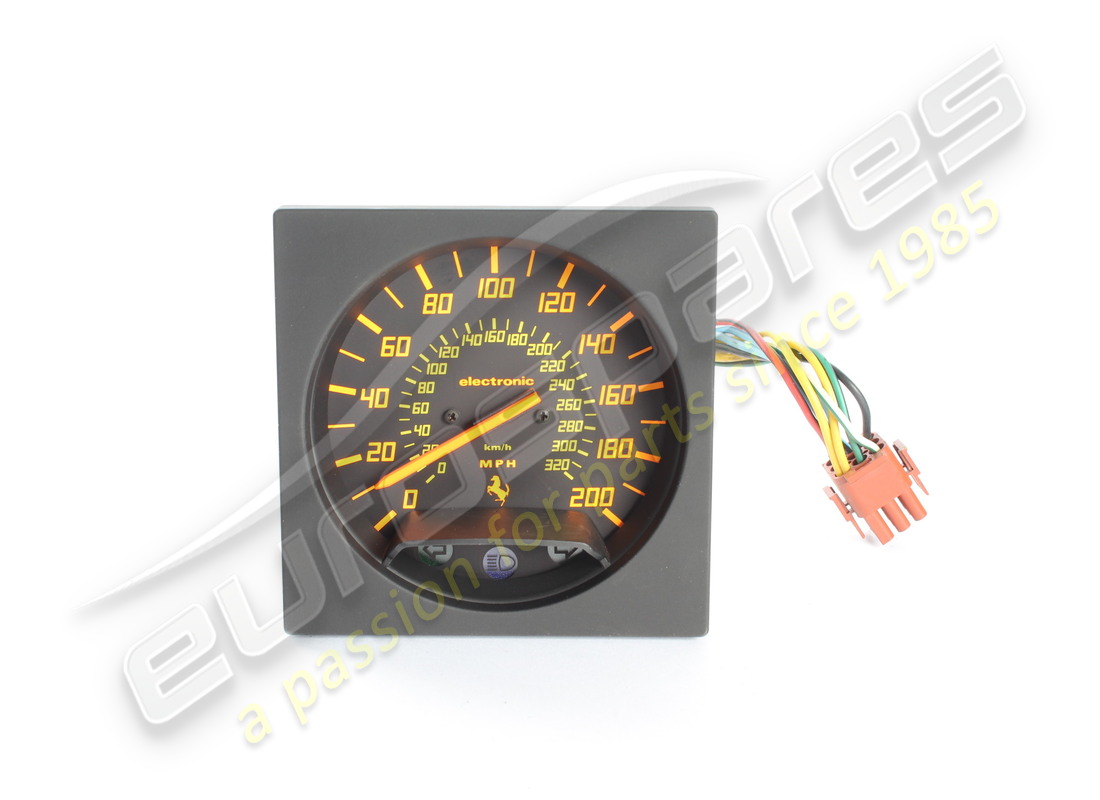

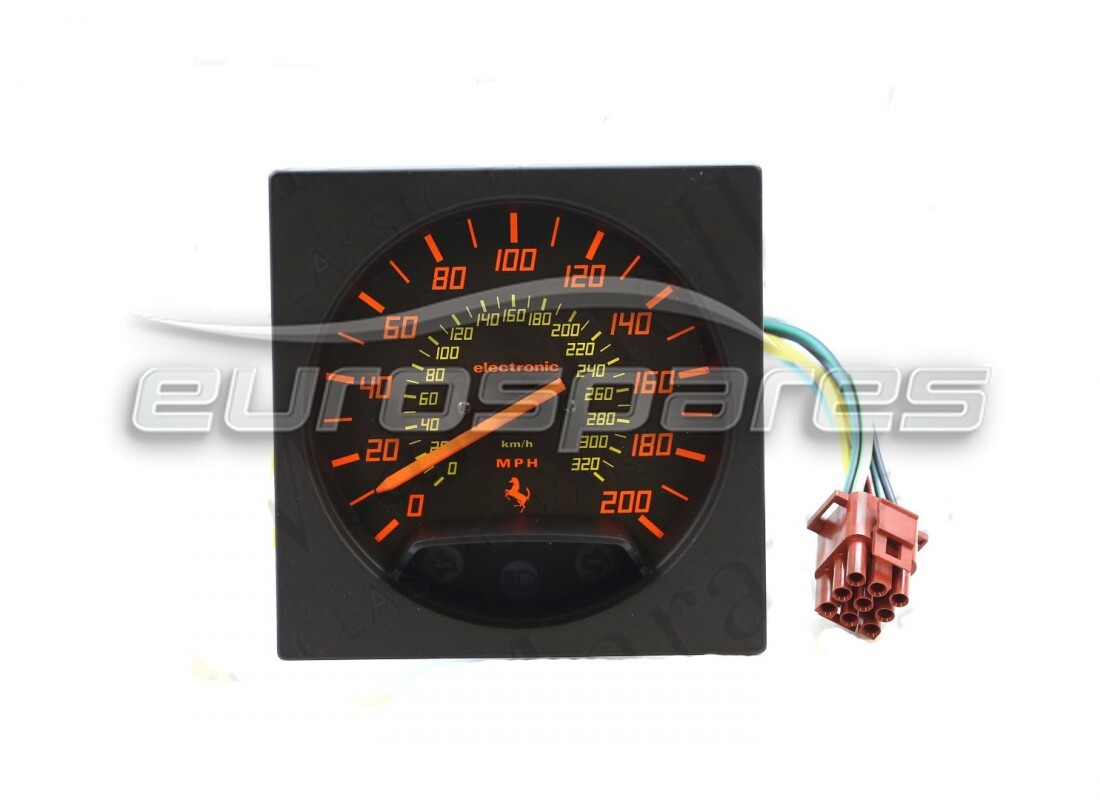

SPEEDOMETER
Not for CH - CAT
Supersession
Supersession
# 002
MPN: 119734
ELECTRONIC MILEAGE ODOMETER
from £568.80
from £568.80
This part replaces part number 119729 - and 2 more. Click to view details
# 002
MPN: 132783
SNEEDOMETER
For CH - CAT
from £433.41
from £433.41
# 003
MPN: 119728
REV COUNTER
from £115.89
from £115.89
# 004
MPN: 119730

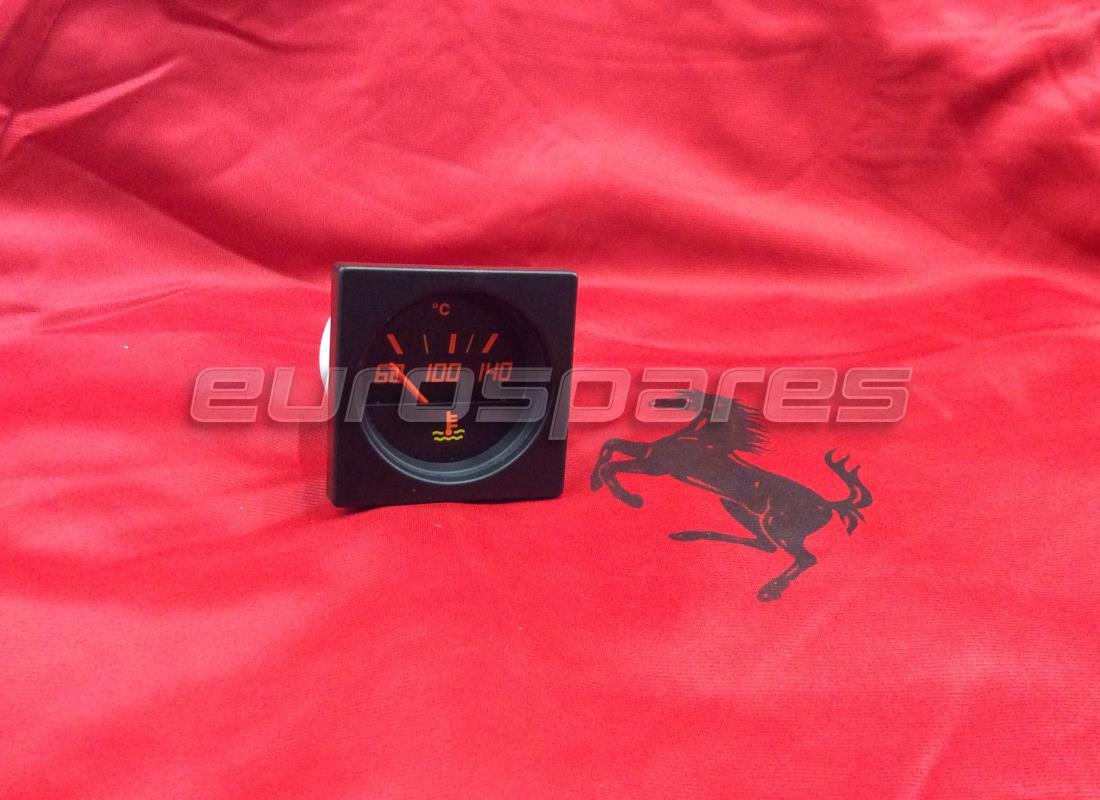

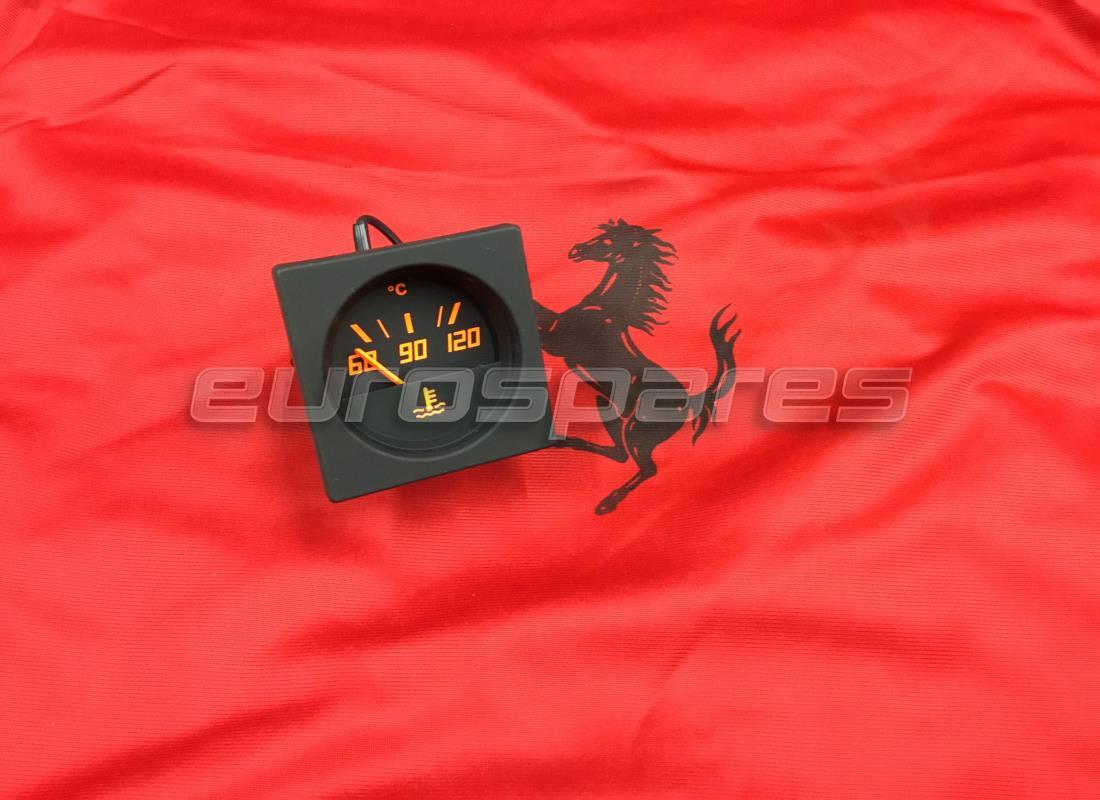

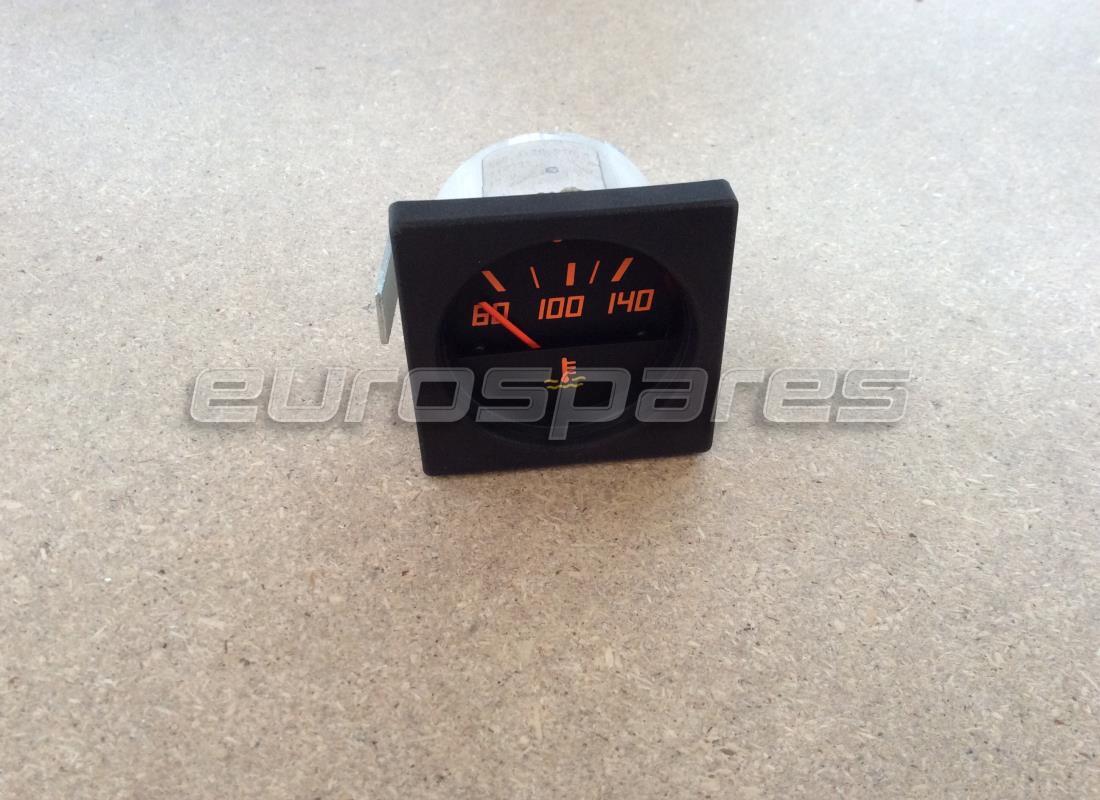

WATER TEMPERATURE GAUGE
For LHD - Not for CAT - Until exhaustion
Supersession
Supersession
# 004
MPN: 131700
WATER TEMPERATURE GAUGE
For CAT and LHD after exhaustion PN 119730
from £106.60
from £106.60
This part replaces part number 119730
# 004
MPN: 131701
WATER TEMPERATURE GAUGE
For RHD and US
from £58.49
from £58.49
This part replaces part number 119817 which we have in stock - and 2 more. Click to view details

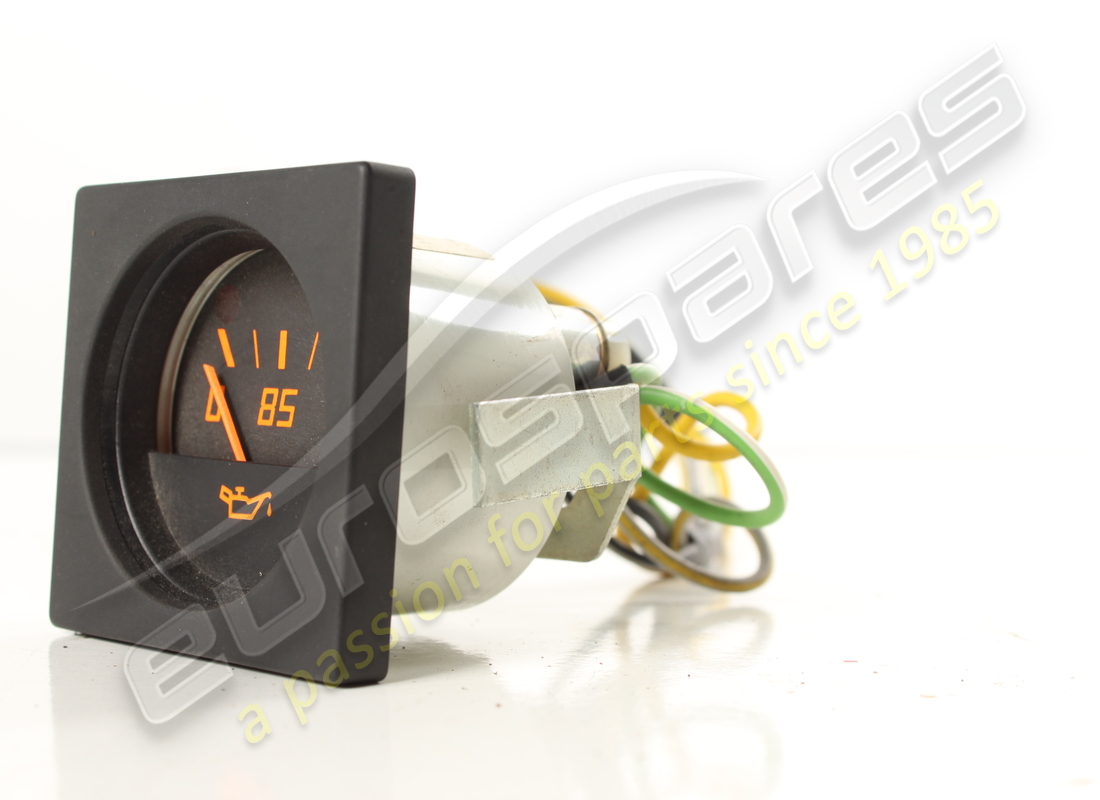

# 005
MPN: 119732

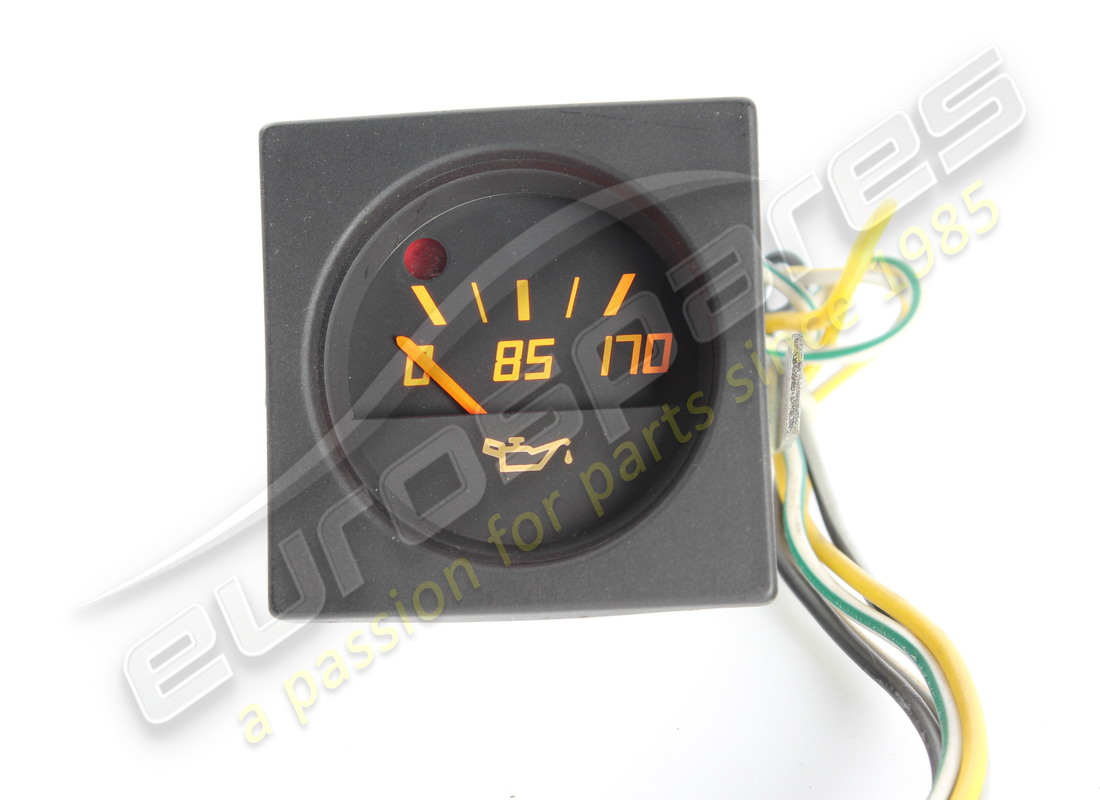

OIL PRESSURE GAUGE
For LHD - Not for US
from £79.00
from £79.00
# 005
MPN: 119737
OIL PRESSURE GAUGE
For RHD and US - Not for J
from £86.94
from £86.94
# 006
MPN: 120644
DUMMY SWITCH
from £6.15
from £6.15
# 006
MPN: 121609
REAR FOG LIGHT SWITCH
Not for US - SA - J
from £522.94
from £522.94
This part replaces part number 116024 - and 1 more. Click to view details
# 007
MPN: 121607
FOG LIGHT SWITCH
from £694.47
from £694.47
This part replaces part number 116023 - and 3 more. Click to view details
# 008
MPN: 121608

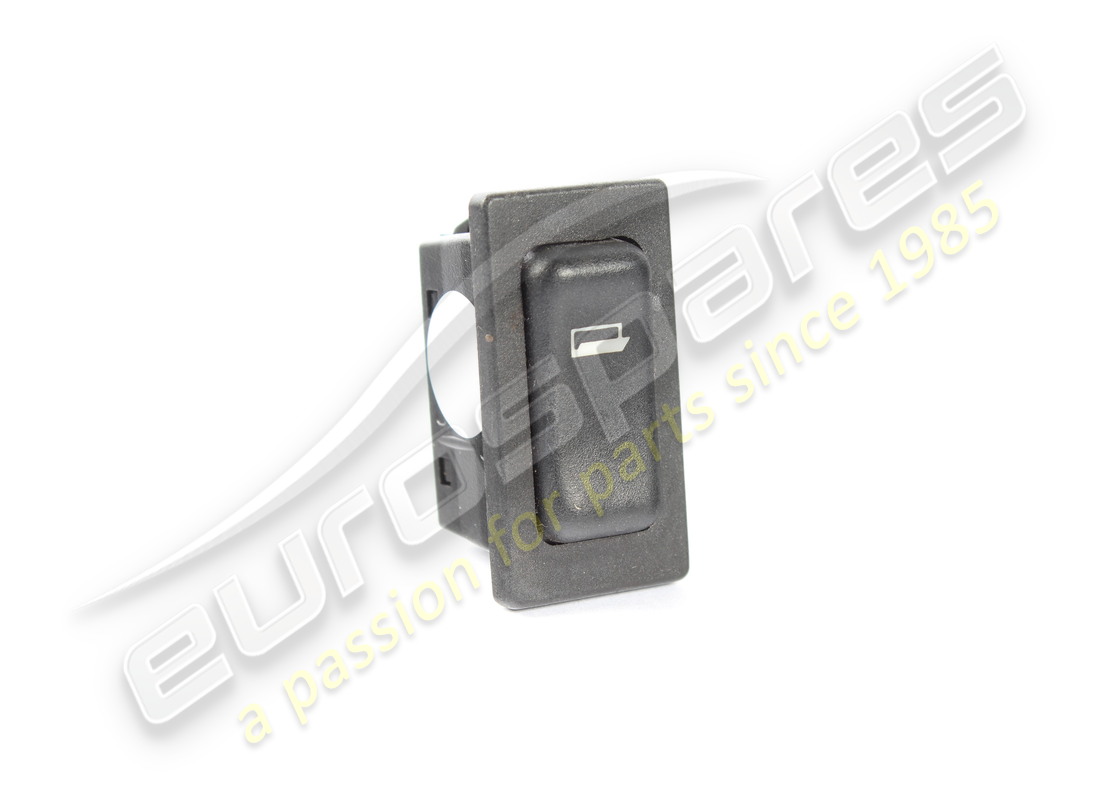

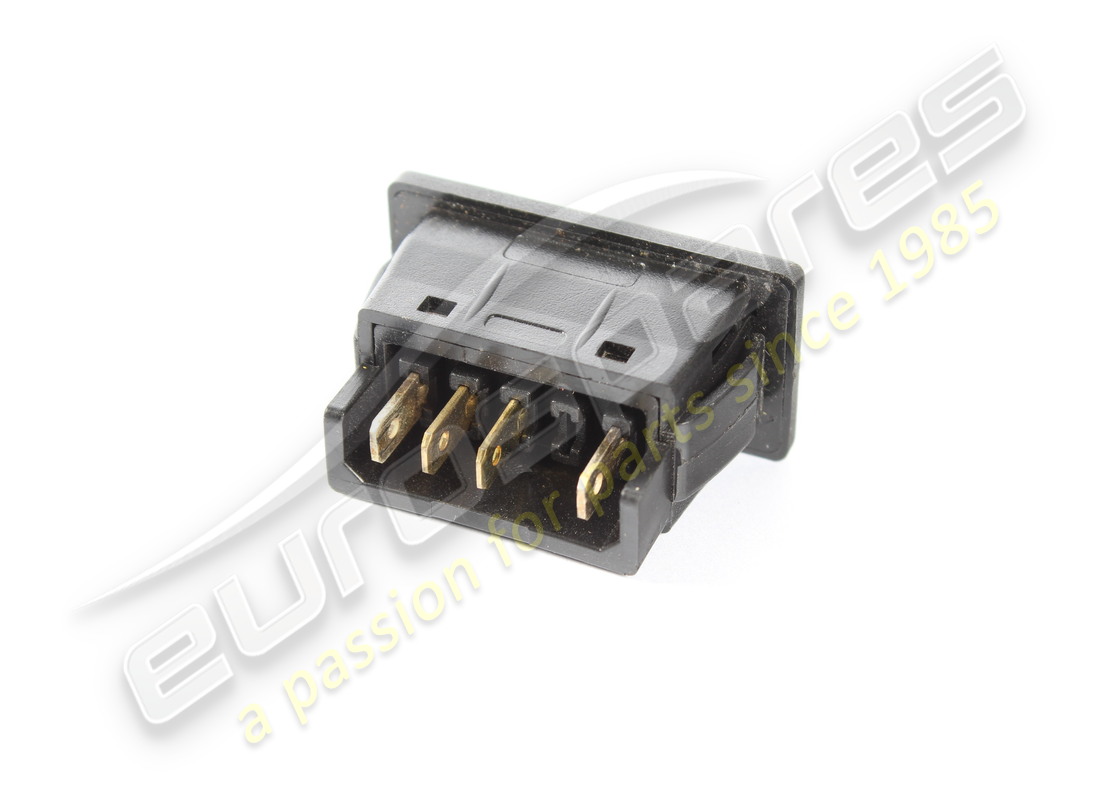

HEATEA REAR WINDOW SWITCH
from £544.79
from £544.79
This part replaces part number 116022 - and 2 more. Click to view details

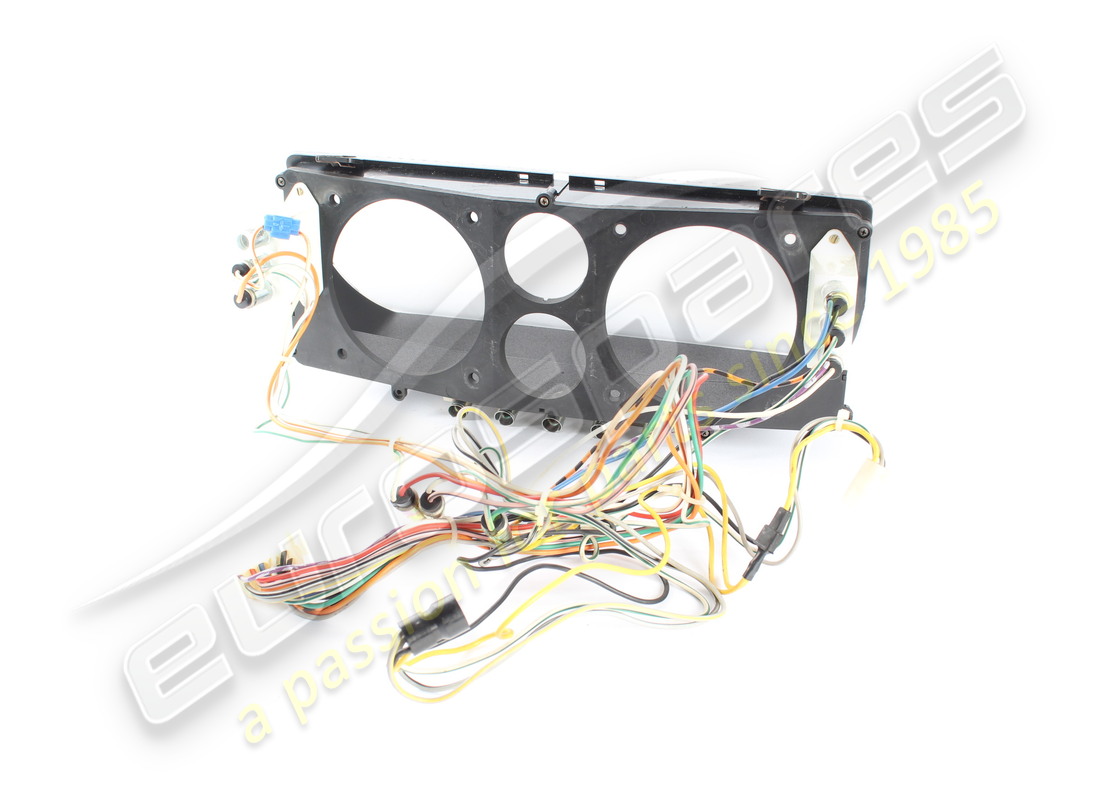

# 009
MPN: 123361

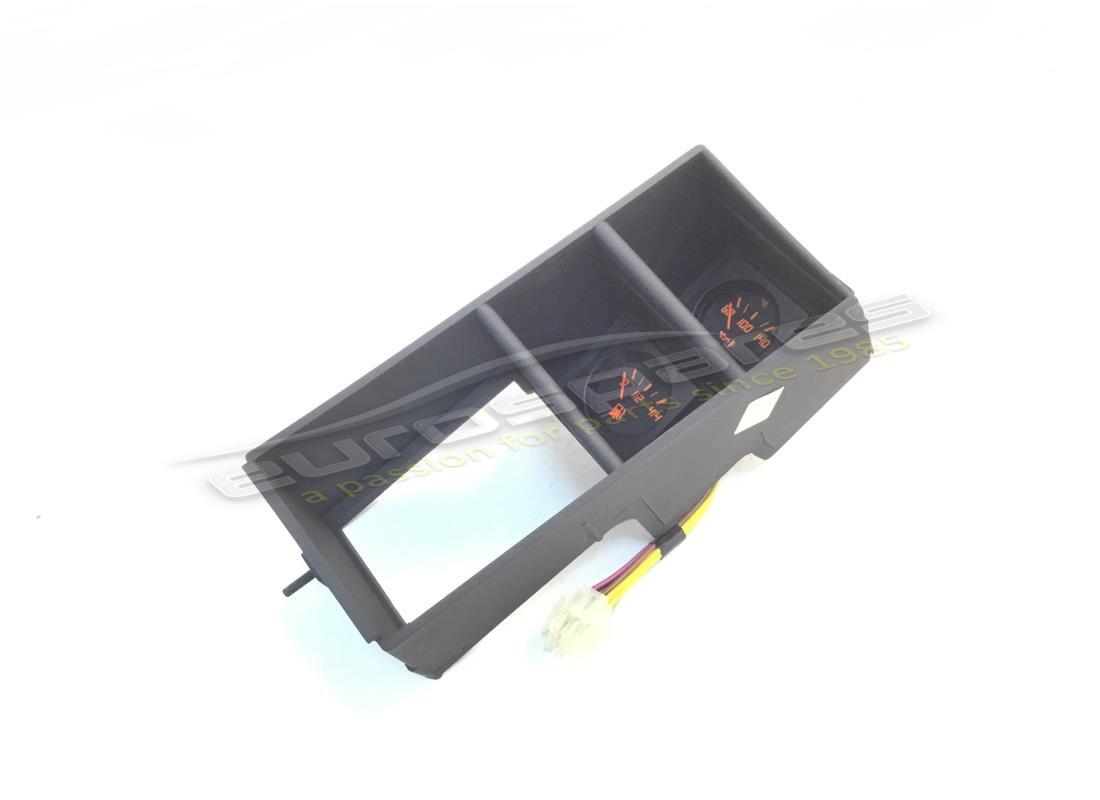

CENTRALPANEL ASSEMBLY
For LHD - Not for J - CDN - ZA - CH - CAT
from £672.97
from £672.97
# 009
MPN: 123649
CENTRAL PANEL ASSEMBLY
For CDN - Until car no…...
from £1,443.29
from £1,443.29
# 009
MPN: 123651
CENTRAL PANEL ASSEMBLY
For RHD
from £565.94
from £565.94
# 009
MPN: 123653
CENTRAL PANEL ASSEMBLY
For ZA
# 009
MPN: 129700
CENTRAL PANEL ASSEMBLY
For J - For CDN for car no…...
# 009
MPN: 132781
CENTRAL PANEL ASSEMBLY
For CH and CAT
from £1,097.90
from £1,097.90
# 010
MPN: 61526300
PUSH BUTTON SPOT
from £39.68
from £39.68
# 011
MPN: 61526400
SPOT FOR PASSENGER COMPARTMENT LIGHT
from £14.96
from £14.96
# 012
MPN: 61526500
OPAL COVER ON ROOF CONSOLE
from £5.62
from £5.62
# 013
MPN: 61548400
UPPER CONSOLE
from £52.50
from £52.50
# 014
MPN: 61526700
TRANSPARENT COVER
from £42.52
from £42.52

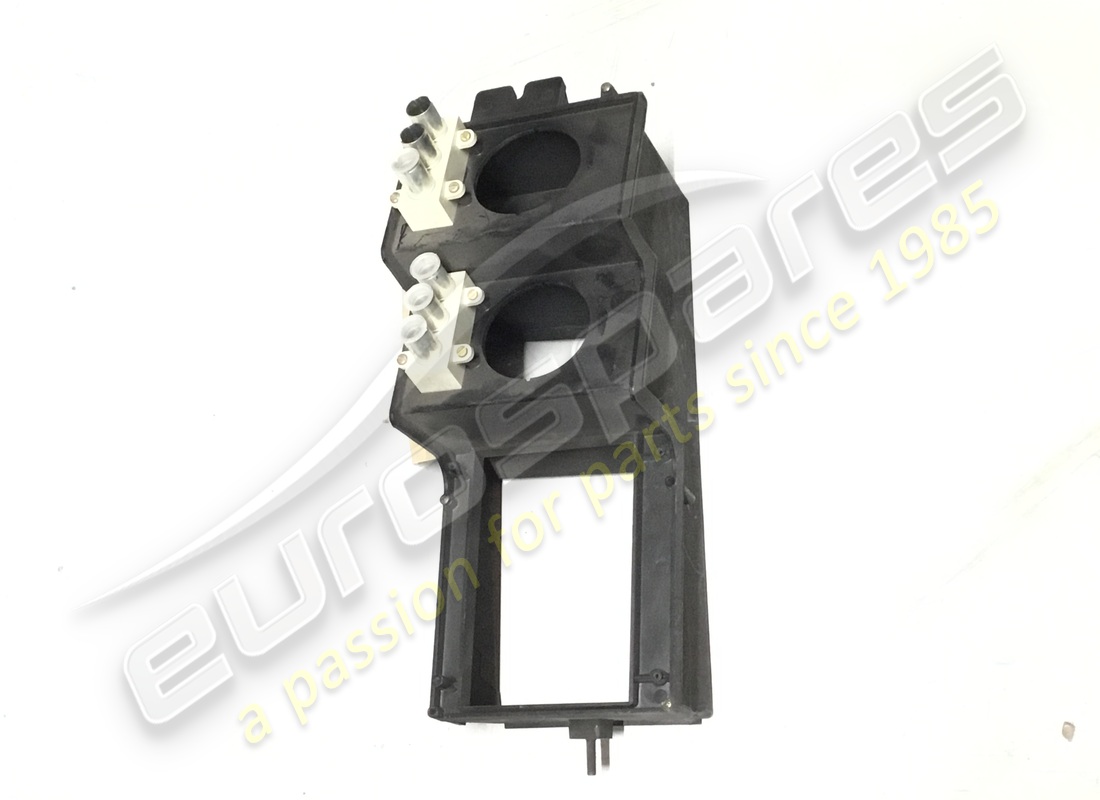

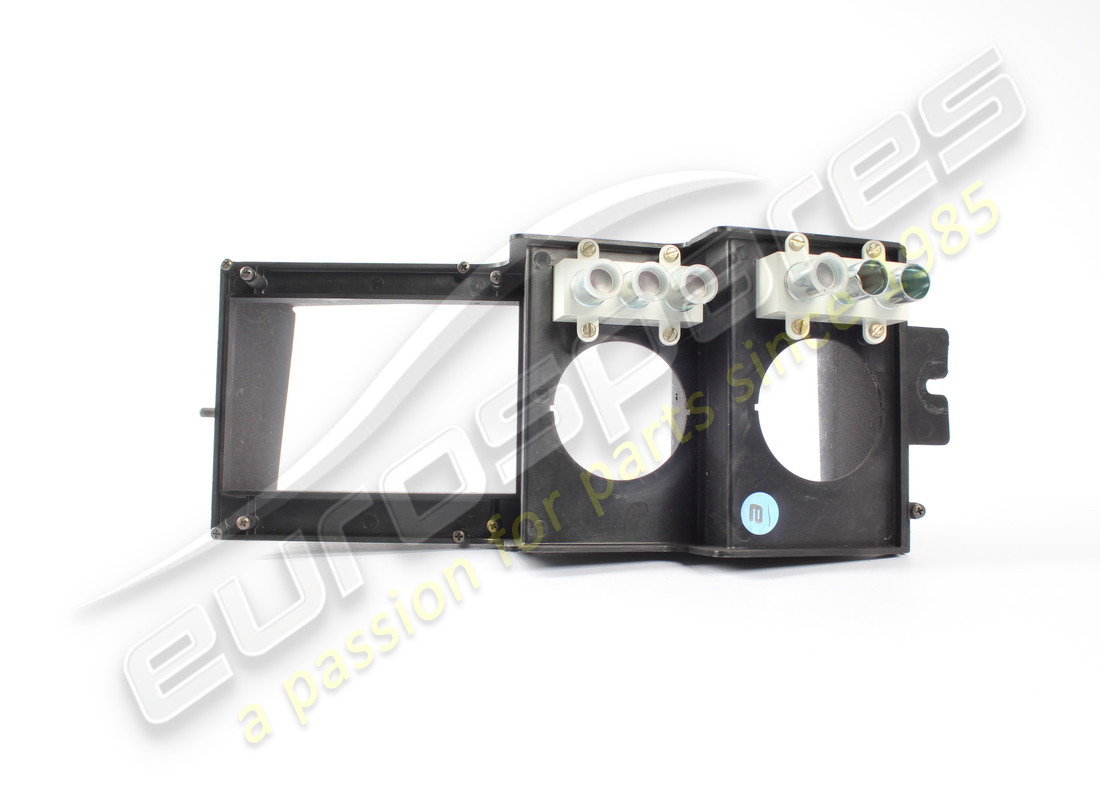

# 015
MPN: 123645

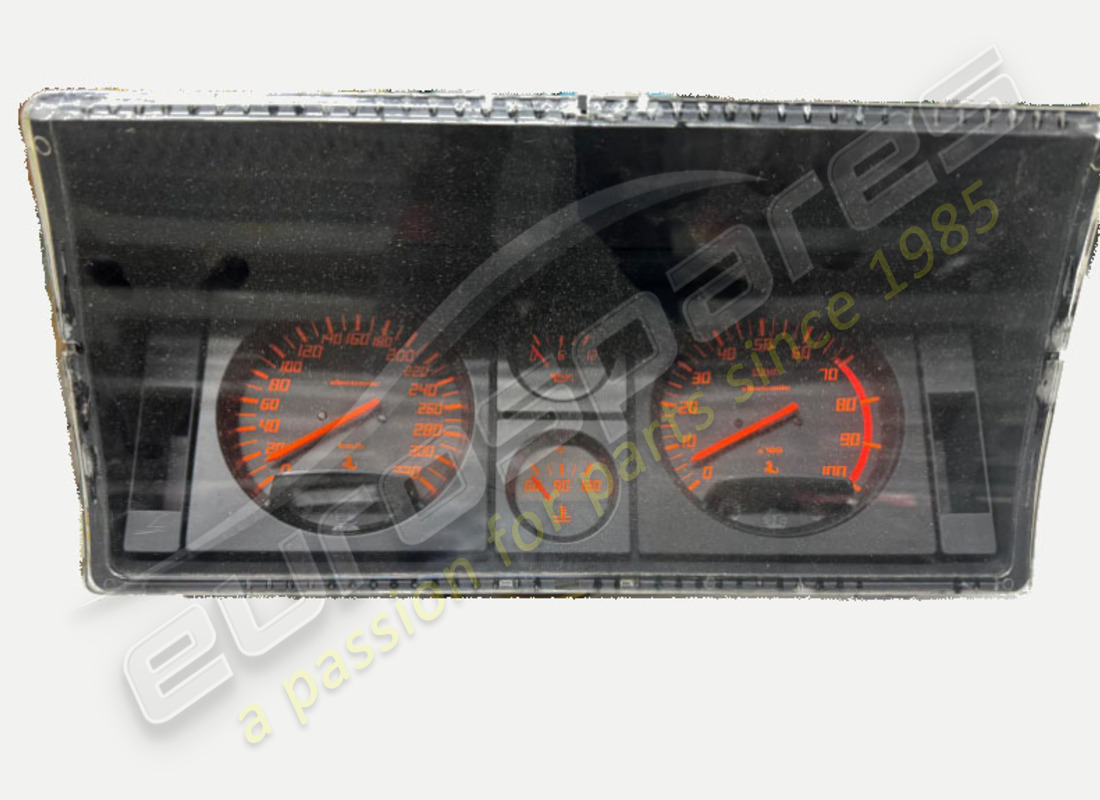

CONSOLE, COMPLETE
For LHD - Not for SA - CH - J
from £955.11
from £955.11
# 015
MPN: 123650
CONSOLE, COMPLETE
For CDN - Until car no……..
from £1,543.64
from £1,543.64
# 015
MPN: 123652
CONSOLE, COMPLETE
For GD - Not for ZA
from £585.99
from £585.99
# 015
MPN: 123654
CONSOLE, COMPLETE
For ZA
from £1,065.43
from £1,065.43
# 015
MPN: 127475
CONSOLE, COMPLETE
For SA
# 015
MPN: 129554
CONSOLE COMPLETE FORD
For CDN for car no……..
from £12,525.79
from £12,525.79
# 015
MPN: 132782
CONSOLE, COMPLETE
For CH and CAT
from £294.00
from £294.00
# 016
MPN: 119752
TOTAL ODOMETER (KMS)
Not for CH - CAT
from £895.88
from £895.88
# 016
MPN: 119756
TOTAL ODOMETER (MILES)
from £291.69
from £291.69
This part replaces part number 119755 - and 1 more. Click to view details
# 016
MPN: 132785
TOTAL ODOMETER (KMS)
For CH and CAT
from £468.65
from £468.65
# 017
MPN: 119733

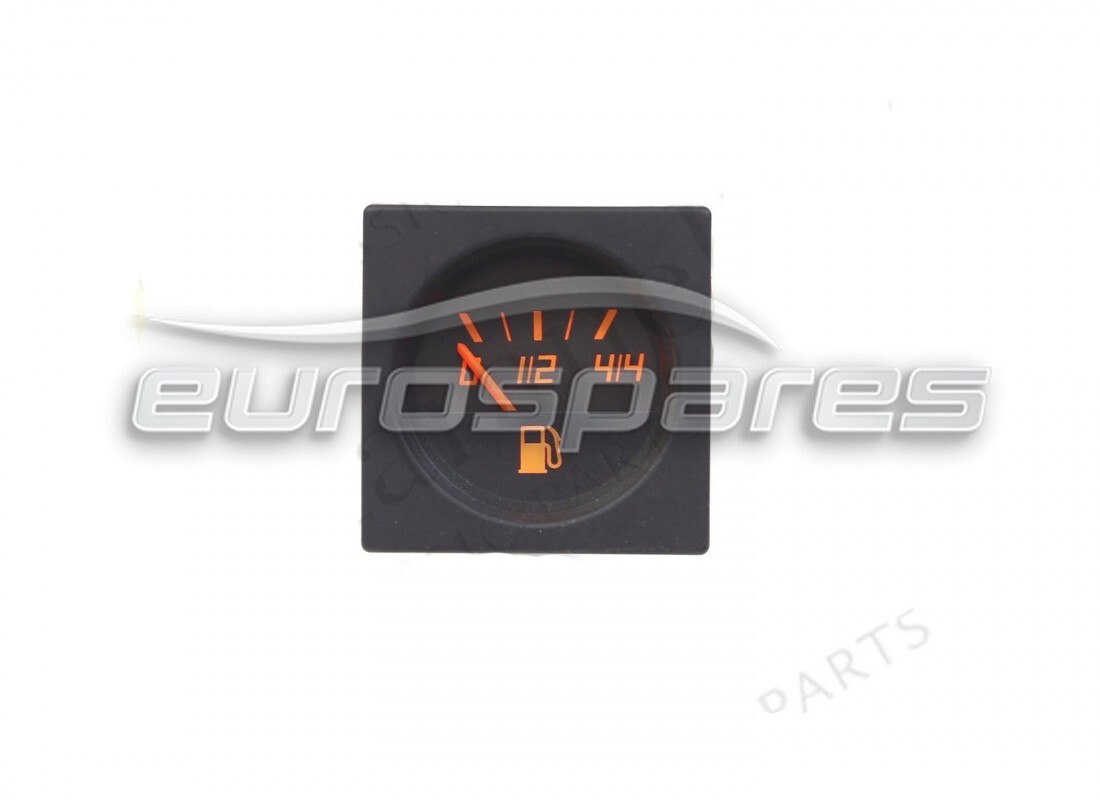

FUEL LEVEL AAUGE
Not for CDN - J - CH - CAT
from £53.05
from £53.05
# 017
MPN: 119819
FUEL LEVEL GAUGE
For CDN - J- CH - CAT
from £38.03
from £38.03
# 018
MPN: 119731

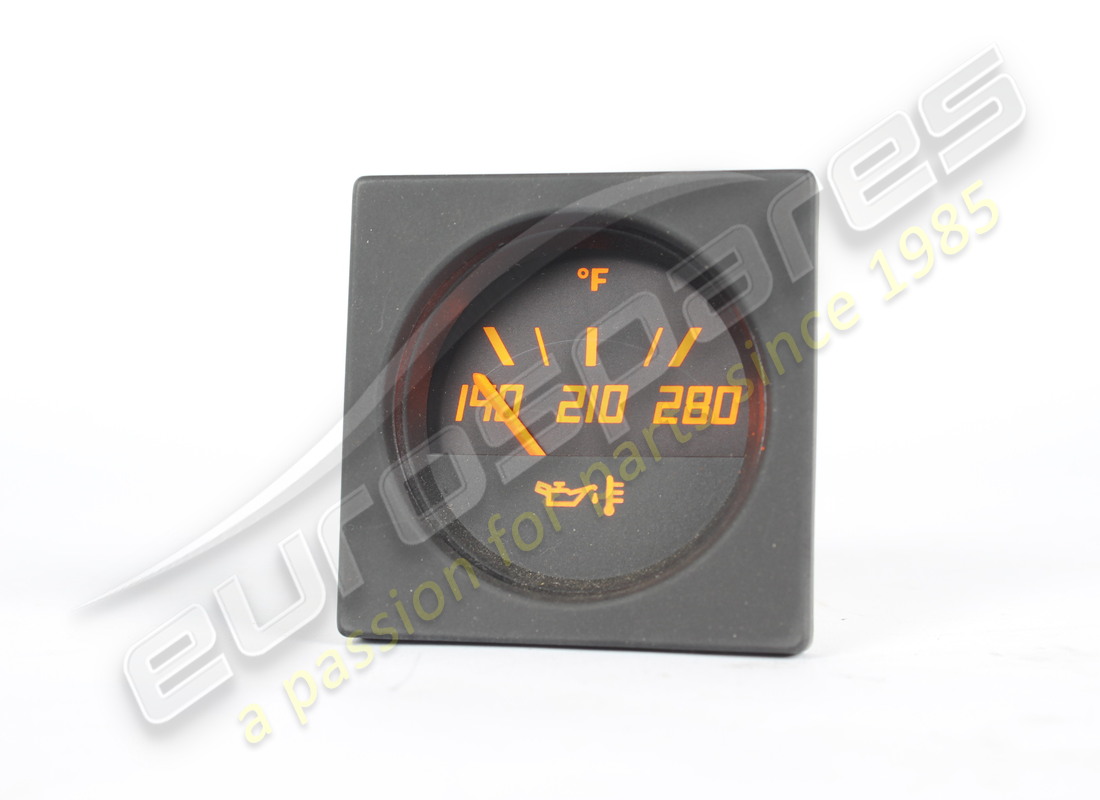

OIL TEMPERATURE GAUGE
For LHD - After exhaustion - Not for CDN - CAT
from £87.66
from £87.66

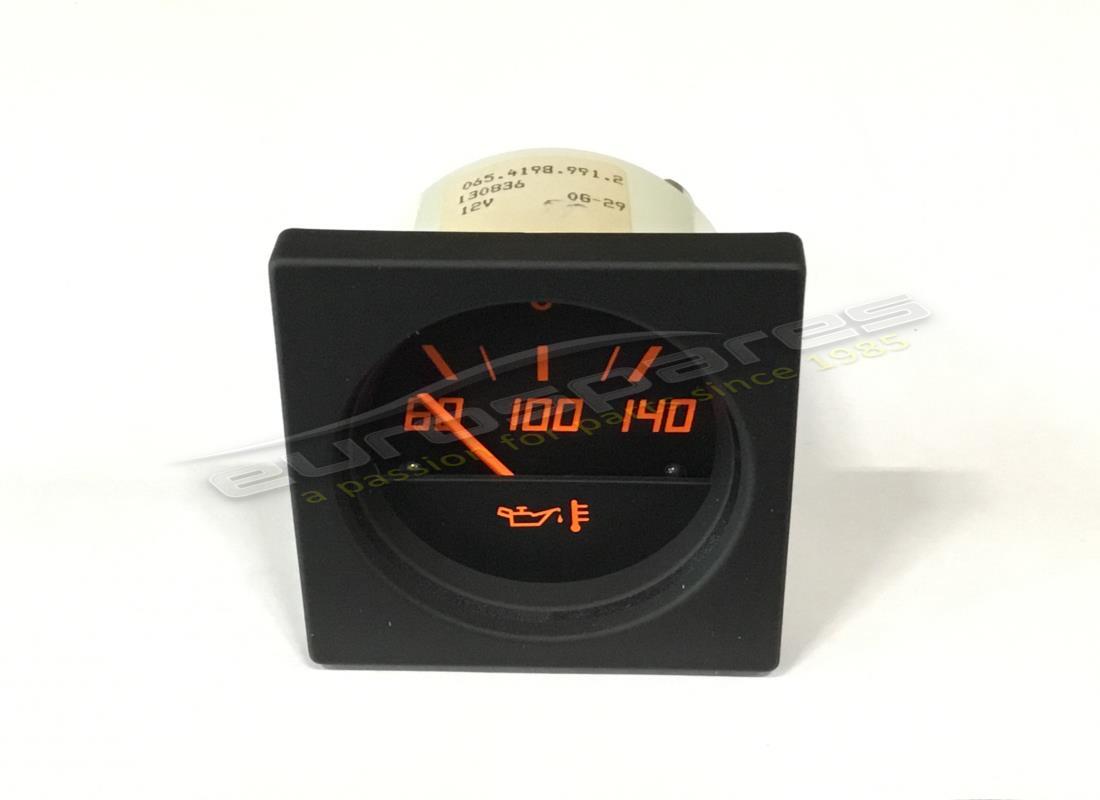

# 018
MPN: 130836
OIL TEMPERATURE GAUGE
For LHD - Not for CDN - After exhaustion PN 119731
from £55.77
from £55.77
This part replaces part number 119731 which we have in stock - and 1 more. Click to view details
# 018
MPN: 130837
OIL TEMPERATURE GAUGE
For RHD and CDN
from £56.58
from £56.58
This part replaces part number 119818 which we have in stock - and 2 more. Click to view details
# 019
MPN: 61808000
KNOB
from £248.07
from £248.07
This part replaces part number 124079 - and 2 more. Click to view details
# 020
MPN: 124075
AIR CONDITIONER PUSH BUTTON UNIT
from £445.32
from £445.32
# 021
MPN: 140151

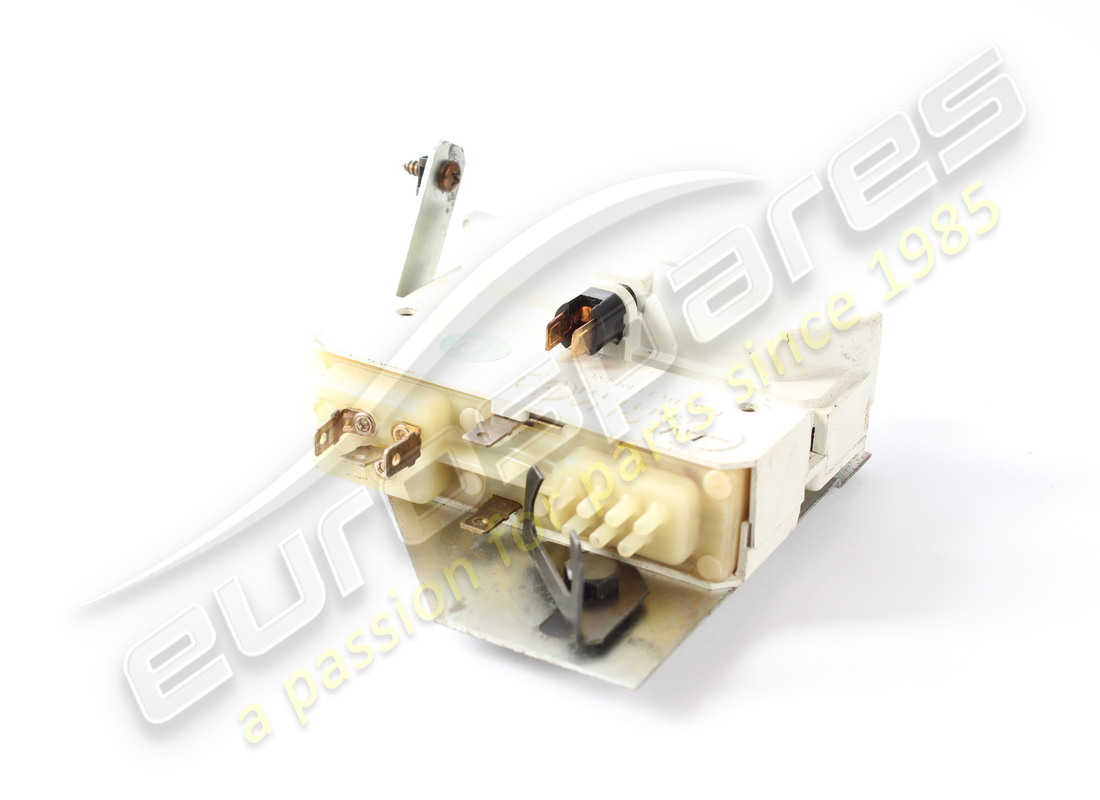

FAN SPEED REGULATION UNIT
(late type)
from £3,711.56
from £3,711.56
This part replaces part number 131473 - and 1 more. Click to view details
# 022
MPN: 61557900
EXTERNAL REAR VIEW MIRRORSSWITCH
from £729.40
from £729.40
This part replaces part number 131474
# 023
MPN: 124086
SWITCH FOR VEHICLE HAZARD LIGHTS
from £842.67
from £842.67
# 024
MPN: 124087

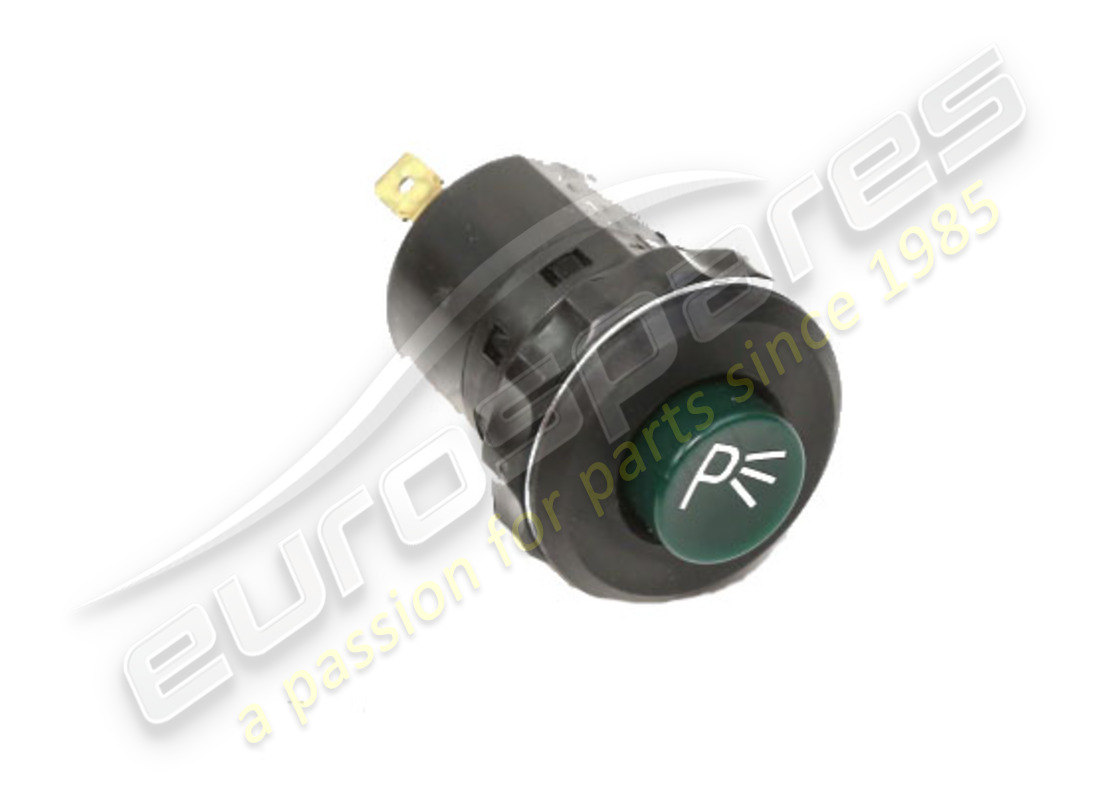

PARKING LIGHTS SWITCH
from £139.84
from £139.84
# 025
MPN: 61078700

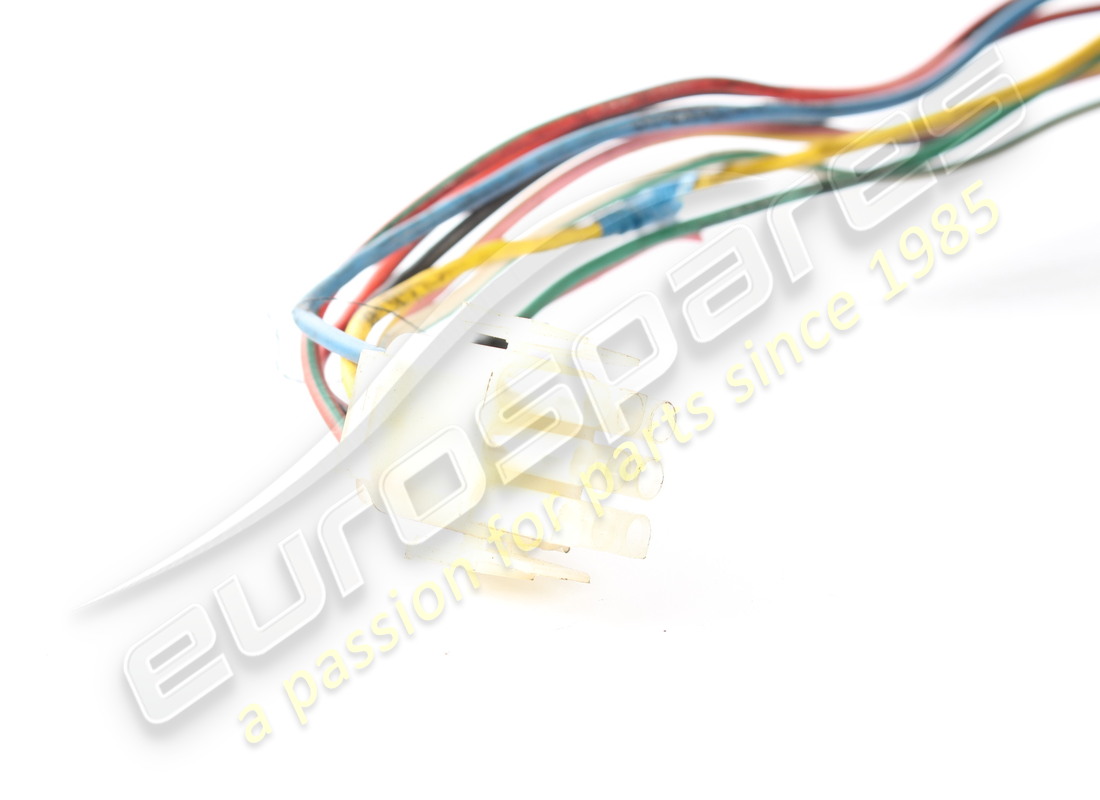

POTENTIOMETER FOR AIR CONDITIONER TEMPERATURE
from £523.46
from £523.46
# 026
MPN: 124085
SWITCH FOR FEET AIR
from £70.31
from £70.31
# 027
MPN: 124082
ADJUSTER FOR FEET AIR
from £240.00
from £240.00
# 028
MPN: 124077
PUSH BUTTON OPENING GLOVE BOX
from £169.68
from £169.68
# 029
MPN: 131472

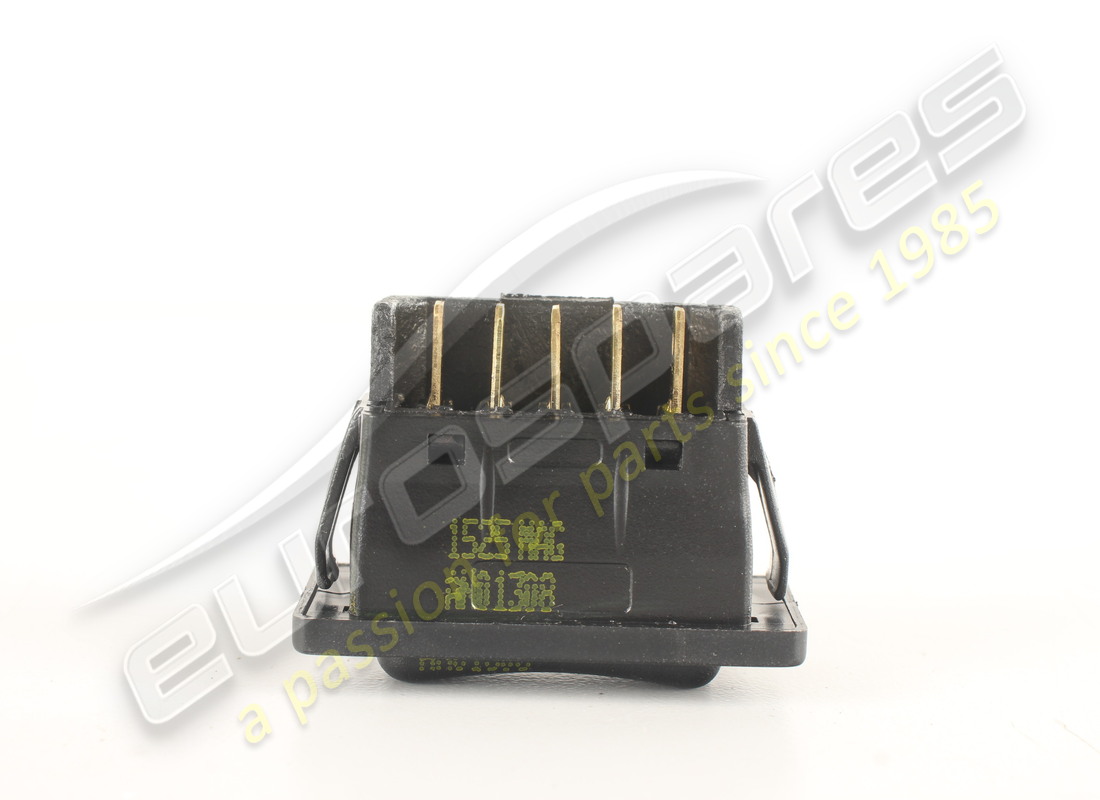

RH WINDOW CONTROL SWITCH
from £116.31
from £116.31
# 030
MPN: 131471
LH WINDOW CONTROL SWITCH
from £116.31
from £116.31
This part replaces part number 61319100
# 031
MPN: 61575900
CONTROL HOUSING PANEL
Until exhaustion
from £217.57
from £217.57
This part replaces part number 131470
# 031
MPN: 61575900
CONTROL HOUSING PANEL
After exhaustion PN 131471
from £217.57
from £217.57
This part replaces part number 131470
# 032
MPN: 70000627
CIGARETTE LIGHTER, COMPLETE
Supersession
Supersession
This part replaces part number 50065606 - and 2 more. Click to view details
# 033
MPN: 123646
CLOCK
from £192.54
from £192.54
This part replaces part number 127098 - and 1 more. Click to view details
# 034
MPN: 124084
DISPLAY FILTER
from £14.52
from £14.52
# 035
MPN: 124083
HOUSING
from £18.68
from £18.68
# 036
MPN: 131468
PANEL, COMPLETE
With conditioner PN 60955900
from £726.93
from £726.93
# 036
MPN: 61575800
PANEL, COMPLETE
With conditioner PN 134131
from £642.08
from £642.08
# 037
MPN: 61162700
WASHER FOR CIGARETTE LIGHTER
from £1.25
from £1.25
# 038
MPN: 226942
CIGARETTE LIGHTER
from £11.31
from £11.31
This part replaces part number 61107500
# 039
MPN: 226941
BODY FOR CIGARETTE LIGHTER
not as spare part - use part number: 226941
from £16.73
from £16.73
This part replaces part number 61107600 - and 2 more. Click to view details

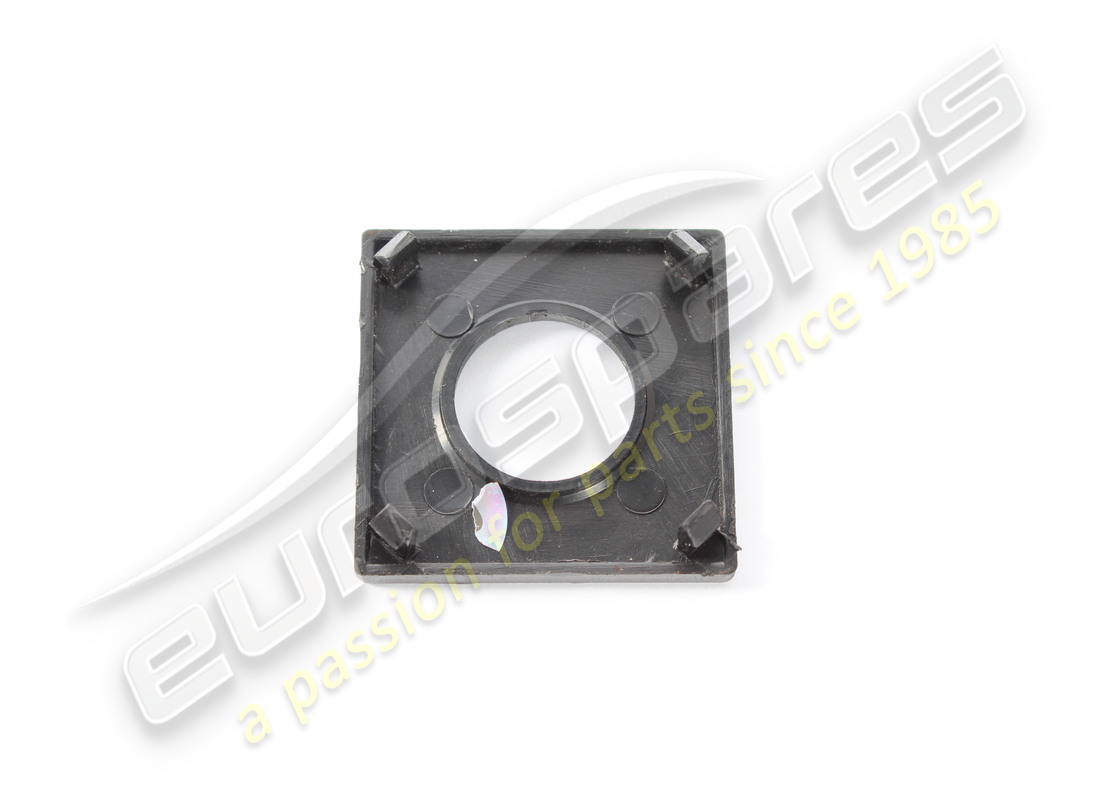

# 040
MPN: 124088
Frame
from £110.50
from £110.50
# 040
MPN: 61575700
Frame
from £35.66
from £35.66
# 040
MPN: 61575700/a
Frame
# 041
MPN: 124076
SUPPORT
from £14.28
from £14.28
-part-diagram-121.webp "FERRARI TESTAROSSA (1990) INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI TESTAROSSA (1990) FRONT HEADLIGHT LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI TESTAROSSA (1990) LAMPS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI TESTAROSSA (1990) ELECTRIC SYSTEM PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI TESTAROSSA (1990) VALVES AND RELAYS PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI TESTAROSSA (1990) WINDSHIELD WIPER, WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI TESTAROSSA (1990) HEATER UNIT PARTS DIAGRAM")
-part-diagram-a.webp "FERRARI TESTAROSSA (1990) SPARE PARTS ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI TESTAROSSA (1990) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI TESTAROSSA (1990) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI TESTAROSSA (1990) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI TESTAROSSA (1990) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI TESTAROSSA (1990) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI TESTAROSSA (1990) TIMING SYSTEM - VALVES PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI TESTAROSSA (1990) FUEL PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI TESTAROSSA (1990) FUEL TANKS (NOT FOR US - SA AND CH88) PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI TESTAROSSA (1990) FUEL TANKS (FOR US - SA AND CH88) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI TESTAROSSA (1990) ANTI - EVAPORATIVE EMMISION CONTROL SYSTEM (FOR US - SA AND CH88) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI TESTAROSSA (1990) FUEL DISTRIBUTORS LINES - KE - JETRONIC SYSTEM PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI TESTAROSSA (1990) ELECTRIC CONTROLS FOR KE - JETRONIC AND EXHAUST PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI TESTAROSSA (1990) FUEL INJECTION SYSTEM - VALVES AND LINES PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI TESTAROSSA (1990) SECONDARY AIR PUMP AND LINES (FOR U.S. AND CH88) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI TESTAROSSA (1990) AIR INJECTION AND LINES (FOR CH87 AND CAT) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI TESTAROSSA (1990) AIR INTAKE MANIFOLDS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI TESTAROSSA (1990) AIR INTAKE PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI TESTAROSSA (1990) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI TESTAROSSA (1990) EXHAUST SYSTEM (FOR B1 - GD1 VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI TESTAROSSA (1990) EXHAUST SYSTEM (FOR US - SA AND CAT VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI TESTAROSSA (1990) BLOW - BY PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI TESTAROSSA (1990) LUBRICATION PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI TESTAROSSA (1990) LUBRICATION -PUMPS AND OIL FILTER PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI TESTAROSSA (1990) ENGINE COOLING PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI TESTAROSSA (1990) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI TESTAROSSA (1990) WATER PUMP PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI TESTAROSSA (1990) CLUTCH CONTROLS (UNTIL CAR NO. 80094 - 80145 CH - 80176 US) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI TESTAROSSA (1990) CLUTCH CONTROLS (STARTING FROM CAR NO. 80095 - 80146 CH - 80177 US) PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI TESTAROSSA (1990) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI TESTAROSSA (1990) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI TESTAROSSA (1990) GEARBOX - MOUNTING AND COVERS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI TESTAROSSA (1990) GEARBOX PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI TESTAROSSA (1990) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI TESTAROSSA (1990) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI TESTAROSSA (1990) GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI TESTAROSSA (1990) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI TESTAROSSA (1990) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI TESTAROSSA (1990) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI TESTAROSSA (1990) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI TESTAROSSA (1990) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI TESTAROSSA (1990) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI TESTAROSSA (1990) STEERING COLUMN (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI TESTAROSSA (1990) STEERING COLUMN (STARTING FROM CAR NO. 75997 TO CAR NO. 80422) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI TESTAROSSA (1990) STERING COLUMN (STARTING FROM CAR NO. 80423) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC (UNTIL CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - WISHBONES (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI TESTAROSSA (1990) FRONT SUSPENSION - WISHBONES (STARTING FROM CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - BRAKE DISC (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - BRAKE DISC (STARTING FROM CAR NO.75997) PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI TESTAROSSA (1990) REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (STARTING FROM CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI TESTAROSSA (1990) WHEEL (UNTIL CAR NO. 75995) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI TESTAROSSA (1990) WHEEL (STARTING FROM CAR NO. 75997) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI TESTAROSSA (1990) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI TESTAROSSA (1990) CURRENT GENERATION PARTS DIAGRAM")
-part-diagram-057.webp "FERRARI TESTAROSSA (1990) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-058.webp "FERRARI TESTAROSSA (1990) TOOL KIT PARTS DIAGRAM")
-part-diagram-059.webp "FERRARI TESTAROSSA (1990) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-060.webp "FERRARI TESTAROSSA (1990) BRAKE HYDRAULIC SYSTEM - ACCELERATOR CONTROL PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI TESTAROSSA (1990) BODY - EXTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI TESTAROSSA (1990) BODY - INTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI TESTAROSSA (1990) BODY - INTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI TESTAROSSA (1990) REAR FRAME PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI TESTAROSSA (1990) EXTERNAL FINISHING PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI TESTAROSSA (1990) BUMPERS PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI TESTAROSSA (1990) CARPET AND INSULATION PANELS PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI TESTAROSSA (1990) FRONT HOOD PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI TESTAROSSA (1990) REAR HOOD PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI TESTAROSSA (1990) DOOR PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI TESTAROSSA (1990) DOOR - LOCKING DEVICE PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI TESTAROSSA (1990) DOOR - POWER WINDOW PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI TESTAROSSA (1990) GLASS & WINDOWS PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI TESTAROSSA (1990) ACCESSORIES AND TRIMS PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI TESTAROSSA (1990) SEATS AND CARPETS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI TESTAROSSA (1990) DASHBOARD (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI TESTAROSSA (1990) DASHBOARD (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI TESTAROSSA (1990) CENTRAL TUNNEL (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI TESTAROSSA (1990) CENTRAL TUNNEL (FOR US VERSION) PARTS DIAGRAM")
