021 - Brake System

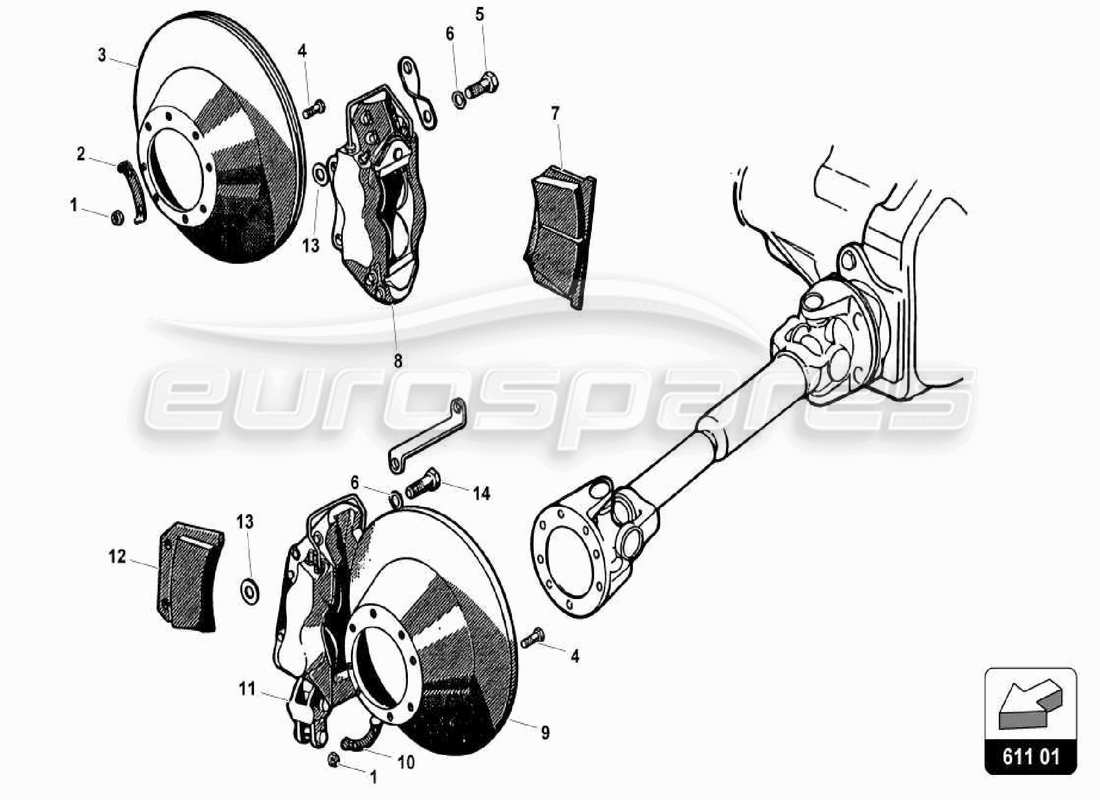

Lamborghini 350 GT Brake System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008200806
M8 'UNI 5588/8G/Z' NUT (GRUPPO MONTATO DAL MOTORE 30501)
Supersession
Supersession
# 002
MPN: 008410809
BRAKE LOCK PLATE
from £7.38
from £7.38
# 003
MPN: 003100695
FRONT BRAKE DISC
(NON VENTED)
from £896.56
from £896.56
# 004
MPN: 008100833
SCREW M8X1.25X21 8G
from £1.71
from £1.71
# 005
MPN: 008101219
SPECIAL SCREW M12X40 (GRUPPO MONTATO DAL MOTORE 30501)
from £13.77
from £13.77
# 006
MPN: 008411303
SNAP RING 21X13X2.5 UNI 175 1 C72/Z
from £1.96
from £1.96
# 007
MPN: 003101357
PADS
# 008
MPN: 003100524
FRONT BRAKE CALLIPER
# 009
MPN: 003200712
REAR BRAKE DISC
from £896.56
from £896.56
# 010
MPN: 008410808
BRAKE LOCK PLATE
from £11.29
from £11.29
# 011
MPN: 003201359
RH BRAKE SHOE
from £740.39
from £740.39
# 011
MPN: 003201360
REAR BRAKE CALIPER
# 012
MPN: 003201358
PADS
# 013
MPN: 008401305
WASHER 13X22X C 72
from £0.54
from £0.54
# 014
MPN: 008101218
SPECIAL SCREW M12X37
from £12.90
from £12.90
