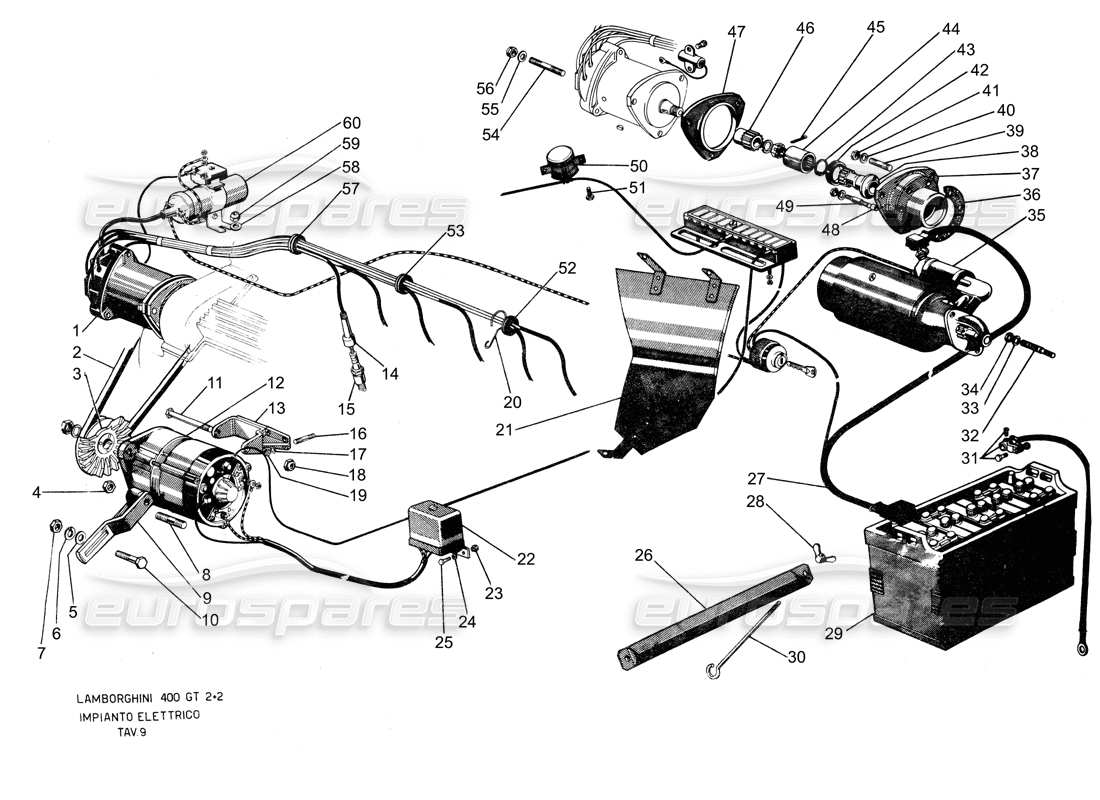

Lamborghini 400 GT Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 002
                                                                                                            MPN: 001601115
                                                                                                            BELT
                                                                                                            from £51.99
                                                                                                            from £51.99
                                                                                                            # 004
                                                                                                            MPN: 008201010
                                                                                                            M10 SELF LOCKING NUT
                                                                                                            from £0.89
                                                                                                            from £0.89
                                                                                                            # 005
                                                                                                            MPN: 008400801
                                                                                                            WASHER 18X8.4X2.5/8G/ZD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 006
                                                                                                            MPN: 008410806
                                                                                                            WASHER D.8.4 UNI 1751/ZD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 007
                                                                                                            MPN: 008200810
                                                                                                            M8X1 'UNI5588 65/8GZD' NUT
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            # 008
                                                                                                            MPN: BN-00477
                                                                                                            NO DESCRIPTION AVAILABLE - SEE IMAGE
                                                                                                            # 011
                                                                                                            MPN: 008301004
                                                                                                            STUD M10X45 UNI 59118GZ
                                                                                                            from £18.99
                                                                                                            from £18.99
                                                                                                            # 015
                                                                                                            MPN: 008811403

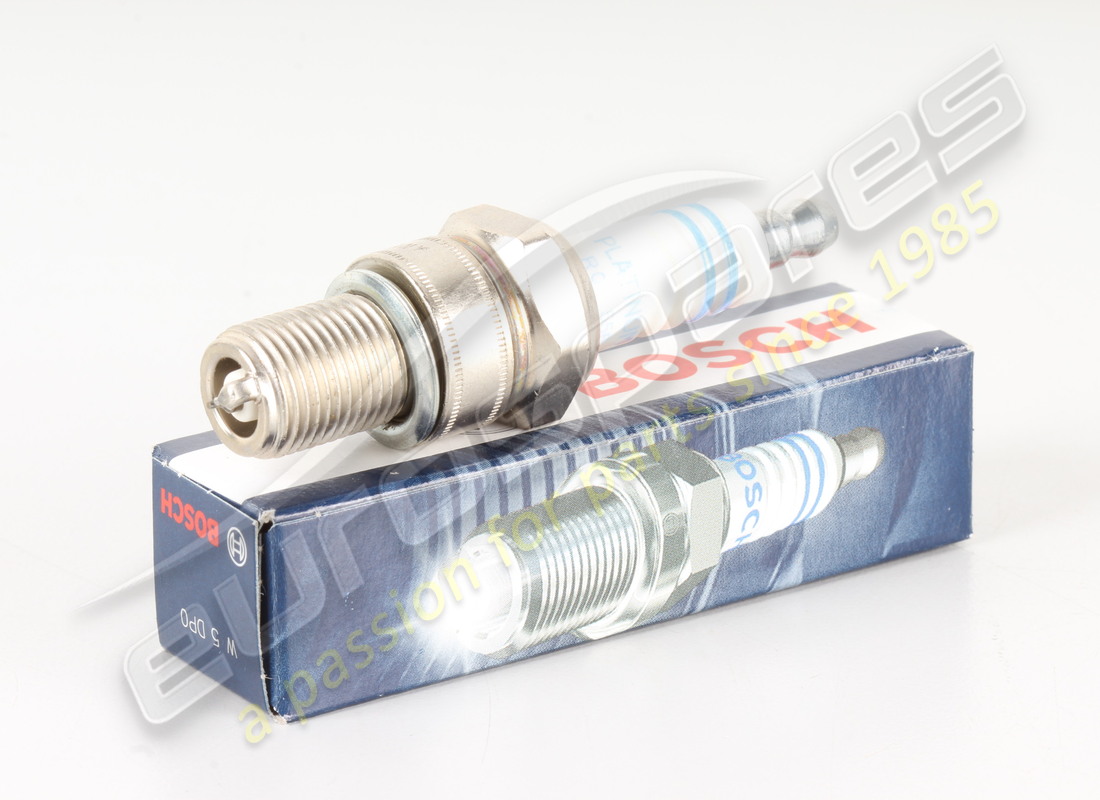

                                                                                                            Spark Plugs
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 016
                                                                                                            MPN: 001601564
                                                                                                            6 HOLE SPARK PLUG GROMMET
                                                                                                            from £28.49
                                                                                                            from £28.49
                                                                                                            # 018
                                                                                                            MPN: 008200804
                                                                                                            NUT
                                                                                                            from £0.74
                                                                                                            from £0.74
                                                                                                            # 019
                                                                                                            MPN: 008300822
                                                                                                            STUD M8X18 UNI 5911 8G Z
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 020
                                                                                                            MPN: 008200806
                                                                                                            M8 'UNI 5588/8G/Z' NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 021
                                                                                                            MPN: 008300818
                                                                                                            STUD M8X30 UNI 5911 8G ZD
                                                                                                            from £2.85
                                                                                                            from £2.85
                                                                                                            # 022
                                                                                                            MPN: 001601565
                                                                                                            4 HOLE SPARK PLUG GROMMET
                                                                                                            from £35.80
                                                                                                            from £35.80
                                                                                                            # 023
                                                                                                            MPN: 001601566
                                                                                                            2 HOLE SPARK PLUG GROMMET
                                                                                                            from £42.33
                                                                                                            from £42.33
                                                                                                            # 024
                                                                                                            MPN: 001601567
                                                                                                            SPARK PLUG GROMMET
                                                                                                            from £28.49
                                                                                                            from £28.49
                                                                                                            # 025
                                                                                                            MPN: 001602121
                                                                                                            STARTER MOTOR BULKHEAD
                                                                                                            from £320.87
                                                                                                            from £320.87
                                                                                                            # 026
                                                                                                            MPN: 001601337
                                                                                                            RELAY BOX
                                                                                                            # 027
                                                                                                            MPN: 008200606
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 028
                                                                                                            MPN: 008400606
                                                                                                            WASHER 12.5X6.4X1.6 UNI 6592/5 S/Z
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 032
                                                                                                            MPN: 008850606
                                                                                                            REFERENCE PIN 8H7X6.25X8
                                                                                                            from £6.43
                                                                                                            from £6.43
                                                                                                            # 033
                                                                                                            MPN: 001603304
                                                                                                            STARTER MOTOR - BATTERY WIRE
                                                                                                            # 034
                                                                                                            MPN: 001601667
                                                                                                            WING NUT
                                                                                                            from £6.67
                                                                                                            from £6.67
                                                                                                            # 036
                                                                                                            MPN: 001601336
                                                                                                            GASKET
                                                                                                            # 038
                                                                                                            MPN: 001600371
                                                                                                            DISTRIBUTOR MOUNT SHIM
                                                                                                            from £50.17
                                                                                                            from £50.17
                                                                                                            # 039
                                                                                                            MPN: 001600377
                                                                                                            DISTRIBUTOR P.T.O.
                                                                                                            from £104.06
                                                                                                            from £104.06
                                                                                                            # 040
                                                                                                            MPN: 008820201
                                                                                                            SPLIT PIN 1.8X15 UNI 1336A
                                                                                                            from £4.11
                                                                                                            from £4.11
                                                                                                            # 041
                                                                                                            MPN: 001600376
                                                                                                            DISTRIBUTOR P.T.O. SLEEVE
                                                                                                            from £274.10
                                                                                                            from £274.10
                                                                                                            # 042
                                                                                                            MPN: 008573202
                                                                                                            O-RING I 30 UNI 3654
                                                                                                            from £3.48
                                                                                                            from £3.48
                                                                                                            # 043
                                                                                                            MPN: 008613502
                                                                                                            OIL SEAL 35X47X7 MM
                                                                                                            from £6.19
                                                                                                            from £6.19
                                                                                                            # 044
                                                                                                            MPN: 008200604
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 045
                                                                                                            MPN: 008410602
                                                                                                            WASHER 12X6.4X0.5 DIN 137/B
                                                                                                            from £28.85
                                                                                                            from £28.85
                                                                                                            # 046
                                                                                                            MPN: 008300613
                                                                                                            STUD M6X14 UNI 5911 8G/Z
                                                                                                            from £3.07
                                                                                                            from £3.07
                                                                                                            # 048
                                                                                                            MPN: 001600905
                                                                                                            DISTRIBUTOR BRACKET
                                                                                                            from £474.70
                                                                                                            from £474.70
                                                                                                            # 049
                                                                                                            MPN: 001600906
                                                                                                            DISTRIBUTOR BRACKET SEAL
                                                                                                            from £6.53
                                                                                                            from £6.53
                                                                                                            # 050
                                                                                                            MPN: 001600515
                                                                                                            MOTOR
                                                                                                            from £661.63
                                                                                                            from £661.63
                                                                                                            # 051
                                                                                                            MPN: 008201211
                                                                                                            M12X1.75X10 'UNI 5588/ 8G/Z' NUT
                                                                                                            from £5.19
                                                                                                            from £5.19
                                                                                                            # 052
                                                                                                            MPN: 008411303
                                                                                                            SNAP RING 21X13X2.5 UNI 175 1 C72/Z
                                                                                                            from £1.96
                                                                                                            from £1.96
                                                                                                            # 053
                                                                                                            MPN: 008301215
                                                                                                            STARTER MOTOR SPECIAL STUD
                                                                                                            from £11.61
                                                                                                            from £11.61
