lamborghini lp700-4 coupe (2012) oil sump parts diagram

103.02.00 - oil sump

Lamborghini LP700-4 Coupe (2012) OIL SUMP Parts Diagram

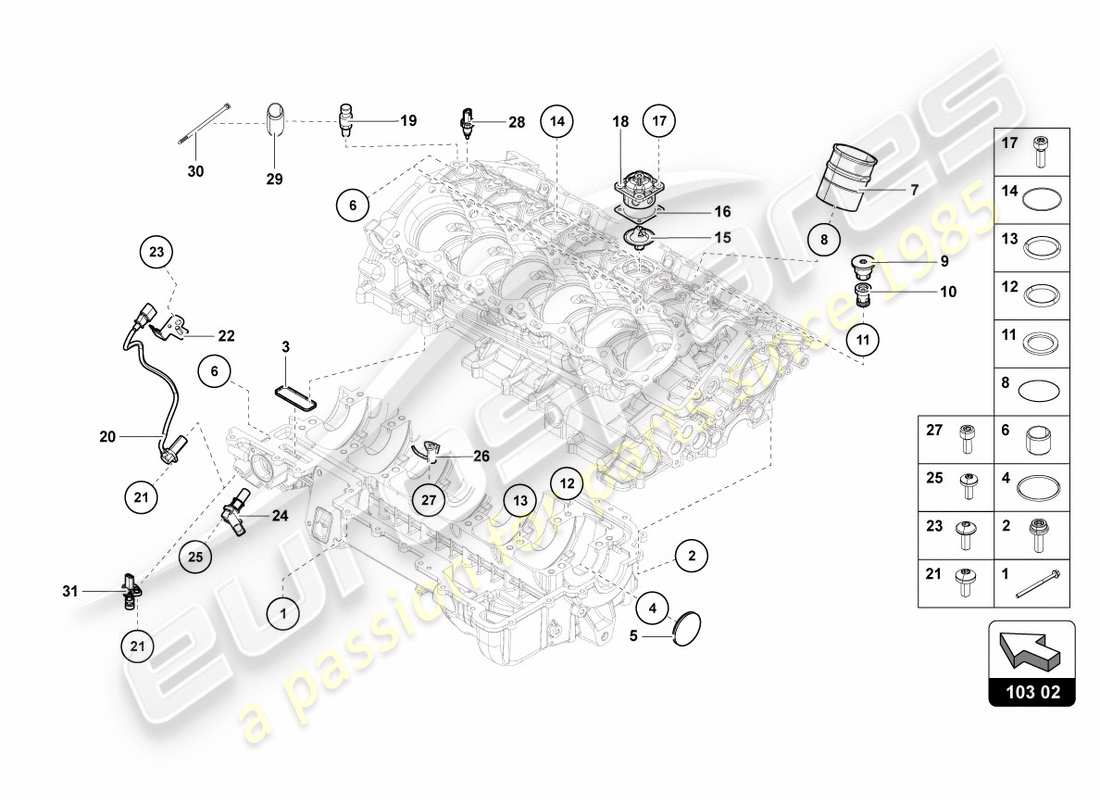

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 001
                            MPN: N10709401
                            HEXAGON HEAD BOLT (COMBI)
                            M8X120X80
                            from £3.72
                            from £3.72
                            HEXAGON FLANGE BM8X120X80 Genuine Lamborghini - New (to order)
                            bolt, hex. hd. (combi.) (N 10709401) Genuine Porsche Part - New (to order)
                            # 002
                            MPN: N10689302
                            SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                            M8X25
                            from £1.84
                            from £1.84
                            12-POINT SOCKET FLANGE BOLT Genuine Lamborghini - New In stock
                            bolt, with polygon socket hd. (N 10689302) Genuine Porsche Part - New (to order)
                            # 003
                            MPN: 07M103121
                            SEAL
                            (EUROPE spec vehicles)
                            Supersession
                            Supersession
                            Genuine Lamborghini (no longer available to order)
                            # 003
                            MPN: 07M103121C
                            SEAL
                            from £10.12
                            from £10.12
                            This part replaces part number 07M103121 - and 1 more. Click to view details
                            GASKET Genuine Lamborghini - New In stock
                            # 004
                            MPN: N91084501
                            O-RING
                            63,09X3,53
                            from £4.55
                            from £4.55
                            O RING Genuine Lamborghini - New In stock
                            # 005
                            MPN: 07M103627
                            BUNGS
                            from £14.05
                            from £14.05
                            PLUG Genuine Lamborghini - New In stock
                            PLUG Genuine Lamborghini - Used In stock
                            # 006
                            MPN: 022103139B
                            DOWEL SLEEVE
                            16X13,5
                            from £2.62
                            from £2.62
                            SLEEVE CR6 FREI Genuine Lamborghini - New In stock
                            # 007
                            MPN: 07M103321B
                            CYLINDER LINER
                            95
                            from £504.09
                            from £504.09
                            CYLINDER LINER Genuine Lamborghini - New (to order)
                            # 008
                            MPN: WHT005218
                            SEAL RING
                            from £6.06
                            from £6.06
                            O-RING Genuine Lamborghini - New In stock
                            # 009
                            MPN: 07M103937A
                            BUNGS
                            from £162.99
                            from £162.99
                            CAP Genuine Lamborghini - New (to order)
                            # 010
                            MPN: 07M115540
                            OIL SPRAY JET
                            from £154.78
                            from £154.78
                            SPRAY JET VALVE Genuine Lamborghini - New (to order)
                            # 011
                            MPN: WHT000406
                            SEAL RING
                            24,3X31,9X2
                            from £2.22
                            from £2.22
                            WASHER Genuine Lamborghini - New (to order)
                            # 012
                            MPN: N91014801
                            O-RING
                            11,11X1,78
                            Supersession
                            Supersession
                            Genuine Lamborghini (no longer available to order)
                            # 013
                            MPN: N90111301
                            O-RING
                            12,42X1,78
                            from £0.49
                            from £0.49
                            O RING 12,42X1,78 Genuine Lamborghini - New In stock
                            # 014
                            MPN: N90443601
                            O-RING
                            from £5.37
                            from £5.37
                            O-RING Genuine Lamborghini - New (to order)
                            # 015
                            MPN: 050121113B
                            COOLANT REGULATOR
                            80C-102C
                            from £44.10
                            from £44.10
                            THERMOSTAT Genuine Lamborghini - New In stock
                            # 016
                            MPN: 07M103649
                            SEAL
                            from £15.31
                            from £15.31
                            SEAL Genuine Lamborghini - New In stock
                            # 017
                            MPN: N91084801
                            HEXAGON SOCKET HEAD BOLT
                            M6X18
                            from £0.54
                            from £0.54
                            HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                            hexagonal socket head (N 91084801) Genuine Porsche Part - New (to order)
                            # 018
                            MPN: 07M121121E
                            COVER FOR THERMOSTAT
                            from £76.09
                            from £76.09
                            COVER Genuine Lamborghini - New (to order)
                            COVER Genuine Lamborghini - Used In stock
                            # 019
                            MPN: 07L919561B
                            OIL PRESSURE SENDER
                            UNTIL ENGINE - 6L1201300 ORDER ALSO REF.29
                            from £517.06
                            from £517.06
                            OIL PRESSURE GAUGE SENDER Genuine Lamborghini - New In stock
                            # 020
                            MPN: 079905381
                            SPEED SENSOR
                            from £260.27
                            from £260.27
                            TRANSDUCER POS. Genuine Lamborghini - New (to order)
                            # 021
                            MPN: N91096702
                            OVAL HEXAGON SOCKET HEAD BOLT
                            M6X16
                            from £0.78
                            from £0.78
                            HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                            Oval hexagon socket head bolt (N 91096702) Genuine Porsche Part - New (to order)
                            # 022
                            MPN: 470971504
                            CARRIER
                            from £111.55
                            from £111.55
                            BRACKET Genuine Lamborghini - New (to order)
                            # 023
                            MPN: N90780901
                            OVAL HEXAGON SOCKET HEAD BOLT
                            M6X16
                            from £0.54
                            from £0.54
                            HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New (to order)
                            Oval hexagon socket head bolt (N 90780901) Genuine Porsche Part - New (to order)
                            # 024
                            MPN: 079907601
                            IMPULSE SENDER
                            from £111.97
                            from £111.97
                            PULSE GENERATOR Genuine Lamborghini - New (to order)
                            # 025
                            MPN: N91096702
                            OVAL HEXAGON SOCKET HEAD BOLT
                            M6X16
                            from £0.78
                            from £0.78
                            HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                            Oval hexagon socket head bolt (N 91096702) Genuine Porsche Part - New (to order)
                            # 026
                            MPN: 07M103158E
                            AIR VENT
                            from £886.26
                            from £886.26
                            NOZZLE Genuine Lamborghini - New (to order)
                            # 027
                            MPN: N10456103
                            SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                            M4X10
                            from £0.54
                            from £0.54
                            PAN HEAD BOLT M4X10.0 Genuine Lamborghini - New In stock
                            # 028
                            MPN: 059919523A
                            TEMPERATURE SENSOR
                            Supersession
                            Supersession
                            Genuine Lamborghini (no longer available to order)
                            # 029
                            MPN: 470971729
                            HEAT DEFLECTOR HOSE
                            from £26.11
                            from £26.11
                            PROTECTIVE HOSE CONNETT.PRESS.OLIO Genuine Lamborghini - New (to order)
                            # 030
                            MPN: N10562301
                            CABLE TIES
                            4,7X194
                            from £0.90
                            from £0.90
                            CABLE TIE B4.7X194 Genuine Lamborghini - New In stock
                            # 031
                            -
                            IMPULSE SENDER
