lamborghini lp700-4 coupe (2012) window glasses parts diagram

845.01.00 - WINDOW GLASSES

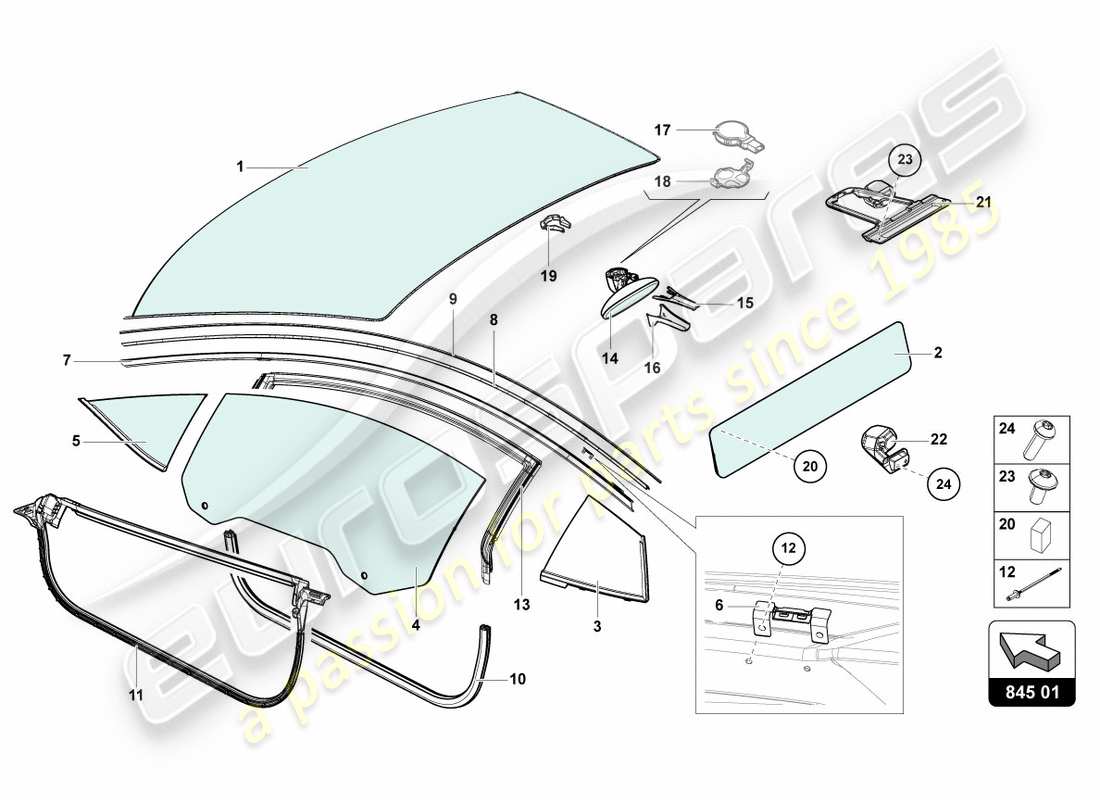

Lamborghini LP700-4 Coupe (2012) WINDOW GLASSES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 470845099
          WINDSCREEN
          (EUROPE spec vehicles)
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 001
          MPN: 470845099A
          WINDSCREEN
          UNTIL VIN 10425 - INCLUDES REF.:- 19
          from £1,843.91
          from £1,843.91
          This part replaces part number 470845099 - and 1 more. Click to view details
          WINDSHIELD Genuine Lamborghini - New In stock
          WINDSHIELD Genuine Lamborghini - Used In stock
          # 001
          MPN: 470845099G
          WINDSCREEN
          FROM VIN 10426 - INCLUDES REF 19
          from £3,352.57
          from £3,352.57
          WINDSHIELD Genuine Lamborghini - New (to order)
          # 002
          MPN: 476845501A
          REAR WINDOW
          from £677.27
          from £677.27
          REAR WINDOW GLASS Genuine Lamborghini - New In stock
          REAR WINDOW GLASS Genuine Lamborghini - Used In stock
          # 003
          MPN: 470845299C
          side window (fixed)
          LEFT REAR
          from £1,054.22
          from £1,054.22
          SIDE WINDOW Genuine Lamborghini - New In stock
          # 003
          MPN: 470845300C
          side window (fixed)
          RIGHT REAR
          from £1,054.22
          from £1,054.22
          SIDE WINDOW Genuine Lamborghini - New In stock
          # 004
          MPN: 476845201
          DOOR WINDOW
          LEFT
          from £825.69
          from £825.69
          DOOR WINDOW, FRONT Genuine Lamborghini - New (to order)
          # 004
          MPN: 476845202
          DOOR WINDOW
          RIGHT
          from £825.67
          from £825.67
          DOOR WINDOW, FRONT Genuine Lamborghini - New (to order)
          # 005
          MPN: 470845115A
          side window (fixed)
          LEFT FRONT
          from £1,349.44
          from £1,349.44
          TRIANGLE WINDOW GL Genuine Lamborghini - New (to order)
          # 005
          MPN: 470845116A
          side window (fixed)
          RIGHT FRONT
          from £783.94
          from £783.94
          TRIANGLE WINDOW GL Genuine Lamborghini - New (to order)
          TRIANGLE WINDOW GL Genuine Lamborghini - Used In stock
          # 006
          MPN: 476853645
          BRACKET
          from £13.16
          from £13.16
          CLAMP Genuine Lamborghini - New (to order)
          # 007
          MPN: 476831731A
          DOOR SEAL, INNER
          UNTIL VIN CLA00423-LEFT UPPER (EUROPE spec vehicles)
          from £92.41
          from £92.41
          DOOR SEAL Genuine Lamborghini - New (to order)
          # 007
          MPN: 476831731C
          DOOR SEAL, INNER
          LEFT UPPER
          from £91.16
          from £91.16
          DOOR SEAL DACHRAHMEN AUSSEN Genuine Lamborghini - New (to order)
          # 007
          MPN: 476831732A
          DOOR SEAL, INNER
          UNTIL VIN CLA00423-RIGHT UPPER (EUROPE spec vehicles)
          from £92.41
          from £92.41
          DOOR SEAL Genuine Lamborghini - New (to order)
          # 007
          MPN: 476831732C
          DOOR SEAL, INNER
          RIGHT UPPER
          from £91.16
          from £91.16
          DOOR SEAL GIRO TETTO EST. Genuine Lamborghini - New (to order)
          # 008
          MPN: 476853701A
          MOLDING - ROOF
          UNTIL VIN FLA03540-LEFT
          from £1,013.74
          from £1,013.74
          ROOF MOLDING Genuine Lamborghini - New (to order)
          # 008
          MPN: 476853702A
          MOLDING - ROOF
          UNTIL VIN FLA03540-RIGHT
          from £1,013.74
          from £1,013.74
          ROOF MOLDING Genuine Lamborghini - New (to order)
          # 009
          MPN: 476817601
          MOLDING - ROOF
          from £15.92
          from £15.92
          WELT Genuine Lamborghini - New (to order)
          # 010
          MPN: 470831721
          DOOR SEAL, INNER
          (EUROPE spec vehicles)
          from £27.51
          from £27.51
          DOOR SEAL Genuine Lamborghini - New In stock
          DOOR SEAL Genuine Lamborghini - Used In stock
          # 010
          MPN: 470831721A
          DOOR SEAL, INNER
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 011
          MPN: 470837911B
          DOOR SEAL
          LEFT (EUROPE spec vehicles)
          from £179.55
          from £179.55
          DOOR SEAL Genuine Lamborghini - New In stock
          # 011
          MPN: 470837911E
          DOOR SEAL
          LEFT
          from £430.97
          from £430.97
          DOOR SEAL Genuine Lamborghini - New In stock
          DOOR SEAL Genuine Lamborghini - Used In stock
          # 011
          MPN: 470837912B
          DOOR SEAL
          RIGHT (EUROPE spec vehicles)
          from £190.05
          from £190.05
          DOOR SEAL Genuine Lamborghini - New In stock
          # 011
          MPN: 470837912E
          DOOR SEAL
          RIGHT
          from £430.97
          from £430.97
          DOOR SEAL Genuine Lamborghini - New In stock
          DOOR SEAL Genuine Lamborghini - Used In stock
          # 012
          MPN: 410806225
          POP RIVET
          3,5X11,5 (EUROPE spec vehicles)
          from £0.50
          from £0.50
          REFERENCE RIVET CAT TAP D/41 Genuine Lamborghini - New In stock
          # 012
          MPN: N90248401
          POP RIVET
          from £1.10
          from £1.10
          BLIND RIVET Genuine Lamborghini - New In stock
          # 013
          MPN: 476831707
          DOOR SEAL, INNER
          UNTIL VIN CLA00425-LEFT (EUROPE spec vehicles)
          from £132.20
          from £132.20
          DOOR SEAL Genuine Lamborghini - New (to order)
          DOOR SEAL Genuine Lamborghini - Used In stock
          # 013
          MPN: 476831707B
          DOOR SEAL, INNER
          LEFT
          from £104.46
          from £104.46
          DOOR SEAL ALLA SCOCCA Genuine Lamborghini - New (to order)
          DOOR SEAL ALLA SCOCCA Genuine Lamborghini - Used In stock
          # 013
          MPN: 476831708
          DOOR SEAL, INNER
          UNTIL VIN CLA00425-RIGHT (EUROPE spec vehicles)
          from £132.20
          from £132.20
          DOOR SEAL Genuine Lamborghini - New (to order)
          DOOR SEAL Genuine Lamborghini - Used In stock
          # 013
          MPN: 476831708B
          DOOR SEAL, INNER
          RIGHT
          from £189.93
          from £189.93
          DOOR SEAL ALLA SCOCCA Genuine Lamborghini - New (to order)
          # 014
          MPN: 8X0857511A4PK
          INTERIOR MIRROR, ANTI-DAZZLE
          WITHOUT ADDITIONAL LIGHTS-SOUL (BLACK)
          from £44.70
          from £44.70
          INNER REAR VIEW Genuine Lamborghini - New (to order)
          INNER REAR VIEW Genuine Lamborghini - Used In stock
          # 015
          MPN: 4F0857593G
          COVER FOR SENSOR
          Lower part
          from £4.02
          from £4.02
          COVER, CABLE DUCT Genuine Lamborghini - New (to order)
          # 016
          MPN: 4F0857593J4PK
          COVER
          UPPER PART-SOUL (BLACK)
          from £7.38
          from £7.38
          This part replaces part number 4F0857593J which we have in stock
          COVER, CABLE DUCT Genuine Lamborghini - New (to order)
          # 017
          -
          SENSOR FOR RAIN AND LIGHT RECOGNITION
          SEE ILLUSTRATION : 907.06
          # 018
          -
          RETAINING SPRING
          SEE ILLUSTRATION : 907.06
          # 019
          MPN: 4F0907372A
          RETAINING PLATE
          from £43.06
          from £43.06
          BRACKET Genuine Lamborghini - New (to order)
          # 020
          -
          DISTANCE PIECE
          ONLY FOR SVJ
          # 021
          -
          BRACKET FOR CAMERA
          ONLY FOR CENTENARIO AND SIAN
          # 022
          -
          BRACKET FOR CAMERA
          ONLY FOR CENTENARIO COUPÈ AND SIAN
          # 023
          -
          OVAL HEXAGON SOCKET HEAD BOLT
          ONLY FOR CENTENARIO AND SIAN
          # 024
          -
          HEXAGON SOCKET FLAT HEAD BOLT
          ONLY FOR CENTENARIO COUPÈ AND SIAN
