lamborghini lp700-4 coupe (2012) instrument panel parts diagram

857.06.00 - INSTRUMENT PANEL

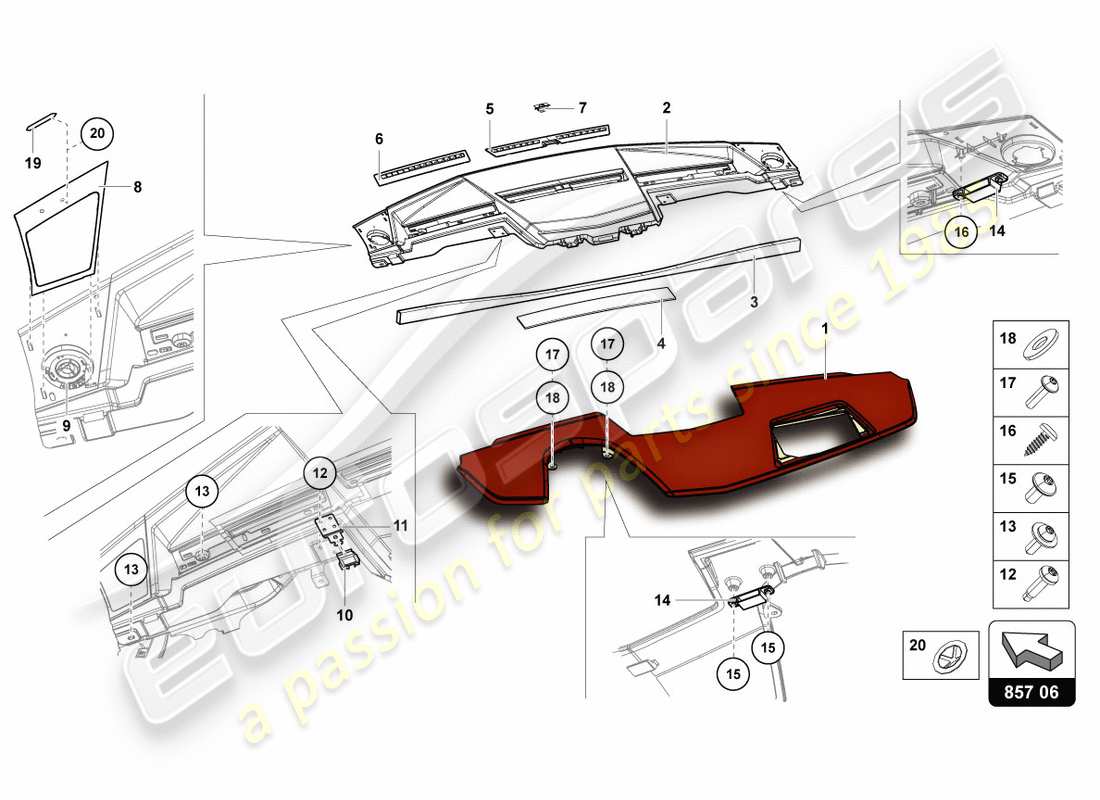

Lamborghini LP700-4 Coupe (2012) INSTRUMENT PANEL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 471857041
            DASHBOARD
            LEATHER UPHOLSTERY, SUPPLY VIN- LHD (EUROPE spec vehicles)
            DASHBOARD Genuine Lamborghini - New (to order)
            # 001
            MPN: 471857041B
            DASHBOARD
            UNTIL VIN ELA02656, LEATHER UPHOLSTERY, SUPPLY VIN- LHD (EUROPE, USA spec vehicles)
            from £666.75
            from £666.75
            UPPER DASHBOARD, LEATHER LHD Genuine Lamborghini - New (to order)
            UPPER DASHBOARD, LEATHER LHD Genuine Lamborghini - Used In stock
            # 001
            MPN: 472857041B
            DASHBOARD
            UNTIL VIN ELA02690, LEATHER UPHOLSTERY, SUPPLY VIN- RHD (UK spec vehicles)
            from £1,946.13
            from £1,946.13
            UPPER DASHBOARD, LEATHER RHD Genuine Lamborghini - New (to order)

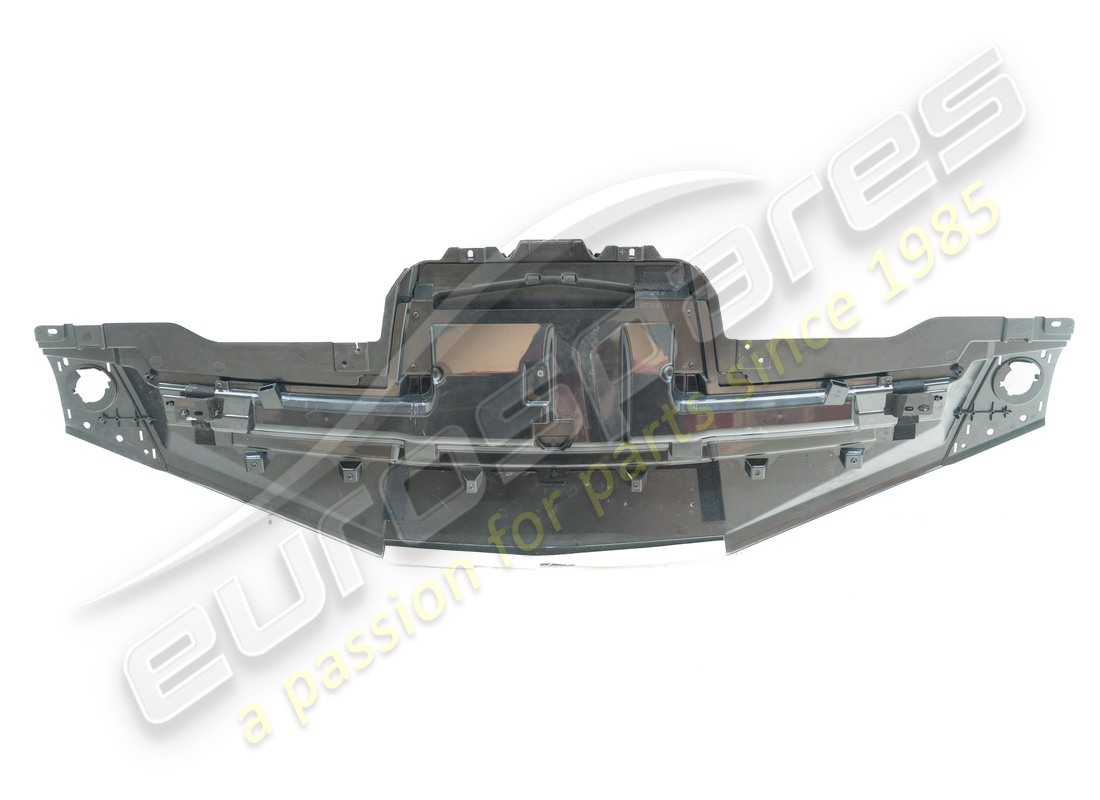

            # 002
            MPN: 470858703A
            DASH COVER
            FRONT (EUROPE spec vehicles)
            from £255.97
            from £255.97
            COVER Genuine Lamborghini - New (to order)
            COVER Genuine Lamborghini - Used In stock
            # 002
            MPN: 470858703C
            DASH COVER
            FRONT
            from £255.97
            from £255.97
            COVER Genuine Lamborghini - New (to order)
            COVER Genuine Lamborghini - Used In stock
            # 003
            MPN: 470819236
            SHAPED PART (FOAM)
            from £326.82
            from £326.82
            foam part Genuine Lamborghini - New (to order)
            # 004
            MPN: 400121539C
            RUBBER PACKING
            from £10.73
            from £10.73
            GASKET ADHESIVE 270 X 35 Genuine Lamborghini - New (to order)
            # 005
            MPN: 470819635A
            AIR VENT
            FRONT CENTER
            from £60.23
            from £60.23
            DEFROSTER JET Genuine Lamborghini - New In stock
            DEFROSTER JET Genuine Lamborghini - Used In stock
            # 006
            MPN: 470819793
            AIR INTAKE GRILLE
            LEFT FRONT (EUROPE spec vehicles)
            from £109.92
            from £109.92
            DEFROSTER JET Genuine Lamborghini - New (to order)
            # 006
            MPN: 470819793A
            AIR INTAKE GRILLE
            LEFT FRONT
            from £57.88
            from £57.88
            DEFROSTER JET Genuine Lamborghini - New In stock
            DEFROSTER JET Genuine Lamborghini - Used In stock
            # 006
            MPN: 470819794
            AIR INTAKE GRILLE
            RIGHT FRONT (EUROPE spec vehicles)
            from £114.19
            from £114.19
            DEFROSTER JET Genuine Lamborghini - New (to order)
            # 006
            MPN: 470819794A
            AIR INTAKE GRILLE
            RIGHT FRONT
            from £57.88
            from £57.88
            DEFROSTER JET Genuine Lamborghini - New In stock
            DEFROSTER JET Genuine Lamborghini - Used In stock
            # 007
            MPN: 8K0907539
            SUN SENSOR
            from £18.57
            from £18.57
            SUNLOAD SENSOR Genuine Lamborghini - New In stock
            SUNLOAD SENSOR Genuine Lamborghini - Used In stock
            # 008
            MPN: 470035491B

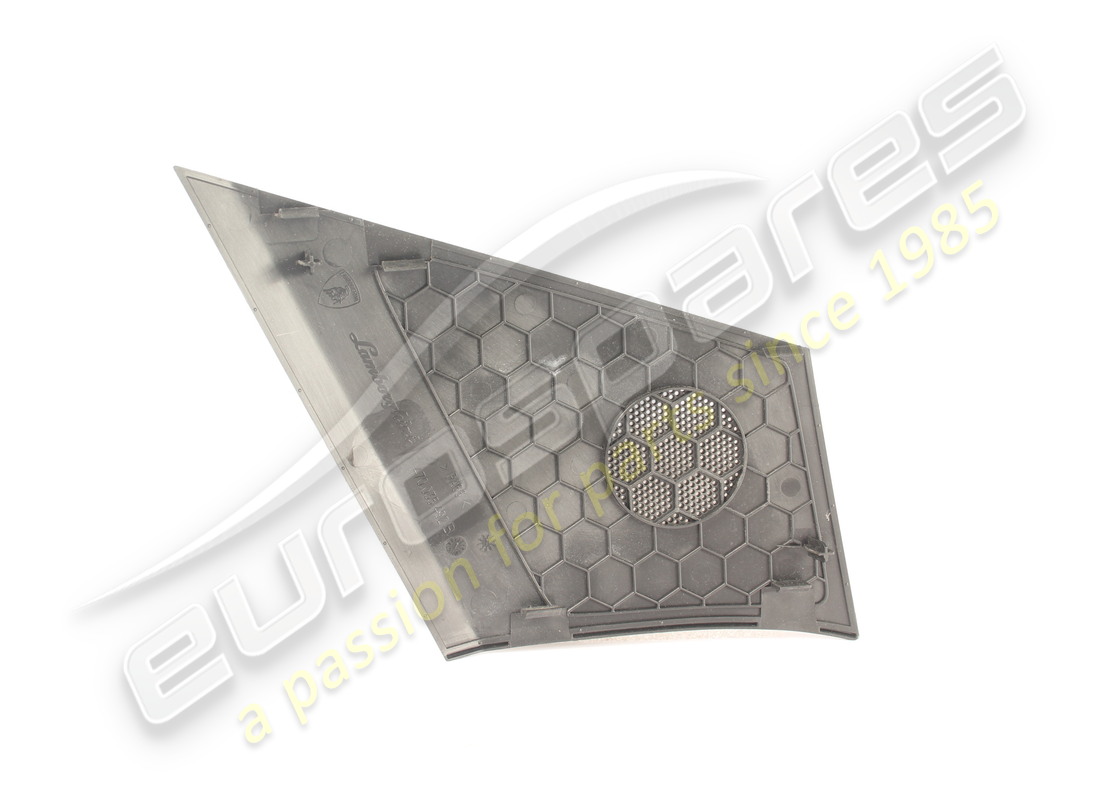

            COVER FOR LOUDSPEAKER
            LEFT
            from £55.07
            from £55.07
            COVER Genuine Lamborghini - New (to order)
            COVER Genuine Lamborghini - Used In stock
            # 008
            MPN: 470035491C
            COVER FOR LOUDSPEAKER
            PREMIUM SOUND SYS-LEFT
            from £104.81
            from £104.81
            COVER COVER TWEETER SX Genuine Lamborghini - New (to order)
            # 008

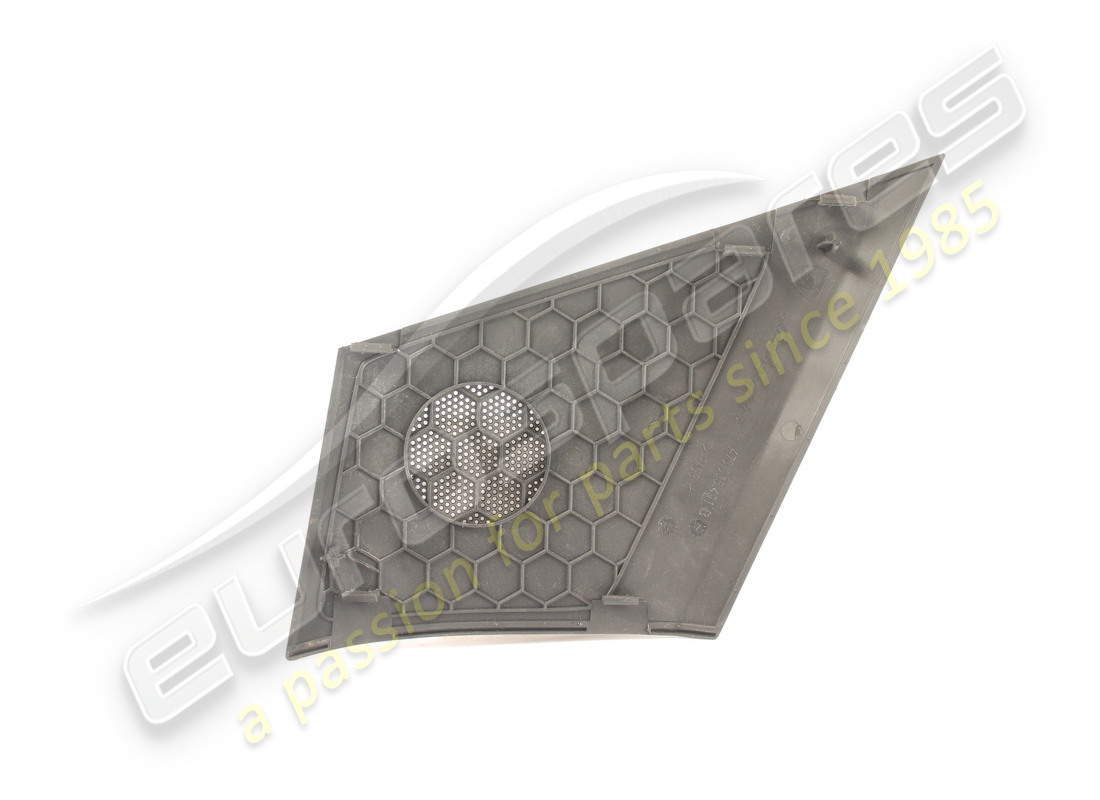

            MPN: 470035492B
            COVER FOR LOUDSPEAKER
            RIGHT
            from £55.07
            from £55.07
            COVER Genuine Lamborghini - New (to order)
            COVER Genuine Lamborghini - Used In stock
            # 008
            MPN: 470035492C
            COVER FOR LOUDSPEAKER
            PREMIUM SOUND SYS-RIGHT
            from £104.81
            from £104.81
            COVER COVER TWEETER DX Genuine Lamborghini - New (to order)
            # 009
            -
            TREBLE SPEAKER
            SEE ILLUSTRATION : 035.01,3
            # 010
            MPN: 4D0857949A
            GROMMET
            from £2.85
            from £2.85
            GROMMET Genuine Lamborghini - New (to order)
            GROMMET Genuine Porsche Part - New (to order)
            GROMMET Genuine Lamborghini - Used In stock
            # 011
            MPN: 470858439
            ARM
            (EUROPE spec vehicles)
            from £7.97
            from £7.97
            ANGLE BRACKET Genuine Lamborghini - New (to order)
            # 011
            MPN: 470858439A
            ARM
            from £4.19
            from £4.19
            ANGLE BRACKET FIX GROMMET PLANC Genuine Lamborghini - New In stock
            ANGLE BRACKET FIX GROMMET PLANC Genuine Lamborghini - Used In stock
            # 012
            MPN: N10595002
            ROUND HD. SCREW
            M5X18
            from £0.95
            from £0.95
            HEXALOBULAR SOCKET M5 X 18 Genuine Lamborghini - New In stock
            # 013
            MPN: N10738101
            HEX SOCKET HEAD BOLT (COMBI)
            M5X16
            from £0.54
            from £0.54
            HEX SOCKET HEAD BOLT (COMBI), M5 X 16 Genuine Lamborghini - New In stock
            # 014
            MPN: 470858571
            BRACKET
            from £9.45
            from £9.45
            BRACKET Genuine Lamborghini - New (to order)
            BRACKET Genuine Lamborghini - Used In stock
            # 015
            MPN: N10586401
            OVAL HEXAGON SOCKET HEAD BOLT
            M5X10
            from £0.47
            from £0.47
            HEXALOBULAR SOCKETM5X10 Genuine Lamborghini - New In stock
            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
            # 016
            MPN: N90632303
            HEXAGON SOCKET HEAD PANEL BOLT
            4,2X9,5
            from £1.21
            from £1.21
            This part replaces part number 008700463
            SCREW Genuine Lamborghini - New In stock
            # 017
            MPN: N10637302
            OVAL HEXAGON SOCKET HEAD BOLT
            M5X20
            from £0.66
            from £0.66
            HEXALOBULAR SOCKETM5X20 Genuine Lamborghini - New In stock
            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
            # 018
            MPN: WHT000778
            WASHER
            30X36X1
            from £0.53
            from £0.53
            WASHER 5.3X15X1.5 ISO7093-1 Genuine Lamborghini - New In stock
            # 019
            -
            INSCRIPTION
            NOT FOR THIS MY
            # 020
            -
            SPEED NUT
            NOT FOR THIS MY
