lamborghini lp700-4 coupe (2012) battery parts diagram

915.01.00 - Battery

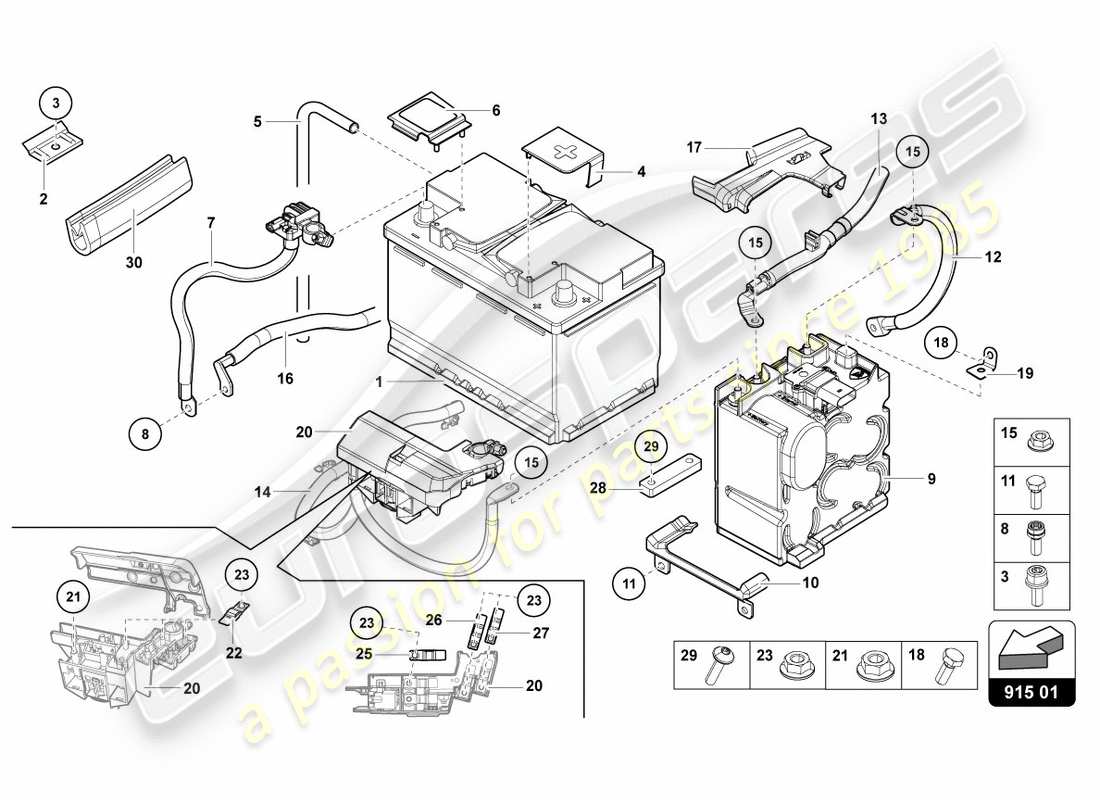

Lamborghini LP700-4 Coupe (2012) BATTERY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 000915105CC
                      BATTERY, FILLED AND CHARGED
                      68AH/380A (ABSORBENT GLASS MAT BATTERY)
                      from £274.15
                      from £274.15
                      This part replaces part number 7L0915105
                      Battery Genuine Lamborghini - New (to order)
                      # 001
                      MPN: 7P0915105
                      BATTERY, FILLED AND CHARGED
                      68AH/380A (AGM) (EUROPE spec vehicles)
                      from £342.46
                      from £342.46
                      Battery Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 8D0803123A
                      CLAMPING STRIP FOR BATTERY
                      from £2.84
                      from £2.84
                      CLAMPING STRIP Genuine Lamborghini - New In stock
                      # 003
                      MPN: N10347804
                      HEXAGON SOCKET HEAD BOLT (COMBI)
                      M8X20
                      from £1.19
                      from £1.19
                      HEXALOBULAR SOCKETM8X20-S10 Genuine Lamborghini - New In stock
                      # 004
                      MPN: 8K0915429C
                      BATTERY POS. TERMINAL COVER
                      from £3.87
                      from £3.87
                      POLE COVER Genuine Lamborghini - New (to order)
                      BATTERY POSITION TERMINAL COVER Genuine Porsche Part - New (to order)
                      POLE COVER Genuine Lamborghini - Used In stock
                      # 005
                      MPN: 4F0915531
                      CORRUGATED PIPE
                      from £6.87
                      from £6.87
                      TUBE Genuine Lamborghini - New (to order)
                      # 006
                      MPN: 1K0971813F
                      COVER CAP
                      from £2.25
                      from £2.25
                      COVER Genuine Lamborghini - New In stock
                      COVER Genuine Lamborghini - Used In stock
                      # 007
                      MPN: 8X0915181
                      CONTROL UNIT FOR BATTERY MONITORING
                      from £94.09
                      from £94.09
                      BATTERY MANAGEMENT Genuine Lamborghini - New (to order)
                      BATTERY MANAGEMENT Genuine Lamborghini - Used In stock
                      # 008
                      MPN: N91048802
                      SCREW WITH INT. SERRATIONS
                      M8X20
                      from £1.67
                      from £1.67
                      12-POINT SOCKET M8X20 Genuine Lamborghini - New In stock
                      SCREW WITH INT. SERRATIONS Genuine Porsche Part - New (to order)
                      # 009
                      -
                      MAGNETO
                      VALID FROM A MODEL YEAR 13
                      # 010
                      -
                      ARM
                      VALID FROM A MODEL YEAR 13
                      # 011
                      -
                      SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
                      VALID FROM A MODEL YEAR 13-M8X16
                      # 012
                      -
                      WIRING SET FOR ROOF CONSOLE
                      VALID FROM A MODEL YEAR 13
                      # 013
                      -
                      WIRING
                      VALID FROM A MODEL YEAR 13
                      # 014
                      -
                      WIRING SET FOR ROOF CONSOLE
                      SEE ILLUSTRATION : 971.03,1
                      # 015
                      -
                      HEXAGON COLLAR NUT
                      VALID FROM A MODEL YEAR 13-M8
                      # 016
                      -
                      EARTH LINE
                      VALID FROM A MODEL YEAR 13
                      # 017
                      -
                      COVER
                      FROM MY13
                      # 017
                      MPN: 470972899
                      COVER
                      (EUROPE spec vehicles)
                      COVER Genuine Lamborghini - New (to order)
                      # 018
                      -
                      HEX COLLARED BOLT
                      VALID FROM MY13-M6X16
                      # 019
                      -
                      SECURING PLATE
                      VALID FROM MY 13
                      # 020
                      MPN: 470915459
                      MAIN FUSE SOCKET
                      from £106.48
                      from £106.48
                      FUSE FUSE BOX FLANGE Genuine Lamborghini - New (to order)
                      # 021
                      MPN: N90295502
                      HEXAGON COLLAR NUT
                      from £1.15
                      from £1.15
                      HEXAGON FLANGE NUTM8 Genuine Lamborghini - New In stock
                      shouldered hex. nut Genuine Porsche Part - New (to order)
                      # 022
                      MPN: N10424905
                      FUSE
                      from £3.57
                      from £3.57
                      FUSE STRIP Genuine Lamborghini - New (to order)
                      FUSE Genuine Porsche Part - New (to order)
                      # 023
                      MPN: N90488005
                      HEX. NUT WITH WASHER
                      from £1.15
                      from £1.15
                      HEXAGON NUT W. M6 Genuine Lamborghini - New (to order)
                      HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                      # 024
                      MPN: 470915521
                      COVER CAP
                      L83X-A.01. 14 E LB83X - A.02.2014
                      from £22.08
                      from £22.08
                      PROTECTIVE CAP Genuine Lamborghini - New In stock
                      # 025
                      -
                      FUSE
                      NOT FOR THIS VERSION - ONLY FOR CENTENARIO-80A -WHITE-
                      # 026
                      -
                      FUSE
                      NOT FOR THIS VERSION - ONLY FOR CENTENARIO-125A -PINK-
                      # 027
                      -
                      FUSE
                      NOT FOR THIS VERSION-80A -CL/GLASS-
                      # 028
                      -
                      ARM
                      NOT FOR THIS MODEL
                      # 029
                      -
                      HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
                      NOT FOR THIS MODEL
                      # 030
                      MPN: 4S0201152
                      EDGE PROTECTION
                      from £3.02
                      from £3.02
                      EDGE PROTECTION CRASH-BOX Genuine Lamborghini - New (to order)
