103.02.00 - oil sump

Lamborghini Ultimae (2022) OIL SUMP Parts Diagram

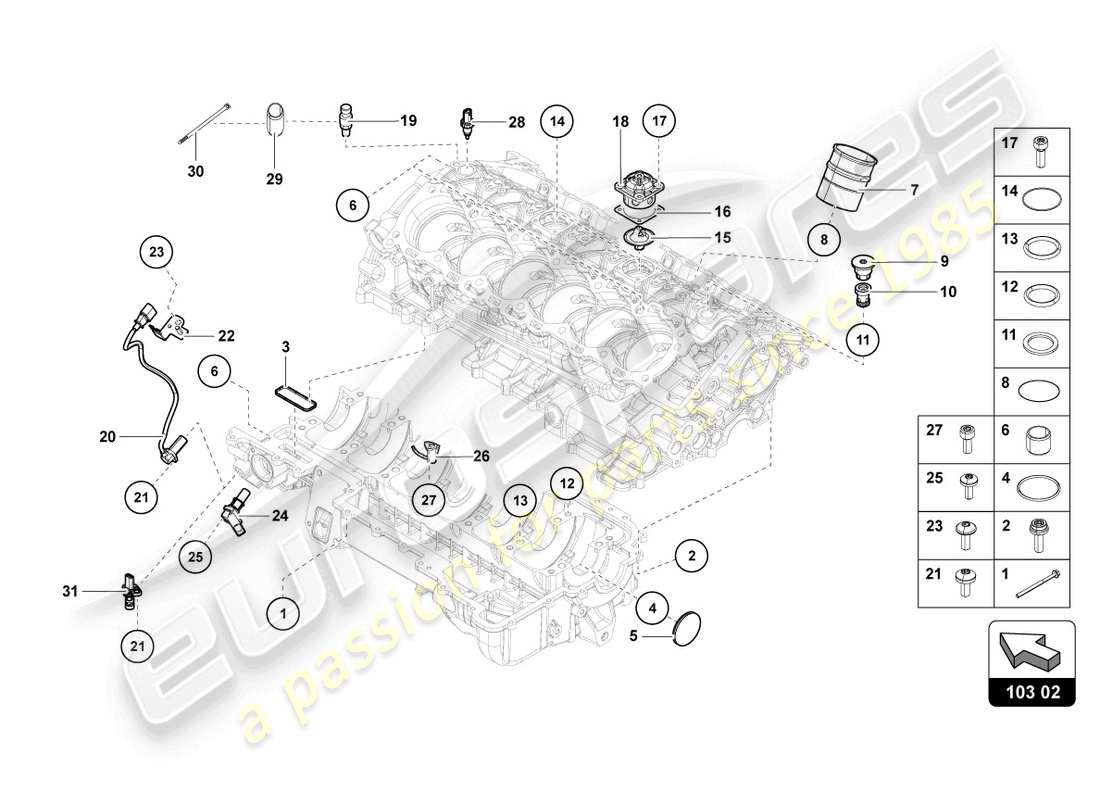

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: N10709401
                        HEXAGON HEAD BOLT (COMBI)
                        M8X120X80
                        from £3.68
                        from £3.68
                        HEXAGON FLANGE BM8X120X80 Genuine Lamborghini - New (to order)
                        BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                        # 002
                        MPN: N10689302
                        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                        M8X25
                        from £1.78
                        from £1.78
                        12-POINT SOCKET FLANGE BOLT Genuine Lamborghini - New In stock
                        BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
                        # 003
                        -
                        SEAL
                        # 003
                        MPN: 07M103121C
                        SEAL
                        from £10.30
                        from £10.30
                        This part replaces part number 07M103121 - and 1 more. Click to view details
                        GASKET Genuine Lamborghini - New In stock
                        # 004
                        MPN: N91084501
                        O-RING
                        63,09X3,53
                        from £4.70
                        from £4.70
                        O RING Genuine Lamborghini - New In stock
                        # 005
                        -
                        BUNGS
                        # 005
                        MPN: 07M103627
                        BUNGS
                        from £14.33
                        from £14.33
                        PLUG Genuine Lamborghini - New In stock
                        PLUG Genuine Lamborghini - Used In stock
                        # 006
                        -
                        DOWEL SLEEVE
                        16X13,5
                        # 006
                        MPN: 022103139B
                        DOWEL SLEEVE
                        16X13,5
                        from £4.94
                        from £4.94
                        SLEEVE CR6 FREI Genuine Lamborghini - New (to order)
                        # 007
                        -
                        CYLINDER LINER
                        95
                        # 007
                        MPN: 07M103321B
                        CYLINDER LINER
                        95
                        from £514.16
                        from £514.16
                        CYLINDER LINER Genuine Lamborghini - New (to order)
                        # 008
                        MPN: WHT005218
                        SEAL RING
                        from £6.20
                        from £6.20
                        O-RING Genuine Lamborghini - New In stock
                        # 009
                        -
                        BUNGS
                        # 009
                        MPN: 07M103937A
                        BUNGS
                        from £165.97
                        from £165.97
                        CAP Genuine Lamborghini - New (to order)
                        # 010
                        -
                        OIL SPRAY JET
                        # 010
                        MPN: 07M115540
                        OIL SPRAY JET
                        from £157.84
                        from £157.84
                        SPRAY JET VALVE Genuine Lamborghini - New (to order)
                        # 011
                        MPN: WHT000406
                        SEAL RING
                        24,3X31,9X2
                        from £2.27
                        from £2.27
                        WASHER Genuine Lamborghini - New (to order)
                        # 012
                        MPN: N91014801
                        O-RING
                        11,11X1,78
                        Supersession
                        Supersession
                        Genuine Lamborghini (no longer available to order)
                        # 013
                        MPN: N90111301
                        O-RING
                        12,42X1,78
                        from £0.49
                        from £0.49
                        O RING 12,42X1,78 Genuine Lamborghini - New In stock
                        # 014
                        MPN: N90443601
                        O-RING
                        from £5.45
                        from £5.45
                        O-RING Genuine Lamborghini - New (to order)
                        # 015
                        -
                        COOLANT REGULATOR
                        80C-102C
                        # 015
                        MPN: 050121113B
                        COOLANT REGULATOR
                        80C-102C
                        from £43.65
                        from £43.65
                        THERMOSTAT Genuine Lamborghini - New (to order)
                        # 016
                        -
                        SEAL
                        # 016
                        MPN: 07M103649
                        SEAL
                        from £15.59
                        from £15.59
                        SEAL Genuine Lamborghini - New In stock
                        # 017
                        MPN: N91084801
                        HEXAGON SOCKET HEAD BOLT
                        M6X18
                        from £0.53
                        from £0.53
                        HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                        HEXAGONAL SOCKET HEAD Genuine Porsche Part - New (to order)
                        # 018
                        -
                        COVER FOR THERMOSTAT
                        # 018
                        MPN: 07M121121E
                        COVER FOR THERMOSTAT
                        from £260.21
                        from £260.21
                        COVER Genuine Lamborghini - New (to order)
                        COVER Genuine Lamborghini - Used In stock
                        # 019
                        MPN: 07M919561
                        OIL PRESSURE SENDER
                        UNTIL ENGINE - 6L1201300 ORDER ALSO REF.29
                        from £183.07
                        from £183.07
                        OIL PRESSURE GAGE SENDER Genuine Lamborghini - New (to order)
                        # 020
                        -
                        SPEED SENSOR
                        ONLY FOR MY12 - ORDER REF 31
                        # 021
                        MPN: N91096702
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X16
                        from £0.78
                        from £0.78
                        HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                        # 022
                        -
                        CARRIER
                        VALID UP TO MODEL YEAR 12
                        # 023
                        -
                        OVAL HEXAGON SOCKET HEAD BOLT
                        VALID UP TO MODEL YEAR 12-M6X16
                        # 024
                        MPN: 079907601
                        IMPULSE SENDER
                        FLYWHEEL
                        from £112.10
                        from £112.10
                        PULSE GENERATOR Genuine Lamborghini - New In stock
                        # 025
                        MPN: N91096702
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X16
                        from £0.78
                        from £0.78
                        HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                        # 026
                        -
                        AIR VENT
                        # 026
                        MPN: 07M103158E
                        AIR VENT
                        from £902.48
                        from £902.48
                        NOZZLE Genuine Lamborghini - New (to order)
                        # 027
                        MPN: N10456103
                        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                        M4X10
                        from £0.54
                        from £0.54
                        PAN HEAD BOLT M4X10.0 Genuine Lamborghini - New In stock
                        # 028
                        -
                        TEMPERATURE SENSOR
                        # 028
                        MPN: 059919523A
                        TEMPERATURE SENSOR
                        Supersession
                        Supersession
                        Genuine Lamborghini (no longer available to order)
                        # 029
                        MPN: 470971729
                        HEAT DEFLECTOR HOSE
                        from £26.64
                        from £26.64
                        PROTECTIVE HOSE CONNETT.PRESS.OLIO Genuine Lamborghini - New (to order)
                        # 030
                        MPN: N10562301
                        CABLE TIES
                        4,7X194
                        from £0.95
                        from £0.95
                        CABLE TIE B4.7X194 Genuine Lamborghini - New In stock
                        # 031
                        MPN: 06H906433E
                        IMPULSE SENDER
                        CRANCKSHAFT ENGINE-3 PIN
                        from £68.37
                        from £68.37
                        PULSE GENERATOR RSCD5 Genuine Lamborghini - New (to order)
