260.04.00 - A/C CONDENSER

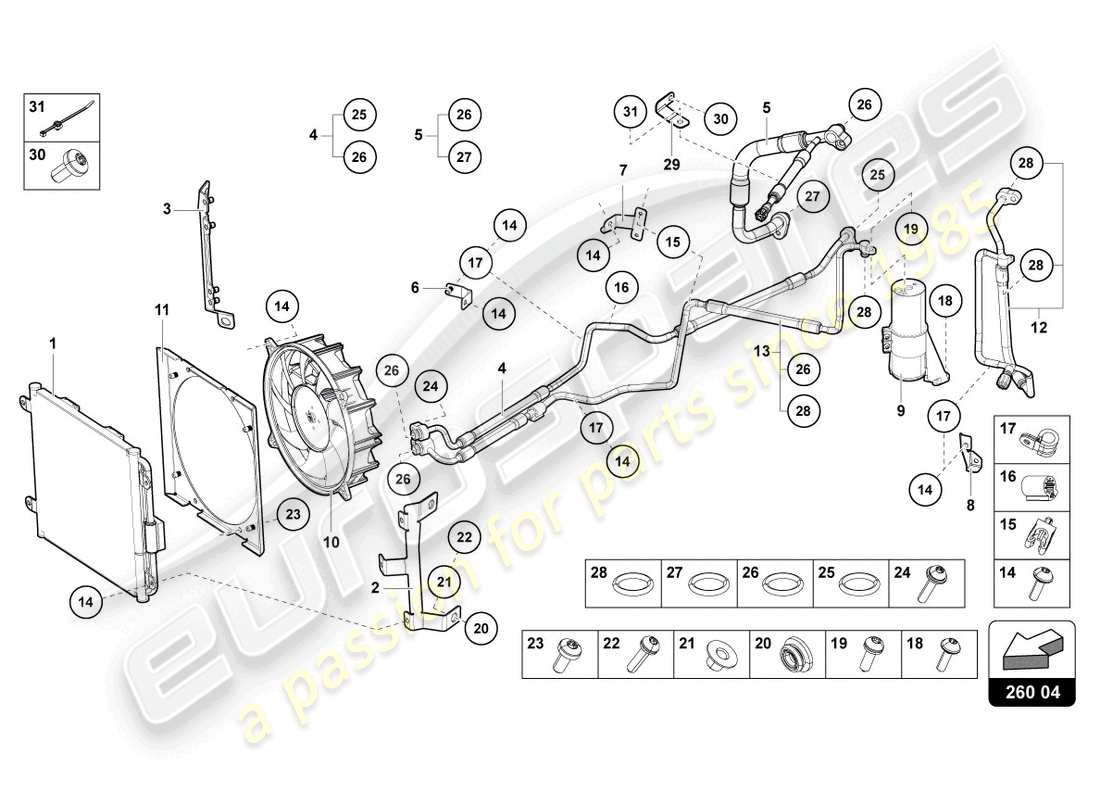

Lamborghini Ultimae (2022) A/C CONDENSER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 420260401B
                        A/C CONDENSER
                        from £211.28
                        from £211.28
                        CONDENSER Genuine Lamborghini - New In stock
                        CONDENSER Genuine Lamborghini - Used In stock
                        # 002
                        MPN: 470260437A
                        MOUNTING BAR
                        LEFT
                        from £806.72
                        from £806.72
                        BRACKET Genuine Lamborghini - New (to order)
                        # 003
                        MPN: 470260438A
                        MOUNTING BAR
                        RIGHT
                        from £16.77
                        from £16.77
                        BRACKET Genuine Lamborghini - New (to order)
                        BRACKET Genuine Lamborghini - Used In stock
                        # 004
                        MPN: 470260711D
                        FLANGED PIPE
                        from £139.76
                        from £139.76
                        REFRIGERANT PIPE Genuine Lamborghini - New (to order)
                        REFRIGERANT PIPE Genuine Lamborghini - Used In stock
                        # 005
                        MPN: 470260741C
                        FLANGED PIPE
                        from £136.90
                        from £136.90
                        REFRIGERANT LINE Genuine Lamborghini - New (to order)
                        REFRIGERANT LINE Genuine Lamborghini - Used In stock
                        # 006
                        MPN: 470260759A
                        ATTACHMENT BARS
                        from £13.49
                        from £13.49
                        BRACKET Genuine Lamborghini - New (to order)
                        # 007
                        MPN: 470260759B
                        ATTACHMENT BARS
                        from £16.43
                        from £16.43
                        BRACKET Genuine Lamborghini - New (to order)
                        # 008
                        MPN: 470260759C
                        ATTACHMENT BARS
                        from £29.65
                        from £29.65
                        BRACKET Genuine Lamborghini - New (to order)
                        # 009
                        MPN: 470820191
                        DRIER
                        from £238.09
                        from £238.09
                        DRIER Genuine Lamborghini - New (to order)
                        DRIER Genuine Lamborghini - Used In stock
                        # 010
                        MPN: 470965521A
                        FAN WHEEL FOR REFRIGERANT CONDENSER
                        from £3,019.76
                        from £3,019.76
                        FAN WHEEL CONDENSATORE A/C Genuine Lamborghini - New (to order)
                        # 011
                        MPN: 470965551
                        BRACKET
                        VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS
                        from £32.67
                        from £32.67
                        BRACKET SUPP.ELETT.VENTOLA Genuine Lamborghini - New (to order)
                        BRACKET SUPP.ELETT.VENTOLA Genuine Lamborghini - Used In stock
                        # 012
                        MPN: 471260704
                        FLANGED PIPE
                        VALID FOR EUROPE, TURKEY, SVEDEN, INDIA, HONG KONG MARKETS- LHD (EUROPE spec vehicles)
                        from £271.20
                        from £271.20
                        REFRIGERANT LINE Genuine Lamborghini - New (to order)
                        # 012
                        MPN: 472260704
                        FLANGED PIPE
                        VALID FOR GB, SOUTH AFRICA- RHD (UK spec vehicles)
                        from £152.94
                        from £152.94
                        REFRIGERANT LINE R1234YF Genuine Lamborghini - New (to order)
                        REFRIGERANT LINE R1234YF Genuine Lamborghini - Used In stock
                        # 013
                        MPN: 471260710
                        FLANGED PIPE
                        VALID FOR EUROPE, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS- LHD (EUROPE spec vehicles)
                        from £284.01
                        from £284.01
                        REFRIGERANT LINE Genuine Lamborghini - New (to order)
                        # 013
                        MPN: 472260710
                        FLANGED PIPE
                        VALID FOR GB, SOUTH AFRICA- RHD (UK spec vehicles)
                        from £135.98
                        from £135.98
                        REFRIGERANT LINE Genuine Lamborghini - New (to order)
                        REFRIGERANT LINE Genuine Lamborghini - Used In stock
                        # 014
                        MPN: N91032702
                        ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
                        M6X20
                        from £0.72
                        from £0.72
                        HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
                        SCREW, BUTTON HD. WITH Genuine Porsche Part - New (to order)
                        ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD Genuine Bentley Part - New (to order)
                        # 015
                        MPN: N90943501
                        HOSE BRACKET
                        VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS
                        from £0.59
                        from £0.59
                        HOSE SUPPORT 12 Genuine Lamborghini - New In stock
                        BRACKET FOR HOSE Genuine Porsche Part - New (to order)
                        HOSE BRACKET Genuine Bentley Part - New (to order)
                        # 016
                        MPN: N10762301
                        TOOTHED LOCK WASHER
                        VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-11,5X21,5X30
                        from £5.43
                        from £5.43
                        SPLINED SLEEVE Genuine Lamborghini - New (to order)
                        RING Genuine Porsche Part - New (to order)
                        # 017
                        MPN: N0206015
                        CLAMP
                        12X15
                        from £1.13
                        from £1.13
                        RETAINING CLAMP D1-12X15 Genuine Lamborghini - New In stock
                        CLAMP Genuine Porsche Part - New (to order)
                        # 018
                        MPN: N10413405
                        HEXAGON SOCKET FLAT HEAD BOLT
                        VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-M6X25
                        from £0.79
                        from £0.79
                        HEXALOB.SOCKET PAN HEAD SCREW Genuine Lamborghini - New (to order)
                        HEXAGON SOCKET FLAT Genuine Porsche Part - New In stock
                        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                        # 019
                        MPN: N10347103
                        HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
                        VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-M6X20
                        from £0.71
                        from £0.71
                        HEXALOBULAR SOCKETM6X20-S11-N Genuine Lamborghini - New (to order)
                        HEXAGON SOCKET OVAL HEAD BOLT Genuine Porsche Part - New (to order)
                        # 020
                        MPN: 8Z0129669A
                        GROMMET
                        from £3.94
                        from £3.94
                        GROMMET Genuine Lamborghini - New (to order)
                        # 021
                        MPN: 8Z0129734
                        BUSH
                        from £5.36
                        from £5.36
                        SPACER Genuine Lamborghini - New (to order)
                        BUSH Genuine Bentley Part - New (to order)
                        # 022
                        MPN: N10347204
                        HEXAGON SOCKET HEAD BOLT, SELF-LOCKING
                        M6X25
                        from £0.96
                        from £0.96
                        HEXALOBULAR SOCKETM6X25-S11-N Genuine Lamborghini - New In stock
                        HEXAGON SOCKET HEAD BOLT, Genuine Porsche Part - New (to order)
                        HEXAGON SOCKET HEAD BOLT, SELF-LOCKING Genuine Bentley Part - New (to order)
                        # 023
                        MPN: N10405604
                        OVAL HEXAGON SOCKET HEAD BOLT
                        M6X14
                        from £0.59
                        from £0.59
                        HEXALOBULAR SOCKET M6X14 Genuine Lamborghini - New In stock
                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                        # 024
                        MPN: N91193003
                        HEX SOCKET HEAD BOLT (COMBI)
                        VALID FOR EUROPE, GREAT BRITAIN, TURKEY, SVEDEN, SOUTH AFRICA, INDIA, HONG KONG MARKETS-M6X28
                        from £0.48
                        from £0.48
                        HEXALOBULAR SOCKETM6X28-S11 Genuine Lamborghini - New In stock
                        HEX SOCKET HEAD BOLT (COMBI) Genuine Porsche Part - New (to order)
                        HEX SOCKET HEAD BOLT (COMBI) Genuine Bentley Part - New (to order)
                        # 025
                        MPN: 470298021
                        O-RING
                        11 X 2,50 MM
                        from £14.33
                        from £14.33
                        OR 11 X 2,50 MM EPDM 500.0115.01 Genuine Lamborghini - New (to order)
                        # 026
                        MPN: 470298021A
                        O-RING
                        13,7 X 2,50
                        from £14.33
                        from £14.33
                        OR 13,7 X 2,50 MM EPDM 500.0120.01 Genuine Lamborghini - New (to order)
                        # 027
                        MPN: 470298021B
                        O-RING
                        16,7 X 2,50
                        from £14.33
                        from £14.33
                        OR 16,7 X 2,50 MM EPDM 500.0776.00 Genuine Lamborghini - New (to order)
                        # 028
                        MPN: 470298021C
                        O-RING
                        9,5 X 2,50
                        from £14.33
                        from £14.33
                        OR 9,5 X 2,50 MM EPDM 500.0119.01 Genuine Lamborghini - New (to order)
                        # 029
                        MPN: 470260759
                        BRACKET FOR CONNECTOR HOUSING
                        from £13.99
                        from £13.99
                        BRACKET Genuine Lamborghini - New (to order)
                        # 030
                        MPN: N10335206
                        HEXAGON SOCKET FLAT HEAD BOLT
                        M6X12
                        from £0.78
                        from £0.78
                        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                        # 031
                        MPN: N90666101
                        CABLE TIES
                        4,6X200 6,5/0,3-3
                        from £0.47
                        from £0.47
                        CABLE TIE BASE 4.6X200 Genuine Lamborghini - New (to order)
                        Genuine Porsche Part (no longer available to order)
                        CABLE TIES Genuine Bentley Part - New (to order)
