lamborghini ultimae (2022) for pick-up parts diagram

899.01.00 - FOR PICK-UP

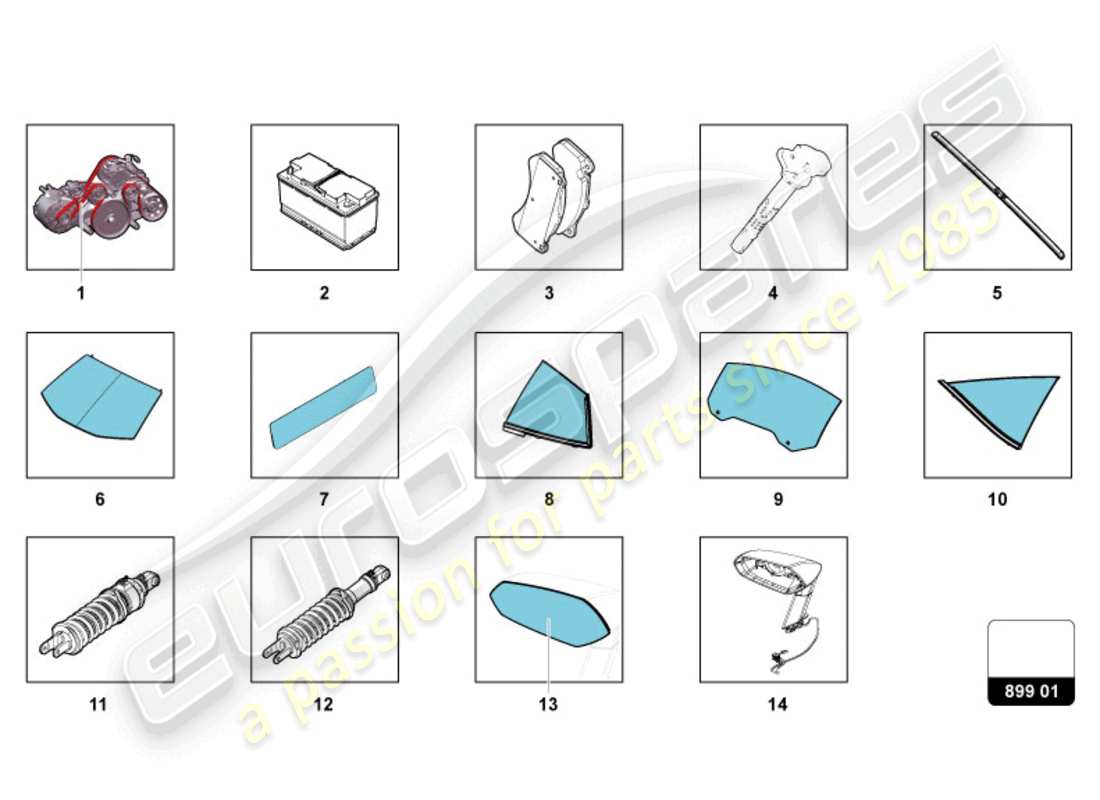

Lamborghini Ultimae (2022) FOR PICK-UP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 002
    MPN: 000915105CB
    BATTERY, FILLED AND CHARGED
    58AH/340A (AGM)
    Supersession
    Supersession
    # 002
    MPN: 5GM915105AE
    BATTERY WITH COUNTRY- SPECIFIC CERTIFICATION
    Supersession
    Supersession
    # 003
    MPN: 470698151
    1 SET OF BRAKE PADS FOR DISK BRAKE
    FRONT
    from £974.10
    from £974.10
    # 003
    MPN: 470698451
    1 SET OF BRAKE PADS FOR DISK BRAKE
    rear
    from £802.95
    from £802.95
    # 004
    -
    IGNITION COIL WITH SPARK PLUG CONNECTOR
    # 004
    MPN: 07M905115G
    IGNITION COIL WITH SPARK PLUG CONNECTOR
    from £191.61
    from £191.61
    # 005
    MPN: 471955425
    AERO WIPER BLADE
    PASSENGER SIDE- LHD (EUROPE, USA spec vehicles)
    Supersession
    Supersession
    # 005
    MPN: 471955425A
    AERO WIPER BLADE
    LHD
    from £80.29
    from £80.29
    This part replaces part number 471955425
    # 005
    MPN: 471955426
    AERO WIPER BLADE
    DRIVER SIDE- LHD (EUROPE, USA spec vehicles)
    Supersession
    Supersession
    # 005
    MPN: 471955426A
    AERO WIPER BLADE
    LHD
    from £80.29
    from £80.29
    This part replaces part number 471955426
    # 005
    MPN: 472955425
    AERO WIPER BLADE
    PASSENGER SIDE- RHD (UK spec vehicles)
    from £33.39
    from £33.39
    # 005
    MPN: 472955425A
    AERO WIPER BLADE
    RHD
    from £80.29
    from £80.29
    This part replaces part number 472955425 which we have in stock
    # 005
    MPN: 472955426
    AERO WIPER BLADE
    DRIVER SIDE- RHD (UK spec vehicles)
    from £40.84
    from £40.84
    # 005
    MPN: 472955426A
    AERO WIPER BLADE
    RHD
    from £80.29
    from £80.29
    This part replaces part number 472955426 which we have in stock
    # 006
    MPN: 470845099G
    WINDSCREEN
    FROM VIN 10426
    from £3,352.57
    from £3,352.57
    # 010
    MPN: 470845115A
    side window (fixed)
    LEFT FRONT
    from £1,349.44
    from £1,349.44
    # 010
    MPN: 470845116A
    side window (fixed)
    RIGHT FRONT
    from £783.94
    from £783.94
    # 013
    MPN: 476857521
    MIRROR GLASS (CONVEX)
    LEFT (USA spec vehicles)
    from £105.40
    from £105.40
    # 013
    MPN: 476857521B
    MIRROR GLASS (CONVEX)
    LEFT (EUROPE, UK spec vehicles)
    from £105.40
    from £105.40
    # 013
    MPN: 476857522
    MIRROR GLASS (CONVEX)
    RIGHT (USA spec vehicles)
    from £105.40
    from £105.40
    # 013
    MPN: 476857522B
    MIRROR GLASS (CONVEX)
    RIGHT (EUROPE, UK spec vehicles)
    from £105.40
    from £105.40
    # 014
    MPN: 471857507B
    EXTERIOR MIRROR
    PRIMER-LEFT LHD (EUROPE, USA spec vehicles)
    from £2,431.78
    from £2,431.78
    # 014
    MPN: 471857508B
    EXTERIOR MIRROR
    PRIMER-RIGHT LHD (EUROPE, USA spec vehicles)
    from £2,559.77
    from £2,559.77
    # 014
    MPN: 472857507B
    EXTERIOR MIRROR
    PRIMER-LEFT RHD (UK spec vehicles)
    from £2,559.77
    from £2,559.77
    # 014
    MPN: 472857508B
    EXTERIOR MIRROR
    PRIMER-RIGHT RHD (UK spec vehicles)
    from £1,407.87
    from £1,407.87
