131.02.00 - VACUUM SYSTEM

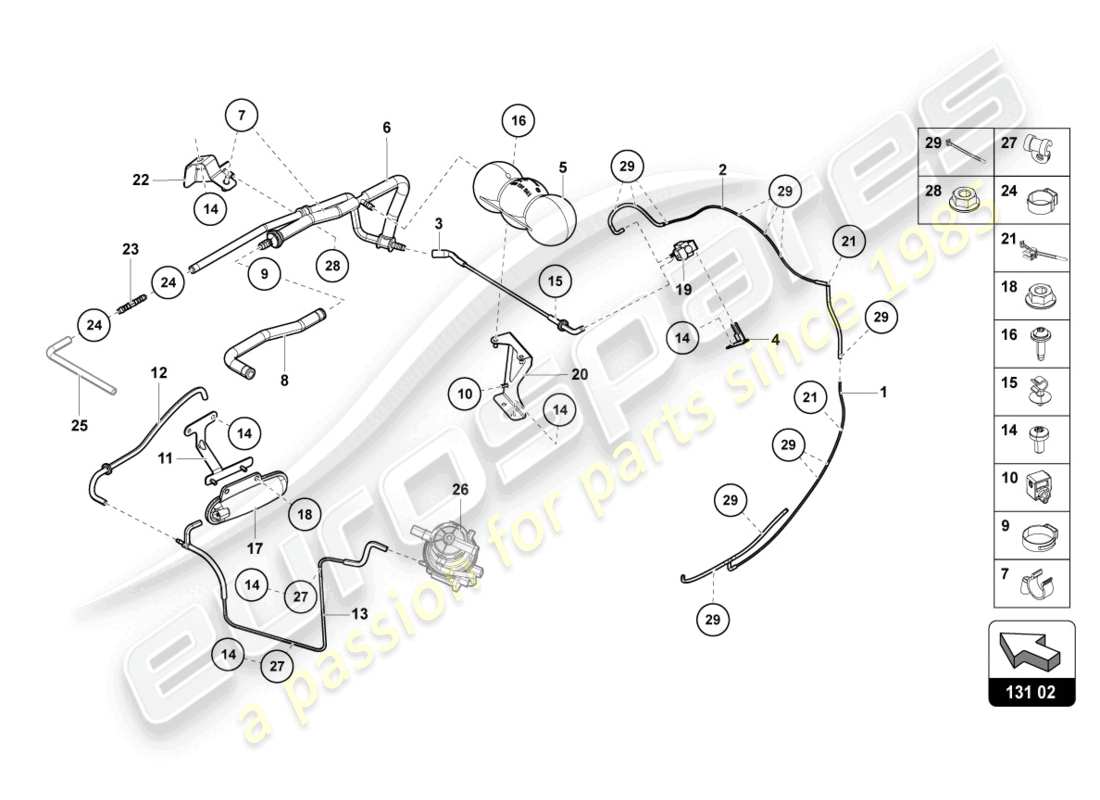

Lamborghini Ultimae Roadster (2022) VACUUM SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 000
                                  MPN: 470298019
                                  REPAIR SET
                                  ROBUSTNESS PACK
                                  from £554.13
                                  from £554.13
                                  repair kit Genuine Lamborghini - New (to order)
                                  # 002
                                  MPN: 470131056A
                                  VACUUM LINE
                                  from £16.45
                                  from £16.45
                                  VACUUM LINE Genuine Lamborghini - New (to order)
                                  VACUUM LINE Genuine Lamborghini - Used In stock
                                  # 003
                                  MPN: 470131459B
                                  VACUUM LINE
                                  from £18.89
                                  from £18.89
                                  VACUUM LINE Genuine Lamborghini - New (to order)
                                  VACUUM LINE Genuine Lamborghini - Used In stock
                                  # 004
                                  MPN: 470131327
                                  MOUNTING BAR
                                  from £12.24
                                  from £12.24
                                  BRACKET Genuine Lamborghini - New (to order)
                                  # 005
                                  MPN: 420131541
                                  VACUUM RESERVOIR
                                  from £21.02
                                  from £21.02
                                  VACUUM TANK Genuine Lamborghini - New (to order)
                                  VACUUM TANK Genuine Lamborghini - Used In stock
                                  # 006
                                  MPN: 470131375B
                                  VACUUM PIPE
                                  from £268.60
                                  from £268.60
                                  VACUUM LINE LINEA 2 Genuine Lamborghini - New (to order)
                                  # 007
                                  MPN: 420201449
                                  SECURING CLIP
                                  from £3.60
                                  from £3.60
                                  SECURING CLAMP Genuine Lamborghini - New (to order)
                                  # 008
                                  MPN: 470131386C
                                  VACUUM PIPE
                                  from £828.91
                                  from £828.91
                                  VACUUM LINE Genuine Lamborghini - New (to order)
                                  # 009
                                  MPN: N10201901
                                  CLAMP
                                  22,6X7X0,60
                                  from £1.37
                                  from £1.37
                                  EAR HOSE CLAMP 22.6X7X0.6 Genuine Lamborghini - New In stock
                                  # 010
                                  MPN: 8D0611797D
                                  BRACKET
                                  from £3.60
                                  from £3.60
                                  BRACKET Genuine Lamborghini - New (to order)
                                  # 011
                                  MPN: 470131429A
                                  BRACKET
                                  from £13.64
                                  from £13.64
                                  BRACKET Genuine Lamborghini - New (to order)
                                  BRACKET Genuine Lamborghini - Used In stock
                                  # 012
                                  MPN: 470611908
                                  VACUUM LINE
                                  from £18.11
                                  from £18.11
                                  VACUUM LINE Genuine Lamborghini - New (to order)
                                  VACUUM LINE Genuine Lamborghini - Used In stock
                                  # 013
                                  MPN: 470611929
                                  VACUUM LINE
                                  from £22.35
                                  from £22.35
                                  VACUUM LINE Genuine Lamborghini - New (to order)
                                  VACUUM LINE Genuine Lamborghini - Used In stock
                                  # 014
                                  MPN: N91096701
                                  OVAL HEXAGON SOCKET HEAD BOLT
                                  M6X16
                                  from £0.78
                                  from £0.78
                                  HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                  OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                  # 015
                                  MPN: N10416402
                                  BRACKET
                                  8X13
                                  from £1.69
                                  from £1.69
                                  COMBINATION BRACKET Genuine Lamborghini - New In stock
                                  # 016
                                  MPN: N90939303
                                  HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING
                                  M5X20
                                  from £1.37
                                  from £1.37
                                  SCREW AND WASHER M5X20-S11 Genuine Lamborghini - New In stock
                                  # 017
                                  MPN: 4F0131541A
                                  VACUUM RESERVOIR
                                  from £11.10
                                  from £11.10
                                  VACUUM TANK Genuine Lamborghini - New (to order)
                                  VACUUM TANK Genuine Lamborghini - Used In stock
                                  # 018
                                  MPN: N01508210
                                  HEXAGON COLLAR NUT
                                  M6
                                  from £0.47
                                  from £0.47
                                  HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                                  Genuine Porsche Part (no longer available to order)
                                  # 019
                                  -
                                  SOLENOID VALVE
                                  Black
                                  # 019
                                  MPN: 037906283C
                                  SOLENOID VALVE
                                  Black
                                  from £42.68
                                  from £42.68
                                  ELECTRIC CHANGEOVER Genuine Lamborghini - New (to order)
                                  ELECTRIC CHANGEOVER Genuine Lamborghini - Used In stock
                                  # 020
                                  MPN: 470809163B
                                  RETAINER FOR VACUUM CONTAINER
                                  from £31.16
                                  from £31.16
                                  BRACKET,VACUUM TAN Genuine Lamborghini - New (to order)
                                  # 021
                                  -
                                  CABLE TIE WITH TERMINAL SOCKET
                                  NOT FOR THIS MARKET/ MODEL
                                  # 022
                                  MPN: 470131340C
                                  CARRIER
                                  from £27.98
                                  from £27.98
                                  BRACKET SUPP.131 386 Genuine Lamborghini - New (to order)
                                  # 023
                                  MPN: 470253729B
                                  CONNECTING PIECE
                                  from £1.51
                                  from £1.51
                                  DISTRIBUTION PIPE, LH Genuine Lamborghini - New In stock
                                  # 024
                                  MPN: N10196901
                                  CLAMP
                                  from £0.75
                                  from £0.75
                                  LUG-TYPE HOSE Genuine Lamborghini - New In stock
                                  # 025
                                  -
                                  VACUUM PIPE
                                  SEE ILLUSTRATION : 133.02
                                  # 026
                                  -
                                  PUMP
                                  SEE ILLUSTRATION : 201.10
                                  # 027
                                  MPN: N91171101
                                  CLAMP
                                  1-6X15
                                  from £2.29
                                  from £2.29
                                  RETAINING CLAMP Genuine Lamborghini - New (to order)
                                  CLAMP Genuine Porsche Part - New (to order)
                                  # 028
                                  MPN: N01508213
                                  HEXAGON COLLAR NUT
                                  M6
                                  from £0.47
                                  from £0.47
                                  This part replaces part number 008200614 which we have in stock - and 2 more. Click to view details
                                  HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                                  shouldered hex. nut Genuine Porsche Part - New In stock
                                  # 029
                                  MPN: N10562301
                                  CABLE TIES
                                  4,7X194
                                  from £0.90
                                  from £0.90
                                  CABLE TIE B4.7X194 Genuine Lamborghini - New In stock
