lamborghini ultimae roadster (2022) intake manifold parts diagram

133.03.00 - INTAKE MANIFOLD

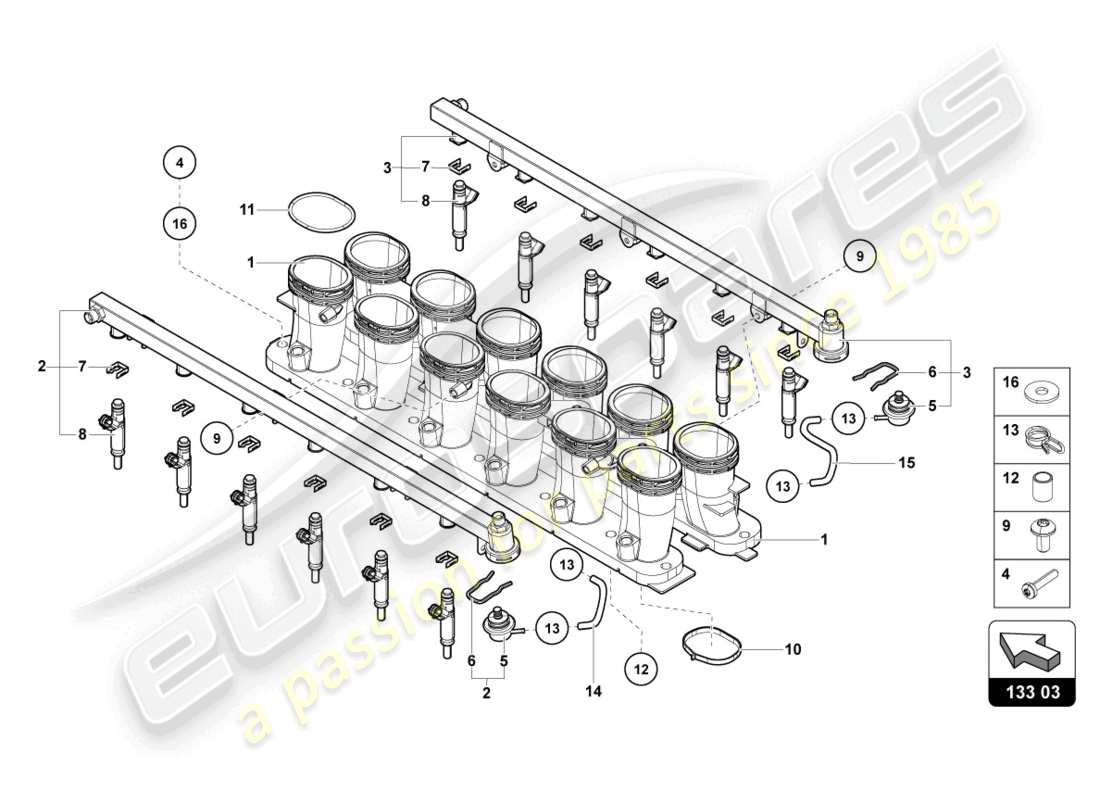

Lamborghini Ultimae Roadster (2022) INTAKE MANIFOLD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 002
                -
                FUEL INJECTOR WITH INJECTOR RAILS
                RIGHT
                # 002
                MPN: 07M133681S
                FUEL INJECTOR WITH INJECTOR RAILS
                RIGHT
                from £9,012.21
                from £9,012.21
                This part replaces part number 07M133681J
                FUEL COLLECTOR HOCHDRUCK,OTTO Genuine Lamborghini - New (to order)
                # 003
                -
                FUEL INJECTOR WITH INJECTOR RAILS
                LEFT
                # 003
                MPN: 07M133681Q
                FUEL INJECTOR WITH INJECTOR RAILS
                LEFT
                from £9,012.21
                from £9,012.21
                FUEL COLLECTOR HOCHDRUCK,OTTO Genuine Lamborghini - New (to order)
                # 004
                MPN: N10413405
                HEXAGON SOCKET FLAT HEAD BOLT
                M6X25
                from £0.95
                from £0.95
                HEXALOB.SOCKET PAN HEAD SCREW Genuine Lamborghini - New (to order)
                HEXAGON SOCKET FLAT Genuine Porsche Part - New In stock
                # 005
                -
                PRESSURE REGULATOR
                CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 2-3
                # 006
                -
                Retaining Clip
                CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 2-3
                # 007
                -
                Retaining Clip
                # 007
                MPN: 07M133047A
                Retaining Clip
                from £238.69
                from £238.69
                Retaining Clip Genuine Lamborghini - New (to order)
                # 008
                -
                INJECTION VALVE
                # 008
                MPN: 07M906031C
                INJECTION VALVE
                from £161.70
                from £161.70
                This part replaces part number 07M906031B
                INJECTOR INIETTORE Genuine Lamborghini - New (to order)
                # 009
                MPN: N90638102
                ROUND HD. SCREW
                M6X12
                from £0.98
                from £0.98
                SCREW Genuine Lamborghini - New In stock
                ROUND HD. SCREW Genuine Porsche Part - New (to order)
                # 010
                -
                SEAL
                # 010
                MPN: 07M129718B
                SEAL
                from £17.59
                from £17.59
                GASKET Genuine Lamborghini - New In stock
                # 011
                -
                SEAL
                # 011
                MPN: 07M133155A
                SEAL
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 012
                MPN: WHT003019
                BUSH
                6,25X8X10
                from £7.29
                from £7.29
                This part replaces part number 008800604
                BUSHING 6.25X8X10 MM Genuine Lamborghini - New (to order)
                # 013
                MPN: 400127217
                CLAMP
                from £0.53
                from £0.53
                This part replaces part number 008830128
                SECURING CLIP Genuine Lamborghini - New In stock
                # 014
                -
                VACUUM HOSE
                # 014
                MPN: 07M133264B
                VACUUM HOSE
                from £3.52
                from £3.52
                HOSE Genuine Lamborghini - New (to order)
                # 015
                -
                VACUUM HOSE
                # 015
                MPN: 07M133264C
                VACUUM HOSE
                from £3.52
                from £3.52
                HOSE Genuine Lamborghini - New (to order)
                # 016
                MPN: N01166623
                WASHER
                6,4X18X1,6
                from £0.79
                from £0.79
                This part replaces part number 008400510 - and 2 more. Click to view details
                WASHER Genuine Lamborghini - New In stock
