lamborghini ultimae roadster (2022) v parts diagram

145.01.00 - V

Lamborghini Ultimae Roadster (2022) V Parts Diagram

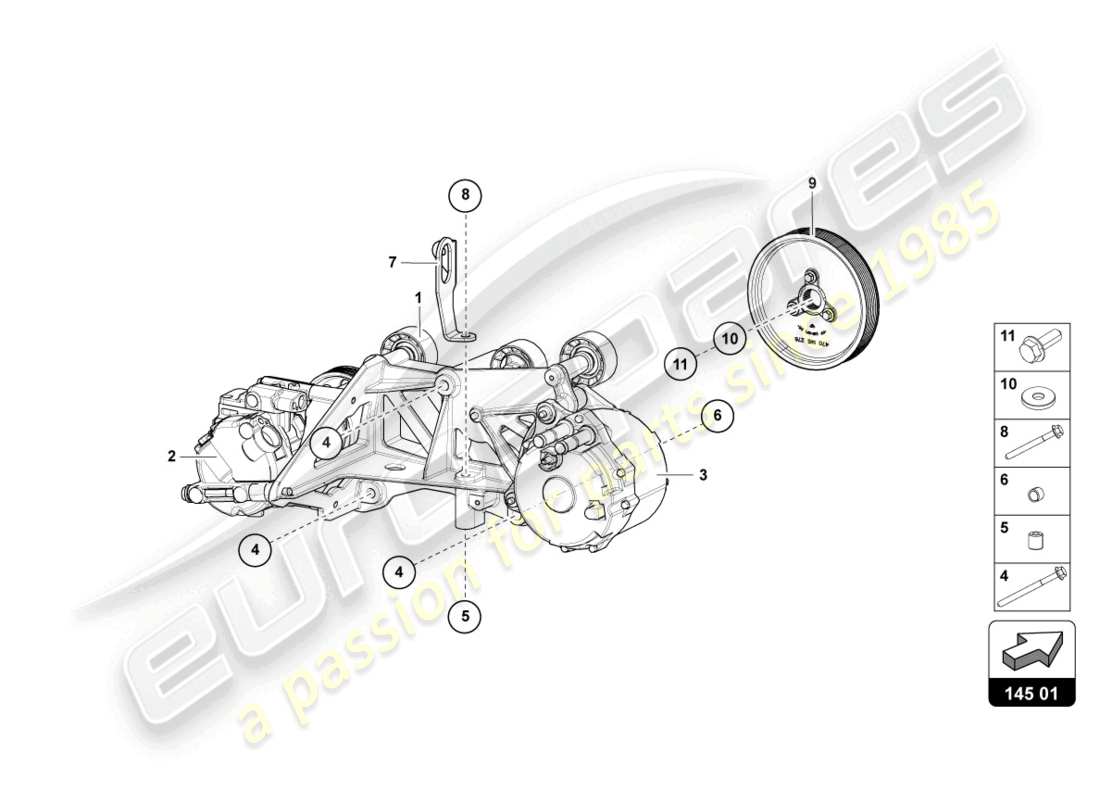

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        -
        PULLEY
        SEE ILLUSTRATION : 145.03
        # 002
        -
        COMPRESSOR
        SEE ILLUSTRATION : 145.02
        # 003
        -
        ALTERNATOR
        SEE ILLUSTRATION : 145.03
        # 004
        MPN: N10716901
        HEX COLLARED BOLT
        M12X1,5X170X90
        from £6.69
        from £6.69
        HEXAGON FLANGE Genuine Lamborghini - New (to order)
        BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
        # 005
        -
        LENGTH-MEASURING DEVICE
        # 005
        MPN: 07M145757
        LENGTH-MEASURING DEVICE
        from £194.62
        from £194.62
        SPACER Genuine Lamborghini - New (to order)
        # 006
        -
        DOWEL SLEEVE
        16X13,5
        # 006
        MPN: 022103139B
        DOWEL SLEEVE
        16X13,5
        from £4.94
        from £4.94
        SLEEVE CR6 FREI Genuine Lamborghini - New (to order)
        # 007
        -
        ARM
        # 007
        MPN: 07M199330
        ARM
        from £10.46
        from £10.46
        SHACKLE Genuine Lamborghini - New (to order)
        SHACKLE Genuine Lamborghini - Used In stock
        # 008
        MPN: N10711101
        BOLT, HEX. HD. WITH SHAFT
        M10X125X90
        from £3.86
        from £3.86
        HEXAGON FLANGE BM10X125X90 Genuine Lamborghini - New In stock
        # 010
        MPN: WHT006156
        CONTACT DISC
        from £130.45
        from £130.45
        WASHER 10.5X33X5 Genuine Lamborghini - New (to order)
        # 011
        MPN: N10551901
        HEX COLLARED BOLT
        M10X30
        from £2.60
        from £2.60
        HEXAGON FLANGE Genuine Lamborghini - New (to order)
        BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
