015 - OIL COOLER

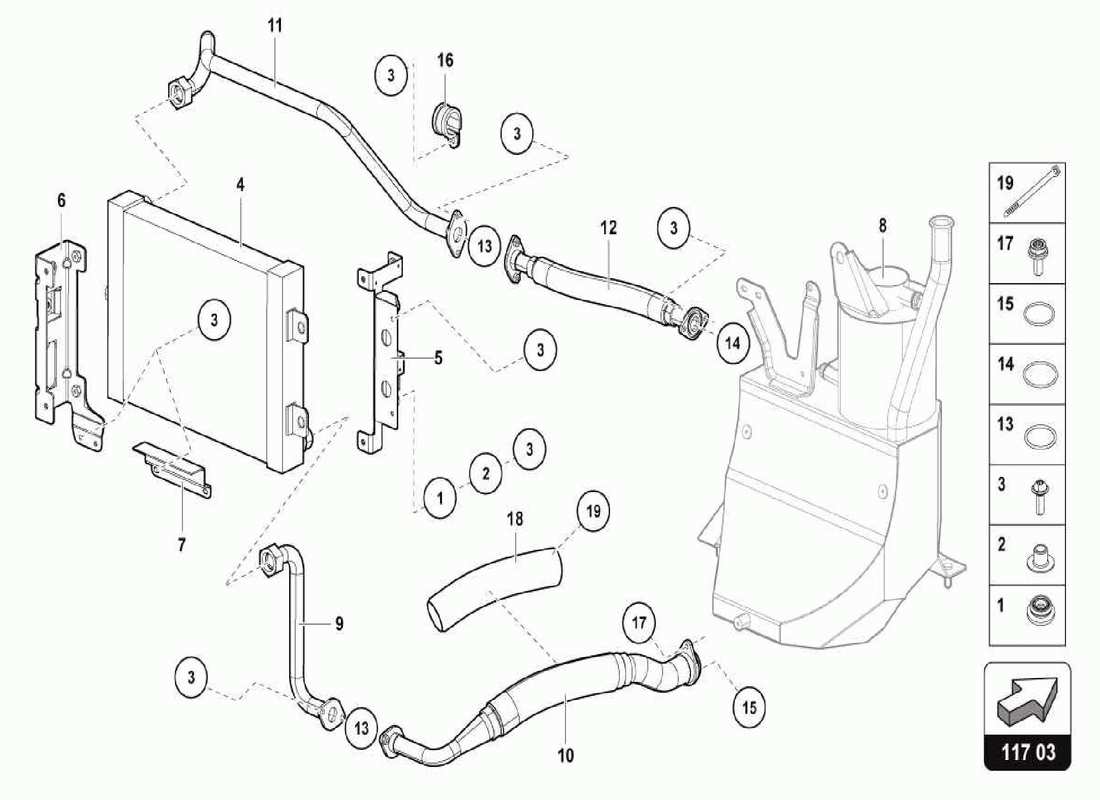

Lamborghini Centenario Spider Oil Cooler Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 8Z0129669A
GROMMET
from £3.96
from £3.96
# 002
MPN: 8Z0129734
BUSH
from £5.45
from £5.45
# 003
MPN: N10558102
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)
from £2.67
from £2.67
# 004
MPN: 07M117021C
OIL COOLER
from £1,151.37
from £1,151.37
# 005
MPN: 470115633A
RETAINER FOR OIL COOLER (INNER)
from £63.60
from £63.60
This part replaces part number 470115633
# 006
MPN: 470115632A
RETAINER FOR OIL COOLER (OUTER)
from £18.09
from £18.09
This part replaces part number 470115632 - and 2 more. Click to view details
# 007
MPN: 470117188
RETAINER FOR OIL COOLER
from £10.84
from £10.84
# 008
-
OIL CONTAINER (SEE ILLUSTRATION 117-020)
# 013
MPN: WHT004894
seal ring (31.42X2.62)
from £2.15
from £2.15
# 014
MPN: WHT004894
seal ring (31.42X2.62)
from £2.21
from £2.21
# 015
MPN: WHT004896
seal ring (38X2)
from £11.26
from £11.26
# 016
MPN: N0206244
CLAMP
from £2.75
from £2.75
# 017
MPN: N10717001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M8X18)
from £1.38
from £1.38
# 018
MPN: 470198049
HEAT SHIELD
from £69.35
from £69.35
