042 - STEERING ROD

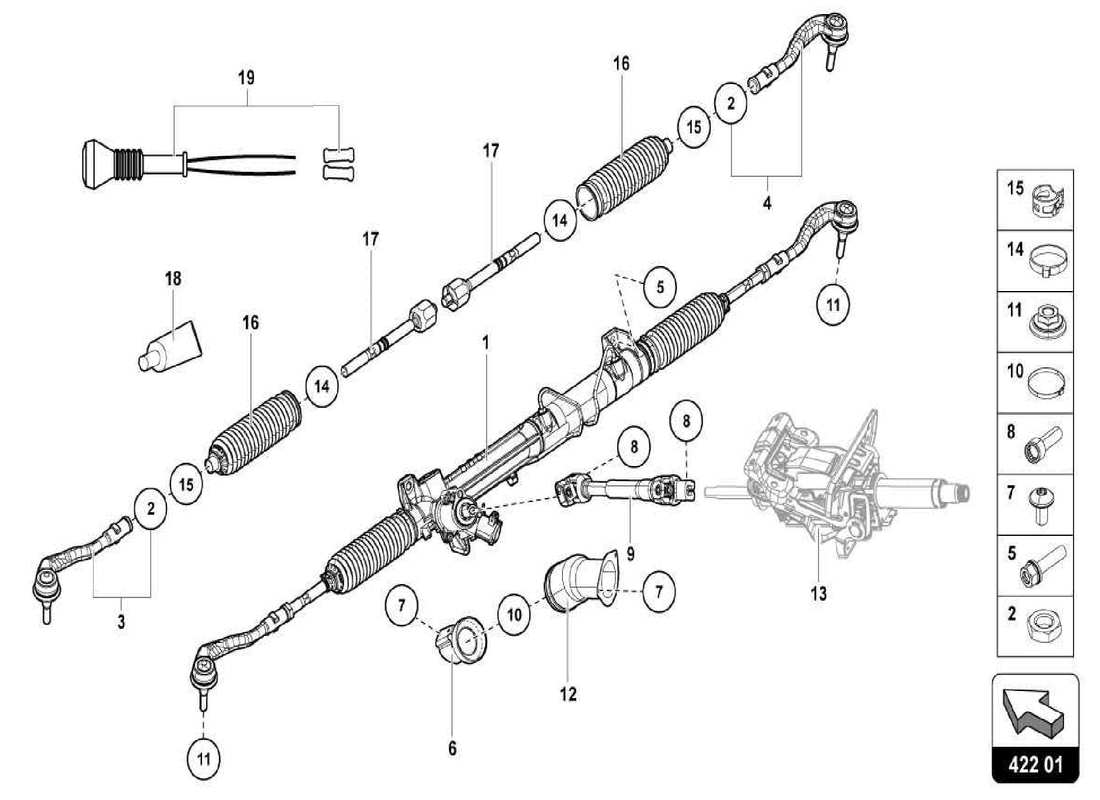

Lamborghini Centenario Spider Steering Rod Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 472422061D
STEERING ROD ( RHD)
from £4,905.33
from £4,905.33
# 002
MPN: N01116418
HEXAGON NUT (M16X1,5)
from £1.08
from £1.08
# 003
MPN: 8K0422817B
TIE ROD END (LEFT 29 MM 'L 8K0 B')
from £87.77
from £87.77
# 004
MPN: 8K0422818B
TIE ROD END (RIGHT 29 MM 'R 8K0 B')
from £87.77
from £87.77
# 005
MPN: WHT005436
MULTI-POINT SOCKET HEAD BOLT WITH COLLAR (M1 0X44)
from £42.20
from £42.20
# 006
MPN: 470422170A
COVER
from £111.55
from £111.55
# 007
MPN: N10586402
SOCKET HEAD HEXAGON BOLT WITH CONE (M5X10)
from £0.83
from £0.83
# 008
MPN: N10518405
SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. (M8X30)
from £1.95
from £1.95
# 009
MPN: 472419753C
INTERMEDIATE STEERING SHAFT
from £216.38
from £216.38
# 010
MPN: N10753601
CLAMP (69,5X7X0,6)
from £2.75
from £2.75
# 011
MPN: WHT004898
HEXAGON COLLAR NUT SELF-LOCKING (M14X1,5)
from £3.77
from £3.77
# 011
MPN: WHT004995
HEXAGON FLANGE NUT, SELF-LOCKING (M12X1,5)
from £2.95
from £2.95
# 012
MPN: 472422326A
COVER
from £39.57
from £39.57
# 013
-
STEERING COLUMN (SEE ILLUSTRATION 419-010)
# 014
-
CLAMP (NO PART - INCLUED IN REF.:- 1)
# 015
-
CLAMP (NO PART - INCLUDED IN REF.:- 1)
# 016
-
BOOT FOR TIE ROD (NO PART - INCLUDED IN REF.:- 1)
# 017
-
TRACK ROD (NO PART - INCLUDED IN REF.:- 1)
# 018
-
GREASE (NO PART - INCLUDED IN REF.:- 1)
# 019
MPN: 470498001A
1 SET ASSEMBLY PARTS
from £460.87
from £460.87
