lamborghini countach 25th anniversary (1989) fuel system parts diagram

133.05.00 - FUEL SYSTEM

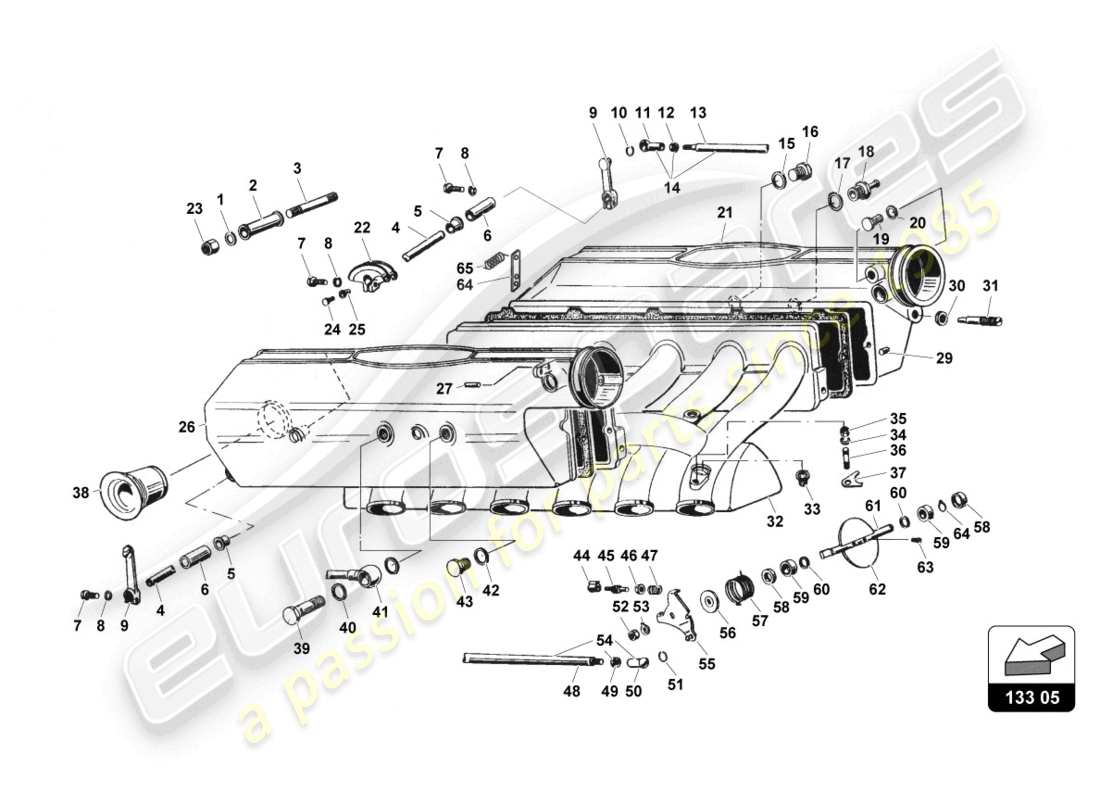

Lamborghini Countach 25th Anniversary (1989) FUEL SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 008401022
WASHER
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 002
MPN: 001322163
SPACER
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 003
MPN: 008301030
STUD
(USA spec vehicles)
from £22.38
from £22.38
SPECIAL STUD M10X20 Genuine Lamborghini - New (to order)
# 004
MPN: 001323135
SHAFT
(USA spec vehicles)
from £21.18
from £21.18
INJECTION CONTROL SHAFT Genuine Lamborghini - New (to order)
# 005
MPN: 008801204
BUSH
(USA spec vehicles)
from £6.02
from £6.02
BUSHING 7X16X18 MM Genuine Lamborghini - New (to order)
# 006
MPN: 001323136
SPACER
(USA spec vehicles)
from £8.74
from £8.74
SHIM ON INJECTION CONTROL SHAF T Genuine Lamborghini - New (to order)
# 007
MPN: 008100618
BOLT
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 008
MPN: 008410603
LOCK WASHER
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 009
MPN: 001311580
LEVER
(USA spec vehicles)
from £212.23
from £212.23
CARBURETTOR DRIVE SHAFT LEVER Genuine Lamborghini - New (to order)
# 010
MPN: 001300805
SPRING
(USA spec vehicles)
SPRING Genuine Lamborghini - New (to order)
# 011
MPN: 001300804
BALL HOUSIN
(USA spec vehicles)
from £7.54
from £7.54
HEAD UNIT Genuine Lamborghini - New In stock
# 012
MPN: 008200501
NUT
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 013
MPN: 001323422
ROD
(USA spec vehicles)
from £12.04
from £12.04
TIEROD Genuine Lamborghini - New (to order)
# 014
MPN: 001323398
ROD
(USA spec vehicles)
from £19.49
from £19.49
GEAR LINK ASSEMBLY TIEROD Genuine Lamborghini - New (to order)
# 015
MPN: 008401610
WASHER
(USA spec vehicles)
from £6.45
from £6.45
ANNEALED COPPER WASHER 16X22X0 .5 Genuine Lamborghini - New In stock
# 016
MPN: 008931602
PLUG
(USA spec vehicles)
from £3.13
from £3.13
PLUG Genuine Lamborghini - New (to order)
# 017
MPN: 008401610
WASHER
(USA spec vehicles)
from £6.45
from £6.45
ANNEALED COPPER WASHER 16X22X0 .5 Genuine Lamborghini - New In stock
# 018
MPN: 001513944
FITTIN BOLT
(USA spec vehicles)
from £89.70
from £89.70
UNION ON RH INTAKE MANIFOLD Genuine Lamborghini - New (to order)
# 019
MPN: 008100839
BOLT
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 020
MPN: 008400802
WASHER
(USA spec vehicles)
from £1.00
from £1.00
COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
# 021
MPN: 001322103
COVER
(USA spec vehicles)
from £966.81
from £966.81
INTAKE MANIFOLD RH COVER Genuine Lamborghini - New (to order)
# 022
MPN: 001310948
PULLEY
(USA spec vehicles)
from £55.97
from £55.97
CARBURETTOR ROD PULLEY Genuine Lamborghini - New (to order)
# 023
MPN: 008201006
NUT
(USA spec vehicles)
from £4.81
from £4.81
M10 SELF LOCKING NUT Genuine Lamborghini - New In stock
# 024
MPN: 008100504
BOLT
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 025
MPN: 001310949
CYLIND
(USA spec vehicles)
from £23.84
from £23.84
CARBURETTOR WIRE ADJUSTMENT CY LINDER Genuine Lamborghini - New (to order)
# 026
MPN: 001322104
L. COVER
(USA spec vehicles)
from £966.81
from £966.81
INTAKE MANIFOLD LH COVER Genuine Lamborghini - New (to order)
# 027
MPN: 001323991
PIN
(USA spec vehicles)
from £3.13
from £3.13
PIN FOR SCREW CAP CHECK Genuine Lamborghini - New (to order)
# 028
MPN: 001323717

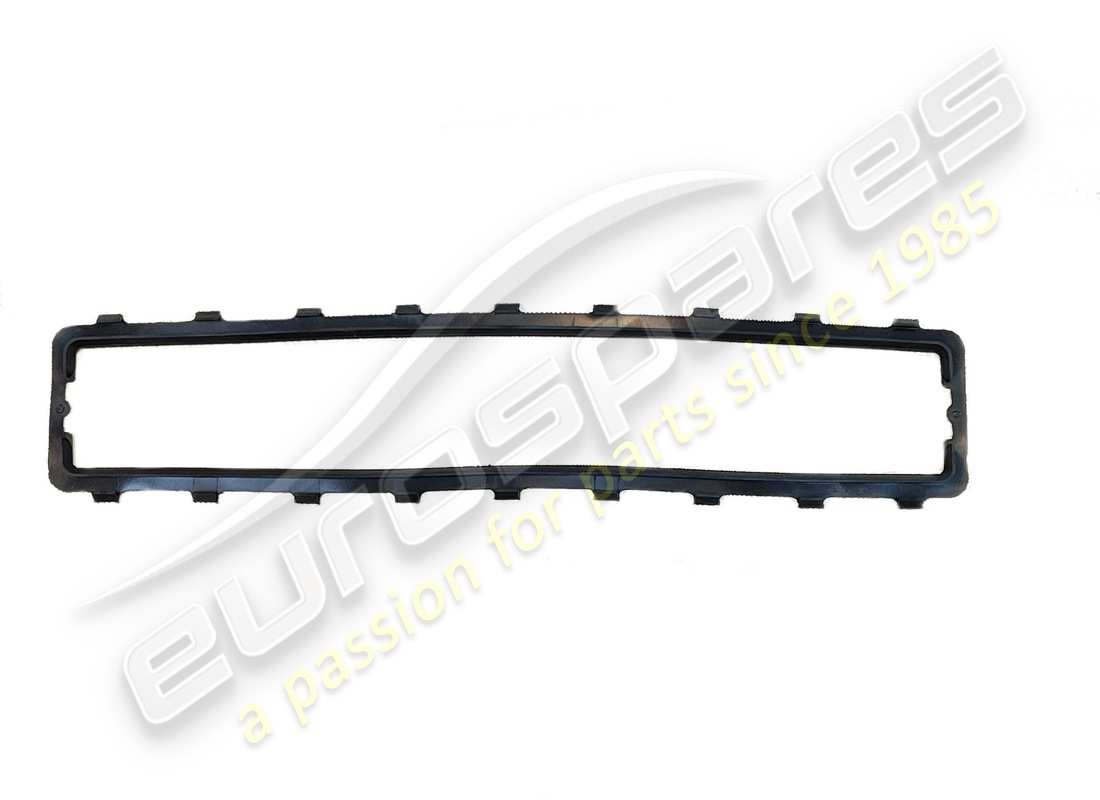

GASKET
(USA spec vehicles)
from £33.26
from £33.26
INTAKE MANIFOLD COVER GASKET Genuine Lamborghini - New (to order)
# 029
MPN: 008850614
DOWEL
(USA spec vehicles)
Lamborghini PART 008850614 Genuine Lamborghini - New (to order)
# 030
MPN: 008201026
NUT
(USA spec vehicles)
from £3.78
from £3.78
THROTTLE CONTROL SHAFT NUT Genuine Lamborghini - New (to order)
# 031
MPN: 001322312
SCREW
(USA spec vehicles)
from £2.64
from £2.64
SCREW Genuine Lamborghini - New (to order)
# 032
MPN: 001322102
MANIFOLD
(USA spec vehicles)
from £2,023.12
from £2,023.12
INJECTION FEED MANIFOLD Genuine Lamborghini - New (to order)
# 033
MPN: 002021236
RUBBER
(USA spec vehicles)
from £21.43
from £21.43
MANIFOLD INJECTOR WASHER Genuine Lamborghini - New (to order)
# 034
MPN: 008400606
WASHER
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 035
MPN: 008200606
NUT
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 036
MPN: 008300658
STUD
(USA spec vehicles)
from £8.26
from £8.26
SPECIAL STUD M6X14 Genuine Lamborghini - New (to order)
# 037
MPN: 001321235
PLATE
(USA spec vehicles)
from £0.92
from £0.92
INJECTOR HOLDING PLATE ON MANI FOLD Genuine Lamborghini - New (to order)
# 038
MPN: 001322343
CARBUR TRUM
(USA spec vehicles)
from £16.53
from £16.53
HORN ON MANIFOLD Genuine Lamborghini - New (to order)
# 039
MPN: 003101941
TUBE
(USA spec vehicles)
from £2.68
from £2.68
VACUUM UNION PIPE Genuine Lamborghini - New (to order)
# 040
MPN: 003101513
WASHER
(USA spec vehicles)
from £0.97
from £0.97
COPPER WASHER 16.2X24X1 Genuine Lamborghini - New In stock
# 041
MPN: 003204607
TUBE
(USA spec vehicles)
from £65.56
from £65.56
BRAKE BOOSTER UNION PIPE Genuine Lamborghini - New (to order)
# 042
MPN: 008401610
WASHER
(USA spec vehicles)
from £6.45
from £6.45
ANNEALED COPPER WASHER 16X22X0 .5 Genuine Lamborghini - New In stock
# 043
MPN: 008931602
PLUG
(USA spec vehicles)
from £3.13
from £3.13
PLUG Genuine Lamborghini - New (to order)
# 044
MPN: 001323988
SCREW SEAL
(USA spec vehicles)
from £5.45
from £5.45
ADJUSTING SCREW CAP Genuine Lamborghini - New (to order)
# 045
MPN: 001323989
SCREW
(USA spec vehicles)
from £1.19
from £1.19
RUNNING ADJUSTMENT SCREW Genuine Lamborghini - New (to order)
# 046
MPN: 008200602
NUT
(USA spec vehicles)
from £0.53
from £0.53
M6 UNI 5588 5S/F NUT Genuine Lamborghini - New In stock
# 047
MPN: 001323990
SPRING
(USA spec vehicles)
from £2.17
from £2.17
COIL SPRING Genuine Lamborghini - New (to order)
# 048
MPN: 001323423
ROD
(USA spec vehicles)
from £12.04
from £12.04
TIEROD Genuine Lamborghini - New (to order)
# 049
MPN: 008200501
NUT
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 050
MPN: 001300804
BALL HOUSIN
(USA spec vehicles)
from £7.54
from £7.54
HEAD UNIT Genuine Lamborghini - New In stock
# 051
MPN: 001300805
SPRING
(USA spec vehicles)
SPRING Genuine Lamborghini - New (to order)
# 052
MPN: 008200818
BOLT
(USA spec vehicles)
from £1.74
from £1.74
THROTTLE CONTROL SHAFT NUT Genuine Lamborghini - New In stock
# 053
MPN: 001322304
WASHER
(USA spec vehicles)
from £2.17
from £2.17
WASHER Genuine Lamborghini - New (to order)
# 054
MPN: 001323399
ROD
(USA spec vehicles)
from £19.49
from £19.49
GEAR LINK ASSEMBLY TIEROD Genuine Lamborghini - New (to order)
# 055
MPN: 001322161
R. LEVER
(USA spec vehicles)
Lamborghini PART 001322161 Genuine Lamborghini - New (to order)
# 055
MPN: 001322162
L. LEVER
(USA spec vehicles)
Lamborghini PART 001322162 Genuine Lamborghini - New (to order)
# 056
MPN: 008400819
WASHER
(USA spec vehicles)
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 057
MPN: 001322157
SPRING
(USA spec vehicles)
from £33.38
from £33.38
GEAR LEVER LH SPRING Genuine Lamborghini - New (to order)
# 057
MPN: 001322303
SPRING
(USA spec vehicles)
from £2.81
from £2.81
SPRING Genuine Lamborghini - New (to order)
# 058
MPN: 001322306
FERRULE
(USA spec vehicles)
from £3.45
from £3.45
BUSHING Genuine Lamborghini - New (to order)
# 059
MPN: 008500801
BALL BEARIN
(USA spec vehicles)
from £4.90
from £4.90
BEARING Genuine Lamborghini - New (to order)
# 060
MPN: 001322305
WASHER
(USA spec vehicles)
from £5.22
from £5.22
WASHER Genuine Lamborghini - New (to order)
# 061
MPN: 001322307
SHAFT
(USA spec vehicles)
from £19.66
from £19.66
SHAFT Genuine Lamborghini - New (to order)
# 062
MPN: 001322308
THROTTLE
(USA spec vehicles)
from £11.07
from £11.07
THROTTLE VALVE Genuine Lamborghini - New (to order)
# 063
MPN: 008700438
SCREW
(USA spec vehicles)
from £1.74
from £1.74
SCREW UNI 6107 4X0.7X7 B Genuine Lamborghini - New (to order)
# 064
MPN: 008580803
CIRCLIP
(USA spec vehicles)
from £1.74
from £1.74
RING Genuine Lamborghini - New (to order)
# 065
MPN: 001310961
SPRING
(USA spec vehicles)
from £51.61
from £51.61
FILTER CARBURETTOR RETURN SPRI NG Genuine Lamborghini - New (to order)
# 066
MPN: 001325095
SUPPORT
(USA spec vehicles)
from £21.90
from £21.90
ROD SPRING PLATE Genuine Lamborghini - New (to order)
