260.03.00 - air conditioning system

Lamborghini Countach 25th Anniversary (1989) AIR CONDITIONING SYSTEM Parts Diagram

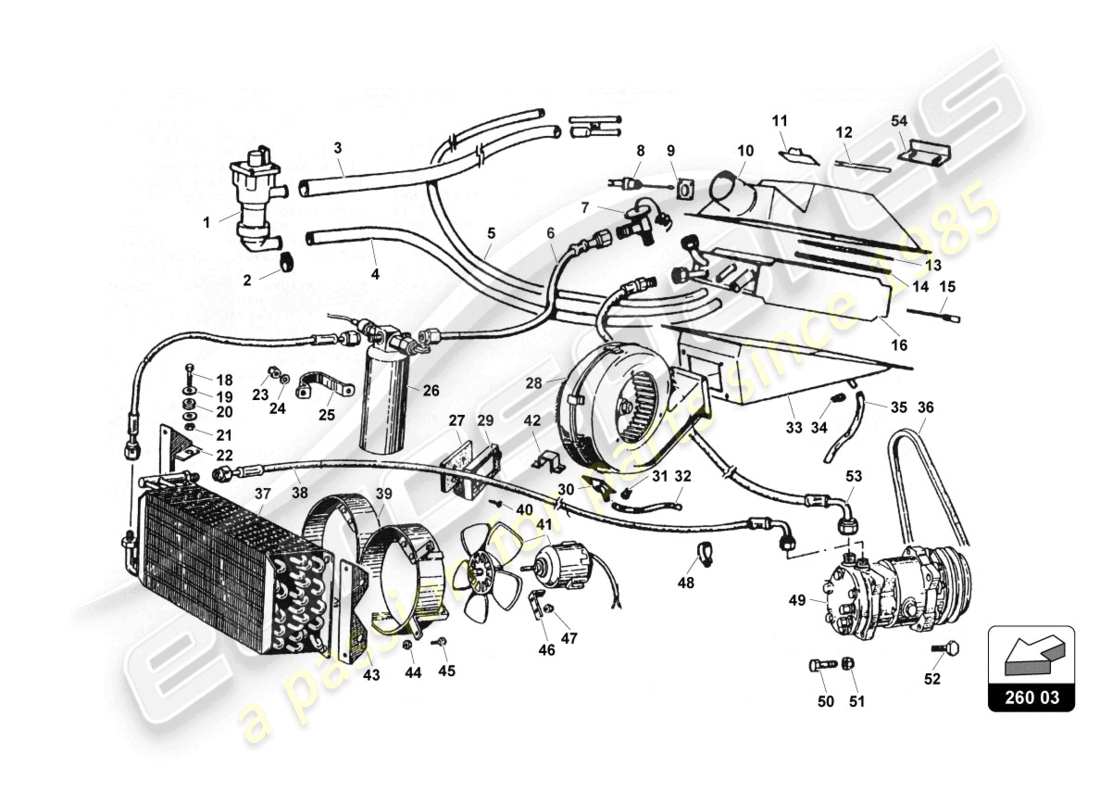

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Key
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 004526660
                                                                                                            ELECT VALVE
                                                                                                            from £408.09
                                                                                                            from £408.09
                                                                                                            CONDITIONER SOLENOIDVALVE Genuine Lamborghini - New (to order)
                                                                                                            # 002
                                                                                                            MPN: 008832401
                                                                                                            CLAMP RING
                                                                                                            from £4.81
                                                                                                            from £4.81
                                                                                                            CLAMP Genuine Lamborghini - New (to order)
                                                                                                            # 003
                                                                                                            MPN: 001726815
                                                                                                            PIPE
                                                                                                            PIPE Genuine Lamborghini - New (to order)
                                                                                                            # 004
                                                                                                            MPN: 004726816
                                                                                                            PIPE
                                                                                                            PIPE Genuine Lamborghini - New (to order)
                                                                                                            # 006
                                                                                                            MPN: 004524943
                                                                                                            PIPE
                                                                                                            from £306.43
                                                                                                            from £306.43
                                                                                                            RADIATOR PACK/FILTERPIPE Genuine Lamborghini - New (to order)
                                                                                                            # 007
                                                                                                            MPN: 004506860
                                                                                                            VALVE
                                                                                                            from £60.57
                                                                                                            from £60.57
                                                                                                            EXPANSION VALVE Genuine Lamborghini - New (to order)
                                                                                                            # 008
                                                                                                            MPN: 004526664
                                                                                                            TEMP SENSOR
                                                                                                            from £25.36
                                                                                                            from £25.36
                                                                                                            BLOWER AIR SENSOR Genuine Lamborghini - New (to order)
                                                                                                            # 009
                                                                                                            MPN: 007011310
                                                                                                            SUPPORT
                                                                                                            from £15.81
                                                                                                            from £15.81
                                                                                                            EV.TEMPERATURE SENSOR PLATE Genuine Lamborghini - New (to order)
                                                                                                            # 010
                                                                                                            MPN: 007011282
                                                                                                            SWITCH
                                                                                                            from £189.69
                                                                                                            from £189.69
                                                                                                            EVAPORATOR RADIATOR BLOCKASSEMBLY Genuine Lamborghini - New (to order)
                                                                                                            # 011
                                                                                                            MPN: 007011285
                                                                                                            SUPPORT
                                                                                                            from £11.40
                                                                                                            from £11.40
                                                                                                            RADIATOR UNIT COVERPLATE Genuine Lamborghini - New (to order)
                                                                                                            # 012
                                                                                                            MPN: 007090098
                                                                                                            SPACER
                                                                                                            SPACER Genuine Lamborghini - New (to order)
                                                                                                            # 013
                                                                                                            MPN: 004526204
                                                                                                            GRILLE
                                                                                                            from £9.06
                                                                                                            from £9.06
                                                                                                            HEATER EVAPORATOR RADIATOR MES H Genuine Lamborghini - New (to order)
                                                                                                            # 014
                                                                                                            MPN: 004526205
                                                                                                            FELT
                                                                                                            from £5.70
                                                                                                            from £5.70
                                                                                                            HEATER EVAPORATOR RADIATOR FEL T Genuine Lamborghini - New (to order)
                                                                                                            # 015
                                                                                                            MPN: 004526663
                                                                                                            TEMP SENSOR
                                                                                                            from £1,129.19
                                                                                                            from £1,129.19
                                                                                                            TEMPERATURE SENSOR Genuine Lamborghini - New (to order)
                                                                                                            # 016
                                                                                                            MPN: 004526814
                                                                                                            COOLER
                                                                                                            from £185.99
                                                                                                            from £185.99
                                                                                                            EVAPORATOR/HEATER RADIATOR PAC K Genuine Lamborghini - New (to order)
                                                                                                            # 017
                                                                                                            MPN: 004511342
                                                                                                            PIPE
                                                                                                            from £184.79
                                                                                                            from £184.79
                                                                                                            CONDENSER/CLEANER PIPE Genuine Lamborghini - New (to order)
                                                                                                            # 018
                                                                                                            MPN: 008100618
                                                                                                            BOLT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 019
                                                                                                            MPN: 008400607
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 020
                                                                                                            MPN: 008610701
                                                                                                            OIL SEAL
                                                                                                            from £18.94
                                                                                                            from £18.94
                                                                                                            GROMMET 7X13X2 MM Genuine Lamborghini - New (to order)
                                                                                                            # 021
                                                                                                            MPN: 008200604
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 022
                                                                                                            MPN: 004511115
                                                                                                            PLATE
                                                                                                            from £15.71
                                                                                                            from £15.71
                                                                                                            CONDENSER BRACKET Genuine Lamborghini - New (to order)
                                                                                                            CONDENSER BRACKET Genuine Lamborghini - Used In stock
                                                                                                            # 023
                                                                                                            MPN: 008200606
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 024
                                                                                                            MPN: 008400606
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 025
                                                                                                            MPN: 004508813
                                                                                                            CLAMP
                                                                                                            from £8.74
                                                                                                            from £8.74
                                                                                                            CLEANER CLAMP Genuine Lamborghini - New (to order)
                                                                                                            # 027
                                                                                                            MPN: 004525710
                                                                                                            SPACER
                                                                                                            SPACER Genuine Lamborghini - New (to order)
                                                                                                            # 028
                                                                                                            MPN: 004724949
                                                                                                            FANMOTOR
                                                                                                            from £262.05
                                                                                                            from £262.05
                                                                                                            SCROLL SOLENOID VALVE Genuine Lamborghini - New (to order)
                                                                                                            SCROLL SOLENOID VALVE Genuine Lamborghini - Used In stock
                                                                                                            # 029
                                                                                                            MPN: 004525711
                                                                                                            Frame
                                                                                                            Frame Genuine Lamborghini - New (to order)
                                                                                                            # 030
                                                                                                            MPN: 004726208
                                                                                                            PLATE
                                                                                                            from £52.19
                                                                                                            from £52.19
                                                                                                            PLATE & PIPE ON FAN Genuine Lamborghini - New (to order)
                                                                                                            # 031
                                                                                                            MPN: 008830901
                                                                                                            CLAMP RING
                                                                                                            from £4.18
                                                                                                            from £4.18
                                                                                                            CLAMP Genuine Lamborghini - New (to order)
                                                                                                            # 032
                                                                                                            MPN: 004726207
                                                                                                            PIPE
                                                                                                            from £34.77
                                                                                                            from £34.77
                                                                                                            CONDENSER/SOLENOID VALVE OUTLE T PIPE Genuine Lamborghini - New (to order)
                                                                                                            # 033
                                                                                                            MPN: 007011250
                                                                                                            HEAT COVER
                                                                                                            from £142.43
                                                                                                            from £142.43
                                                                                                            RADIANT BLOCK COVER ASSEMBLY Genuine Lamborghini - New (to order)
                                                                                                            # 034
                                                                                                            MPN: 008830205
                                                                                                            CLAMP
                                                                                                            16-25 H.9
                                                                                                            from £4.33
                                                                                                            from £4.33
                                                                                                            CLAMP Genuine Lamborghini - New In stock
                                                                                                            # 035
                                                                                                            MPN: 004526206
                                                                                                            PIPE
                                                                                                            from £3.78
                                                                                                            from £3.78
                                                                                                            CONDENSATION EXHAUSTPLASTIC PI PE Genuine Lamborghini - New (to order)
                                                                                                            # 036
                                                                                                            MPN: 004513741
                                                                                                            BELT
                                                                                                            from £99.98
                                                                                                            from £99.98
                                                                                                            CONDITIONER BELT Genuine Lamborghini - New In stock
                                                                                                            # 037
                                                                                                            MPN: 004510564
                                                                                                            CONDENSER
                                                                                                            from £452.24
                                                                                                            from £452.24
                                                                                                            CONDENSER Genuine Lamborghini - New (to order)
                                                                                                            # 039
                                                                                                            MPN: 004510563
                                                                                                            FAN SUPPOR
                                                                                                            from £509.89
                                                                                                            from £509.89
                                                                                                            CONDENSER MOTOR BRACKET Genuine Lamborghini - New (to order)
                                                                                                            # 040
                                                                                                            MPN: 008700506
                                                                                                            SCREW
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            SCREW KNIP 4.8X16DIN7971 BLACK STEEL Genuine Lamborghini - New In stock
                                                                                                            # 041
                                                                                                            MPN: 004508071
                                                                                                            CONDIT FAN
                                                                                                            from £532.92
                                                                                                            from £532.92
                                                                                                            CONDENSER MOTOR & FAN Genuine Lamborghini - New (to order)
                                                                                                            # 042
                                                                                                            MPN: 007830013
                                                                                                            SPACER
                                                                                                            from £4.50
                                                                                                            from £4.50
                                                                                                            SIDE GRILLE UPPER SPACER Genuine Lamborghini - New (to order)
                                                                                                            # 043
                                                                                                            MPN: 004511114
                                                                                                            PLATE
                                                                                                            from £37.51
                                                                                                            from £37.51
                                                                                                            CONDENSER BRACKET Genuine Lamborghini - New (to order)
                                                                                                            CONDENSER BRACKET Genuine Lamborghini - Used In stock
                                                                                                            # 044
                                                                                                            MPN: 008200604
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 045
                                                                                                            MPN: 008100613
                                                                                                            BOLT
                                                                                                            from £0.50
                                                                                                            from £0.50
                                                                                                            SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                                                                                            SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (other) In stock
                                                                                                            BULL.M6X10 UNI 5739 5S
                                                                                                            # 046
                                                                                                            MPN: 004508088
                                                                                                            PLATE
                                                                                                            from £16.77
                                                                                                            from £16.77
                                                                                                            CONDITIONER MOTOR PLATE Genuine Lamborghini - New (to order)
                                                                                                            # 047
                                                                                                            MPN: 008200503
                                                                                                            NUT
                                                                                                            from £2.07
                                                                                                            from £2.07
                                                                                                            M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                                                                                            # 048
                                                                                                            MPN: 008832804
                                                                                                            CLAMP RING
                                                                                                            from £5.62
                                                                                                            from £5.62
                                                                                                            STAINLESS STEEL CLAMPD.28 Genuine Lamborghini - New (to order)
                                                                                                            # 049
                                                                                                            MPN: 004513470
                                                                                                            COMPRESSOR
                                                                                                            from £1,101.93
                                                                                                            from £1,101.93
                                                                                                            ROTARY COMPRESSOR Genuine Lamborghini - New (to order)
                                                                                                            # 050
                                                                                                            MPN: 008101048
                                                                                                            BOLT
                                                                                                            from £2.32
                                                                                                            from £2.32
                                                                                                            SCREW M10X1.5X35 UNI5737/ Genuine Lamborghini - New (to order)
                                                                                                            # 051
                                                                                                            MPN: 008201008
                                                                                                            NUT
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            NUT Genuine Lamborghini - New In stock
                                                                                                            # 052
                                                                                                            MPN: 008101008
                                                                                                            BOLT
                                                                                                            from £9.89
                                                                                                            from £9.89
                                                                                                            SCREW M10X30UNI 5739/8G/ZD Genuine Lamborghini - New (to order)
                                                                                                            # 053
                                                                                                            MPN: 004528307
                                                                                                            PIPE
                                                                                                            from £198.48
                                                                                                            from £198.48
                                                                                                            COMPRESSOR/RADIATOR PACK PIPE Genuine Lamborghini - New (to order)
                                                                                                            # 054
                                                                                                            MPN: 007011312
                                                                                                            SUPPORT
                                                                                                            from £18.94
                                                                                                            from £18.94
                                                                                                            UNDER DASHBOARD SEALSUPPORT BR ACKET Genuine Lamborghini - New (to order)
