lamborghini countach 25th anniversary (1989) lever set parts diagram

711.05.00 - Lever Set

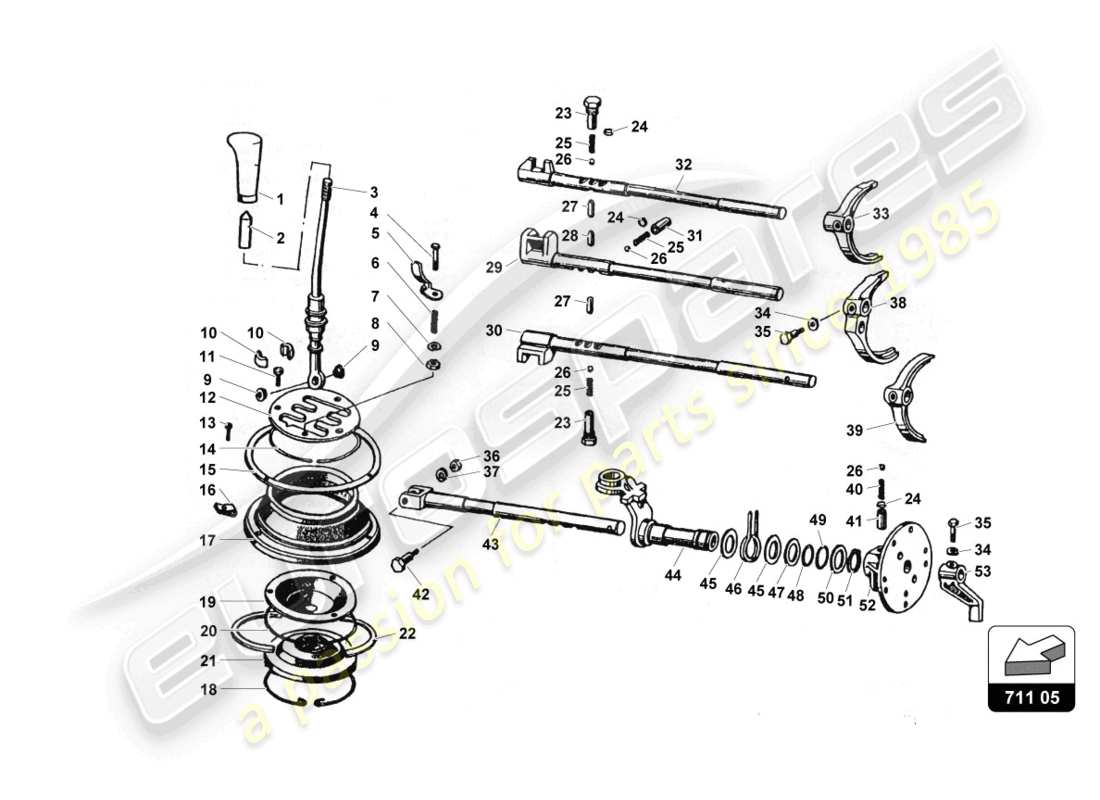

Lamborghini Countach 25th Anniversary (1989) LEVER SET Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Key
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 002428311
                                                                                                            KNOB
                                                                                                            from £686.54
                                                                                                            from £686.54
                                                                                                            Gear Lever Knob Genuine Lamborghini - New (to order)
                                                                                                            # 002
                                                                                                            MPN: 002428889
                                                                                                            ADAPTER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 003
                                                                                                            MPN: 002410440
                                                                                                            LEVER
                                                                                                            from £453.42
                                                                                                            from £453.42
                                                                                                            SHIFT LEVER ASSEMBLY Genuine Lamborghini - New (to order)
                                                                                                            # 004
                                                                                                            MPN: 008700635
                                                                                                            SCREW
                                                                                                            from £14.68
                                                                                                            from £14.68
                                                                                                            GEAR SELECTOR SCREW M6X1X30 Genuine Lamborghini - New (to order)
                                                                                                            # 005
                                                                                                            MPN: 002410634
                                                                                                            LEVER
                                                                                                            from £54.33
                                                                                                            from £54.33
                                                                                                            REVERSE LEVER STOP Genuine Lamborghini - New (to order)
                                                                                                            # 006
                                                                                                            MPN: 002403369
                                                                                                            SPRING
                                                                                                            from £21.18
                                                                                                            from £21.18
                                                                                                            REVERSE LEVER LOCK SPRING Genuine Lamborghini - New (to order)
                                                                                                            # 007
                                                                                                            MPN: 008410602
                                                                                                            LOCK WASHER
                                                                                                            from £29.39
                                                                                                            from £29.39
                                                                                                            WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                                                                                            # 008
                                                                                                            MPN: 008200606
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 009
                                                                                                            MPN: 002403702
                                                                                                            BUSH
                                                                                                            from £41.89
                                                                                                            from £41.89
                                                                                                            GEAR LEVER GUIDE BUSHING Genuine Lamborghini - New (to order)
                                                                                                            # 010
                                                                                                            MPN: 002409875
                                                                                                            SHIFT BALL
                                                                                                            from £113.86
                                                                                                            from £113.86
                                                                                                            GEAR LEVER BALL Genuine Lamborghini - New (to order)
                                                                                                            # 011
                                                                                                            MPN: 008700634
                                                                                                            SCREW
                                                                                                            from £23.43
                                                                                                            from £23.43
                                                                                                            GEAR SELECTOR FASTENING SCREW Genuine Lamborghini - New (to order)
                                                                                                            # 012
                                                                                                            MPN: 002409437
                                                                                                            SELECTOR
                                                                                                            from £285.97
                                                                                                            from £285.97
                                                                                                            GEAR SELECTOR / SLICK SHIFT GATE Genuine Lamborghini - New In stock
                                                                                                            # 013
                                                                                                            MPN: 008700506
                                                                                                            SCREW
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            SCREW KNIP 4.8X16DIN7971 BLACK STEEL Genuine Lamborghini - New In stock
                                                                                                            # 014
                                                                                                            MPN: 002409438
                                                                                                            RING
                                                                                                            from £9.15
                                                                                                            from £9.15
                                                                                                            LEVER OUTER BOOT RING Genuine Lamborghini - New (to order)
                                                                                                            # 015
                                                                                                            MPN: 002409922
                                                                                                            LEVER CLAMP
                                                                                                            from £57.05
                                                                                                            from £57.05
                                                                                                            GEARBOX BOOT RING Genuine Lamborghini - New (to order)
                                                                                                            # 016
                                                                                                            MPN: 002412243
                                                                                                            NUT
                                                                                                            from £2.17
                                                                                                            from £2.17
                                                                                                            PLATE Genuine Lamborghini - New In stock
                                                                                                            # 017
                                                                                                            MPN: 002410638
                                                                                                            GEAR BOX CA
                                                                                                            from £45.16
                                                                                                            from £45.16
                                                                                                            GEAR MOUNT OUTER BOOT Genuine Lamborghini - New (to order)
                                                                                                            # 018
                                                                                                            MPN: 002410637
                                                                                                            LEVER RING
                                                                                                            from £12.35
                                                                                                            from £12.35
                                                                                                            LEVER INNER BOOT RING Genuine Lamborghini - New (to order)
                                                                                                            # 019
                                                                                                            MPN: 002412784
                                                                                                            SHIFT COVER
                                                                                                            from £40.04
                                                                                                            from £40.04
                                                                                                            GEAR LEVER UPPER BOOT Genuine Lamborghini - New In stock
                                                                                                            # 020
                                                                                                            MPN: 002412670
                                                                                                            CAP RING
                                                                                                            from £15.56
                                                                                                            from £15.56
                                                                                                            TRANSMISSION BOOT SNAP RING Genuine Lamborghini - New (to order)
                                                                                                            # 021
                                                                                                            MPN: 002410636
                                                                                                            GEAR BOX CA
                                                                                                            from £46.54
                                                                                                            from £46.54
                                                                                                            GEAR MOUNT INNER BOOT Genuine Lamborghini - New (to order)
                                                                                                            # 022
                                                                                                            MPN: 002412671
                                                                                                            SPACER
                                                                                                            from £14.68
                                                                                                            from £14.68
                                                                                                            GEARBOX CAP RETAINING SEGMENT Genuine Lamborghini - New (to order)
                                                                                                            # 023
                                                                                                            MPN: 002409896
                                                                                                            BUSH
                                                                                                            from £200.36
                                                                                                            from £200.36
                                                                                                            ROD RETAINING BALL SLEEVE Genuine Lamborghini - New (to order)
                                                                                                            # 024
                                                                                                            MPN: 002423993
                                                                                                            PLUG NUT
                                                                                                            from £2.89
                                                                                                            from £2.89
                                                                                                            BALL SPRING PAD Genuine Lamborghini - New (to order)
                                                                                                            # 025
                                                                                                            MPN: 002402242
                                                                                                            SPRING
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 026
                                                                                                            MPN: 008910701
                                                                                                            BALL
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 027
                                                                                                            MPN: 002407979
                                                                                                            PIN
                                                                                                            from £19.74
                                                                                                            from £19.74
                                                                                                            GEARBOX SIDE PIN ROD Genuine Lamborghini - New (to order)
                                                                                                            # 028
                                                                                                            MPN: 002409897
                                                                                                            PIN ROD
                                                                                                            from £177.53
                                                                                                            from £177.53
                                                                                                            CENTRAL PIN STOP ROD Genuine Lamborghini - New (to order)
                                                                                                            # 029
                                                                                                            MPN: 002422165
                                                                                                            ROD
                                                                                                            from £608.79
                                                                                                            from £608.79
                                                                                                            2ND/3RD SPEED ROD Genuine Lamborghini - New (to order)
                                                                                                            # 030
                                                                                                            MPN: 002422164
                                                                                                            ROD
                                                                                                            from £544.03
                                                                                                            from £544.03
                                                                                                            1ST SPEED/REVERSE ROD Genuine Lamborghini - New (to order)
                                                                                                            # 031
                                                                                                            MPN: 002401765
                                                                                                            BUSH
                                                                                                            from £11.15
                                                                                                            from £11.15
                                                                                                            GEAR LEVER BALL BUSHING Genuine Lamborghini - New (to order)
                                                                                                            # 032
                                                                                                            MPN: 002422166
                                                                                                            ROD
                                                                                                            from £526.86
                                                                                                            from £526.86
                                                                                                            4TH/5TH SPEED ROD Genuine Lamborghini - New (to order)
                                                                                                            # 033
                                                                                                            MPN: 002420397
                                                                                                            FORK
                                                                                                            from £413.80
                                                                                                            from £413.80
                                                                                                            4TH/5TH SPEED FORK Genuine Lamborghini - New (to order)
                                                                                                            # 034
                                                                                                            MPN: 008410603
                                                                                                            LOCK WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 035
                                                                                                            MPN: 008100628
                                                                                                            BOLT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 036
                                                                                                            MPN: 008200806
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 037
                                                                                                            MPN: 008410806
                                                                                                            LOCK WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Lamborghini (no longer available to order)
                                                                                                            # 038
                                                                                                            MPN: 002420396
                                                                                                            FORK
                                                                                                            from £510.41
                                                                                                            from £510.41
                                                                                                            2ND/3RD SPEED FORK Genuine Lamborghini - New (to order)
                                                                                                            # 039
                                                                                                            MPN: 002420395
                                                                                                            FORK
                                                                                                            from £406.42
                                                                                                            from £406.42
                                                                                                            1ST SPEED/REVERSE FORK Genuine Lamborghini - New (to order)
                                                                                                            # 040
                                                                                                            MPN: 002403246
                                                                                                            ROD SPRING
                                                                                                            from £3.69
                                                                                                            from £3.69
                                                                                                            GEARBOX SHAFT BALL SPRING Genuine Lamborghini - New (to order)
                                                                                                            # 041
                                                                                                            MPN: 002403245
                                                                                                            ROD BUSH
                                                                                                            from £34.34
                                                                                                            from £34.34
                                                                                                            GEARBOX SHAFT BALL BUSHING Genuine Lamborghini - New (to order)
                                                                                                            # 042
                                                                                                            MPN: 002402934
                                                                                                            SCREW
                                                                                                            from £18.54
                                                                                                            from £18.54
                                                                                                            GEAR LEVER SCREW Genuine Lamborghini - New (to order)
                                                                                                            # 043
                                                                                                            MPN: 002420394
                                                                                                            PIN
                                                                                                            from £101.59
                                                                                                            from £101.59
                                                                                                            ROD CENTRING PIN Genuine Lamborghini - New (to order)
                                                                                                            # 044
                                                                                                            MPN: 002410314
                                                                                                            MOUNTING
                                                                                                            from £351.45
                                                                                                            from £351.45
                                                                                                            GEAR LEVER BRACKET Genuine Lamborghini - New (to order)
                                                                                                            # 045
                                                                                                            MPN: 008403302
                                                                                                            WASHER
                                                                                                            from £9.86
                                                                                                            from £9.86
                                                                                                            GEAR LEVER SPRING WASHER Genuine Lamborghini - New (to order)
                                                                                                            # 046
                                                                                                            MPN: 002410451
                                                                                                            LEVER SPRIN
                                                                                                            from £31.13
                                                                                                            from £31.13
                                                                                                            GEAR LEVER RETURN SPRING Genuine Lamborghini - New (to order)
                                                                                                            # 047
                                                                                                            MPN: 008402601
                                                                                                            WASHER
                                                                                                            from £15.25
                                                                                                            from £15.25
                                                                                                            FLAT WASHER D.26X3.3X40 3 TH Genuine Lamborghini - New (to order)
                                                                                                            # 047
                                                                                                            MPN: 008402610
                                                                                                            WASHER
                                                                                                            from £14.61
                                                                                                            from £14.61
                                                                                                            FLAT WASHER D.26X3.3X40 3.25 T H Genuine Lamborghini - New (to order)
                                                                                                            # 047
                                                                                                            MPN: 008402611
                                                                                                            WASHER
                                                                                                            from £14.61
                                                                                                            from £14.61
                                                                                                            FLAT WASHER D.26X3.3X40 3.50 T H Genuine Lamborghini - New (to order)
                                                                                                            # 048
                                                                                                            MPN: 008601701
                                                                                                            O RING
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            RING 17 MM OR Genuine Lamborghini - New In stock
                                                                                                            # 049
                                                                                                            MPN: 008602101
                                                                                                            O RING
                                                                                                            from £1.79
                                                                                                            from £1.79
                                                                                                            RING 22 MM OR Genuine Lamborghini - New In stock
                                                                                                            # 050
                                                                                                            MPN: 008402602
                                                                                                            WASHER
                                                                                                            from £7.06
                                                                                                            from £7.06
                                                                                                            WASHER 26X35X2-2.1-2.2-2.3 Genuine Lamborghini - New (to order)
                                                                                                            # 051
                                                                                                            MPN: 008582601
                                                                                                            CIRCLIP
                                                                                                            from £3.78
                                                                                                            from £3.78
                                                                                                            O-RING E 26 UNI 7435-75 Genuine Lamborghini - New (to order)
                                                                                                            # 052
                                                                                                            MPN: 002409791
                                                                                                            SPACER
                                                                                                            from £236.79
                                                                                                            from £236.79
                                                                                                            GEARBOX ROD UPPER SHIM Genuine Lamborghini - New (to order)
                                                                                                            # 053
                                                                                                            MPN: 002409887
                                                                                                            SHIFT CONTR
                                                                                                            from £541.54
                                                                                                            from £541.54
                                                                                                            GEAR LEVER Genuine Lamborghini - New (to order)
