lamborghini countach 25th anniversary (1989) pedalbox assembly parts diagram

721.10.00 - Pedalbox Assembly

Lamborghini Countach 25th Anniversary (1989) PEDALBOX ASSEMBLY Parts Diagram

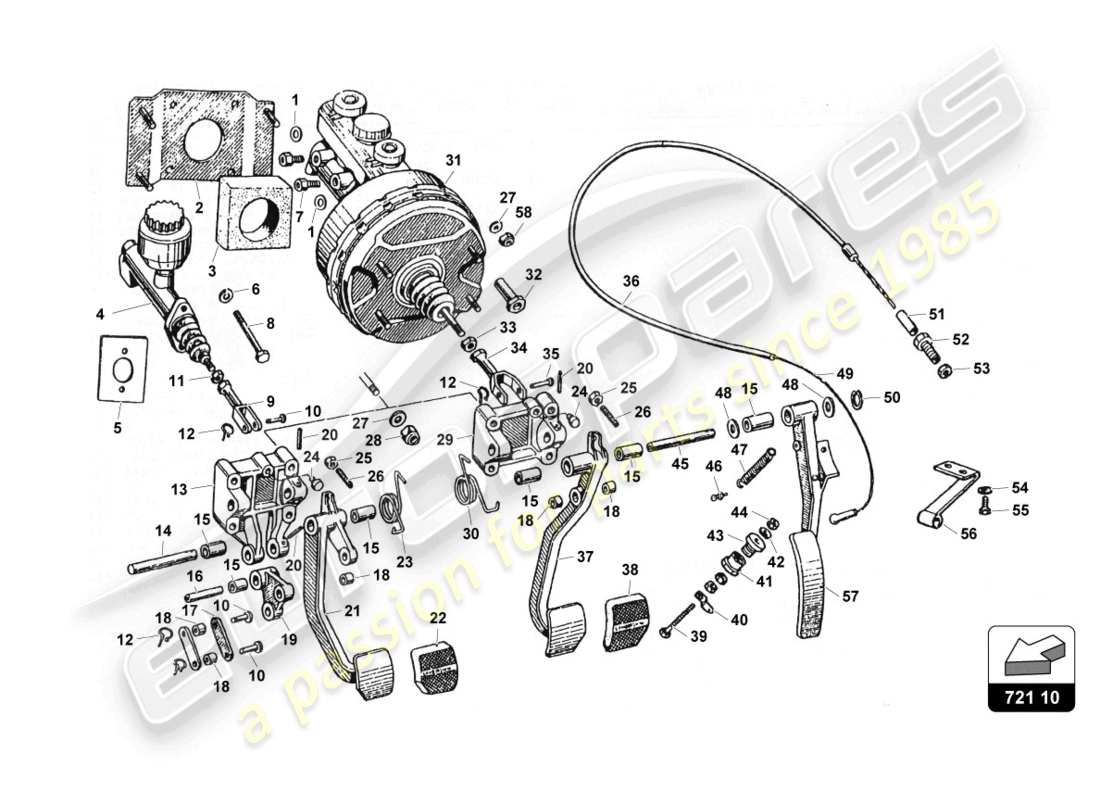

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Key
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 008401018
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      PUMP FITTING WASHER Genuine Lamborghini - New In stock
                                                                                                                      # 002
                                                                                                                      MPN: 004119287
                                                                                                                      PLATE
                                                                                                                      from £114.26
                                                                                                                      from £114.26
                                                                                                                      BRAKE BOOSTER ATTACHMENT PLATE ASSEMBLY Genuine Lamborghini - New (to order)
                                                                                                                      # 005
                                                                                                                      MPN: 004213632
                                                                                                                      PANEL
                                                                                                                      from £5.45
                                                                                                                      from £5.45
                                                                                                                      CLUTCH CYLINDER COVER Genuine Lamborghini - New (to order)
                                                                                                                      # 006
                                                                                                                      MPN: 008410806
                                                                                                                      LOCK WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      Genuine Lamborghini (no longer available to order)
                                                                                                                      # 007
                                                                                                                      MPN: 003219278
                                                                                                                      TUBE
                                                                                                                      from £148.68
                                                                                                                      from £148.68
                                                                                                                      M10 BRAKE PUMP PIPE ADAPTER FI TTING Genuine Lamborghini - New (to order)
                                                                                                                      # 008
                                                                                                                      MPN: 008100822
                                                                                                                      BOLT
                                                                                                                      from £3.78
                                                                                                                      from £3.78
                                                                                                                      SCREW M8X60 UNI 57378G/ZD Genuine Lamborghini - New (to order)
                                                                                                                      # 009
                                                                                                                      MPN: 004219591
                                                                                                                      FORK
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      Genuine Lamborghini (no longer available to order)
                                                                                                                      # 010
                                                                                                                      MPN: 004210745
                                                                                                                      PIN
                                                                                                                      from £23.43
                                                                                                                      from £23.43
                                                                                                                      CLUTCH PEDAL FORK PIN Genuine Lamborghini - New (to order)
                                                                                                                      # 011
                                                                                                                      MPN: 008200811
                                                                                                                      NUT
                                                                                                                      from £3.78
                                                                                                                      from £3.78
                                                                                                                      M8 UNI 5589/8G/ZDNUT Genuine Lamborghini - New (to order)
                                                                                                                      # 012
                                                                                                                      MPN: 004207085
                                                                                                                      LOCK RING
                                                                                                                      from £49.18
                                                                                                                      from £49.18
                                                                                                                      BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
                                                                                                                      # 013
                                                                                                                      MPN: 004210742
                                                                                                                      PEDAL SUPPO
                                                                                                                      from £905.34
                                                                                                                      from £905.34
                                                                                                                      CLUTCH PEDAL BRACKET Genuine Lamborghini - New (to order)
                                                                                                                      # 014
                                                                                                                      MPN: 004210744
                                                                                                                      PIN
                                                                                                                      from £51.52
                                                                                                                      from £51.52
                                                                                                                      CLUTCH PEDAL MOUNT PIN Genuine Lamborghini - New (to order)
                                                                                                                      # 015
                                                                                                                      MPN: 008801501
                                                                                                                      BUSH
                                                                                                                      from £11.95
                                                                                                                      from £11.95
                                                                                                                      BUSHING 15X17X25 MM Genuine Lamborghini - New (to order)
                                                                                                                      # 016
                                                                                                                      MPN: 004210746
                                                                                                                      PIN
                                                                                                                      from £49.11
                                                                                                                      from £49.11
                                                                                                                      CLUTCH GEAR LEVER MOUNT PIN Genuine Lamborghini - New (to order)
                                                                                                                      # 017
                                                                                                                      MPN: 004210747
                                                                                                                      ROD
                                                                                                                      from £28.17
                                                                                                                      from £28.17
                                                                                                                      CLUTCH PEDAL LINK ROD Genuine Lamborghini - New (to order)
                                                                                                                      # 018
                                                                                                                      MPN: 008800803
                                                                                                                      BUSH
                                                                                                                      from £4.11
                                                                                                                      from £4.11
                                                                                                                      BUSHING 8X12X8 MM Genuine Lamborghini - New In stock
                                                                                                                      # 019
                                                                                                                      MPN: 004210743
                                                                                                                      LEVER
                                                                                                                      from £166.33
                                                                                                                      from £166.33
                                                                                                                      CLUTCH PEDAL TRANSMISSION LEVE R Genuine Lamborghini - New (to order)
                                                                                                                      # 021
                                                                                                                      MPN: 004228348
                                                                                                                      CLUTCH PEDA
                                                                                                                      from £214.64
                                                                                                                      from £214.64
                                                                                                                      CLUTCH PEDAL Genuine Lamborghini - New (to order)
                                                                                                                      # 022
                                                                                                                      MPN: 004228349
                                                                                                                      RUBBER COVE
                                                                                                                      from £27.06
                                                                                                                      from £27.06
                                                                                                                      CLUTCH PEDAL COVER Genuine Lamborghini - New (to order)
                                                                                                                      # 023
                                                                                                                      MPN: 004213407
                                                                                                                      SPRING
                                                                                                                      from £27.52
                                                                                                                      from £27.52
                                                                                                                      CLUTCH PEDAL RETURN SPRING Genuine Lamborghini - New (to order)
                                                                                                                      # 024
                                                                                                                      MPN: 004210720
                                                                                                                      PEDAL STOP
                                                                                                                      PEDAL STOP Genuine Lamborghini - New (to order)
                                                                                                                      # 025
                                                                                                                      MPN: 008200604
                                                                                                                      NUT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      Genuine Lamborghini (no longer available to order)
                                                                                                                      # 026
                                                                                                                      MPN: 004210834
                                                                                                                      ADJUSTMENT
                                                                                                                      from £2.89
                                                                                                                      from £2.89
                                                                                                                      BRAKE/CLUTCH PEDAL ADJUSTMENT Genuine Lamborghini - New (to order)
                                                                                                                      # 027
                                                                                                                      MPN: 008400801
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      Genuine Lamborghini (no longer available to order)
                                                                                                                      # 028
                                                                                                                      MPN: 008200804
                                                                                                                      NUT
                                                                                                                      from £0.69
                                                                                                                      from £0.69
                                                                                                                      NUT Genuine Lamborghini - New In stock
                                                                                                                      # 029
                                                                                                                      MPN: 004213618
                                                                                                                      PEDAL SUPPO
                                                                                                                      from £454.72
                                                                                                                      from £454.72
                                                                                                                      BRAKE PEDAL BRACKET Genuine Lamborghini - New (to order)
                                                                                                                      # 030
                                                                                                                      MPN: 004213406
                                                                                                                      SPRING
                                                                                                                      from £41.89
                                                                                                                      from £41.89
                                                                                                                      BRAKE PEDAL RETURN SPRING Genuine Lamborghini - New (to order)
                                                                                                                      # 031
                                                                                                                      MPN: 004219271
                                                                                                                      PUMP
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      Genuine Lamborghini (no longer available to order)
                                                                                                                      # 032
                                                                                                                      MPN: 008201021
                                                                                                                      NUT
                                                                                                                      from £7.79
                                                                                                                      from £7.79
                                                                                                                      POWER BRAKE MOUNTINGNUT Genuine Lamborghini - New (to order)
                                                                                                                      # 033
                                                                                                                      MPN: 008201014
                                                                                                                      NUT
                                                                                                                      from £3.93
                                                                                                                      from £3.93
                                                                                                                      M10X1X6 UNI 5589/5S/Z NUT Genuine Lamborghini - New (to order)
                                                                                                                      # 034
                                                                                                                      MPN: 004219276
                                                                                                                      FORK
                                                                                                                      from £161.05
                                                                                                                      from £161.05
                                                                                                                      BRAKE CYLINDER CONTROL FORK Genuine Lamborghini - New (to order)
                                                                                                                      # 035
                                                                                                                      MPN: 004208714
                                                                                                                      PIN
                                                                                                                      from £246.40
                                                                                                                      from £246.40
                                                                                                                      BRAKE & CLUTCH CYLINDER PIN Genuine Lamborghini - New (to order)
                                                                                                                      # 036
                                                                                                                      MPN: 004222887
                                                                                                                      SHEATH
                                                                                                                      from £28.65
                                                                                                                      from £28.65
                                                                                                                      ACCELERATOR WIRE SHEATH ASSEMB LY Genuine Lamborghini - New (to order)
                                                                                                                      # 037
                                                                                                                      MPN: 004228350
                                                                                                                      BRAKE PEDAL
                                                                                                                      from £214.64
                                                                                                                      from £214.64
                                                                                                                      BRAKE PEDAL Genuine Lamborghini - New (to order)
                                                                                                                      # 038
                                                                                                                      MPN: 004228351
                                                                                                                      RUBBER COVE
                                                                                                                      from £42.73
                                                                                                                      from £42.73
                                                                                                                      BRAKE PEDAL COVER Genuine Lamborghini - New (to order)
                                                                                                                      # 039
                                                                                                                      MPN: 008100651
                                                                                                                      BOLT
                                                                                                                      from £3.78
                                                                                                                      from £3.78
                                                                                                                      SPECIAL SCREW M6X52 Genuine Lamborghini - New (to order)
                                                                                                                      # 040
                                                                                                                      MPN: 004223260
                                                                                                                      REG.CONNECT
                                                                                                                      from £0.54
                                                                                                                      from £0.54
                                                                                                                      ACCELERATOR PEDAL ADJUSTMENT M OUNTING & Genuine Lamborghini - New (to order)
                                                                                                                      # 041
                                                                                                                      MPN: 001612232
                                                                                                                      NUT
                                                                                                                      from £4.50
                                                                                                                      from £4.50
                                                                                                                      UNION NUT Genuine Lamborghini - New (to order)
                                                                                                                      # 042
                                                                                                                      MPN: 008410605
                                                                                                                      LOCK WASHER
                                                                                                                      from £1.79
                                                                                                                      from £1.79
                                                                                                                      CORRUGATED WASHER D 6 Genuine Lamborghini - New (to order)
                                                                                                                      # 043
                                                                                                                      MPN: 001612234
                                                                                                                      BOLT
                                                                                                                      from £81.04
                                                                                                                      from £81.04
                                                                                                                      SWITCH CONTACT INSULATOR Genuine Lamborghini - New (to order)
                                                                                                                      # 044
                                                                                                                      MPN: 008200604
                                                                                                                      NUT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      Genuine Lamborghini (no longer available to order)
                                                                                                                      # 045
                                                                                                                      MPN: 004213619
                                                                                                                      PIN
                                                                                                                      from £324.49
                                                                                                                      from £324.49
                                                                                                                      ACCELERATOR & BRAKE PEDAL PIN Genuine Lamborghini - New (to order)
                                                                                                                      # 046
                                                                                                                      MPN: 001300803
                                                                                                                      PIN
                                                                                                                      from £21.18
                                                                                                                      from £21.18
                                                                                                                      LEVER BALL JOINT Genuine Lamborghini - New In stock
                                                                                                                      # 047
                                                                                                                      MPN: 004212017
                                                                                                                      SPRING
                                                                                                                      from £23.03
                                                                                                                      from £23.03
                                                                                                                      ACCELERATOR PEDAL SPRING Genuine Lamborghini - New (to order)
                                                                                                                      # 048
                                                                                                                      MPN: 008401503
                                                                                                                      WASHER
                                                                                                                      from £30.01
                                                                                                                      from £30.01
                                                                                                                      WASHER D.125.25X22X3 Genuine Lamborghini - New (to order)
                                                                                                                      # 050
                                                                                                                      MPN: 008581502
                                                                                                                      CIRCLIP
                                                                                                                      from £3.78
                                                                                                                      from £3.78
                                                                                                                      O-RING E 15 UNI 7435-75 Genuine Lamborghini - New (to order)
                                                                                                                      # 051
                                                                                                                      MPN: 004225568
                                                                                                                      UNION
                                                                                                                      from £2.41
                                                                                                                      from £2.41
                                                                                                                      UNION Genuine Lamborghini - New (to order)
                                                                                                                      # 052
                                                                                                                      MPN: 004201651
                                                                                                                      CABLE SPRIN
                                                                                                                      from £304.40
                                                                                                                      from £304.40
                                                                                                                      ACCELERATOR WIRE ADJUSTMENT SC REW Genuine Lamborghini - New (to order)
                                                                                                                      ACCELERATOR WIRE ADJUSTMENT SC REW Genuine Lamborghini - Used In stock
                                                                                                                      # 053
                                                                                                                      MPN: 008200806
                                                                                                                      NUT
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      Genuine Lamborghini (no longer available to order)
                                                                                                                      # 054
                                                                                                                      MPN: 008400607
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      Genuine Lamborghini (no longer available to order)
                                                                                                                      # 055
                                                                                                                      MPN: 008100613
                                                                                                                      BOLT
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                                                                                                      SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (other) In stock
                                                                                                                      BULL.M6X10 UNI 5739 5S
                                                                                                                      # 056
                                                                                                                      MPN: 004228512
                                                                                                                      SUPPORT
                                                                                                                      from £11.95
                                                                                                                      from £11.95
                                                                                                                      STAFFA X FERMO GUAINA ACC Genuine Lamborghini - New (to order)
                                                                                                                      # 057
                                                                                                                      MPN: 004228342
                                                                                                                      ACC. PEDAL
                                                                                                                      from £302.34
                                                                                                                      from £302.34
                                                                                                                      Accelerator Pedal Genuine Lamborghini - New (to order)
                                                                                                                      # 057
                                                                                                                      MPN: 004228343
                                                                                                                      PEDAL
                                                                                                                      PEDAL Genuine Lamborghini - New (to order)
                                                                                                                      # 058
                                                                                                                      MPN: 008200840
                                                                                                                      NUT
                                                                                                                      STUD Genuine Lamborghini - New (to order)
