lamborghini countach 5000 qv (1985) air conditioning & heater (valid for qv variation- january 1987) parts diagram

029A - Air Conditioning & Heater (Valid for QV Variation- January 1987)

Lamborghini Countach 5000 QV (1985) Air Conditioning & Heater (Valid for QV Variation- January 1987) Parts Diagram

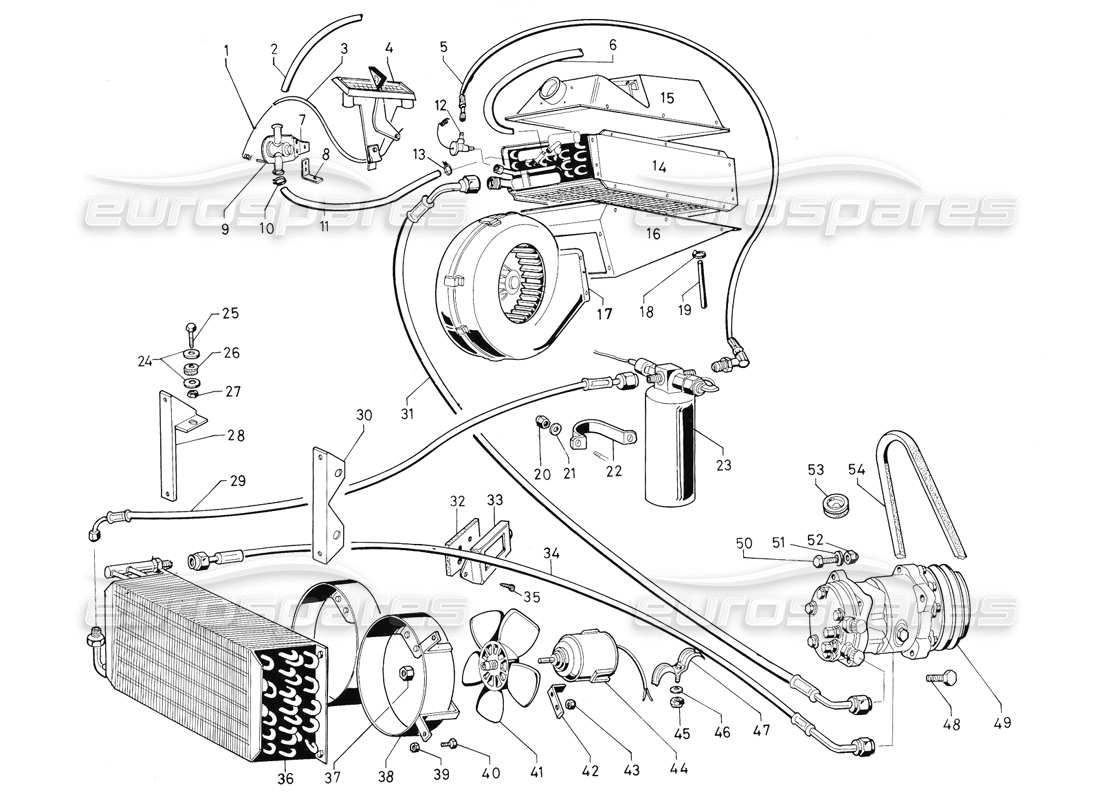

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 004719622
    CABLE
    (Valid for QV Variation - January 1987) Cavo com. rubinetto riscaldatore
    from £8.43
    from £8.43
    HEATER CORE WIRE Genuine Lamborghini - New (to order)
    # 002
    MPN: 001724776
    TUBE
    (Valid for QV Variation - January 1987) Tubo dal la giunzione inter, al rubinetto
    Lamborghini PART 001724776 Genuine Lamborghini - New (to order)
    # 003
    MPN: 004711058
    AIR PIPE
    (Valid for QV Variation - January 1987) Tubo x cavo com. riscald./C
    from £32.82
    from £32.82
    HEATING WIRE PIPE Genuine Lamborghini - New (to order)
    # 004
    MPN: 004713283
    LEVER
    (Valid for QV Variation - January 1987) Leva com. rise. compl./U
    Lamborghini PART 004713283 Genuine Lamborghini - New (to order)
    # 005
    MPN: 004524943
    TUBE
    (Valid for QV Variation - January 1987) Tubo dal la valvola espansione al pacco radiante
    from £300.97
    from £300.97
    RADIATOR PACK/FILTERPIPE Genuine Lamborghini - New (to order)
    # 006
    MPN: 001724775
    TUBE
    (Valid for QV Variation - January 1987) Tubo dall'uscita riscaldatore alia giunz.
    Lamborghini PART 001724775 Genuine Lamborghini - New (to order)
    # 007
    MPN: 004724773
    SUPPORT
    (Valid for QV Variation - January 1987) Staffa supp. rubinetto riscaldatore
    from £4.03
    from £4.03
    STAFFA SUPP.RUB.RISC. Genuine Lamborghini - New (to order)
    # 008
    MPN: 004724772
    SUPPORT
    (Valid for QV Variation - January 1987) Piastrino fiss. rubinetto riscaldatore
    Lamborghini PART 004724772 Genuine Lamborghini - New (to order)
    # 009
    MPN: 004710786
    HEATIN TAP
    (Valid for QV Variation - January 1987) Rubin. rise. RTCO 2282
    from £89.04
    from £89.04
    Lamborghini PART 004710786 Genuine Lamborghini - New (to order)
    # 010
    MPN: 008832401
    CLAMP RING
    (Valid for QV Variation - January 1987) Fasc. royal AO/1 2 24/36
    from £4.73
    from £4.73
    CLAMP Genuine Lamborghini - New (to order)
    # 011
    MPN: 004724774
    TUBE
    (Valid for QV Variation - January 1987) Tubo dall'evaporatore al rubinetto
    TUBE Genuine Lamborghini - New (to order)
    # 012
    MPN: 004506860
    CONDIT VALV
    (Valid for QV Variation - January 1987) Valv. esp. ev. egelhof tec-2
    from £59.40
    from £59.40
    EXPANSION VALVE Genuine Lamborghini - New (to order)
    # 013
    MPN: 008832401
    CLAMP RING
    (Valid for QV Variation - January 1987) Fasc. royal AO/1 2 24/36
    from £4.73
    from £4.73
    CLAMP Genuine Lamborghini - New (to order)
    # 014
    MPN: 004524951
    COND. RAD.
    (Valid for QV Variation - January 1987) Pacco radiante evaporatore - riscaldatore
    from £1,409.38
    from £1,409.38
    EVAPORATOR RADIATOR UNIT Genuine Lamborghini - New (to order)
    # 015
    MPN: 007011250
    COVER
    (Valid for QV Variation - January 1987) Compless. coperchio x pacco radiante
    from £139.64
    from £139.64
    RADIANT BLOCK COVER ASSEMBLY Genuine Lamborghini - New (to order)
    # 016
    MPN: 007011249
    COVER
    (Valid for QV Variation - January 1987) Compless. contenitore condensa pacco rad.
    COVER Genuine Lamborghini - New (to order)
    # 017
    MPN: 004724949
    COND. FAN.
    (Valid for QV Variation - January 1987) Elettroventilatore sin. con chiocciola
    from £264.89
    from £264.89
    SCROLL SOLENOID VALVE Genuine Lamborghini - New (to order)
    SCROLL SOLENOID VALVE Genuine Lamborghini - Used In stock
    # 018
    MPN: 008830901
    CLAMP RING
    (Valid for QV Variation - January 1987) Fasc. royal 0000/9-9/17
    from £4.07
    from £4.07
    CLAMP Genuine Lamborghini - New (to order)
    # 019
    MPN: 004511004
    PIPE
    (Valid for QV Variation - January 1987) Tubo scar. condensa/C
    Lamborghini PART 004511004 Genuine Lamborghini - New (to order)
    # 020
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 021
    MPN: 008400606
    WASHER
    (Valid for QV Variation - January 1987) Rond. 6,4 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 022
    MPN: 004508813
    CLAMP
    (Valid for QV Variation - January 1987) Fasc. fiss. depur./U
    from £8.58
    from £8.58
    CLEANER CLAMP Genuine Lamborghini - New (to order)
    # 023
    MPN: 004535411
    FILTER
    FILTRO DEIDRATORE
    from £220.49
    from £220.49
    This part replaces part number 004534692
    DRYER FILTER Genuine Lamborghini - New In stock
    # 024
    MPN: WHT002961
    WASHER
    (Valid for QV Variation - January 1987) Rond. 6,5x18x1,5
    from £0.52
    from £0.52
    This part replaces part number 008400607
    WASHER Genuine Lamborghini - New In stock
    # 025
    MPN: 008100618
    BOLT
    (Valid for QV Variation - January 1987) Bulloni 6x1 UNI 5739
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 026
    MPN: 008610701
    SEAL RING
    (Valid for QV Variation - January 1987) Gommino x fiss. condensatore al telaio
    from £18.62
    from £18.62
    GROMMET 7X13X2 MM Genuine Lamborghini - New (to order)
    # 027
    MPN: N01100637
    NUT
    (Valid for QV Variation - January 1987) Dado M6 UNI 5588-65/8G
    from £0.53
    from £0.53
    This part replaces part number 008200604
    HEX.NUT Genuine Lamborghini - New In stock
    # 028
    MPN: 004511115
    PLATE
    (Valid for QV Variation - January 1987) Staffa fiss. condens./C
    from £15.46
    from £15.46
    CONDENSER BRACKET Genuine Lamborghini - New (to order)
    CONDENSER BRACKET Genuine Lamborghini - Used In stock
    # 029
    MPN: 004511342
    PIPE
    (Valid for QV Variation - January 1987) Tubo condens./depur./C
    from £181.57
    from £181.57
    CONDENSER/CLEANER PIPE Genuine Lamborghini - New (to order)
    # 030
    MPN: 004511114
    PLATE
    (Valid for QV Variation - January 1987) Staffa fiss. condens./C
    from £36.85
    from £36.85
    CONDENSER BRACKET Genuine Lamborghini - New (to order)
    CONDENSER BRACKET Genuine Lamborghini - Used In stock
    # 031
    MPN: 004524945
    TUBE
    (Valid for QV Variation - January 1987) Tubo dal compressore al pacco radiante
    from £456.01
    from £456.01
    COMPRESSOR/RADIATOR PACK PIPE Genuine Lamborghini - New (to order)
    # 032
    MPN: 004519129
    GASKET
    (Valid for QV Variation - January 1987) Guam, x tenuta Tubi freno condizion.
    GASKET Genuine Lamborghini - New (to order)
    # 033
    MPN: 004519130
    Plate corn
    (Valid for QV Variation - January 1987) Cornice x guarn. tenuta Tubi freno cond.
    Plate corn Genuine Lamborghini - New (to order)
    # 034
    MPN: 004513938
    PIPE
    (Valid for QV Variation - January 1987) Tubo dal compress, al cond.
    from £153.91
    from £153.91
    COMPRESSOR/CONDENSERPIPE Genuine Lamborghini - New (to order)
    # 035
    MPN: 008700506
    SCREW
    (Valid for QV Variation - January 1987) Vite Knip 4,8x16 Din 7971
    from £0.53
    from £0.53
    SCREW KNIP 4.8X16DIN7971 BLACK STEEL Genuine Lamborghini - New In stock
    # 036
    MPN: 004510564
    COND. RADIA
    (Valid for QV Variation - January 1987) Condensatore countach
    from £444.41
    from £444.41
    CONDENSER Genuine Lamborghini - New (to order)
    # 037
    MPN: 004504909
    NUT
    (Valid for QV Variation - January 1987) Dado fiss. ventola motorino condensatore
    from £7.10
    from £7.10
    FAN NUT Genuine Lamborghini - New (to order)
    # 038
    MPN: 004510563
    FAN SUPPORT
    (Valid for QV Variation - January 1987) Supp. mot. condens./C
    from £500.63
    from £500.63
    CONDENSER MOTOR BRACKET Genuine Lamborghini - New (to order)
    # 039
    MPN: N01100637
    NUT
    (Valid for QV Variation - January 1987) Dado M6 UNI 5588-65/8G
    from £0.53
    from £0.53
    This part replaces part number 008200604
    HEX.NUT Genuine Lamborghini - New In stock
    # 040
    MPN: 008100613
    BOLT
    (Valid for QV Variation - January 1987) Bull. M6x10 UNI 5739 5S
    from £0.50
    from £0.50
    SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
    SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (other) In stock
    BULL.M6X10 UNI 5739 5S
    # 041
    MPN: 004504908
    CONDIT. FAN
    (Valid for QV Variation - January 1987) Ventola x motorino condensatore
    from £483.34
    from £483.34
    CONDIT FAN Genuine Lamborghini - New (to order)
    # 042
    MPN: 004508088
    PLATE
    (Valid for QV Variation - January 1987) Piastr. fiss. mot. cond. miura
    from £16.50
    from £16.50
    CONDITIONER MOTOR PLATE Genuine Lamborghini - New (to order)
    # 043
    MPN: N0211963
    NUT
    (Valid for QV Variation - January 1987) Dado N/70/105M
    from £0.48
    from £0.48
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    hex. nut - M5 (N 0211963) Genuine Porsche Part - New (to order)
    # 044
    MPN: 004508071
    CONDIT FAN
    (Valid for QV Variation - January 1987) Mot. condens. 69401138 con ventola
    from £538.67
    from £538.67
    CONDENSER MOTOR & FAN Genuine Lamborghini - New (to order)
    # 045
    MPN: N0211963
    NUT
    (Valid for QV Variation - January 1987) Dado N/70/105M
    from £0.53
    from £0.53
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    hex. nut - M5 (N 0211963) Genuine Porsche Part - New (to order)
    # 046
    MPN: 008400501
    WASHER
    (Valid for QV Variation - January 1987) Rond. 5,8 UNI 1737 AQ45
    from £0.54
    from £0.54
    WASHER 5.8X18X2 Genuine Lamborghini - New In stock
    # 047
    MPN: 004505977
    PIPE
    (Valid for QV Variation - January 1987) Fasc. fiss. Tubi condiz.
    from £9.52
    from £9.52
    CONDITIONER PIPE CLAMP Genuine Lamborghini - New (to order)
    # 048
    MPN: 008101008
    BOLT
    (Valid for QV Variation - January 1987) Bull. M10x30 UNI 5739 8G
    from £9.69
    from £9.69
    SCREW M10X30UNI 5739/8G/ZD Genuine Lamborghini - New (to order)
    # 049
    MPN: 004513470
    COMPR
    (Valid for QV Variation - January 1987) Compress, rot. abacus 508/U
    from £1,081.99
    from £1,081.99
    ROTARY COMPRESSOR Genuine Lamborghini - New (to order)
    # 050
    MPN: 008101048
    BOLT
    (Valid for QV Variation - January 1987) Bull. M10x35 UNI 5737 8G
    from £2.29
    from £2.29
    SCREW M10X1.5X35 UNI5737/ Genuine Lamborghini - New (to order)
    # 051
    MPN: 008401013
    WASHER
    (Valid for QV Variation - January 1987) Rondella
    from £4.73
    from £4.73
    WASHER 10.5X22X1.5 5S Genuine Lamborghini - New (to order)
    # 052
    MPN: 008201008
    NUT
    (Valid for QV Variation - January 1987) Dado B/70/210M
    from £0.55
    from £0.55
    NUT Genuine Lamborghini - New In stock
    # 053
    MPN: 008611002
    SEAL RING
    (Valid for QV Variation - January 1987) Passacavi a membrana DG 21
    from £13.87
    from £13.87
    GROMMET 22X38X10 MM Genuine Lamborghini - New (to order)
    # 054
    MPN: 004513741
    BELT
    (Valid for QV Variation - January 1987) Cinghia com. cond. eta 4703
    from £98.25
    from £98.25
    CONDITIONER BELT Genuine Lamborghini - New In stock
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
