034A - Rear Suspension (Valid for QV Variation - January 1987)

Lamborghini Countach 5000 QV (1985) Rear Suspension (Valid for QV Variation - January 1987) Parts Diagram

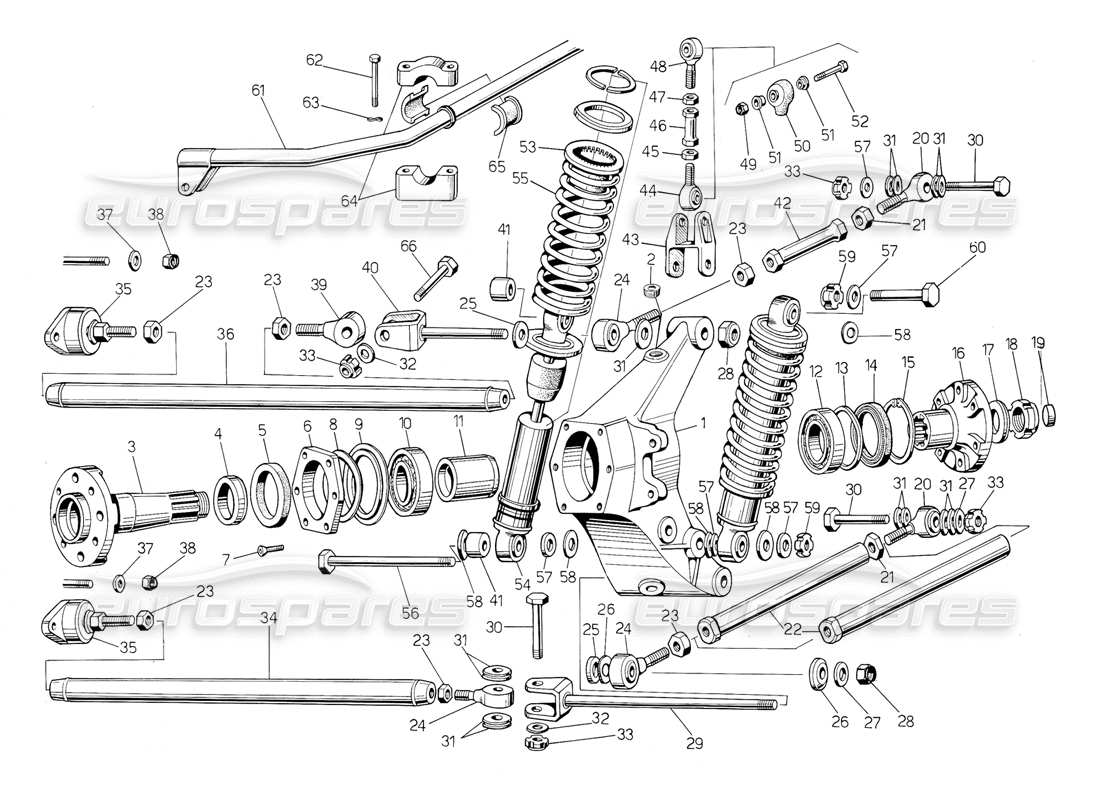

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 005224209
    REAR HUB
    (Valid for QV Variation - January 1987) Portamozzo posteriore destro
    Lamborghini PART 005224209 Genuine Lamborghini - New (to order)
    # 001
    MPN: 005224210
    REAR HUB
    (Valid for QV Variation - January 1987) Portamozzo posteriore sinistro
    Lamborghini PART 005224210 Genuine Lamborghini - New (to order)
    # 002
    MPN: 008932002
    PLUG
    (Valid for QV Variation - January 1987) Tappo conico 1/2 gas 5S
    from £16.80
    from £16.80
    TAPER PLUG 1/2 GAS 5S Genuine Lamborghini - New (to order)
    # 003
    MPN: 005212869
    HUB
    (Valid for QV Variation - January 1987) Mozzo post. des./sin./C
    from £1,687.24
    from £1,687.24
    REAR R/L HUB Genuine Lamborghini - New (to order)
    # 004
    MPN: 005219294
    SPACER
    (Valid for QV Variation - January 1987) Distanziale x mozzo
    from £103.65
    from £103.65
    HUB SHIM Genuine Lamborghini - New (to order)
    # 005
    MPN: 008617501
    RING
    (Valid for QV Variation - January 1987) An. ten. 1167390x75x8 R
    from £289.36
    from £289.36
    OIL SEAL 90X75X8 MM Genuine Lamborghini - New In stock
    # 006
    MPN: 005212870
    SUPPORT
    (Valid for QV Variation - January 1987) Supp. anel. ten. e CSN pos.
    from £493.32
    from £493.32
    SUPPORT Genuine Lamborghini - New (to order)
    # 007
    MPN: 008700809
    SCREW
    (Valid for QV Variation - January 1987) Vite brugola 8x25
    from £0.52
    from £0.52
    SCREW M8X25 UNI 5933/8G/Z Genuine Lamborghini - New In stock
    # 008
    MPN: 008408601
    WASHER
    (Valid for QV Variation - January 1987) Rond. spess. vari 99,5x86
    from £4.73
    from £4.73
    DIFFERENTIAL WASHER SHIM 99.5X 86 Genuine Lamborghini - New (to order)
    # 009
    MPN: 008879901
    RING
    (Valid for QV Variation - January 1987) Anel. nilos 6211 ZJV/C
    from £28.86
    from £28.86
    RING Genuine Lamborghini - New (to order)
    # 010
    MPN: 008505504
    BEARING
    (Valid for QV Variation - January 1987) CSN riv. 62211 2RS
    from £152.56
    from £152.56
    BEARING (99.99mm x25.62mm x 54.60mm) Genuine Lamborghini - New In stock
    # 011
    MPN: 005212871
    SPACER
    (Valid for QV Variation - January 1987) Distanz. CSN mozzo post./C
    from £266.31
    from £266.31
    REAR WEEL HUB BEARING SPACER Genuine Lamborghini - New (to order)
    REAR WEEL HUB BEARING SPACER Genuine Lamborghini - Used In stock
    # 012
    MPN: 008505505
    BEARING
    (Valid for QV Variation - January 1987) CSN Riv. 6011 2RS/Est. mozz.
    from £171.36
    from £171.36
    BEARING Genuine Lamborghini - New (to order)
    BEARING (008505505) Original Equipment - New In stock
    # 013
    MPN: 005213567
    SPACER
    (Valid for QV Variation - January 1987) Anello distanziale
    from £67.16
    from £67.16
    SHIM RING Genuine Lamborghini - New (to order)
    # 014
    MPN: 008616801
    RING
    (Valid for QV Variation - January 1987) An. ten. 5283/936R90x68x10
    from £6.10
    from £6.10
    OIL SEAL 68X90X10 MM Genuine Lamborghini - New In stock
    # 015
    MPN: 008579002
    RING
    (Valid for QV Variation - January 1987) Anello spall. BR 92
    from £37.44
    from £37.44
    O-RING RING Genuine Lamborghini - New (to order)
    # 016
    MPN: 005212868
    FLANGE
    (Valid for QV Variation - January 1987) Flangia semiassi/C
    from £103.75
    from £103.75
    DRIVE SHAFT FLANGE Genuine Lamborghini - New (to order)
    DRIVE SHAFT FLANGE Genuine Lamborghini - Used In stock
    # 017
    MPN: 005219295
    NUT WASHER
    (Valid for QV Variation - January 1987) Rondella per ghiera
    from £31.15
    from £31.15
    RING NUT WASHER Genuine Lamborghini - New (to order)
    # 018
    MPN: 008253501
    RING NUT
    (Valid for QV Variation - January 1987) Ghiera autobl: GT 35x1,5x13
    from £79.52
    from £79.52
    M35X1.5X50 RING NUT Genuine Lamborghini - New In stock
    # 019
    MPN: 005219288
    PLUG
    (Valid for QV Variation - January 1987) Tappo x mozzo post.
    from £16.80
    from £16.80
    REAR HUB PLUG Genuine Lamborghini - New (to order)
    # 020
    MPN: 005209538
    BALL JOINT
    (Valid for QV Variation - January 1987) Snodo 4250148023512 sup.
    from £238.65
    from £238.65
    UPPER JOINT Genuine Lamborghini - New In stock
    # 021
    MPN: 008201412
    NUT
    (Valid for QV Variation - January 1987) Dado M14 UNI 5589 sin. 8G
    from £11.53
    from £11.53
    M14X1.5 LH SPECIAL NUT Genuine Lamborghini - New In stock
    # 022
    MPN: 005224216
    TUBE
    (Valid for QV Variation - January 1987) Compless. tubo x braccio inferiore
    from £105.71
    from £105.71
    LOWER ARM PIPE ASSEMBLY Genuine Lamborghini - New (to order)
    # 023
    MPN: 008201411
    NUT
    (Valid for QV Variation - January 1987) Dado M14 UNI 5589 8G
    from £10.57
    from £10.57
    M14 UNI 5589 8G/ZNUT Genuine Lamborghini - New In stock
    # 024
    MPN: 005209535
    LOWER BALL JOINT
    (Valid for QV Variation - January 1987) Snodo 3250148023512 inf.
    from £224.69
    from £224.69
    LOWER JOINT Genuine Lamborghini - New In stock
    # 025
    MPN: 008401402
    WASHER
    (Valid for QV Variation - January 1987) Rond. ras. bracci sosp./C
    from £16.80
    from £16.80
    SUSPENSION ARM WASHER Genuine Lamborghini - New (to order)
    # 026
    MPN: 005213186
    SPACER
    (Valid for QV Variation - January 1987) Distanz. portamozzo snodi/C
    from £81.84
    from £81.84
    LH HUB HOLDER SHIM Genuine Lamborghini - New In stock
    # 027
    MPN: 008401415
    WASHER
    (Valid for QV Variation - January 1987) Rond. piana d. 14x58x3 8G
    from £10.37
    from £10.37
    FLAT WASHER D.14X58X3 8G Genuine Lamborghini - New In stock
    # 028
    MPN: 008201414
    NUT
    (Valid for QV Variation - January 1987) Dado autobl. C40 non bon. 14x1,5x13,8 (14)
    from £12.98
    from £12.98
    14X1.5X13.8 NUT Genuine Lamborghini - New In stock
    # 029
    MPN: 005218985
    FORK
    (Valid for QV Variation - January 1987) Forcella bracci inf.
    from £232.15
    from £232.15
    LOWER ARM FORK Genuine Lamborghini - New (to order)
    # 030
    MPN: 008101419
    BOLT
    (Valid for QV Variation - January 1987) Bull. 14x1,5x57 10K
    from £62.69
    from £62.69
    SPECIAL SCREW M14X57 Genuine Lamborghini - New In stock
    # 031
    MPN: 008401421
    WASHER
    (Valid for QV Variation - January 1987) Rond. ras. bracci sosp./C
    from £0.49
    from £0.49
    WASHER D.14.5X30X1 UNI 4721 Genuine Lamborghini - New In stock
    # 032
    MPN: 008401417
    WASHER
    (Valid for QV Variation - January 1987) Rond. 15x25x2
    from £1.99
    from £1.99
    WASHER 15X25X2 UNI 1736/ZD AQ4 2 Genuine Lamborghini - New In stock
    # 033
    MPN: 008251401
    RING NUT
    (Valid for QV Variation - January 1987) Ghiera autobl. gua. 14MB
    from £15.23
    from £15.23
    M14X1.5X24 SELF-LOCKING RING N UT Genuine Lamborghini - New In stock
    # 034
    MPN: 005224213
    TUBE
    (Valid for QV Variation - January 1987) Compless. tubo puntone inferiore
    from £271.12
    from £271.12
    LOWER STRUT PIPE ASSEMBLY Genuine Lamborghini - New (to order)
    # 035
    MPN: 005109558
    BALL JOINT
    (Valid for QV Variation - January 1987) Snodo 02701 4503351 2/C
    from £116.39
    from £116.39
    JOINT (005109558) Eurospares Approved Part - New In stock
    JOINT Genuine Lamborghini - New In stock
    # 036
    MPN: 005213572
    TUBE
    (Valid for QV Variation - January 1987) Compless. tubo punt, superiore
    from £201.10
    from £201.10
    UPPER STRUT PIPE ASSEMBLY Genuine Lamborghini - New (to order)
    UPPER STRUT PIPE ASSEMBLY Genuine Lamborghini - Used In stock
    # 037
    MPN: N90179103
    WASHER
    (Valid for QV Variation - January 1987) Rond. 8,4 UNI 1734 8G
    from £0.98
    from £0.98
    This part replaces part number 008400801
    WASHER Genuine Lamborghini - New In stock
    # 038
    MPN: N0111849
    NUT
    (Valid for QV Variation - January 1987) Dado N/70/108M
    from £1.39
    from £1.39
    This part replaces part number 008200809
    HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
    # 039
    MPN: 005109521
    BALL JOINT
    (Valid for QV Variation - January 1987) Snodo 3250148013512 sosp.
    from £187.63
    from £187.63
    SUSPENSION JOINT Genuine Lamborghini - New In stock
    # 040
    MPN: 005209688
    FORK
    (Valid for QV Variation - January 1987) Fore. fiss. braccio sup./C
    from £475.09
    from £475.09
    UPPER ARM FORK Genuine Lamborghini - New (to order)
    # 041
    MPN: 008921704
    SILENT BLOC
    (Valid for QV Variation - January 1987) Estenbloc x ammortizzatori
    from £78.36
    from £78.36
    SHOCK ABSORBER ESTENBLOCK Genuine Lamborghini - New In stock
    # 042
    MPN: 005209537
    REAR ARM RO
    (Valid for QV Variation - January 1987) Reg. braccio sup. post./C
    from £101.69
    from £101.69
    UPPER REAR ARM ADJUSTMENT Genuine Lamborghini - New (to order)
    UPPER REAR ARM ADJUSTMENT Genuine Lamborghini - Used In stock
    # 043
    MPN: 005209771
    FORK
    (Valid for QV Variation - January 1987) Forcella att. barra/C
    from £89.61
    from £89.61
    BAR FORK Genuine Lamborghini - New (to order)
    BAR FORK Genuine Lamborghini - Used In stock
    # 044
    MPN: 005206964
    BALL JOINT
    SEE 005227295/005227298 (10x1)
    from £72.47
    from £72.47
    BALL JOINT (005227295) Eurospares Approved Part - New (to order)
    Adapter Bushing (005227298) is also required
    BALL JOINT (use 005227295 & 005227298) Genuine Lamborghini - New (to order)
    BALL JOINT (005227295) Genuine Lamborghini - New In stock
    Adapter Bushing (005227298) is also required
    # 045
    MPN: 008201016
    NUT
    (Valid for QV Variation - January 1987) Dado M10 UNI 5589 5S
    from £14.30
    from £14.30
    This part replaces part number 008201034
    10X1X6 S LEFT NUT Genuine Lamborghini - New (to order)
    # 046
    MPN: 005209770
    TIE ROD
    (Valid for QV Variation - January 1987) Tirante barra tors./C
    from £71.89
    from £71.89
    TORSION BAR TIEROD Genuine Lamborghini - New (to order)
    # 047
    MPN: 008201014
    NUT
    (Valid for QV Variation - January 1987) Dado M10x1x6 5S
    from £3.86
    from £3.86
    M10X1X6 UNI 5589/5S/Z NUT Genuine Lamborghini - New (to order)
    # 048
    MPN: 005206963
    BALL JOINT
    SEE 005227296/005227298 (10x1)
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 049
    MPN: 008200809
    NUT
    (Valid for QV Variation - January 1987) Dado B/70/208M
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 050
    MPN: 005109714
    GUARD
    (Valid for QV Variation - January 1987) Protez. snodo unibal BD8/C
    from £16.55
    from £16.55
    BOOT Genuine Lamborghini - New In stock
    # 051
    MPN: 005109713
    BUSH
    (Valid for QV Variation - January 1987) Boccola snodo unibal BD8
    from £5.15
    from £5.15
    JOINT BUSHING Genuine Lamborghini - New In stock
    # 052
    MPN: 008100807
    BOLT
    (Valid for QV Variation - January 1987) Bull. M8x40 UNI 5737 8G
    from £0.51
    from £0.51
    SCREW M8X40 UNI 5737/8G ZD Genuine Lamborghini - New In stock
    # 053
    MPN: 410512385
    RUBBER RING
    from £32.34
    from £32.34
    SHOCK ABSORBER BULKHEAD Genuine Lamborghini - New (to order)
    # 054
    MPN: 005224835
    SHOCK ABS.
    (Valid for QV Variation - January 1987) Compless. ammortizzatore con molla
    Lamborghini PART 005224835 Genuine Lamborghini - New (to order)
    # 055
    MPN: 005225109
    SPRING
    (Valid for QV Variation - January 1987) Molla sospensione
    from £293.22
    from £293.22
    REAR SUSPENSION SPRING Genuine Lamborghini - New (to order)
    REAR SUSPENSION SPRING Genuine Lamborghini - Used In stock
    # 056
    MPN: 005209718
    PIN
    (Valid for QV Variation - January 1987) Perno fiss. ammortizz./C
    from £224.69
    from £224.69
    SHOCK ABSORBER PIN Genuine Lamborghini - New (to order)
    # 057
    MPN: 008401708
    WASHER
    (Valid for QV Variation - January 1987) Rond. 17,5x26x3
    from £1.58
    from £1.58
    WASHER 17.5X26X3 AQ42 Genuine Lamborghini - New In stock
    # 058
    MPN: 008401710
    WASHER
    (Valid for QV Variation - January 1987) Rond. ras. bracci-ammort./C
    from £26.12
    from £26.12
    FLAT WASHER 17X34X1 Genuine Lamborghini - New (to order)
    # 059
    MPN: 008251702
    RING NUT
    (Valid for QV Variation - January 1987) Ghiera guk 17 MC 8G
    from £2.41
    from £2.41
    This part replaces part number 008251701
    M17X1X28 SELF-LOCKING RING NUT Genuine Lamborghini - New In stock
    # 060
    MPN: 008101702
    BOLT
    (Valid for QV Variation - January 1987) Bull. 17x1x59 10K
    from £58.41
    from £58.41
    SPECIAL SCREW 17X1X59 Genuine Lamborghini - New In stock
    SPECIAL SCREW 17X1X59 Genuine Lamborghini - New (to order)
    # 061
    MPN: 005212935
    ROLL BAR
    (Valid for QV Variation - January 1987) Barra torsione post./C
    Lamborghini PART 005212935 Genuine Lamborghini - New (to order)
    # 062
    MPN: 008700609
    SCREW
    (Valid for QV Variation - January 1987) Vite 8,6x1x45 UNI 2383
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 063
    MPN: 008410602
    LOCK WASHER
    (Valid for QV Variation - January 1987) Rondella di fermo din 137/B
    from £28.28
    from £28.28
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
    # 064
    MPN: 005213569
    SUPPORT
    (Valid for QV Variation - January 1987) Supp. barra tors. post./C
    from £333.31
    from £333.31
    REAR TORSION BAR BRACKET Genuine Lamborghini - New (to order)
    # 065
    MPN: 005212934
    BOLT
    (Valid for QV Variation - January 1987) Boccola barra torsione post/C
    from £165.00
    from £165.00
    REAR TORSION BAR BUSHING Genuine Lamborghini - New (to order)
    # 066
    MPN: 008101420
    BOLT
    (Valid for QV Variation - January 1987) Bull. 14x1,5x51 10K
    from £33.43
    from £33.43
    SPECIAL SCREW M14X53 Genuine Lamborghini - New In stock
    SPECIAL SCREW M14X53 Genuine Lamborghini - Used In stock
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
