lamborghini countach 5000 qvi (1989) fuel system parts diagram

003 - fuel system

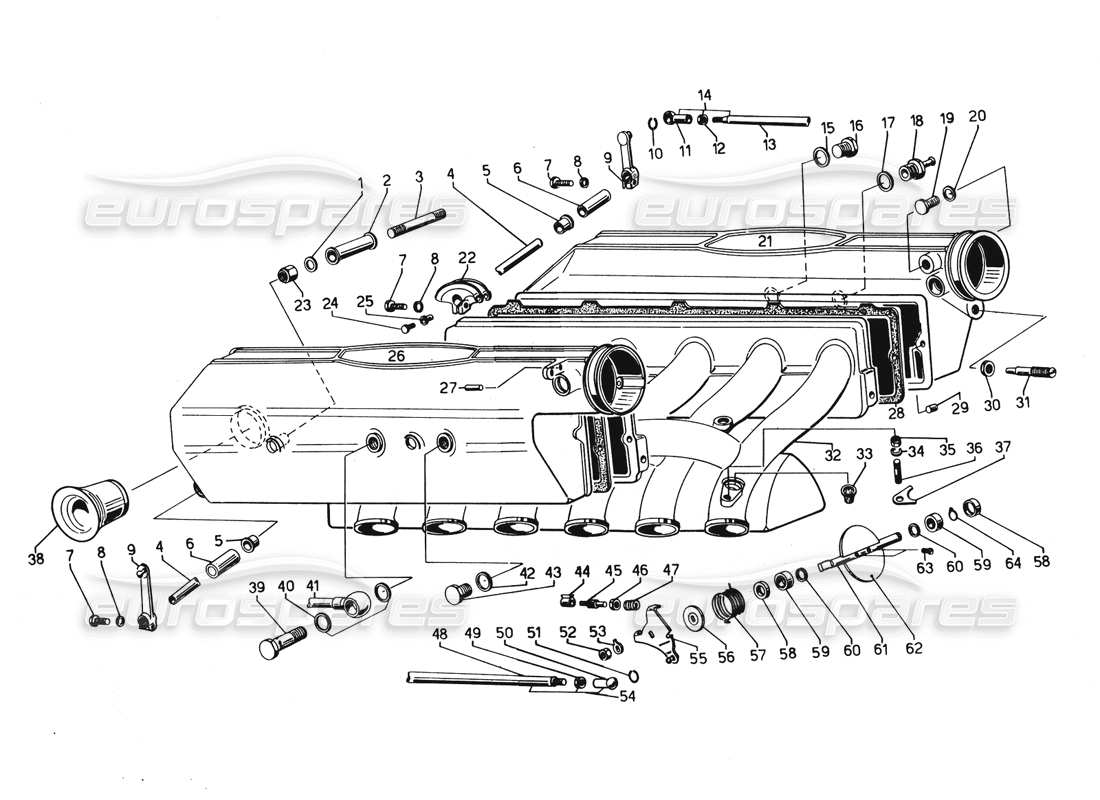

Lamborghini Countach 5000 QVi (1989) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008401022
    WASHER
    Washer D. 10,2x14x1
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 002
    MPN: 001322163
    SPACER
    Dist. fra coll. e coper, aliment, iniezione
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 003
    MPN: 008301030
    SPACER
    Prigioniero sul collett. di aspiraz.
    from £22.02
    from £22.02
    SPECIAL STUD M10X20 Genuine Lamborghini - New (to order)
    # 004
    MPN: 001323135
    SHAFT
    Injection control shaft
    from £20.78
    from £20.78
    INJECTION CONTROL SHAFT Genuine Lamborghini - New (to order)
    # 005
    MPN: 008801204
    BUSH
    Bocc. 12F7/16/18x10-2
    from £5.85
    from £5.85
    BUSHING 7X16X18 MM Genuine Lamborghini - New (to order)
    # 006
    MPN: 001323136
    SPACER
    Dist. su albero com. iniezione
    from £8.58
    from £8.58
    SHIM ON INJECTION CONTROL SHAF T Genuine Lamborghini - New (to order)
    # 007
    MPN: 008100618
    BOLT
    BULLONI 6x1 UNI 5739
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 008
    MPN: 008410603
    LOCK WASHER
    Rond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 009
    MPN: 001311580
    LEVER
    Lev. alb. com. carbur./u
    from £208.10
    from £208.10
    CARBURETTOR DRIVE SHAFT LEVER Genuine Lamborghini - New (to order)
    # 010
    MPN: 001300805
    MOLLA
    Molla x corpo test. sfer.
    SPRING Genuine Lamborghini - New (to order)
    # 011
    MPN: 001300804
    BALL HOUSIN
    Corpo test. sfer. cavo
    from £7.38
    from £7.38
    HEAD UNIT Genuine Lamborghini - New In stock
    # 012
    MPN: 008200501
    NUT
    DADO M5 UNI 5588-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 013
    MPN: 001323422
    TRAC
    TIRANTE
    from £11.77
    from £11.77
    TIEROD Genuine Lamborghini - New (to order)
    # 014
    MPN: 001323398
    TRAC
    Tirante compl. colleg. rinvio alia farf. TD
    from £19.15
    from £19.15
    GEAR LINK ASSEMBLY TIEROD Genuine Lamborghini - New (to order)
    # 015
    MPN: 008401610
    WASHER
    RONDELLA
    from £6.32
    from £6.32
    ANNEALED COPPER WASHER 16X22X0 .5 Genuine Lamborghini - New In stock
    # 016
    MPN: 008931602
    PLUG
    TAPPO
    from £3.03
    from £3.03
    PLUG Genuine Lamborghini - New (to order)
    # 017
    MPN: 008401610
    WASHER
    RONDELLA
    from £6.32
    from £6.32
    ANNEALED COPPER WASHER 16X22X0 .5 Genuine Lamborghini - New In stock
    # 018
    MPN: 001513944
    FITTIN BOLT
    Raccordo sul coll. asp. des.
    from £88.31
    from £88.31
    UNION ON RH INTAKE MANIFOLD Genuine Lamborghini - New (to order)
    # 019
    MPN: 008100839
    BOLT
    Bull. M8x10 UNI 5739/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 020
    MPN: 008400802
    WASHER
    Rond. 8x16x1,5 rame
    from £0.95
    from £0.95
    COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
    # 021
    MPN: 001322103
    COVER
    Coperch. des. x collett. d'aliment. iniez.
    from £949.33
    from £949.33
    INTAKE MANIFOLD RH COVER Genuine Lamborghini - New (to order)
    # 022
    MPN: 001310948
    PULLEY
    Carrucola aste carbur./u
    from £56.55
    from £56.55
    CARBURETTOR ROD PULLEY Genuine Lamborghini - New (to order)
    # 023
    MPN: 008201006
    NUT
    Dado N/10/110x1, 25M
    from £4.73
    from £4.73
    M10 SELF LOCKING NUT Genuine Lamborghini - New (to order)
    # 024
    MPN: N01020717
    BOLT
    Bull. M5x12 UNI 5739/5S
    from £0.47
    from £0.47
    This part replaces part number 008100504
    HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
    screw, hex. hd. - M5 X 12 - D - MJ 1973>> (N 01020717) Genuine Porsche Part - New (to order)
    # 025
    MPN: 001310949
    CYLIND
    Cilindr. reg. cavo carb./u
    from £23.43
    from £23.43
    CARBURETTOR WIRE ADJUSTMENT CY LINDER Genuine Lamborghini - New (to order)
    # 026
    MPN: 001322104
    COVER
    Coperch. sin. x collett. d'aliment. iniez.
    from £949.33
    from £949.33
    INTAKE MANIFOLD LH COVER Genuine Lamborghini - New (to order)
    # 027
    MPN: 001323991
    PIN
    Perno x arresto cappuccio vite reg.
    from £3.07
    from £3.07
    PIN FOR SCREW CAP CHECK Genuine Lamborghini - New (to order)
    # 028
    MPN: 001323717
    GASKET
    Guam, x cop. su collett. di alimentaz.
    from £32.64
    from £32.64
    INTAKE MANIFOLD COVER GASKET Genuine Lamborghini - New In stock
    # 030
    MPN: 008201026
    NUT
    Dado vs. 34715-003
    from £3.70
    from £3.70
    THROTTLE CONTROL SHAFT NUT Genuine Lamborghini - New (to order)
    # 031
    MPN: 001322312
    SCREW
    Vite vs. 64750-096
    from £2.61
    from £2.61
    SCREW Genuine Lamborghini - New (to order)
    # 032
    MPN: 001322102
    MANIFOLD
    Collett. aliment, x iniezione
    from £1,984.35
    from £1,984.35
    INJECTION FEED MANIFOLD Genuine Lamborghini - New (to order)
    # 033
    MPN: 002021236
    RUBBER
    Gommino porta iniettore su collet, asp.
    from £20.98
    from £20.98
    MANIFOLD INJECTOR WASHER Genuine Lamborghini - New (to order)
    # 034
    MPN: 008400606
    WASHER
    Rond. 6,4 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 035
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 036
    MPN: 008300613
    BOLT
    PRIG. 6x1x14 8G
    from £3.07
    from £3.07
    STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New In stock
    # 037
    MPN: 001321235
    SUPPORT
    Piastr. tenuta iniettore sul collet, asp.
    from £0.91
    from £0.91
    INJECTOR HOLDING PLATE ON MANI FOLD Genuine Lamborghini - New (to order)
    # 038
    MPN: 001322343
    CARBUR TRUM
    Trumpet on the manifold
    from £16.22
    from £16.22
    HORN ON MANIFOLD Genuine Lamborghini - New (to order)
    # 039
    MPN: 003101941
    BOLT
    Race, Tubi depressione
    from £2.64
    from £2.64
    VACUUM UNION PIPE Genuine Lamborghini - New (to order)
    # 040
    MPN: 003101513
    WASHER
    Rond. rame ricot. 378730
    from £0.97
    from £0.97
    COPPER WASHER 16.2X24X1 Genuine Lamborghini - New In stock
    # 041
    MPN: 003204607
    TUBE
    Tubo colleg. servofr.
    from £64.35
    from £64.35
    BRAKE BOOSTER UNION PIPE Genuine Lamborghini - New (to order)
    # 042
    MPN: 008401610
    WASHER
    RONDELLA
    from £6.32
    from £6.32
    ANNEALED COPPER WASHER 16X22X0 .5 Genuine Lamborghini - New In stock
    # 043
    MPN: 008931602
    PLUG
    TAPPO
    from £3.03
    from £3.03
    PLUG Genuine Lamborghini - New (to order)
    # 044
    MPN: 001323988
    SCREW SEAL
    Adjuster screw cap
    from £5.37
    from £5.37
    ADJUSTING SCREW CAP Genuine Lamborghini - New (to order)
    # 045
    MPN: 001323989
    SCREW
    Vite registro andatura vs. 64585.016
    from £1.13
    from £1.13
    RUNNING ADJUSTMENT SCREW Genuine Lamborghini - New (to order)
    # 046
    MPN: 008200602
    NUT
    DADO M6 UNI 5588 5S
    from £0.53
    from £0.53
    M6 UNI 5588 5S/F NUT Genuine Lamborghini - New In stock
    # 047
    MPN: 001323990
    SPRING
    Molla ad elica vs. 47600.007
    from £2.12
    from £2.12
    COIL SPRING Genuine Lamborghini - New (to order)
    # 048
    MPN: 001323423
    TRAC
    TIRANTE
    from £11.77
    from £11.77
    TIEROD Genuine Lamborghini - New (to order)
    # 049
    MPN: 008200501
    NUT
    DADO M5 UNI 5588-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 050
    MPN: 001300804
    BALL HOUSIN
    Corpo test. sfer. cavo
    from £7.38
    from £7.38
    HEAD UNIT Genuine Lamborghini - New In stock
    # 051
    MPN: 001300805
    MOLLA
    Molla x corpo test. sfer.
    SPRING Genuine Lamborghini - New (to order)
    # 052
    MPN: 008200818
    NUT
    Dado vs. 34715-014
    from £1.67
    from £1.67
    THROTTLE CONTROL SHAFT NUT Genuine Lamborghini - New In stock
    # 053
    MPN: 001322304
    WASHER
    Rosetta vs. 55520-002
    from £2.12
    from £2.12
    WASHER Genuine Lamborghini - New (to order)
    # 054
    MPN: 001323399
    TRAC
    Tirante compl. colleg. rinvio alia farf. TS
    from £19.15
    from £19.15
    GEAR LINK ASSEMBLY TIEROD Genuine Lamborghini - New (to order)
    # 055
    MPN: 001322161
    LEVER
    Assieme leva des. comando farfalla
    Lamborghini PART 001322161 Genuine Lamborghini - New (to order)
    # 055
    MPN: 001322162
    LEVER
    Left lever assembly throttle control
    Lamborghini PART 001322162 Genuine Lamborghini - New (to order)
    # 056
    MPN: 008400819
    WASHER
    Rosetta x alb. orig. Weber 55510.098
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 057
    MPN: 001322157
    SPRING
    Left control lever return spring Butterfly
    from £32.76
    from £32.76
    GEAR LEVER LH SPRING Genuine Lamborghini - New (to order)
    # 057
    MPN: 001322303
    SPRING
    Molla vs. 4761-160
    from £2.74
    from £2.74
    SPRING Genuine Lamborghini - New (to order)
    # 058
    MPN: 001322306
    BUSH
    Boccola vs. 12750-130
    from £3.36
    from £3.36
    BUSHING Genuine Lamborghini - New (to order)
    # 059
    MPN: 008500801
    BALL BEARIN
    Cuscinetto vs. 32650-004
    from £4.78
    from £4.78
    BEARING Genuine Lamborghini - New (to order)
    # 060
    MPN: 001322305
    WASHER
    Rondella vs. 55555-055
    from £5.15
    from £5.15
    WASHER Genuine Lamborghini - New (to order)
    # 061
    MPN: 001322307
    SHAFT
    Alberino vs. 10000.284
    from £19.28
    from £19.28
    SHAFT Genuine Lamborghini - New (to order)
    # 062
    MPN: 001322308
    VALVE
    Valvola a farf. vs. 64005-058
    from £10.90
    from £10.90
    THROTTLE VALVE Genuine Lamborghini - New (to order)
    # 063
    MPN: 008700438
    BOLT
    Vite vs. 64520-027
    from £1.67
    from £1.67
    SCREW UNI 6107 4X0.7X7 B Genuine Lamborghini - New (to order)
    # 064
    MPN: 008580803
    LOCK RING
    Anello vs. 10140-307
    from £1.67
    from £1.67
    RING Genuine Lamborghini - New (to order)
