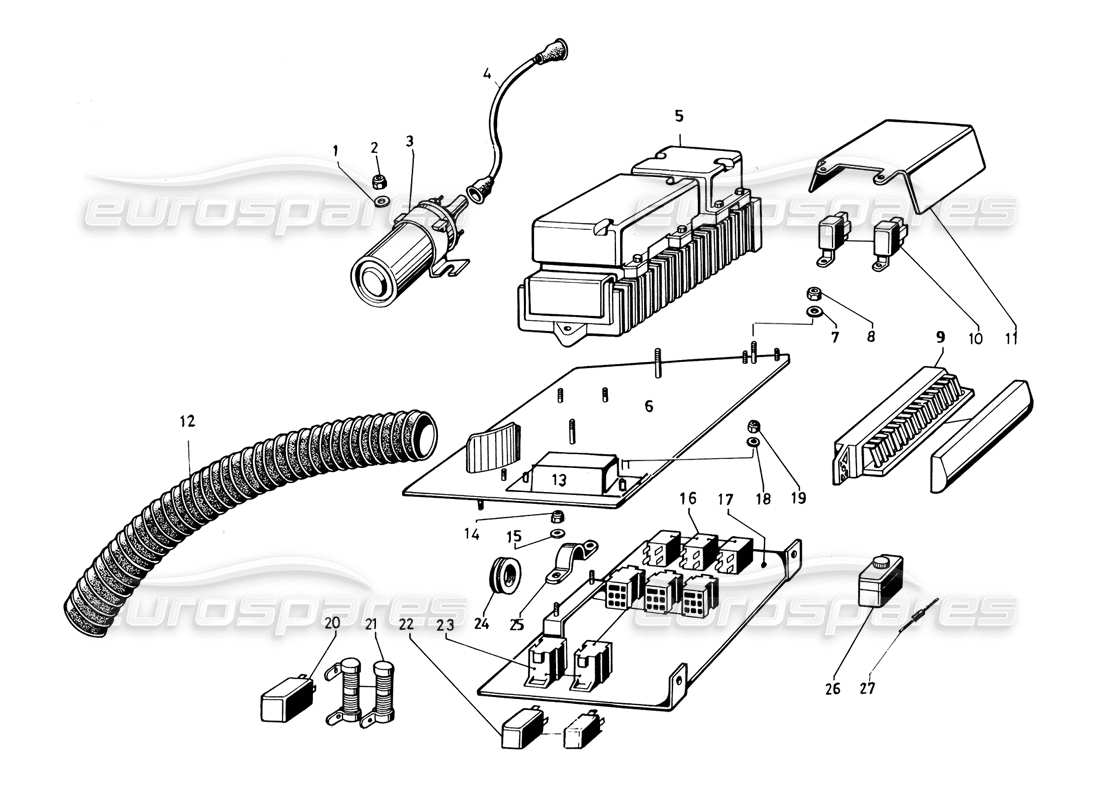

lamborghini countach 5000 qvi (1989) electrical system parts diagram

007 - electrical system

Lamborghini Countach 5000 QVi (1989) Electrical System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: WHT003040
    WASHER
    RONDELLA PORE/S
    from £4.55
    from £4.55
    WASHER Genuine Lamborghini - New (to order)
    # 002
    MPN: N0211963
    NUT
    DADO N/70/105M
    from £0.53
    from £0.53
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    hex. nut - M5 (N 0211963) Genuine Porsche Part - New (to order)
    # 003
    MPN: 001619304
    COIL
    Bobina di trasf. OR.BAE 202 B vs. 60702202
    from £209.93
    from £209.93
    COIL Genuine Lamborghini - New (to order)
    # 004
    MPN: 001623455
    MOTOR CABLE
    Cable from coil to distributor
    from £62.61
    from £62.61
    COIL-DISTRIBUTION WIRE Genuine Lamborghini - New (to order)
    # 005
    MPN: 001631621
    CONTROL UNIT
    Centr. elett. compl. vs. rif. sec 104B/520
    from £3,782.82
    from £3,782.82
    This part replaces part number 001619317 - and 1 more. Click to view details
    IGNITION ECU Genuine Lamborghini - New (to order)
    # 006
    MPN: 001621238
    PLATE
    Compless. piastra porta centr. limit, bobina
    from £78.52
    from £78.52
    CONTROL UNIT HOLDER PLATE ASSE MBLY Genuine Lamborghini - New (to order)
    # 007
    MPN: 008400401
    WASHER
    Rond. 4,3x9x0,8 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 008
    MPN: 008200402
    NUT
    Dado 4MA ottone
    from £1.67
    from £1.67
    M4 BRASS SPECIAL NUT Genuine Lamborghini - New In stock
    # 009
    MPN: 006775095
    FUSE BOX
    Portafus. 16 vie 3.032.000
    from £126.00
    from £126.00
    Lamborghini PART 006775095 Genuine Lamborghini - New (to order)

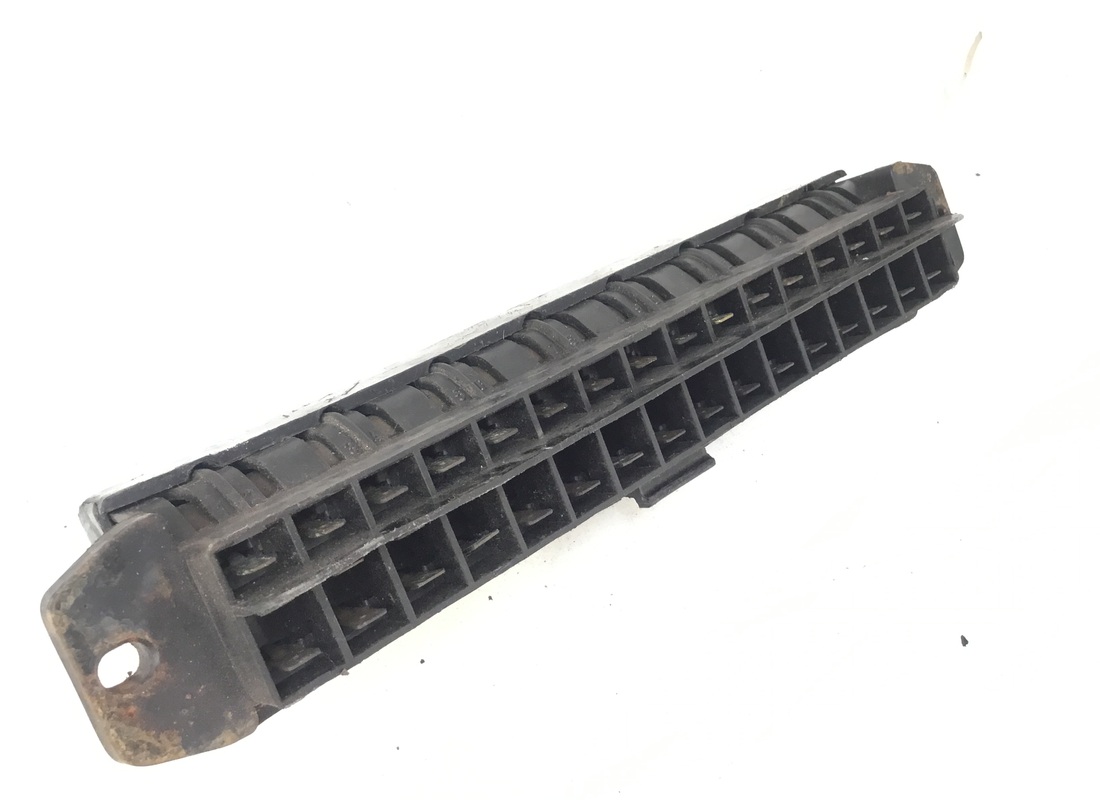

    Lamborghini PART 006775095 Genuine Lamborghini - Used In stock
    plastic lid split see photo
    # 010
    MPN: 006311152
    RELAY
    Relais 0332204150 fari
    from £74.88
    from £74.88
    LIGHT RELAY Genuine Lamborghini - New (to order)
    # 011
    MPN: 001622696
    REL GUARD
    Protezione x re!6
    from £12.76
    from £12.76
    RELAY GUARD Genuine Lamborghini - New (to order)
    # 012
    MPN: 001624260
    PIPE
    Tubo x mand. aria a centr. elettr.
    from £32.82
    from £32.82
    AIR DELIVERY TO CONTROL UNIT P IPE Genuine Lamborghini - New (to order)
    # 013
    MPN: 001619305
    STOP AIR
    Limitatore di giri per pompa aria
    from £635.94
    from £635.94
    AIR PUMP REV LIMITER31107 Genuine Lamborghini - New (to order)
    # 014
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 015
    MPN: 008400606
    WASHER
    Rond. 6,4 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 016
    MPN: 006311154
    RELAY
    Relais 0332014151/C
    from £30.30
    from £30.30
    RELAY Genuine Lamborghini - New In stock
    # 017
    MPN: 006320034
    FUSE DASH
    Complessivo plancia porta valvoliera
    from £359.84
    from £359.84
    VALVE PLATE ASSEMBLY Genuine Lamborghini - New (to order)
    # 018
    MPN: 008400401
    WASHER
    Rond. 4,3x9x0,8 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 019
    MPN: 008200402
    NUT
    Dado 4MA ottone
    from £1.58
    from £1.58
    M4 BRASS SPECIAL NUT Genuine Lamborghini - New In stock
    # 020
    MPN: 006714079
    WARNIN LIGHT
    Lampegg. elettronico vs. rif./0335.200.038
    from £208.10
    from £208.10
    RELAY Genuine Lamborghini - New (to order)
    # 021
    MPN: 001619328
    HEATING MUF
    Resisten. regolaz. velocita mot. riscaldat.
    from £86.04
    from £86.04
    SPEED ADJUSTMENT RESISTOR Genuine Lamborghini - New (to order)
    # 022
    MPN: 006319913
    RELAY
    Relais 87 0332204151
    from £39.80
    from £39.80
    RELAY Genuine Lamborghini - New In stock
    # 023
    MPN: 006714081
    BUTTON BODY
    Zoccolo 3334485008 emerg.
    from £15.17
    from £15.17
    EMERG.HOLDER Genuine Lamborghini - New (to order)
    # 024
    MPN: 008612505
    SEAL RING
    Gommino DUR 130 N
    from £3.70
    from £3.70
    GROMMET 25X30X4 MM Genuine Lamborghini - New (to order)
    # 025
    MPN: 008830109
    CLAMP RING
    Fasc. fiss. fill plancia/C
    from £4.73
    from £4.73
    DASHBOARD WIRE CLAMP Genuine Lamborghini - New (to order)
    # 026
    MPN: 001608165
    FUSE BOX
    Scatola portafusibili 4 vie ansor 040
    Lamborghini PART 001608165 Genuine Lamborghini - New (to order)
    # 027
    MPN: 006313708
    DIODO
    Diodo x lamp, ilium, targa 1 N 5408
    from £8.50
    from £8.50
    NUMBER PLATE LIGHT DIODE Genuine Lamborghini - New (to order)
