lamborghini countach 5000 qvi (1989) injection system parts diagram

007C - injection system

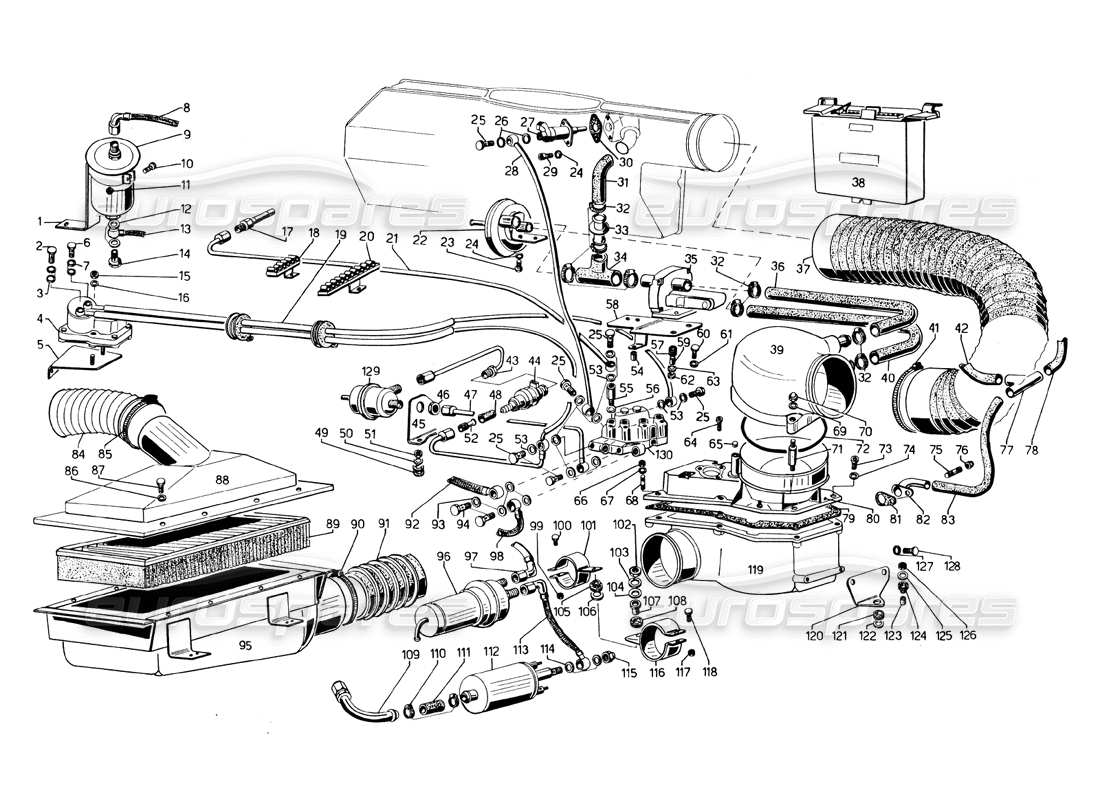

Lamborghini Countach 5000 QVi (1989) Injection System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 001
              MPN: 002023061
              CLAMP RING
              Fascetta fiss. filtro al supp. dosat.
              from £46.60
              from £46.60
              FILTER BRACKET CLAMP Genuine Lamborghini - New (to order)
              # 002
              MPN: 002021373
              UNION
              Bocchett. x race, occhio orient.
              from £82.34
              from £82.34
              ADJUSTABLE EYE UNIONFITTING Genuine Lamborghini - New (to order)
              # 003
              MPN: 008401022
              WASHER
              Washer D. 10,2x14x1
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 004
              MPN: 002021140
              GOVERNOR
              Regolatori fase rise. vs. cod. 0438140004
              from £932.76
              from £932.76
              HEAT REGULATOR Genuine Lamborghini - New (to order)
              # 005
              MPN: 002023047
              SUPPORT
              Staffa supp. regol. riscald. testa des./sin.
              from £98.58
              from £98.58
              HEAD HEATER REGULATOR BRACKET Genuine Lamborghini - New (to order)
              # 006
              MPN: 002021372
              UNION
              Bocchettone x raccordo orient, ad anello
              from £32.92
              from £32.92
              ADJUSTABLE UNION FITTING Genuine Lamborghini - New (to order)
              # 007
              MPN: 008400818
              WASHER
              Washer washer
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 008
              MPN: 002023450
              PIPE SET
              Assieme tubaz. colleg. accumulat. al filtro
              from £460.16
              from £460.16
              ACCUMULATOR PIPE ASSEMBLY Genuine Lamborghini - New (to order)
              # 009
              MPN: 002021142
              PETROL FILL
              Filtro benzinina vs. cod. 0450905405
              from £70.98
              from £70.98
              FUEL FILTER Genuine Lamborghini - New (to order)
              # 010
              MPN: 008100505
              BOLT
              Bull. M5X20 UNI 5739/5S
              from £0.53
              from £0.53
              SCREW M5X20 UNI 5739/5S Genuine Lamborghini - New In stock
              # 011
              MPN: 008200501
              NUT
              DADO M5 UNI 5588-65/8G
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 013
              MPN: 002023448
              TUBE
              Assieme tubo colleg. filtro benz/distr.
              from £230.49
              from £230.49
              FUEL FILTER PIPE ASSEMBLY Genuine Lamborghini - New (to order)
              # 014
              MPN: 002021390
              PIPE
              Bocchettone x race, orient, ad anello
              from £16.50
              from £16.50
              ADJUSTABLE EYE UNIONFITTING Genuine Lamborghini - New (to order)
              # 015
              MPN: 008200605
              NUT
              Dado orig. Urama vs. rif. NCM70 106M
              from £1.74
              from £1.74
              M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
              # 016
              MPN: 008410602
              LOCK WASHER
              RONDELLA DI FERMO DIN 137/B
              from £28.28
              from £28.28
              WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
              # 017
              MPN: 002021147
              INJECTORS
              Iniettori vs. cod. 0437502010
              from £171.63
              from £171.63
              INJECTORS Genuine Lamborghini - New (to order)
              # 018
              MPN: 002024282
              PLUG CABLE
              Compl. rastrelliera e passaggi ant.
              from £315.60
              from £315.60
              RACK & PASSAGE ASSEMBLY Genuine Lamborghini - New (to order)
              # 019
              MPN: 002023443
              TUBE
              Tubaz. compi. x valvole testa sinistra
              from £162.13
              from £162.13
              LH HEAD VALVE PIPE COMPLETE Genuine Lamborghini - New (to order)
              # 019
              MPN: 002023444
              TUBE
              Tubaz. compl. x valvole testa destra
              Lamborghini PART 002023444 Genuine Lamborghini - New (to order)
              # 020
              MPN: 002024283
              PLUG CABLE
              Compl. rastrelliera e passaggi post.
              from £232.99
              from £232.99
              RACK & PASSAGE ASSEMBLY Genuine Lamborghini - New (to order)
              # 021
              MPN: 002022994
              TUBE
              Tubaz. compl. x mand. benz. da dos. a iniet.
              TUBE Genuine Lamborghini - New (to order)
              # 021
              MPN: 002022995
              TUBE
              Tubaz. compl. x mand. benz. da dos. a iniet.
              TUBE Genuine Lamborghini - New (to order)
              # 022
              MPN: 002021144
              DEVICE VALV
              Valvole limitratrici vs. cod. 0280160324
              from £307.82
              from £307.82
              LIMITING VALVE Genuine Lamborghini - New (to order)
              # 023
              MPN: 008100613
              BOLT
              Bull. M6x10 UNI 5739 5S
              from £0.50
              from £0.50
              SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
              SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (other) In stock
              BULL.M6X10 UNI 5739 5S
              # 024
              MPN: 008410603
              LOCK WASHER
              Rond. A6,4 UNI 1751 C72
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 025
              MPN: 002021372
              UNION
              Bocchettone x raccordo orient, ad anello
              from £32.92
              from £32.92
              ADJUSTABLE UNION FITTING Genuine Lamborghini - New (to order)
              # 026
              MPN: 008400818
              WASHER
              Washer washer
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 027
              MPN: 002021146
              START INJEC
              Iniettori avviamento vs. cod. 0280170410
              from £198.01
              from £198.01
              STARTER INJECTORS Genuine Lamborghini - New (to order)
              # 028
              MPN: 002023446
              TUBE
              Compl. tubaz. coll. distr. a iniett. 12
              from £156.08
              from £156.08
              INJECTOR FEED PIPE ASSEMBLY Genuine Lamborghini - New (to order)
              # 029
              MPN: 008700614
              SCREW
              VITE 6x1 UNI 5931
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 030
              MPN: 002021269
              GASKET
              Guarnizione x iniettori avv.lo
              from £0.53
              from £0.53
              INJECTOR SEAL Genuine Lamborghini - New In stock
              # 031
              MPN: 002023064
              TUBE
              Tubo da giunz. al corpo mand. aria ai coll
              from £48.43
              from £48.43
              AIR DELIVERY UNION PIPE Genuine Lamborghini - New (to order)
              # 032
              MPN: 008830206
              CLAMP RING
              FASC. ROYAL 00/12 18/30
              from £12.56
              from £12.56
              CLAMP Genuine Lamborghini - New In stock
              # 033
              MPN: 002021205
              TUBE
              Pipe between three ways
              from £32.39
              from £32.39
              PIPE BETWEEN THREE-WAY Genuine Lamborghini - New (to order)
              # 034
              MPN: 002021204
              RUB AT CON
              Tre vie colleg. valv. supp. alia e valv. lim.
              from £51.65
              from £51.65
              AIR VALVE THREE-WAY UNION Genuine Lamborghini - New (to order)
              # 035
              MPN: 002021139
              VALVE
              Valvole aria supp. vs. cod. 0280140219
              from £2,641.48
              from £2,641.48
              AUXILIARY VALVE Genuine Lamborghini - New (to order)
              # 036
              MPN: 002023063
              TUBE
              Tubo coll. valv. aria suppl. al convogl.
              from £85.41
              from £85.41
              AUXILIARY AIR VALVE PIPE Genuine Lamborghini - New (to order)
              # 036
              MPN: 002024315
              TUBE
              Tubo da valv. supplem. al conv. aria des.
              from £48.43
              from £48.43
              PIPE FROM SUPPLEMENTARY VALVE TO AIR MAN Genuine Lamborghini - New (to order)
              # 037
              MPN: 001323701
              PIPE
              Tubo dal conv. sul dosat. al cop. later, des.
              from £127.10
              from £127.10
              PIPE FROM DUCT TO METER Genuine Lamborghini - New (to order)
              # 037
              MPN: 001323702
              PIPE
              Tubo dal conv. sul dosat. al cop. later, sin.
              from £98.25
              from £98.25
              PIPE FROM DUCT TO METER Genuine Lamborghini - New In stock
              # 038
              MPN: 002021174
              GEARBOX
              Centralina vs. cod. 080800038
              from £2,557.81
              from £2,557.81
              ECU Genuine Lamborghini - New (to order)
              # 039
              MPN: 001323039
              L. AIR CONV.
              Convogl. aria sul dosat. sin.
              Lamborghini PART 001323039 Genuine Lamborghini - New (to order)
              # 039
              MPN: 001323040
              R. AIR CONV.
              Convogl. aria sul dosat. des.
              from £246.24
              from £246.24
              AIR MANIFOLD ON RH METER Genuine Lamborghini - New (to order)
              # 040
              MPN: 002023062
              TUBE
              Tubo coll. valv. limit, .di vuoto al conv. ar
              from £85.41
              from £85.41
              VACUUM LIMITING VALVE PIPE Genuine Lamborghini - New (to order)
              # 040
              MPN: 002024314
              TUBE
              Tubo da valv. limit, al conv. aria des.
              from £68.23
              from £68.23
              AIR MANIFOLD FROM LIMITING VAL VE TO CON Genuine Lamborghini - New (to order)
              # 041
              MPN: 008830210
              CLAMP
              Fascetta royal 77/97
              from £4.49
              from £4.49
              CLAMP Genuine Lamborghini - New (to order)
              CLAMP Genuine Lamborghini - Used In stock
              # 042
              MPN: 001523075
              TUBE
              Pipe from oil breather body to 3 ways
              TUBE Genuine Lamborghini - New (to order)
              # 043
              MPN: 002023413
              TUBE
              Tubo colleg. smorzat/valv. di frequenza DS
              from £92.03
              from £92.03
              DAMPER/VALVE PIPE Genuine Lamborghini - New (to order)
              # 043
              MPN: 002023414
              TUBE
              Tubo colleg. smorzat/valv. di frequenza SN
              from £68.24
              from £68.24
              DAMPER/VALVE PIPE Genuine Lamborghini - New (to order)
              # 044
              MPN: 002021172
              VALVE
              Valvole di frequenza vs. cod. 0280150300
              from £492.85
              from £492.85
              FREQUENCY VALVE Genuine Lamborghini - New (to order)
              # 045
              MPN: 002021368
              SUPPORT
              Staffa supp. smorzat. x valv. di frequenza
              from £65.73
              from £65.73
              LIMITING VALVE DAMPER BRACKET Genuine Lamborghini - New (to order)
              # 046
              MPN: 008201213
              NUT
              DADO 12 UNI 210 8G
              from £3.36
              from £3.36
              12 UNI 210 8G NUT Genuine Lamborghini - New (to order)
              # 047
              MPN: 002023412
              TUBE
              Tubo colleg. to distrib. olio smorz.
              from £76.78
              from £76.78
              OIL DISTRIBUTION PIPE Genuine Lamborghini - New (to order)
              # 048
              MPN: 002023067
              TUBE
              Tubo colleg. race, alia valv. di frequenza
              from £51.19
              from £51.19
              VALVE UNION PIPE Genuine Lamborghini - New (to order)
              # 049
              MPN: 008920602
              RUBB SUPP
              Supp. in gomma x fiss. vs. puffer S781040M
              from £8.91
              from £8.91
              RUBBER SUPPORT D18X8.5 FIL.M6X 10/16 Genuine Lamborghini - New (to order)
              # 050
              MPN: 008410602
              LOCK WASHER
              RONDELLA DI FERMO DIN 137/B
              from £28.28
              from £28.28
              WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
              # 051
              MPN: 008200606
              NUT
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 052
              MPN: 002021854
              PIPE
              RACCORDO
              from £44.20
              from £44.20
              UNION Genuine Lamborghini - New (to order)
              # 053
              MPN: 008400818
              WASHER
              Washer washer
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 054
              MPN: 002024008
              SPACER
              DISTANZIALE
              from £9.37
              from £9.37
              SHIM Genuine Lamborghini - New (to order)
              # 055
              MPN: 002021856
              SPACER
              Dist. x raccordi orientabili sul distr.
              from £34.42
              from £34.42
              SHIM FOR ADJUSTABLE UNIONS Genuine Lamborghini - New (to order)
              # 056
              MPN: 008401022
              WASHER
              Washer D. 10,2x14x1
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 057
              MPN: 008610903
              RUBBER
              GOMMINO
              from £9.91
              from £9.91
              GROMMET MM 9X12.8X2.5 MM Genuine Lamborghini - New (to order)
              # 058
              MPN: 002023048
              SUPPORT
              Staffa supp. valv. aria suppl.
              from £164.29
              from £164.29
              SUPPLEMENTARY AIR VALVE BRACKE T Genuine Lamborghini - New (to order)
              # 058
              MPN: 002023049
              SUPPORT
              Staffa supp. valv. aria suppl.
              from £164.29
              from £164.29
              SUPPLEMENTARY AIR VALVE BRACKE T Genuine Lamborghini - New (to order)
              # 059
              MPN: 008800606
              SPACER
              DISTANZIALE
              from £9.60
              from £9.60
              BUSHING 6.5X9X11 MM Genuine Lamborghini - New (to order)
              # 060
              MPN: 008100623
              BOLT
              Bull. M6x30 UNI 5737/8G
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 061
              MPN: WHT002961
              WASHER
              Rond. 6,5x18x1,5
              from £0.53
              from £0.53
              This part replaces part number 008400607
              WASHER Genuine Lamborghini - New In stock
              # 062
              MPN: 008200605
              NUT
              Dado orig. Urama vs. rif. NCM70 106M
              from £1.74
              from £1.74
              M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
              # 063
              MPN: 008410602
              LOCK WASHER
              RONDELLA DI FERMO DIN 137/B
              from £28.28
              from £28.28
              WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
              # 064
              MPN: 008700526
              BOLT
              Viti fiss. distribuz.
              from £1.62
              from £1.62
              SCREW M5X50 UNI 593112K/B Genuine Lamborghini - New (to order)
              # 065
              MPN: 002023479
              PLUG
              Tappo x invis. vite regist. farfalla
              from £23.30
              from £23.30
              VALVE ADJUSTMENT SCREW CAP Genuine Lamborghini - New (to order)
              # 066
              MPN: 008200605
              NUT
              Dado orig. Urama vs. rif. NCM70 106M
              from £1.72
              from £1.72
              M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
              # 067
              MPN: 008410602
              LOCK WASHER
              RONDELLA DI FERMO DIN 137/B
              from £27.33
              from £27.33
              WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
              # 068
              MPN: 008300641
              STUD BOLT
              PRIGIONIERO
              from £0.60
              from £0.60
              SPECIAL STUD M6X20 Genuine Lamborghini - New (to order)
              # 069
              MPN: 008400606
              WASHER
              Rond. 6,4 UNI 1734
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 070
              MPN: 008200605
              NUT
              Dado orig. Urama vs. rif. NCM70 106M
              from £1.74
              from £1.74
              M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
              # 071
              MPN: 001321243
              STRUT
              Colonn. fiss. dis. su supp. e convogl. aria
              from £20.62
              from £20.62
              MANIFOLD BRACKET BOLT Genuine Lamborghini - New In stock
              # 071
              MPN: 001323041
              STRUT
              Colonn. fiss. dos. su supp. e conv. aria
              from £5.23
              from £5.23
              METER TO MANIFOLD BRACKET FAST ENING BOL Genuine Lamborghini - New (to order)
              # 072
              MPN: 008609904
              RUBBER
              ANELLO OR 3475
              from £16.80
              from £16.80
              OR RING Genuine Lamborghini - New (to order)
              # 073
              MPN: 008700614
              SCREW
              VITE 6x1 UNI 5931
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 074
              MPN: 008410602
              LOCK WASHER
              RONDELLA DI FERMO DIN 137/B
              from £28.28
              from £28.28
              WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
              # 075
              MPN: 008300613
              BOLT
              PRIG. 6x1x14 8G
              from £3.07
              from £3.07
              STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New In stock
              # 076
              MPN: 008200606
              NUT
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 077
              MPN: 001523078
              T. UNION
              Tre vie x ric. vap. olio da sfiato olio
              from £19.53
              from £19.53
              BREATHER OIL VAPOUR RECIRCULAT ION THREE Genuine Lamborghini - New (to order)
              # 078
              MPN: 001523077
              TUBE
              Tubo dal 3 vie al supp. dosat. sin.
              TUBE Genuine Lamborghini - New (to order)
              # 079
              MPN: 001321231
              GASKET
              Guarnizioni sul supp. dosatore
              from £20.85
              from £20.85
              METERING BRACKET SEAL Genuine Lamborghini - New (to order)
              # 080
              MPN: 002021171
              INDICATOR
              Misuratori aria vs. cod. 0438120098
              from £698.95
              from £698.95
              AIR METER Genuine Lamborghini - New (to order)
              # 081
              MPN: 001323124
              GASKET
              Guarniz. sul dosat. per tubo sfiato olio
              from £0.53
              from £0.53
              METER PIPE SEAL FOR BREATHER P IPE Genuine Lamborghini - New In stock
              # 082
              MPN: 001323123
              TUBE
              Tube on support oil breather dispenser
              from £22.14
              from £22.14
              PIPE ON BREATHER METER BRACKET Genuine Lamborghini - New (to order)
              # 083
              MPN: 001523076
              TUBE
              Tubo dal 3 vie al supp. dosat. des.
              TUBE Genuine Lamborghini - New (to order)
              # 084
              MPN: 001321232
              AIR PIPE
              Tubo dal filtro aria alia PR. DIN. des. sin.
              from £51.19
              from £51.19
              PIPE FROM AIR CLEANER TO VACUU M INLET Genuine Lamborghini - New In stock
              # 085
              MPN: 008830403
              CLAMP RING
              Ribbon tie 10402
              from £1.46
              from £1.46
              BAND CLAMP Genuine Lamborghini - New (to order)
              # 086
              MPN: 008400606
              WASHER
              Rond. 6,4 UNI 1734
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 087
              MPN: 008100616
              BOLT
              Bull. M6x16 UNI 5739/5S
              from £0.48
              from £0.48
              SCREW M6X16 UNI 5739/5S/Z Genuine Lamborghini - New In stock
              # 088
              MPN: 001321044
              T AFIL JAR
              Parte sup. filtro aria
              Lamborghini PART 001321044 Genuine Lamborghini - New (to order)
              # 089
              MPN: 07M133843
              AIR FILTER
              from £17.86
              from £17.86
              This part replaces part number 001321435
              FILTERING ELEMENT Genuine Lamborghini - New In stock
              # 090
              MPN: 008830210
              CLAMP
              Fascetta royal 77/97
              from £4.49
              from £4.49
              CLAMP Genuine Lamborghini - New (to order)
              CLAMP Genuine Lamborghini - Used In stock
              # 091
              MPN: 001321230
              COWLING
              SOFFIETTO
              from £31.47
              from £31.47
              BELLOWS Genuine Lamborghini - New In stock
              BELLOWS Genuine Lamborghini - Used In stock
              # 092
              MPN: 002023448
              TUBE
              Assieme tubo colleg. filtro benz/distr.
              from £230.49
              from £230.49
              FUEL FILTER PIPE ASSEMBLY Genuine Lamborghini - New (to order)
              # 094
              MPN: 002021390
              PIPE
              Bocchettone x race, orient, ad anello
              from £16.50
              from £16.50
              ADJUSTABLE EYE UNIONFITTING Genuine Lamborghini - New (to order)
              # 095
              MPN: 001323091
              AIR FILTER
              Corpo filtro aria compl. des.
              Lamborghini PART 001323091 Genuine Lamborghini - New (to order)
              # 095
              MPN: 001323092
              AIR FILTER
              Corpo filtro aria compl. sin.
              from £2,122.52
              from £2,122.52
              LH ASSEMBLY AIR CLEANER UNIT Genuine Lamborghini - New (to order)
              # 096

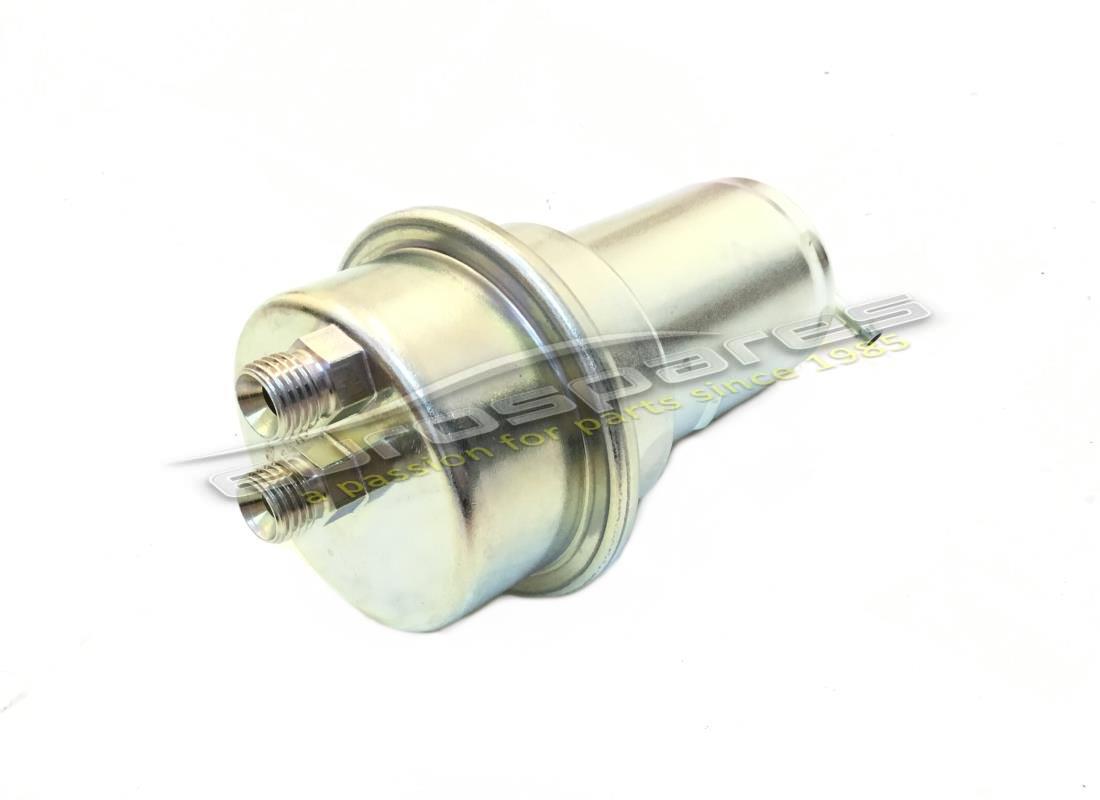

              MPN: 002021145
              ACCUMULATOR
              use : 0438170004
              from £280.00
              from £280.00
              ACCUMULATORS Genuine Lamborghini - New In stock
              ACCUMULATORS (002021145) Original Equipment - New (to order)
              # 097
              MPN: 002023450
              PIPE SET
              Assieme tubaz. colleg. accumula't. al filtro
              from £460.16
              from £460.16
              ACCUMULATOR PIPE ASSEMBLY Genuine Lamborghini - New (to order)
              # 098
              MPN: 002023066
              TUBE
              Tubo ricirc. benz. dal distr. al serb.
              TUBE Genuine Lamborghini - New (to order)
              # 099
              MPN: 008200501
              NUT
              Dado M5 UN I 5588-65/8G
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 100
              MPN: 008100505
              BOLT
              Bull. M5X20 UNI 5739/5S
              from £0.53
              from £0.53
              SCREW M5X20 UNI 5739/5S Genuine Lamborghini - New In stock
              # 101
              MPN: 002021468
              CLIP
              Fascetta fiss. accumulat. al telaio
              from £69.90
              from £69.90
              CLAMP FASTENING RESERVOIR TO C HASSIS Genuine Lamborghini - New (to order)
              # 102
              MPN: 008200801
              NUT
              DADO
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 103
              MPN: 008410806
              LOCK WASHER
              Rond. EL. A8,4 UNI 1751
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 104
              MPN: WHT001942
              WASHER
              Rond. D. 8,5x32x2,5
              from £2.06
              from £2.06
              WASHER Genuine Lamborghini - New In stock
              # 105
              MPN: WHT001189
              RUBBER RING
              from £2.38
              from £2.38
              This part replaces part number 001707163
              WASHER Genuine Lamborghini - New In stock
              # 106
              MPN: WHT001942
              WASHER
              Rond. 0.8,5x32x2,5
              from £2.18
              from £2.18
              WASHER Genuine Lamborghini - New In stock
              # 107
              MPN: 002021477
              SPACER
              Distanz. x-gommino
              from £15.47
              from £15.47
              GROMMET SHIM Genuine Lamborghini - New (to order)
              # 108
              MPN: 001701495
              RAD. SUPPOR
              Anello x supp. serb.. suppl. e radiatore
              from £32.99
              from £32.99
              SUPPLEMENTARY RESERVOIR BRACKE T RING & Genuine Lamborghini - New In stock
              # 109
              MPN: 002021528
              TUBE
              Metal tube coll. rubber hose on pump
              from £71.77
              from £71.77
              HOSE UNION METAL PIPE Genuine Lamborghini - New (to order)
              # 110
              MPN: 008830205
              CLAMP RING
              FASC. ROYAL 000/9 14/24
              from £4.27
              from £4.27
              CLAMP Genuine Lamborghini - New In stock
              # 111
              MPN: 002021521
              TUBE
              Tubo in gomma colleg. serb. alia pompa
              from £4.94
              from £4.94
              TANK HOSE Genuine Lamborghini - New (to order)
              # 112

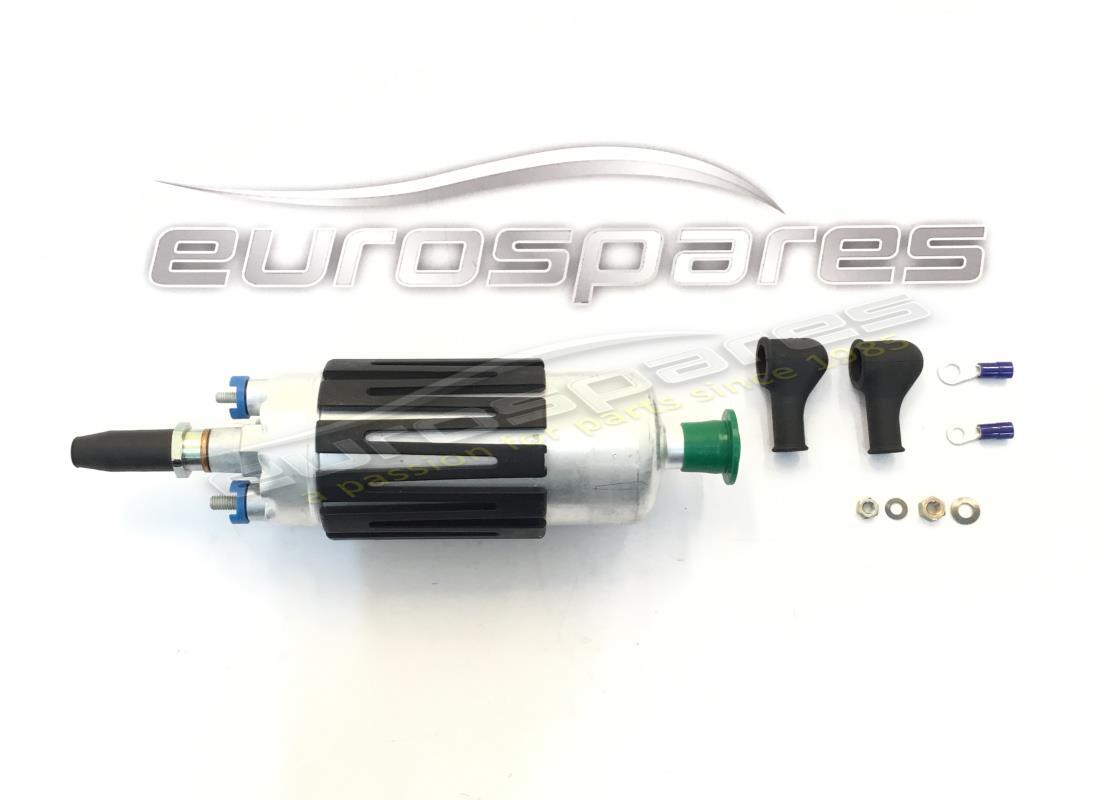

              MPN: 002021141
              fuel pump
              from £862.27
              from £862.27
              fuel pump Genuine Lamborghini - New In stock
              # 113
              MPN: 002021393
              COLL PIPE A
              Assieme colleg.to pompa benzina
              Lamborghini PART 002021393 Genuine Lamborghini - New (to order)
              # 115
              MPN: 008201225
              NUT
              Dado cieco
              from £9.66
              from £9.66
              CAP NUT Genuine Lamborghini - New (to order)
              # 116
              MPN: 002021472
              CLIP
              Fascetta fiss. pompa benz.
              from £164.29
              from £164.29
              FUEL PUMP CLAMP Genuine Lamborghini - New (to order)
              # 117
              MPN: 008200501
              NUT
              DADO M5 UNI 5588-65/8G
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 118
              MPN: 008100505
              BOLT
              Bull. M5X20 UNI 5739/5S
              from £0.53
              from £0.53
              SCREW M5X20 UNI 5739/5S Genuine Lamborghini - New In stock
              # 119
              MPN: 001323037
              SUPPORT
              Supporto per dosatore des.
              from £242.94
              from £242.94
              LH METER BRACKET Genuine Lamborghini - New (to order)
              # 119
              MPN: 001323038
              SUPPORT
              Support for left dispenser
              from £242.94
              from £242.94
              RH METER BRACKET Genuine Lamborghini - New (to order)
              # 120
              MPN: 001323118
              SUPPORT
              Staf. post.O.E ant. S.X fiss. supp. dos. al T
              from £7.05
              from £7.05
              RH REAR AND LH FRONTFIXING BRA CKET Genuine Lamborghini - New (to order)
              # 120
              MPN: 001323119
              SUPPORT
              Staf. post. D.E ant. D.X fiss. supp. dos. al T
              from £7.05
              from £7.05
              RH REAR AND RH FRONTBRACKET Genuine Lamborghini - New (to order)
              # 121
              MPN: WHT001189
              RUBBER RING
              from £2.38
              from £2.38
              This part replaces part number 001707163
              WASHER Genuine Lamborghini - New In stock
              # 122
              MPN: WHT001942
              WASHER
              Rond. D. 8,5x32x2,5
              from £2.06
              from £2.06
              WASHER Genuine Lamborghini - New In stock
              # 123
              MPN: 001701592
              SPACER
              Distan. gomm. radiatore
              from £11.72
              from £11.72
              RADIATOR SHIM Genuine Lamborghini - New In stock
              # 124
              MPN: 001701495
              RAD SUPPOR
              Anello x supp. serb. suppl. e radiatore
              from £32.99
              from £32.99
              SUPPLEMENTARY RESERVOIR BRACKE T RING & Genuine Lamborghini - New In stock
              # 125
              MPN: WHT001942
              WASHER
              Rond. D. 8,5x32x2,5
              from £2.06
              from £2.06
              WASHER Genuine Lamborghini - New In stock
              # 126
              MPN: N0111849
              NUT
              DADO N/70/108M
              from £1.39
              from £1.39
              This part replaces part number 008200809
              HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
              # 127
              MPN: 008410806
              LOCK WASHER
              Rond. EL. A8,4 UNI 1751
              Supersession
              Supersession
              Genuine Lamborghini (no longer available to order)
              # 128
              MPN: 008100812
              BOLT
              Bull. fiss. cerniere all'ossatura cof. mot.
              from £0.51
              from £0.51
              SCREW 8X1.25X16 UNI 5739/8 Genuine Lamborghini - New (to order)
              # 129
              MPN: 002021173
              DAMPERS
              Smorzatori vs. cod. 0280161012
              from £280.24
              from £280.24
              DAMPERS Genuine Lamborghini - New (to order)
              # 130
              MPN: 002021170
              DISTRIBUTOR
              Distributor! vs. cod. 0438100099
              from £3,285.64
              from £3,285.64
              DISTRIBUTOR Genuine Lamborghini - New (to order)
