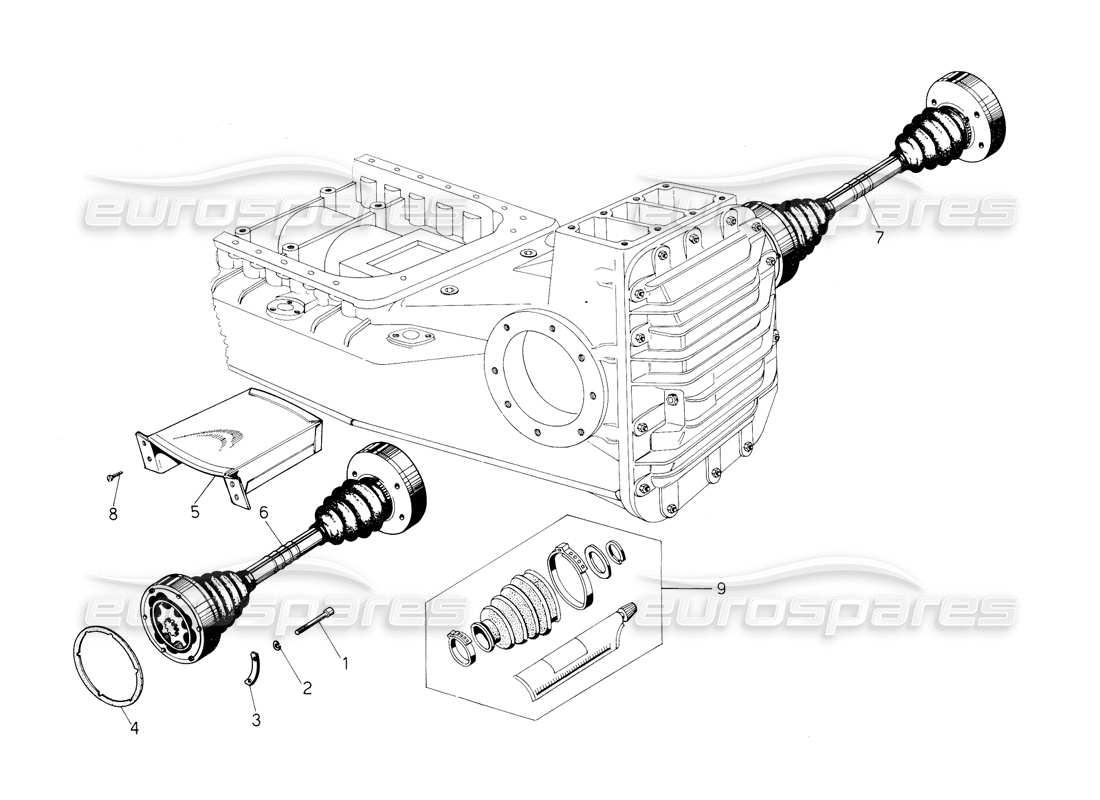

Lamborghini Countach 5000 QVi (1989) Drive Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008701001
SCREW
Vite VTCE 10x60 8G
from £2.10
from £2.10
# 002
MPN: 008411011
WASHER
Rosetta elastica fiss. semiassi
from £0.48
from £0.48
# 003
MPN: 002506602
PLATE
Piastr. semiasse Loebro
from £67.16
from £67.16
# 004
MPN: 002506601
GASKET
Guam, semiasse omocin.
from £14.88
from £14.88
# 005
MPN: 002511956
SHIELD
Paratia semiasse sin. 1C
from £560.29
from £560.29
# 005
MPN: 002511957
SHIELD
Paratia semiasse des. 1C
from £616.86
from £616.86
# 006
MPN: 002508077
AXLE SHAFT
Semias. 0153150104253 S/C
from £3,507.13
from £3,507.13
# 007
MPN: 002508076
AXLE SHAFT
Semias. 0153150104254 D/C
from £2,338.08
from £2,338.08
# 008
MPN: 008700506
SCREW
Vite knip 4,8x16 DIN 7971
from £0.51
from £0.51
# 009
MPN: 002512808
KIT SEMIASSE
use : 002537315
from £106.79
from £106.79
This part replaces part number 002532668
