lamborghini countach 5000 qvi (1989) tool kit, tyre and rims parts diagram

032 - Tool Kit, Tyre and Rims

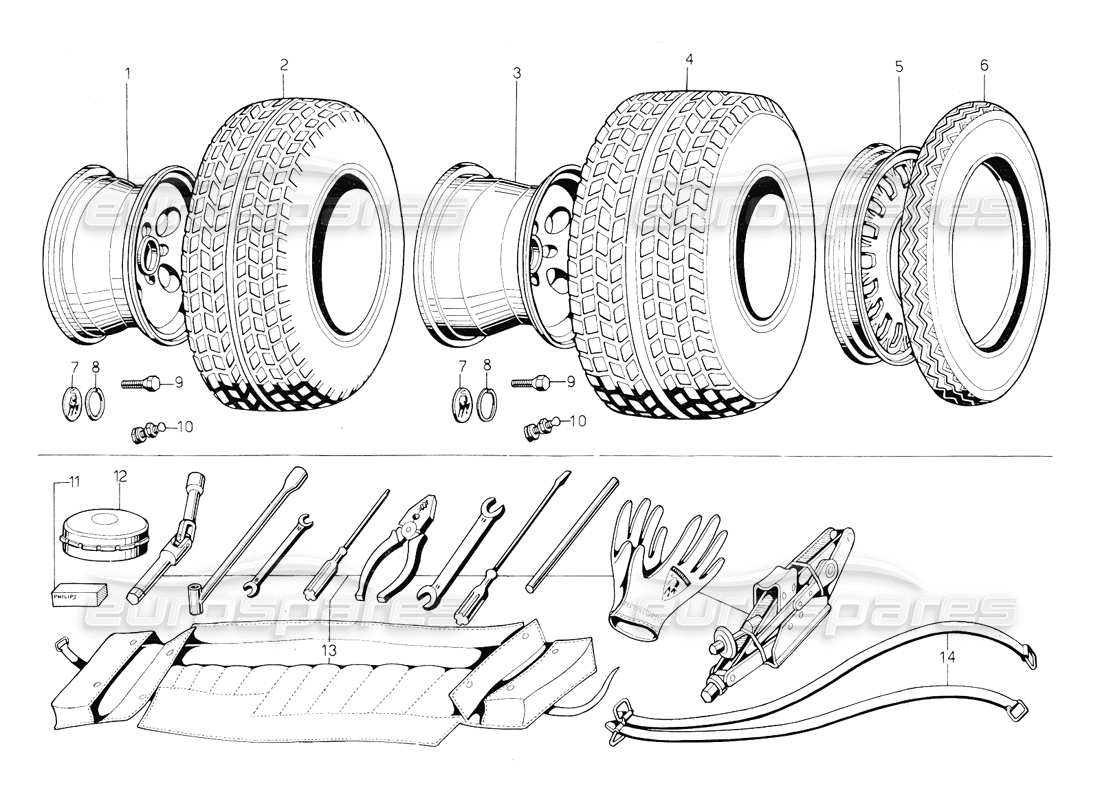

Lamborghini Countach 5000 QVi (1989) Tool Kit, Tyre and Rims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 000
      MPN: 0R1280001
      TYRES SET
      from £4,354.25
      from £4,354.25
      COUNTACH TYRES SET Genuine Lamborghini - New (to order)
      # 001
      MPN: 005112924
      WHEEL 8.5X15''
      from £1,519.54
      from £1,519.54
      Eurospares Part 005112924 (005112924) Eurospares Approved Part - New (to order)
      Eurospares Part 005112924 (005112924) Eurospares Approved Part - New (other) In stock
      only 1 available, only use to replace a pattern wheel due to weight difference
      WHEEL RIM (81/2 55 X) Genuine Lamborghini - New (to order)
      # 001
      MPN: 005119843
      WHEEL C
      (Valid from chassis No. 413) Cerchio ruota ant. 8 1/2x15
      from £1,249.41
      from £1,249.41
      FRONT WHEEL RIM Genuine Lamborghini - New (to order)
      # 002
      MPN: 005313094
      WHEEL TYRE
      Copertura 205/50 VR 15 P7/C
      WHEEL TYRE Genuine Lamborghini - New (to order)
      # 003
      MPN: 005212867
      RIM
      Cerchio ruota 12 JJX1 5
      Lamborghini PART 005212867 Genuine Lamborghini - New (to order)
      # 003
      MPN: 005219844
      WHEEL C
      (Valid from chassis No. 413) Cerchio ruota post. 12x15
      from £1,993.01
      from £1,993.01
      REAR WHEEL RIM Genuine Lamborghini - New (to order)
      # 004
      MPN: 005313102
      TYRE
      Copertura 345/35 VR 15
      Lamborghini PART 005313102 Genuine Lamborghini - New (to order)
      # 005
      MPN: 005112970
      RIM
      CERCHIO 18X3/4 B.-117
      from £806.71
      from £806.71
      BLACK RIM Genuine Lamborghini - New (to order)
      # 006
      MPN: 005313101
      TYRE
      Copert. 105R 18 radial 117
      from £267.75
      from £267.75
      Lamborghini PART 005313101 Genuine Lamborghini - New (to order)
      # 007
      MPN: 005219588
      DISC COVER
      Dischetto con stemma cerchio ruota
      from £22.48
      from £22.48
      WHEEL BADGE (005219588) Eurospares Approved Part - New In stock
      WHEEL BADGE Genuine Lamborghini - New (to order)
      # 008
      MPN: 005219587
      RING
      Seeger fermo cerchio ruota auto D.56
      from £24.36
      from £24.36
      Lock Ring (005219587) Eurospares Approved Part - New In stock
      FRONT WHEEL RIM STOPPER O-RING Genuine Lamborghini - New (to order)
      # 009
      MPN: 005234416
      SCREW
      from £49.70
      from £49.70
      WHEEL BOLT Genuine Lamborghini - New In stock
      WHEEL BOLT Genuine Lamborghini - Used In stock
      # 010
      MPN: 400601361
      VALVE
      use part number: 400601361
      from £31.23
      from £31.23
      TYRE VALVE Genuine Lamborghini - New In stock
      # 011
      MPN: 006617098
      LAMP
      Lamp. P 14,53/1 2258 55W
      from £44.86
      from £44.86
      55W BULB Genuine Lamborghini - New (to order)
      # 012
      MPN: 004811156
      CONTROL
      Con. rot. x lamp, compl.
      CONTROL Genuine Lamborghini - New (to order)
      # 013
      MPN: 004819092
      Tool Kits
      Trus com pi eta
      Lamborghini PART 004819092 Genuine Lamborghini - New (to order)
      # 014
      MPN: 004813282
      BELT
      Cinghia fiss. ruota scorta
      Lamborghini PART 004813282 Genuine Lamborghini - New (to order)
