lamborghini countach 5000 qvi (1989) glasses, gaskets and controls parts diagram

040 - Glasses, gaskets and controls

Lamborghini Countach 5000 QVi (1989) Glasses, Gaskets and Controls Parts Diagram

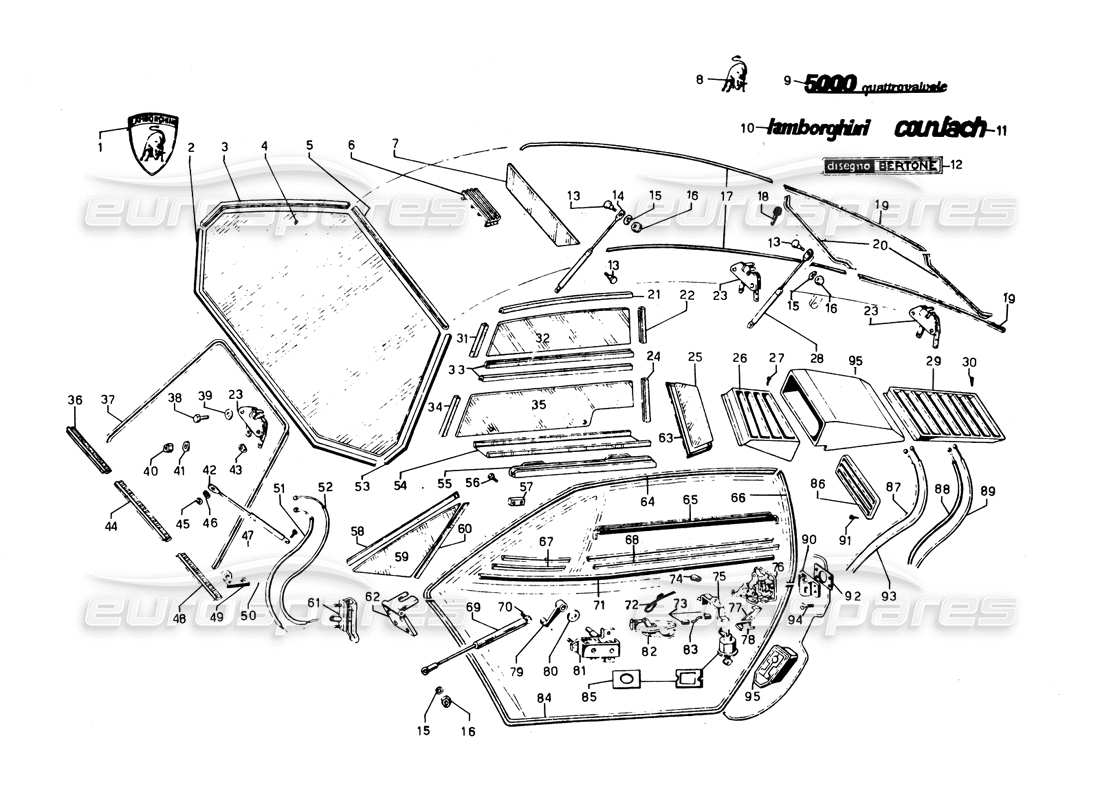

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price

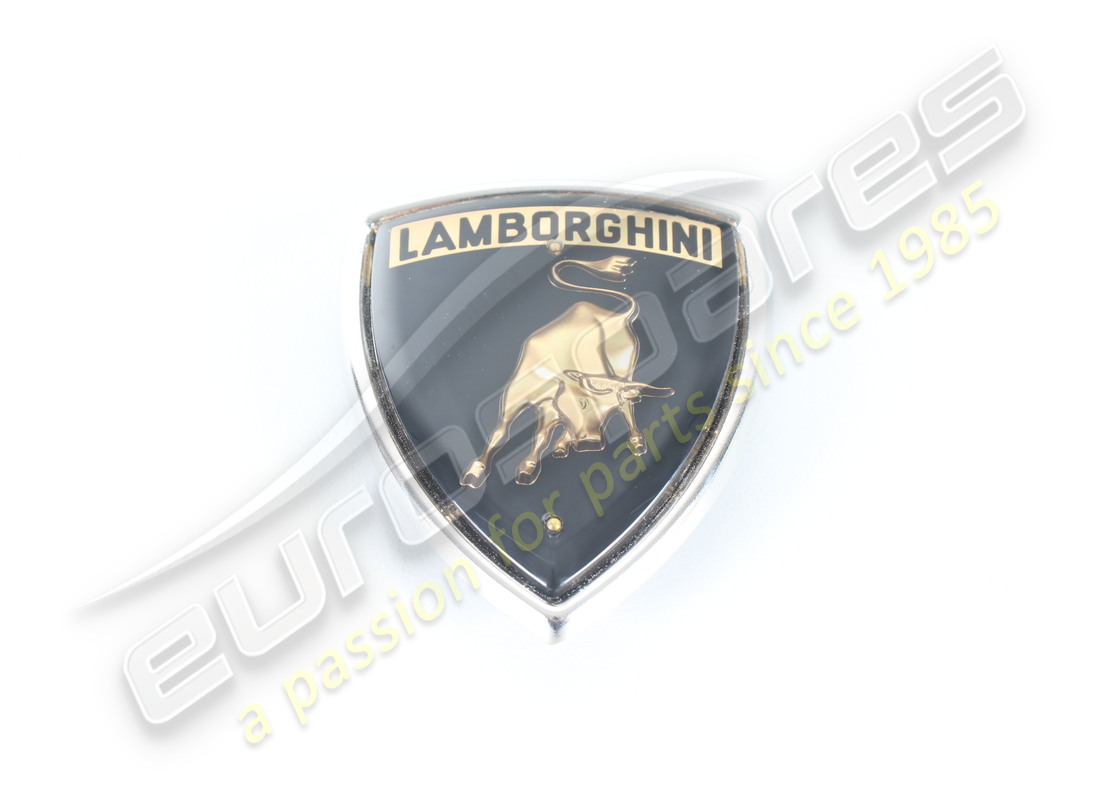

            # 001
            MPN: 006102515
            BONNET BADGE
            from £574.99
            from £574.99
            This part replaces part number 006119379
            # 002
            MPN: 007015002
            GARNIS
            Molura sigillo parabrezza
            # 003
            MPN: 007015015
            Mont
            Molura later, sin. sigillo parabrezza
            # 004

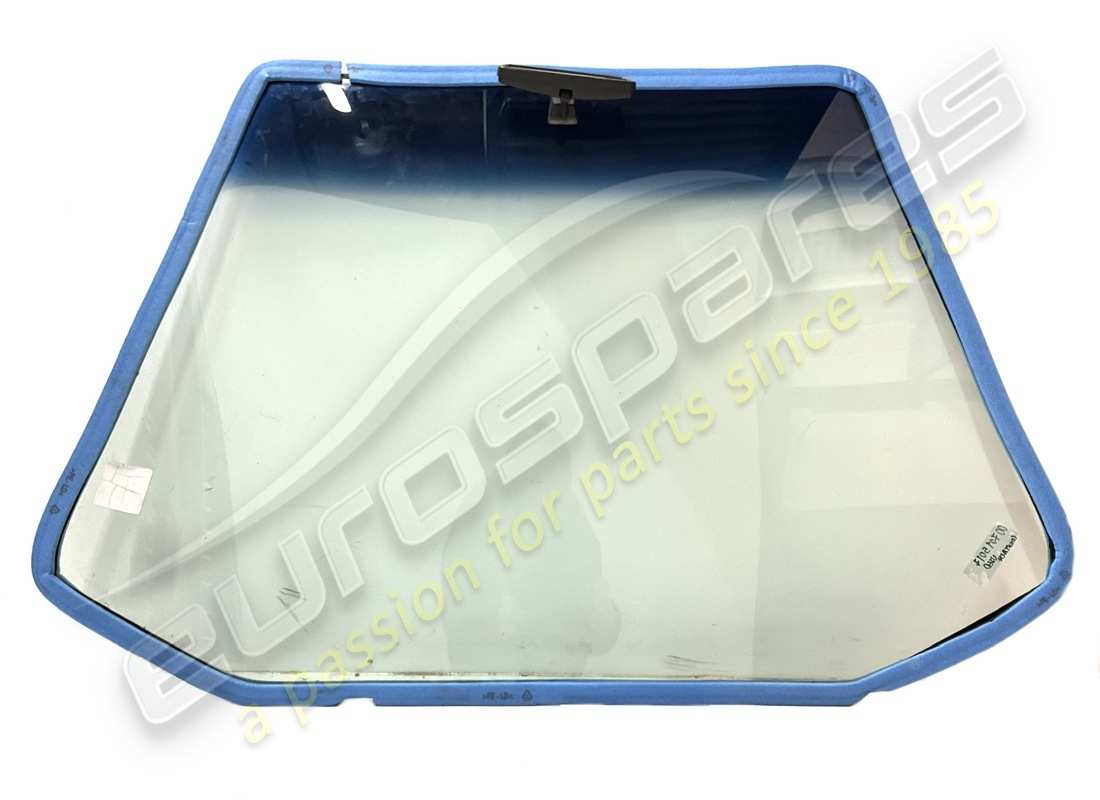

            MPN: 007015017
            WINDSC GLAS
            Parabrezza Countach senza antenna
            from £2,094.75
            from £2,094.75
            # 005
            MPN: 007015014
            Mont
            Molura super, sigillo parabrezza
            # 006
            MPN: 006958530
            ATR VENT TR
            Escutcheon 5.58.800 passenger compartment
            from £20.20
            from £20.20
            # 007
            MPN: 007018001
            REAR WINDOW
            Lunotto inf. abitacolo/C
            from £351.55
            from £351.55
            # 008

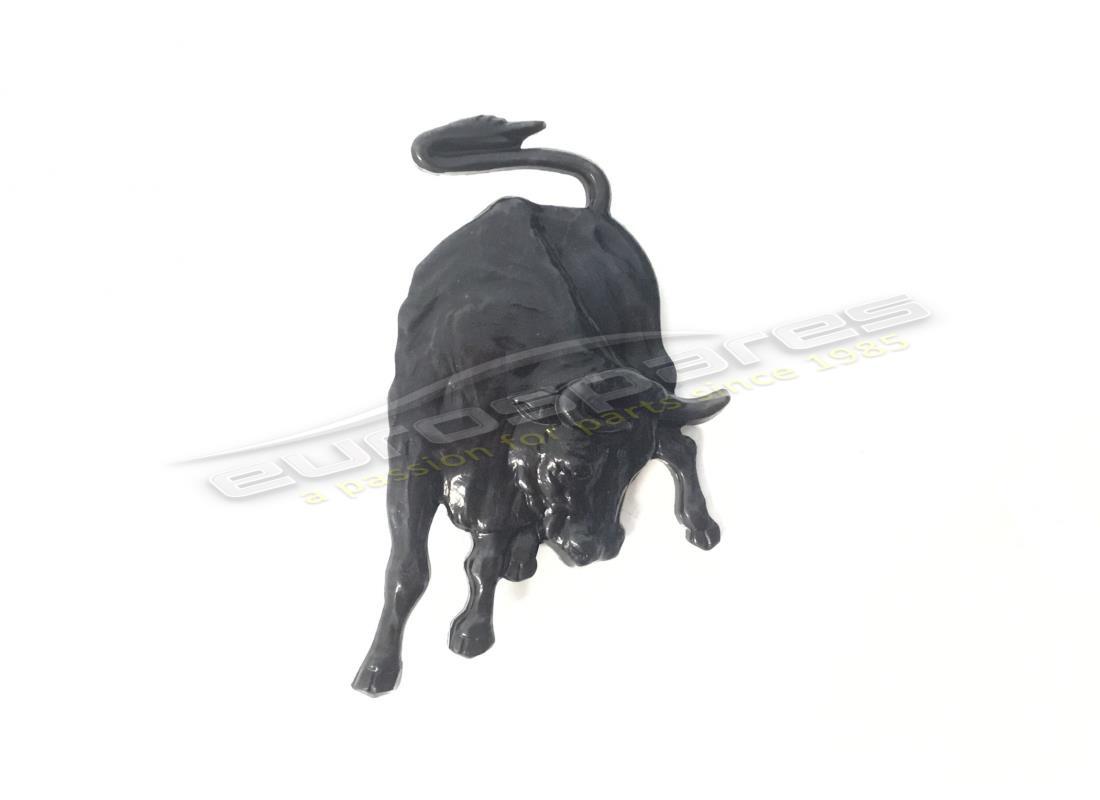

            MPN: 006121271

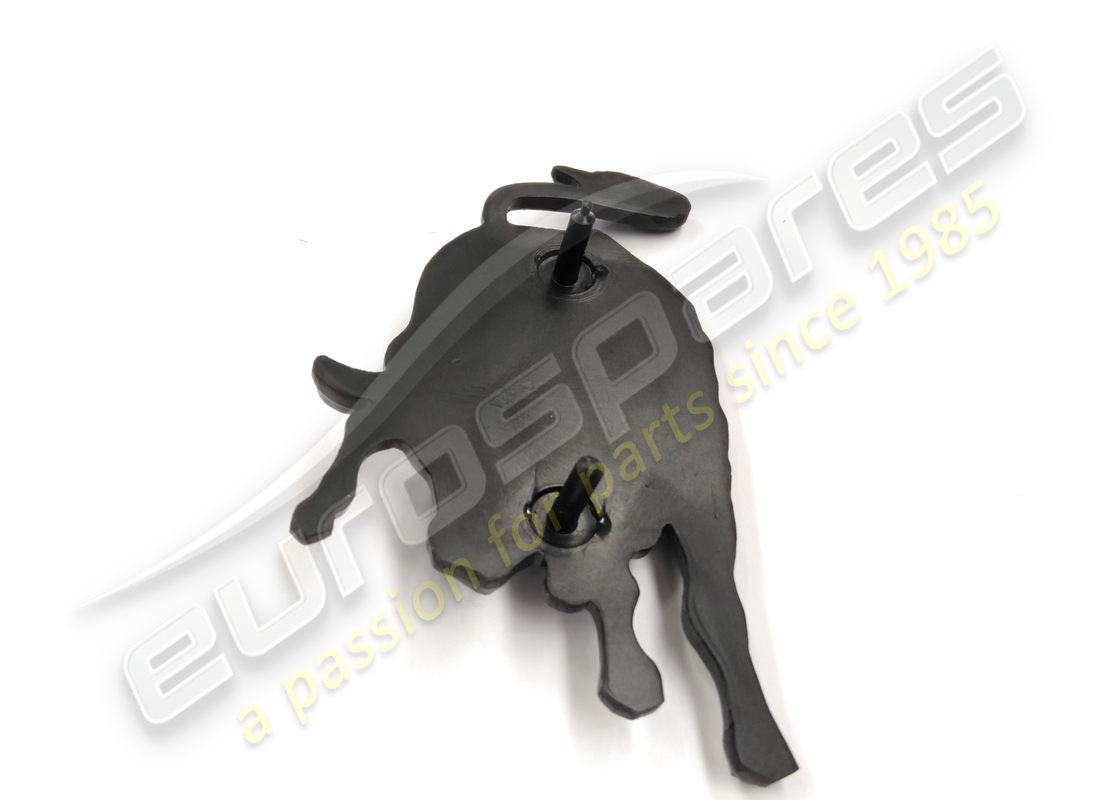

            BLACK BULL
            Marchio Lamborghini (toro allum. anodizz.) For Silver use part number : 006128588
            from £109.65
            from £109.65
            # 008
            MPN: 006124208
            BULL WHITE
            Toro (bianco)
            from £74.04
            from £74.04
            # 009
            MPN: 006122589
            NAME PLATE
            Scritta 5000 4 valv. col. nero Countach
            from £89.13
            from £89.13
            # 009
            MPN: 006122590
            WRITING
            Scritta 5000 4 valv. col. bianco Countach
            from £89.13
            from £89.13
            # 010
            MPN: 006111397

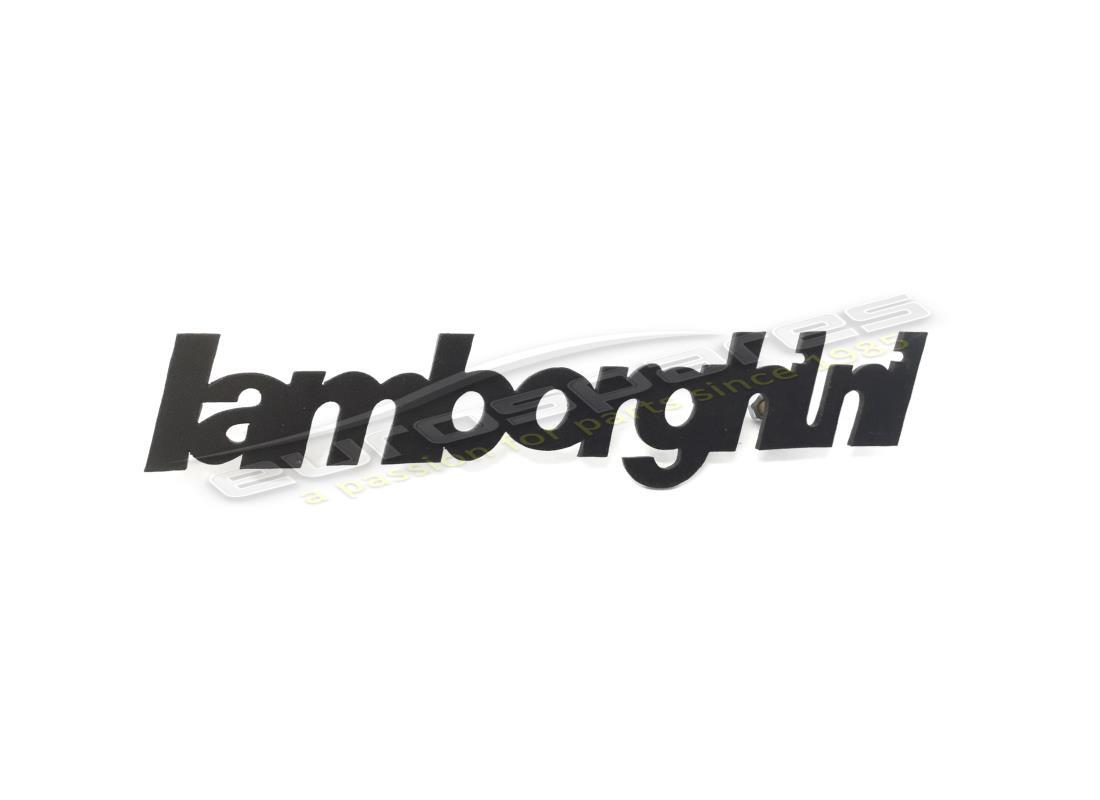

            Lamborghini NAME PLATE
            SCRITTA Lamborghini /C BLACK - FOR FLATE CHROME USE: 006128566
            from £78.75
            from £78.75
            # 010
            MPN: 006122952
            WHITE PLATE
            Scritta «Lamborghini» bianca
            from £84.98
            from £84.98

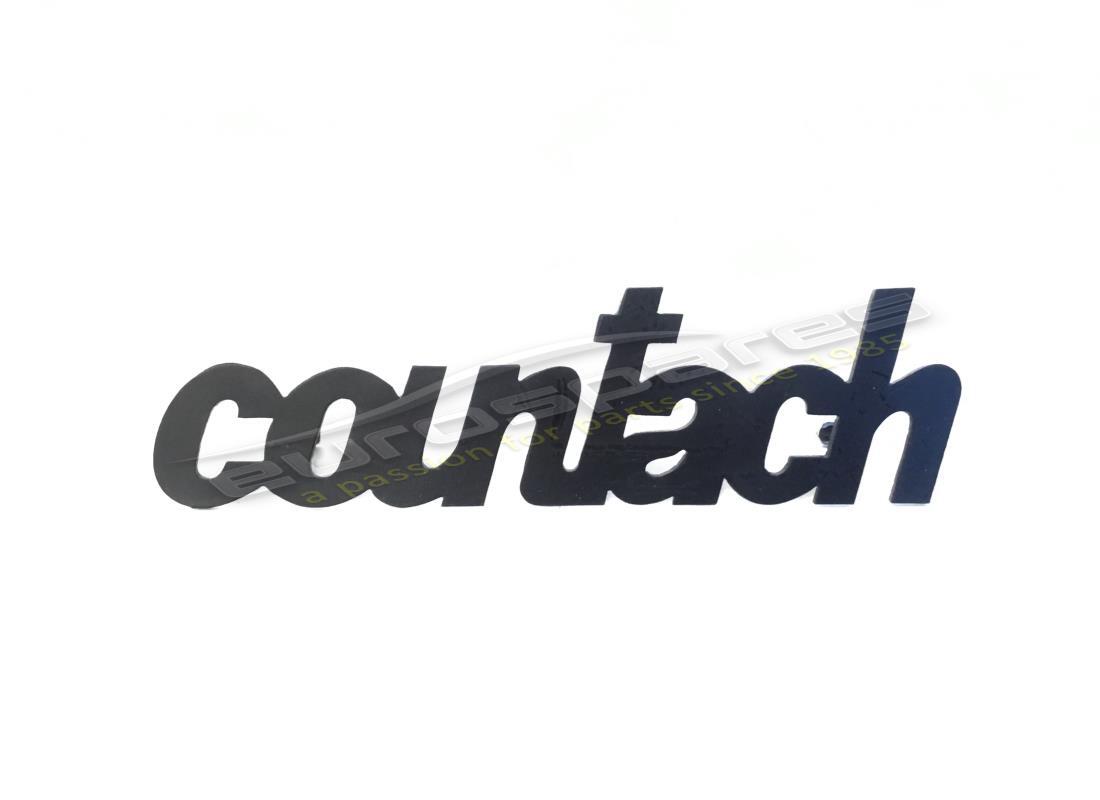

            # 011
            MPN: 006111345
            BLACK PLATE
            Scritta countach nero opaco
            from £81.90
            from £81.90
            # 011
            MPN: 006122953
            WHITE PLATE
            Scritta «Countach» (bianca)
            from £127.69
            from £127.69
            # 012
            MPN: 006111447
            NAME PLATE
            Targh. Dino 308 GT4/C
            from £150.00
            from £150.00
            This part replaces part number 006108347
            # 013
            MPN: 007059027
            PIN
            Perno x ammortizz.a gas apert. cofano
            from £78.68
            from £78.68

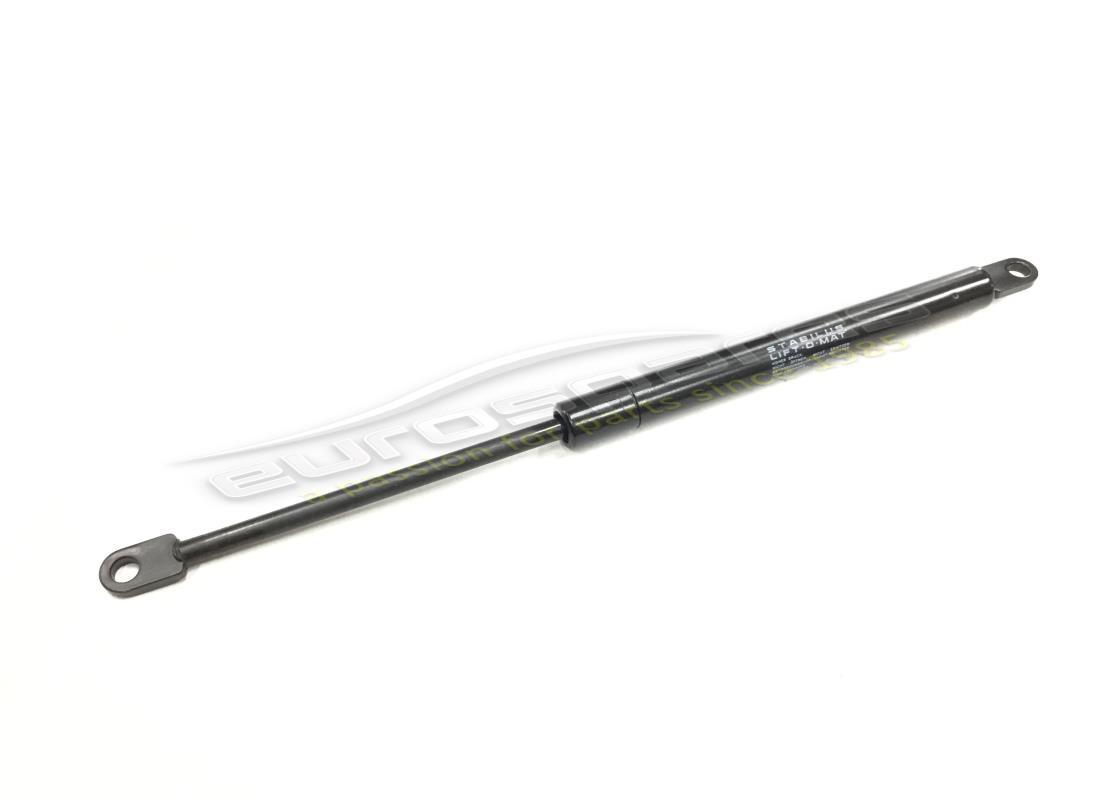

            # 014
            MPN: 007060043

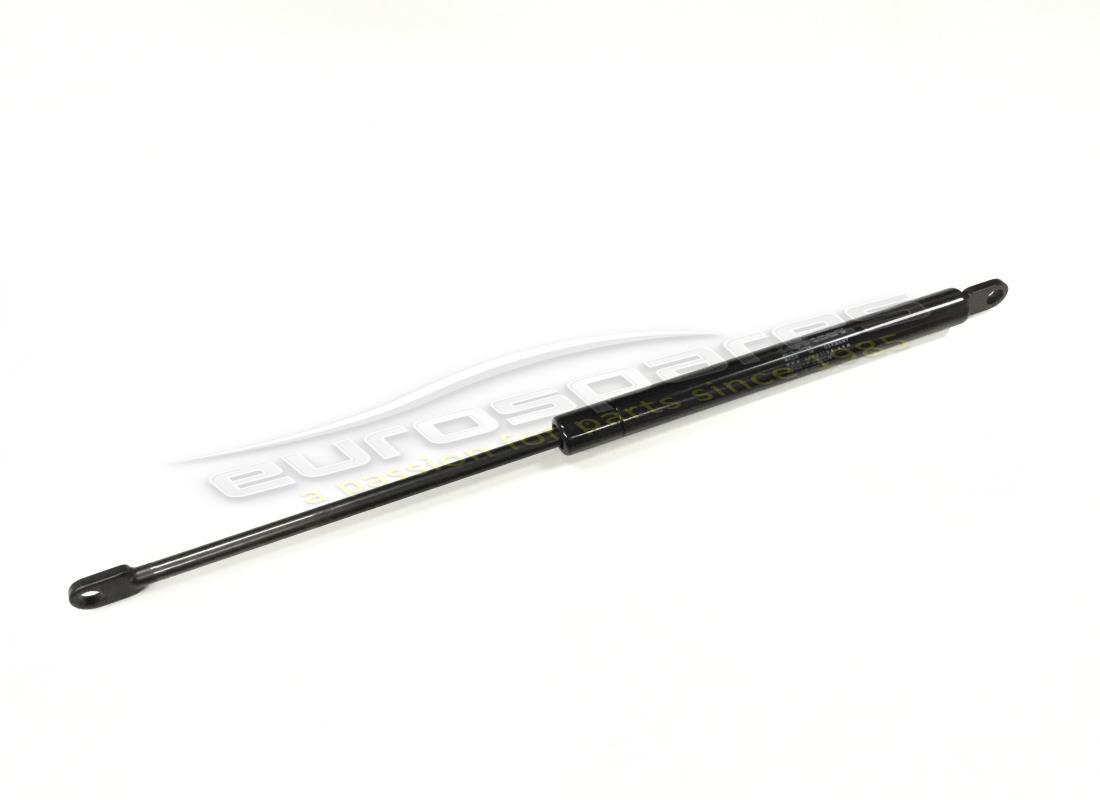

            SHOCK ABS
            Ammort.a gas x cof. mot. rif. 996167 Kg. 8
            from £93.69
            from £93.69
            # 015
            MPN: 008410602
            LOCK WASHER
            RONDELLA DI FERMO DIN 137/B
            from £28.28
            from £28.28
            # 016
            MPN: 008200606
            NUT
            Supersession
            Supersession
            # 017
            MPN: 007090085
            GASKET
            Guam. cm. 47 lung. vs. 0650
            # 018
            MPN: 007860035
            CAP
            Tappo reg. e battuta cof. mot. sul telaio
            from £87.48
            from £87.48
            # 019
            MPN: 007090085
            GASKET
            Guam. cm. 47 lungh. vs. 0650
            # 020
            MPN: 007090087
            GASKET
            Guam. cm. 100 lungh. vs. 0650
            # 021
            MPN: 007021110
            CHANNEL
            Canalina velluto E451
            # 022
            MPN: 007021108
            SIDE
            Canalina velluto post, x vetro fisso
            # 023
            MPN: 007059030
            TANK LOCK
            Serratura con fermacavo
            # 024
            MPN: 007021111
            TANK LOCK
            Canalina velluto lat. x vetro mobile
            from £77.56
            from £77.56
            # 025
            MPN: 007017007
            REAR WINDOW
            VOLETTO LAT. POST. SIN./C
            from £296.00
            from £296.00
            # 025
            MPN: 007017008
            REAR WINDOW
            Voletto lat. post. des./C
            from £296.00
            from £296.00
            # 026
            MPN: 006111688A
            RH RADIATOR VENT
            # 026
            MPN: 007060048
            GRILL
            Griglia des. ant. su cofano motore
            from £352.78
            from £352.78
            # 026
            MPN: 007060049
            GRILL
            Left grille front on the bonnet
            from £352.78
            from £352.78
            # 027
            MPN: 008700440

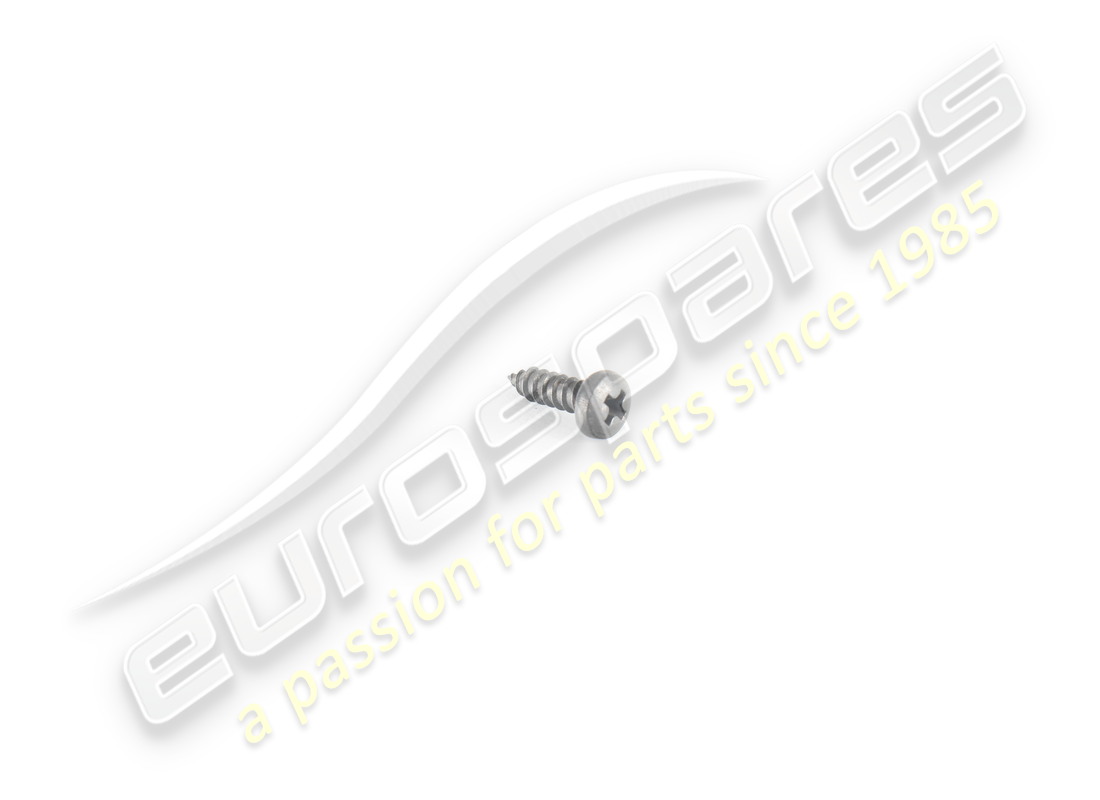

            BOLT
            Vite TSC 2,9Px6,5 DIN 7983 zinc, nera
            from £0.53
            from £0.53
            # 028

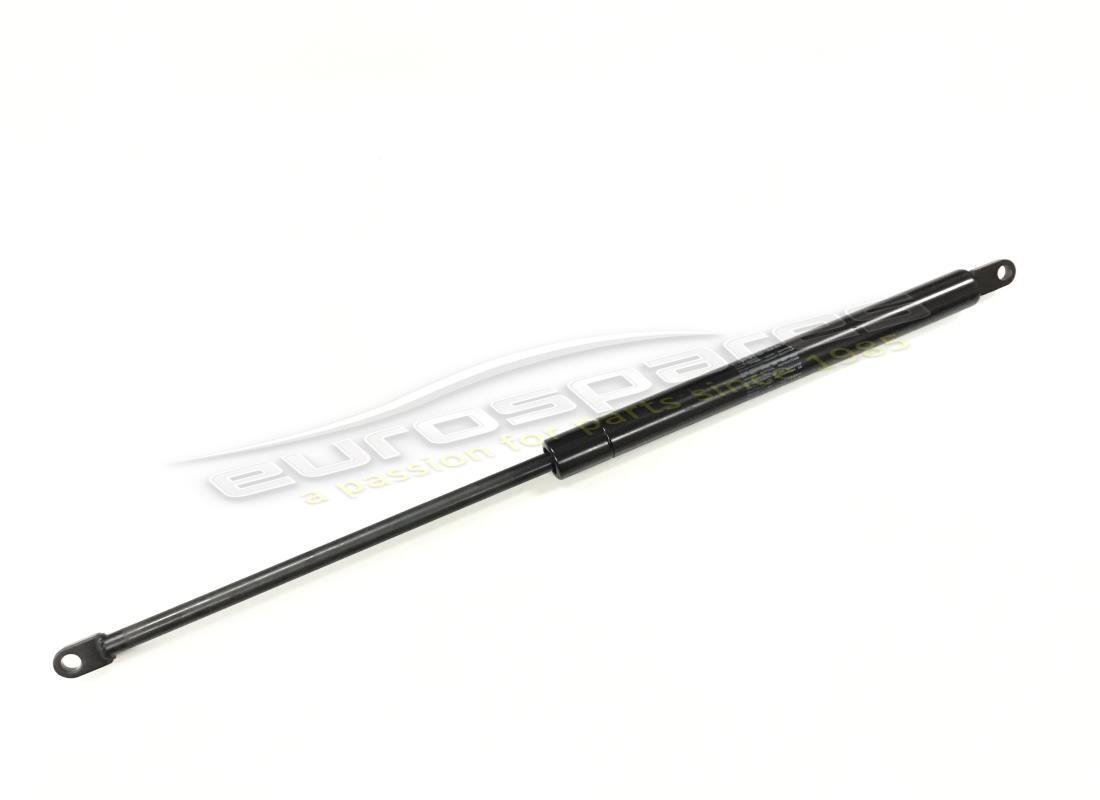

            MPN: 007029006
            ENGINE COVER STRUT
            Ammortizz. cofano rinforzato
            from £48.09
            from £48.09
            # 029
            MPN: 006111684
            RADIAT GRID
            Griglia scar, aria rad./C
            from £607.75
            from £607.75
            # 030
            MPN: WHT003304
            BOLT
            Vite 4 P 2,9x16 autofil. ace. inox crom. N
            from £0.53
            from £0.53
            # 031
            MPN: 007021109
            SIDE
            Canalina velluto ant. x vetro fisso
            # 032
            MPN: 007017003
            UPPER GLASS
            Vetro sup. sin./C
            from £657.49
            from £657.49
            # 032
            MPN: 007017004
            UPPER GLASS
            Vetro sup. des./c
            from £657.49
            from £657.49
            # 033
            MPN: 007021107
            CHANNEL
            Canalina vellutata 75 cm. cod. E 484
            from £35.24
            from £35.24
            # 034
            MPN: 007021111
            SIDE
            Canalina velluto lat. x vetro mobile
            from £77.56
            from £77.56
            # 035
            MPN: 007017005
            Door Glass
            SCENDENTE SIN./C
            from £2,762.53
            from £2,762.53
            # 035
            MPN: 007017006
            Door Glass
            Scendente des./c
            from £2,762.53
            from £2,762.53
            # 036
            MPN: 007090075
            BON GASKET
            Guarniz. x-cof. ant. vs. 10839 cm. 25
            from £76.12
            from £76.12
            # 037
            MPN: 007090088
            COWL GASKET
            Guam, x cof. ant. vs. 10839 cm. 215
            from £63.46
            from £63.46
            # 038
            MPN: 008100616
            BOLT
            Bull. M6x16 UNI 5739/5S
            from £0.52
            from £0.52
            # 039
            MPN: WHT002961
            WASHER
            Rond. 6,5x18x1,5
            from £0.52
            from £0.52
            This part replaces part number 008400607
            # 040
            MPN: 008200604
            NUT
            DADO M6 UNI 5588-65/8G
            Supersession
            Supersession
            # 041
            MPN: WHT001187
            WASHER
            Rond. 5,3 UNI 1734 5S
            from £0.54
            from £0.54
            This part replaces part number 008400502
            # 042
            MPN: 007059034
            SHOCK ABS
            Ammort. a gas x cof. ant. rif. 9907052 Kg. 5 - USE 007021195
            from £74.95
            from £74.95
            # 043
            MPN: 007059012
            BONNET CABL
            Rond. fiss. cavi cofani
            from £13.14
            from £13.14
            # 044
            MPN: 007090067
            COWL GASKET
            Guarniz. x cofano vs. 10839 cm. 40
            from £66.24
            from £66.24
            # 045
            MPN: 008580702
            LOCK RING
            SEEGER 7 9 DIN 6799
            from £11.53
            from £11.53
            # 046
            MPN: WHT002961
            WASHER
            Rond. 6,5x18x1,5
            from £0.54
            from £0.54
            This part replaces part number 008400607
            # 047
            MPN: N01020717
            BOLT
            Bull. M5x12 UNI 5739/5S
            from £0.53
            from £0.53
            This part replaces part number 008100504
            # 048
            MPN: 007090075
            BON GASKET
            Guarniz. x cof. ant. vs. 10839 cm. 25
            from £76.12
            from £76.12
            # 049
            MPN: 007059004
            BONNET HING
            Cerniera sin. cofani/C
            from £99.01
            from £99.01
            # 050
            MPN: WHT001187
            WASHER
            Rond. 5,3 UNI 1734 5S
            from £0.53
            from £0.53
            This part replaces part number 008400502
            # 051
            MPN: 007059048
            CABLE
            Compl. cavo emerg. cofano ant.
            from £79.20
            from £79.20
            # 052
            MPN: 007059047
            CABLE
            Compl. cavo apert. cofano ant.
            from £79.20
            from £79.20
            # 053
            MPN: 007015016
            Mont
            Molura later, des. sigillo parabrezza
            # 054
            MPN: 007021041
            GASKET
            Guarnizione x supporto vetro mobile
            # 055
            MPN: 007021034
            GLASS SUPPO
            Supporto vetro mobile
            from £234.64
            from £234.64
            # 056
            MPN: 008100506
            BOLT
            Bull. M5x14 UNI 5739-65/A8G
            from £6.43
            from £6.43
            # 057
            MPN: 007021035
            CABLE PLATE
            Piastr. cavo alzavetro
            from £46.85
            from £46.85
            # 058
            MPN: 007021112
            SIDE CHANNEL RUBBER
            from £121.05
            from £121.05
            # 059
            MPN: 007017001
            SIDE WINDOW
            VOLETTO FISSO SIN./C
            from £438.61
            from £438.61
            # 059
            MPN: 007017002
            SIDE WINDOW
            Voletto fisso des./c
            from £438.61
            from £438.61
            # 060
            MPN: 007021113
            SIDE
            Canalina velluto post, x deflettore
            from £62.69
            from £62.69
            # 061
            MPN: 006405010
            BONNET HAND
            Manigl. cofano ant. art. 204
            from £61.69
            from £61.69
            # 062
            MPN: 007021012
            DOOR HINGE
            Compl. cerniera porta des.
            from £90.06
            from £90.06
            # 062
            MPN: 007021013
            DOOR HINGE
            Compl. cerniera porta sin.
            # 063
            MPN: 007017016
            SPACER
            Cornice x vetro laterale post. des.
            Supersession
            Supersession
            # 063
            MPN: 007017017
            SPACER
            Cornice x vetro lat. post. sin.
            Supersession
            Supersession
            # 064
            MPN: 007090069
            DOOR GASKET
            Guam. cm. 150 lungh. vs. 0650
            from £45.31
            from £45.31
            # 065
            MPN: 007021096
            CROSS MEMB.
            Compl. trav. fra crist. fisso crist. mobile
            from £194.13
            from £194.13
            # 066
            MPN: 007090080
            DOOR GASKET
            Guam. cm. 55 lungh. vs. 0650
            from £31.12
            from £31.12
            # 067
            MPN: 007021115
            VELVET
            Velluto armato raschia acqua x vetro def.
            # 068
            MPN: 007021114
            VELVET
            Velluto armato raschia acqua x vetro mob.
            from £65.50
            from £65.50
            # 069
            MPN: 007021195
            DOOR STRUT
            Ammort. a gas x porte rif. 6777 Kg. 80
            from £53.38
            from £53.38
            # 070
            MPN: 007021193
            PINS
            Perno fiss. ammort. alia porta
            from £19.15
            from £19.15
            # 071
            MPN: 007021092
            MOULDING
            Molura cornice cristallo mobile porta des.
            from £372.28
            from £372.28
            # 071
            MPN: 007021093
            MOULDING
            Molura cornice cristallo mobile porta sin.
            from £372.28
            from £372.28
            # 072
            MPN: 007021038
            CABLE
            CAVO MANIGLIA INT. PORTE
            from £16.52
            from £16.52
            # 073
            MPN: 007021016
            BALL JOINT
            Testina com. serr. 78926/C
            Supersession
            Supersession
            # 074
            MPN: 006558588
            KNOB
            Pomello sic. porte 4108831
            from £9.26
            from £9.26
            # 075
            MPN: 007021030
            LOCK SUPPORT
            Supp. leva serratura des.
            from £103.52
            from £103.52
            # 075
            MPN: 007021031
            LOCK SUPPORT
            Supp. leva serratura sin.
            from £188.21
            from £188.21
            # 076
            MPN: 007021191
            lock
            Blocchetto serrature compl. porta des.
            from £624.75
            from £624.75
            # 076

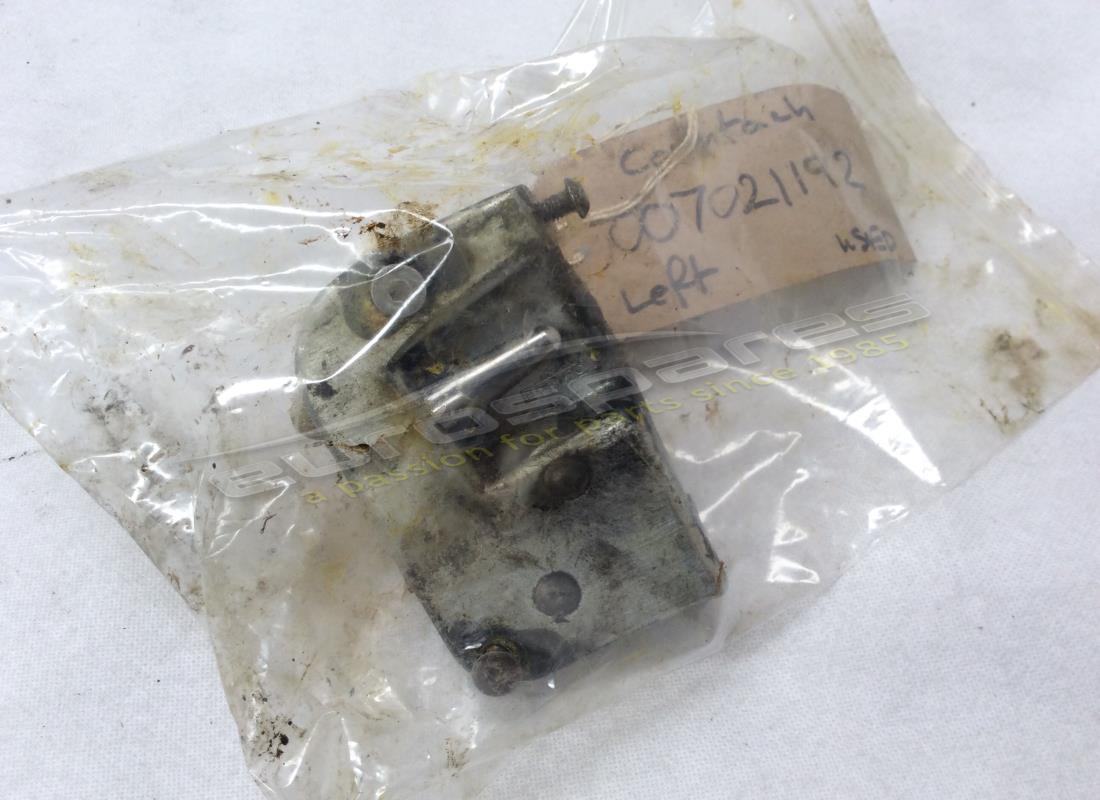

            MPN: 007021192
            lock
            Blocchetto serrature compl. porta sin.
            from £624.75
            from £624.75
            # 077
            MPN: 007021130
            OPEN CNTRL
            Leva com. apert. blocc. serrat. porta sin.
            from £50.85
            from £50.85
            # 077
            MPN: 007021131
            OPEN CNTRL
            Leva com. apert. blocc. serrat/port. des.
            from £61.57
            from £61.57
            # 078
            MPN: 007021129
            CNTRL LEV P
            Piast. leva com. ap. blocc. serr. porta des.
            from £74.37
            from £74.37
            # 078
            MPN: 007021132
            OP CNTRL LE
            Piastr. x leva com. apert. blocc. serr. porta sin.
            from £37.19
            from £37.19
            # 079
            MPN: 007021134
            HINGE
            Maniglia x alzacris. compl. P8251
            # 080
            MPN: 007021135
            HINGE
            Rosone x maniglia P8181
            from £17.64
            from £17.64
            This part replaces part number 007021148
            # 081
            MPN: 007017014
            WINDOW MOTO
            Disp. alzacrist. art. 12 mod.
            # 082
            MPN: 007021181
            lock
            Complessivo maniglia int. apert. porta
            # 083
            MPN: 007021040
            TIE ROD
            Tirante sicura est. porte
            from £32.99
            from £32.99
            # 084
            MPN: 007090073
            DOOR GASKET
            Guam. cm. 190 lungh. vs. 0428
            from £52.83
            from £52.83
            # 085
            MPN: 007021190
            SET LOCKS
            Impariglio serrat. porte
            # 086
            MPN: 007030012
            GRILL
            Griglia infer, x presa aria radiat. des.
            from £500.78
            from £500.78
            # 086
            MPN: 007030013
            GRILL
            Griglia infer, x presa aria radiat. sin.
            from £500.78
            from £500.78
            # 087
            MPN: 007059049
            lock
            Compl. apert. cofano motore
            from £152.61
            from £152.61
            # 088
            MPN: 007059051
            CABLE
            Compl. cavo apert. cofano baule
            from £51.62
            from £51.62
            # 089
            MPN: 007059052
            CABLE
            Compl. cavo emerg. cofano baule
            from £79.20
            from £79.20
            # 090
            MPN: 410831407A
            LEFT LOCK STRIKER
            from £163.12
            from £163.12
            # 090
            MPN: 410831408A
            RIGHT LOCK STRIKER
            from £287.71
            from £287.71
            # 091
            MPN: 008700433
            SCREW
            Vite 4 P 2,9x9,5 autofil ace. inox crom. N
            from £0.53
            from £0.53
            # 092
            MPN: 007021002
            CLAMP PLATE
            Piastr. fiss. riscontro
            from £33.95
            from £33.95
            # 093
            MPN: 007059050
            CABLE
            Compl. emergenza cofano motore
            from £79.20
            from £79.20
            # 094

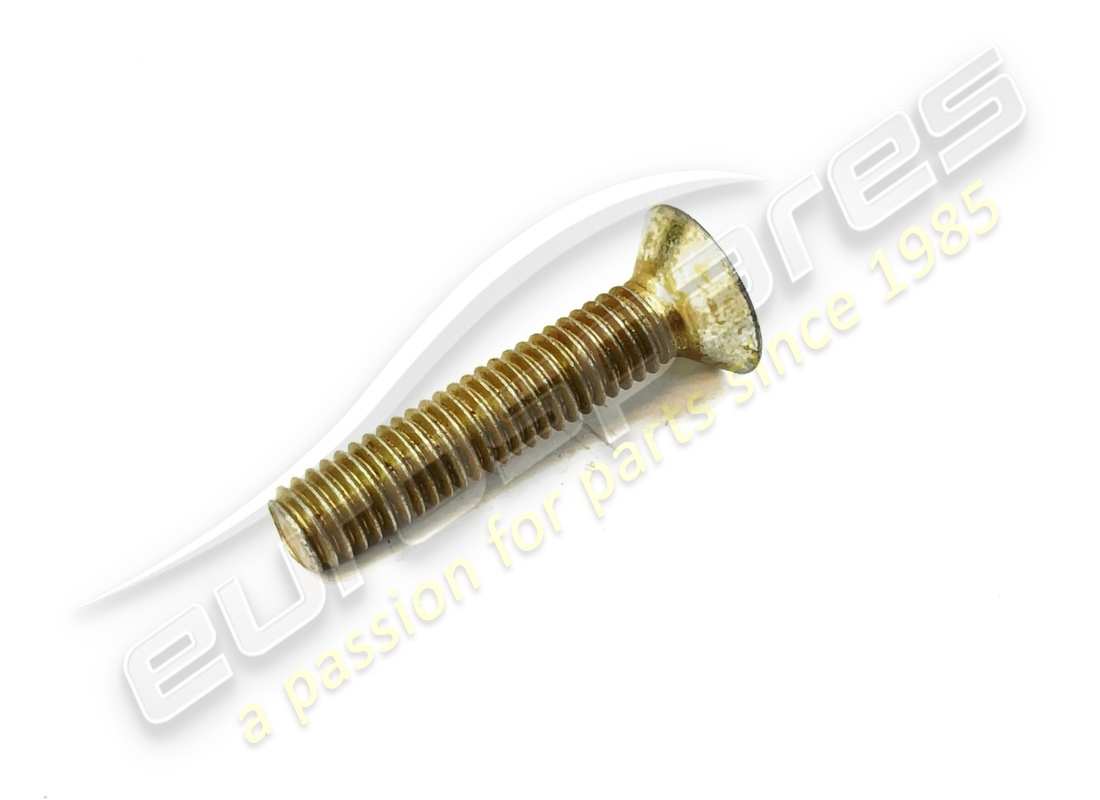

            MPN: 008700632
            SCREW
            Vite M6x30 UNI 5933-8G
            from £0.51
            from £0.51
            # 095
            MPN: 006111684
            AIR INTAKE COVER
            from £607.75
            from £607.75
            # 095
            MPN: 006111684
            AIR INTAKE COVER
            from £607.75
            from £607.75
            # 096
            MPN: 007060006
            HANDLE
            Manigl. cofani X1/9
            from £187.39
            from £187.39
            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
