lamborghini countach 5000 s (1984) fuel system parts diagram

003 - fuel system

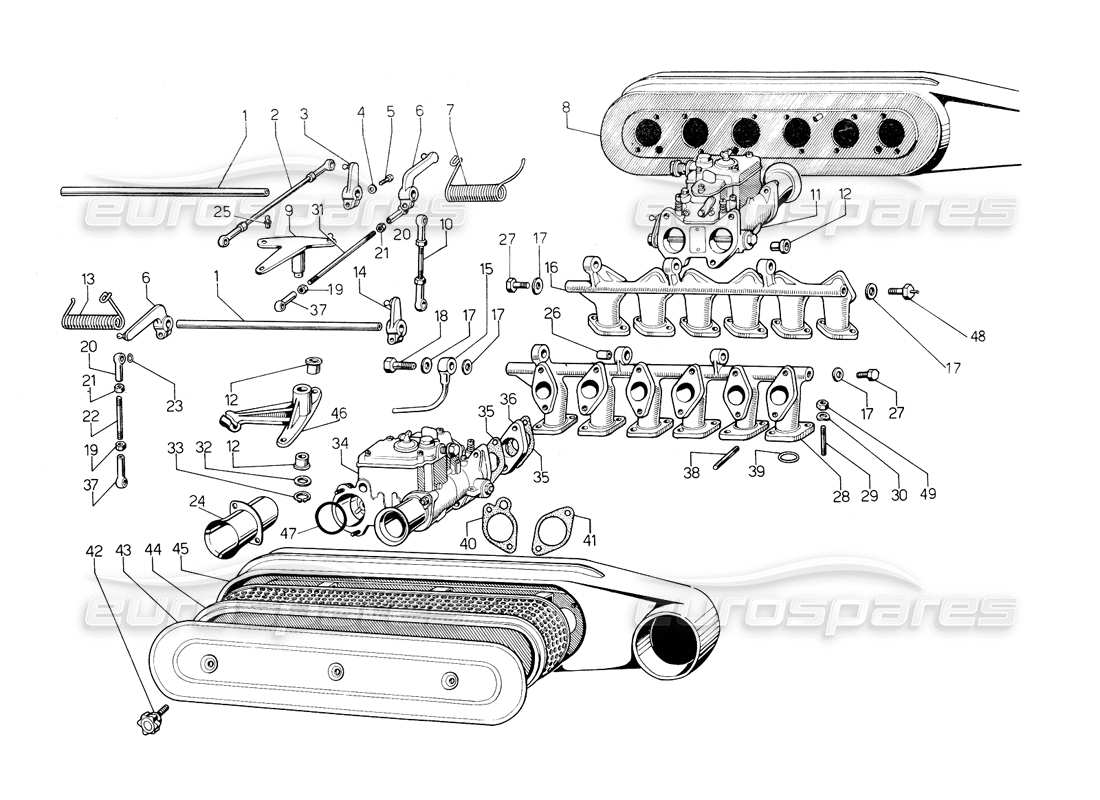

Lamborghini Countach 5000 S (1984) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 000
    MPN: 70098003

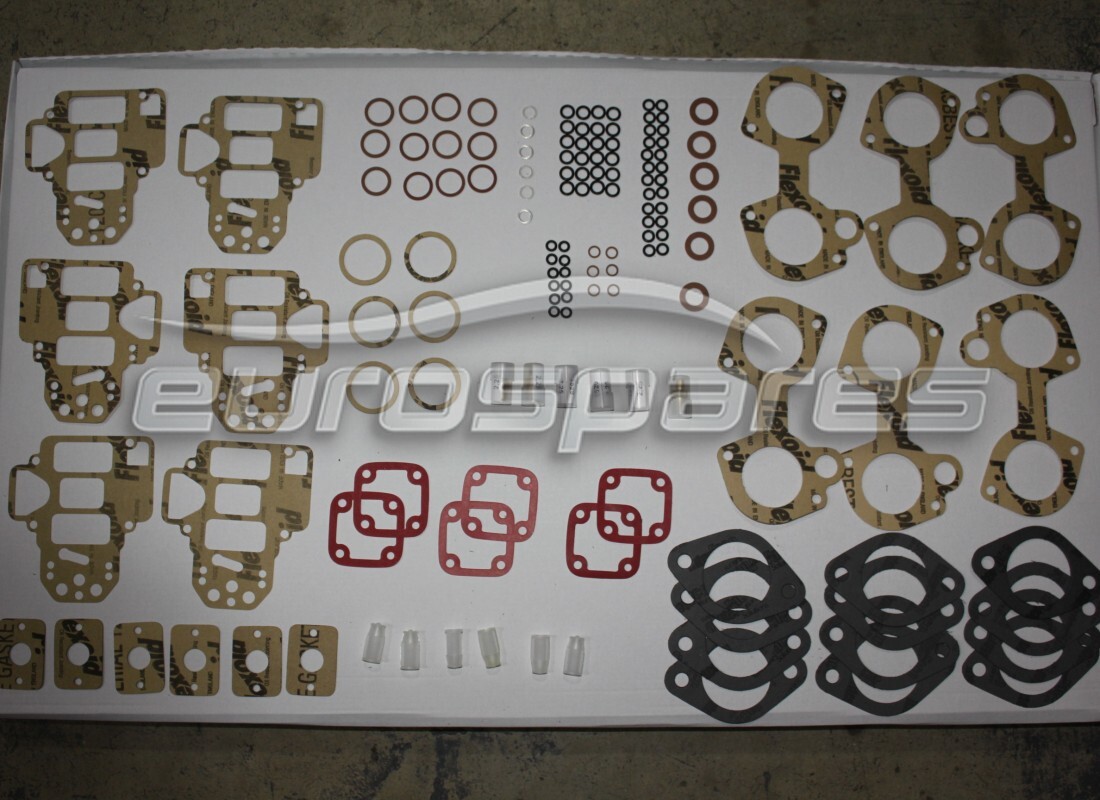

    CARBURETTOR REAPIR KIT
    (6 carbs)
    from £519.75
    from £519.75
    CARBURETTOR REPAIR KIT Genuine Lamborghini - New In stock
    # 001
    MPN: 001309433
    CARBUR SHAFT
    Alberino com. carburat./C
    from £37.62
    from £37.62
    CARBURETTOR DRIVE SHAFT Genuine Lamborghini - New (to order)
    # 002
    MPN: 001310583
    CARBUR UNIT
    Compl. tir. carb. lungo E/J
    from £91.66
    from £91.66

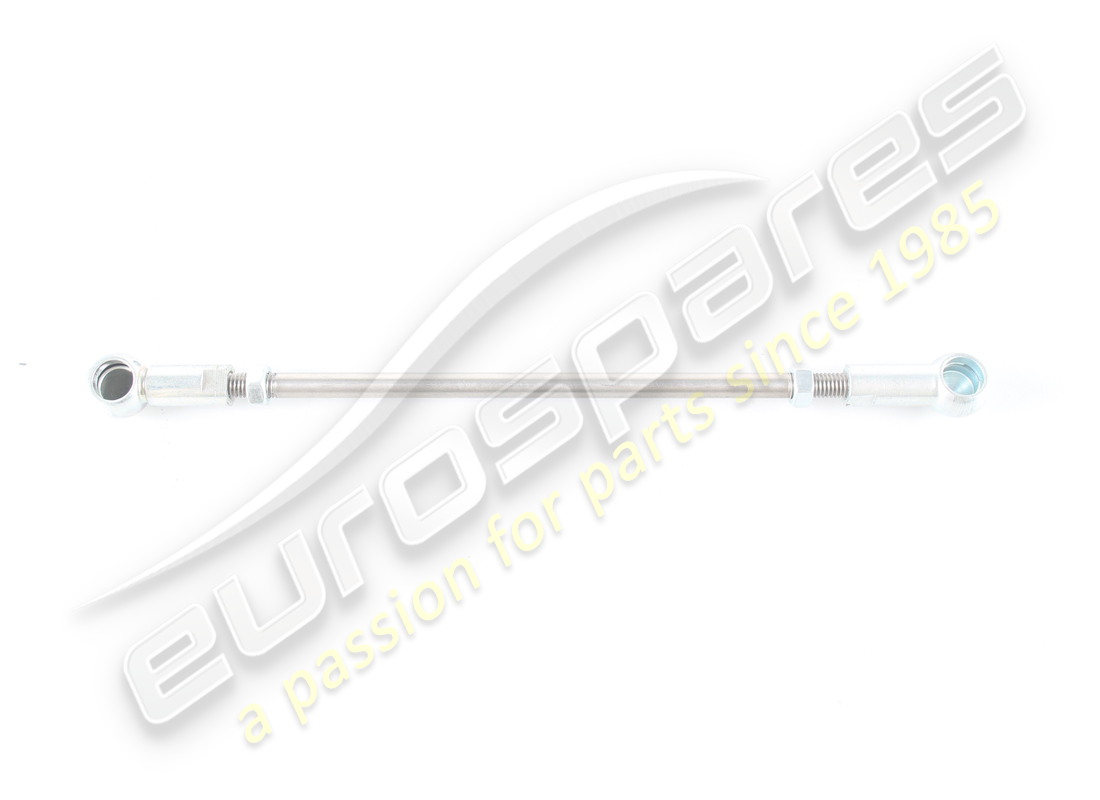

    CARBURETTOR LONG TIEROD ASSEMB LY Genuine Lamborghini - New In stock
    # 003
    MPN: 001301093
    CARBUR LEVE
    Leva com. aste carb.
    from £143.10
    from £143.10
    CARBURETTOR ROD LEVER Genuine Lamborghini - New In stock
    # 004
    MPN: 008410603
    LOCK WASHER
    Rond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 005
    MPN: 008100618
    BOLT
    Bull. M6x20 UNI 5739-8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 006
    MPN: 001301095
    CARBUR LEVE
    Leva com. carburatore
    from £326.84
    from £326.84
    CARBURETTOR LEVER Genuine Lamborghini - New (to order)
    # 007
    MPN: 001312015
    SPRING
    Mo I la leva carb. sin C.
    from £117.74
    from £117.74
    LH FUEL LEVERS SPRING Genuine Lamborghini - New (to order)
    # 008
    MPN: 001320160
    PROTECTION
    Involucro depurat. aria sin.
    PROTECTION Genuine Lamborghini - New (to order)
    # 009
    MPN: 001319925
    LEVER
    Compless. rinvio com. acceleratore
    from £237.96
    from £237.96
    ACCELERATOR CONTROL TRANSMISSI ON UNIT Genuine Lamborghini - New (to order)
    # 010
    MPN: 001310582
    CARBUR UNIT
    Compl. tir. carb. corto E/J
    from £327.70
    from £327.70
    SHORT LINK ASSEMBLY Genuine Lamborghini - New (to order)
    # 011
    MPN: 001319505
    carburetor
    Carburatori sin. compl. orig. Weber 142
    Lamborghini PART 001319505 Genuine Lamborghini - New (to order)
    # 011
    MPN: 001320552
    CARB
    (Valid for SWITZERLAND - January 1984) Complessivo carburatore sin.
    from £451.04
    from £451.04
    LH CARBURETTOR ASSEMBLY Genuine Lamborghini - New (to order)
    # 011
    MPN: 001320756
    CARB
    (Valid from chassis No. 535) Carburatore sin. completo
    Lamborghini PART 001320756 Genuine Lamborghini - New (to order)
    # 012
    MPN: 008801204
    BUSH
    Bocc. 12F7/16/18x10-2
    from £5.85
    from £5.85
    BUSHING 7X16X18 MM Genuine Lamborghini - New (to order)
    # 013
    MPN: 001312016
    SPRING
    Molla leva carb. des. 1C
    from £117.74
    from £117.74
    RH FUEL LEVERS SPRING Genuine Lamborghini - New (to order)
    # 014
    MPN: 001305396
    LEVER
    Leva com. aste carbur.
    from £57.97
    from £57.97
    CARBURETTOR ROD CONTROL LEVER Genuine Lamborghini - New (to order)
    # 015
    MPN: 003204610
    UNION
    Race, presa depress.
    from £89.49
    from £89.49
    VACUUM UNION Genuine Lamborghini - New (to order)
    # 016
    MPN: 001319048
    MANIFOLD
    Collettore Asp. sin. .
    from £487.66
    from £487.66
    LH INTAKE MANIFOLD Genuine Lamborghini - New (to order)
    # 017
    MPN: 008401610
    WASHER
    Rond. 22x15,5x0,5 rame
    from £6.32
    from £6.32
    ANNEALED COPPER WASHER 16X22X0 .5 Genuine Lamborghini - New In stock
    # 018
    MPN: 003101941
    BOLT
    Race, Tubi depressions
    from £2.64
    from £2.64
    VACUUM UNION PIPE Genuine Lamborghini - New (to order)
    # 019
    MPN: 008200501
    NUT
    DADO M5 UNI 5588-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 020
    MPN: 001308539
    LEVER
    Corpo test, leve carbur. /U
    TESTINA SIN Genuine Lamborghini - New (to order)
    # 021
    MPN: N10690001
    NUT
    Dado 5x0,8 sin. CHS 8G
    from £318.19
    from £318.19
    HEX.NUT Genuine Lamborghini - New (to order)
    # 022
    MPN: 008300508
    STUD
    Prig, tirante leve carbur. (tirante corto)
    from £58.05
    from £58.05
    PRIG.SPEC.M5X28 Genuine Lamborghini - New (to order)
    # 023
    MPN: 001300805
    MOLLA
    MOLLETTA
    SPRING Genuine Lamborghini - New (to order)
    # 024
    MPN: 001310668
    CARBUR TRUM
    Trombetta Carburatori 1C
    from £18.08
    from £18.08
    CARBURETTOR HORN Genuine Lamborghini - New (to order)
    # 025
    MPN: 001300803
    PIN
    Testina sferica leva
    from £20.78
    from £20.78
    LEVER BALL JOINT Genuine Lamborghini - New In stock
    # 026
    MPN: 008801205
    BUSH
    Bocc. 12F7/16x12
    from £13.69
    from £13.69
    BUSHING 12X16X12 MM Genuine Lamborghini - New (to order)
    # 027
    MPN: 008931602
    PLUG
    Tappo collett. asp. D/S
    from £3.03
    from £3.03
    PLUG Genuine Lamborghini - New (to order)
    # 028
    MPN: 001319047
    MANIFOLD
    Collettore asp. des.
    from £487.66
    from £487.66
    RH INTAKE MANIFOLD Genuine Lamborghini - New (to order)
    # 029
    MPN: 008300822
    BOLT
    Prig. 8x1,25x1880
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 030
    MPN: WHT001514
    LOCK WASHER
    Ros. el. 8,4x17x0,8
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
    # 031
    MPN: 008300509
    STUD
    Prigioniero x tirante com. Carburatori
    THREADED STUD Genuine Lamborghini - New (to order)
    # 032
    MPN: 008401215
    WASHER
    Rond. 12,5x20x1,5
    from £7.26
    from £7.26
    WASHER 12.5X20X1.5 Genuine Lamborghini - New In stock
    # 033
    MPN: 008581101
    LOCK RING
    SeegerAA12E
    from £3.65
    from £3.65
    O-RING E 12 UNI 7435-75 Genuine Lamborghini - New (to order)
    # 034
    MPN: 001319506
    carburetor
    Original Weber 45 DCOE9 (italian made)
    Lamborghini PART 001319506 Genuine Lamborghini - New (to order)
    # 034
    MPN: 001320553
    CARB
    (Valid for SWITZERLAND - January 1984) Complessivo carburatore des.
    from £451.04
    from £451.04
    RH CARBURETTOR ASSEMBLY Genuine Lamborghini - New (to order)
    # 034
    MPN: 001320755
    CARB
    (Valid from chassis No. 535) Carburatore dex. (spanish made)
    from £246.43
    from £246.43
    RH CARBURETTORS ASSEMBLY Genuine Lamborghini - New (to order)
    # 035
    MPN: 001310669

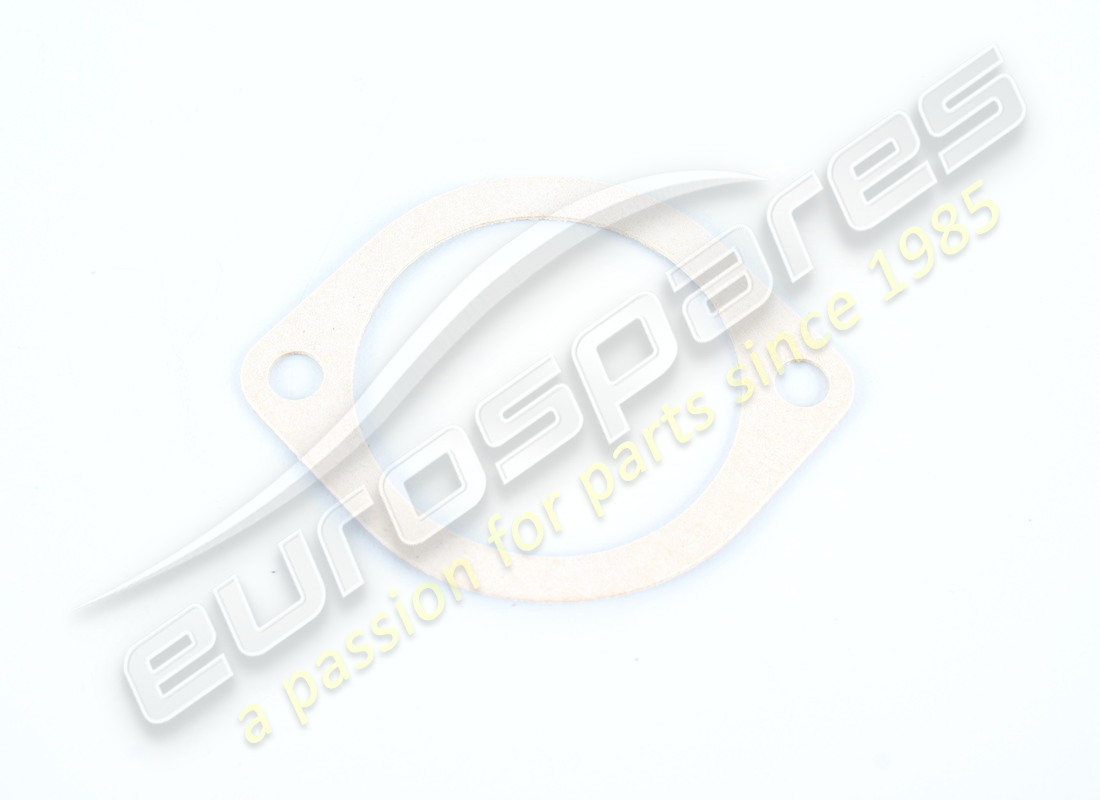

    CARB. GASKET
    Guam. carbur/collett/C
    from £12.81
    from £12.81
    SHIM SEAL BETWEEN MANIFOLDS Genuine Lamborghini - New In stock
    # 036
    MPN: 001310670
    CARB. SPACER
    Spess. celeron carbur./C
    from £46.43
    from £46.43
    CARBURETTOR CELERON SHIMS Genuine Lamborghini - New (to order)
    # 037
    MPN: 001300804
    BALL HOUSIN
    Corpo test. sfer. cavo
    from £7.38
    from £7.38
    HEAD UNIT Genuine Lamborghini - New In stock
    # 038
    MPN: 008300823
    BOLT
    Prig. M8x28UNI 5909/8G
    from £4.37
    from £4.37
    STUD M8X28 UNI 5909/8G Z Genuine Lamborghini - New (to order)
    # 039
    MPN: 008604202
    SEAL RING
    AnelloOR3168
    from £7.94
    from £7.94
    RING 43 MM OR Genuine Lamborghini - New In stock
    # 040
    MPN: 001301221
    AIR GASKET
    Guam, filtro aria
    from £11.59
    from £11.59
    AIR CLEANER SEAL Genuine Lamborghini - New In stock
    # 041
    MPN: 001301222
    AIR GASKET
    Guam, filtro aria
    from £4.12
    from £4.12
    AIR CLEANER SEAL Genuine Lamborghini - New (to order)
    # 042
    MPN: 001309421

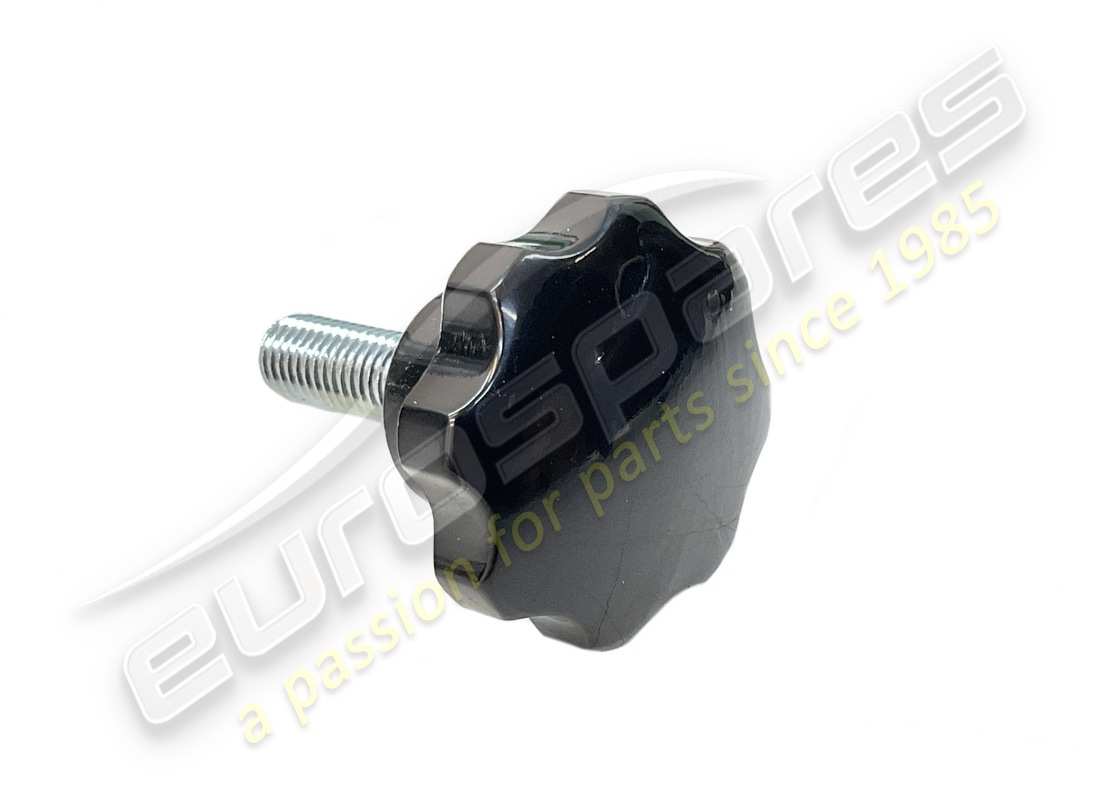

    FILTER KNOB
    Volantino VH 153/35PM8x25
    from £52.20
    from £52.20
    HANDWHEEL VH 153/35PM8X25 Genuine Lamborghini - New (to order)
    # 043
    MPN: 001320202
    COVER
    Cop. depurat. aria
    from £336.35
    from £336.35
    AIR CLEANER COVER Genuine Lamborghini - New (to order)
    # 043
    MPN: LST003D
    FIAAM AIR BOX STICKER RHS
    from £10.50
    from £10.50
    Fiaam Air Filter Box Sticker (Right) Genuine Lamborghini - New In stock
    # 043
    MPN: LST003S
    FIAAM AIR BOX STICKER LHS
    from £10.50
    from £10.50
    Fiaam Air Filter Box Sticker (Left) Genuine Lamborghini - New In stock
    # 044
    MPN: 001304531

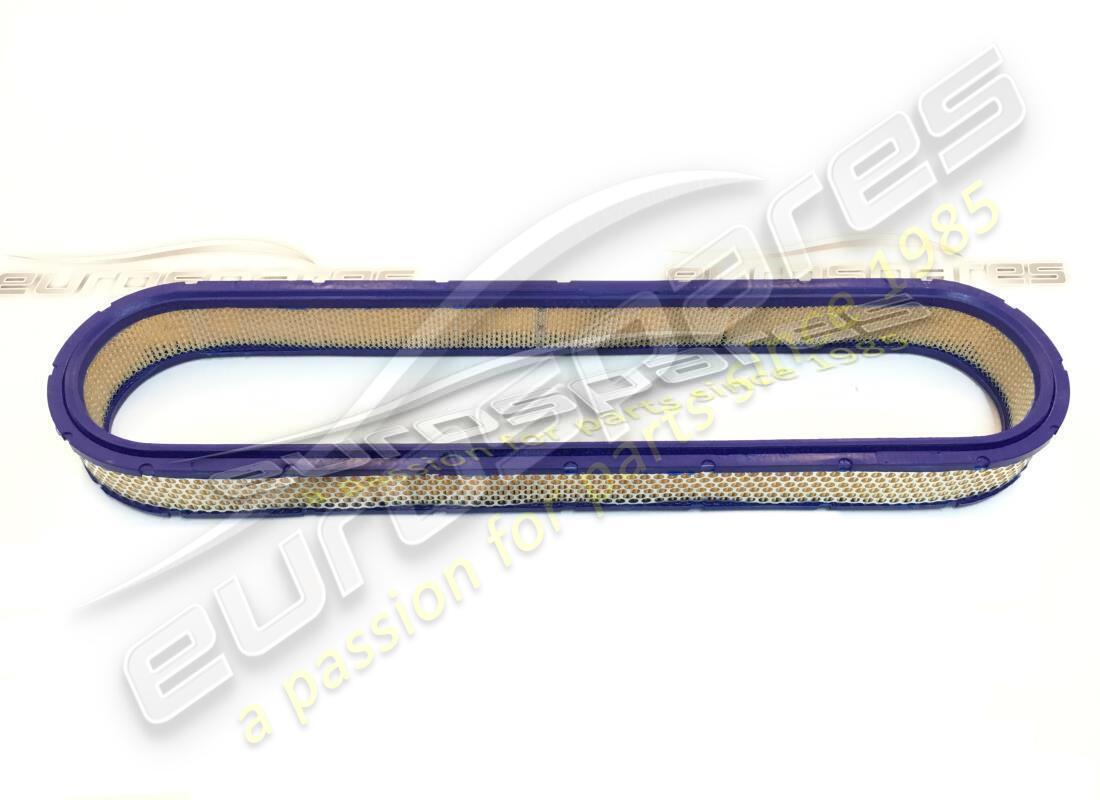

    AIR FILTER
    from £95.00
    from £95.00

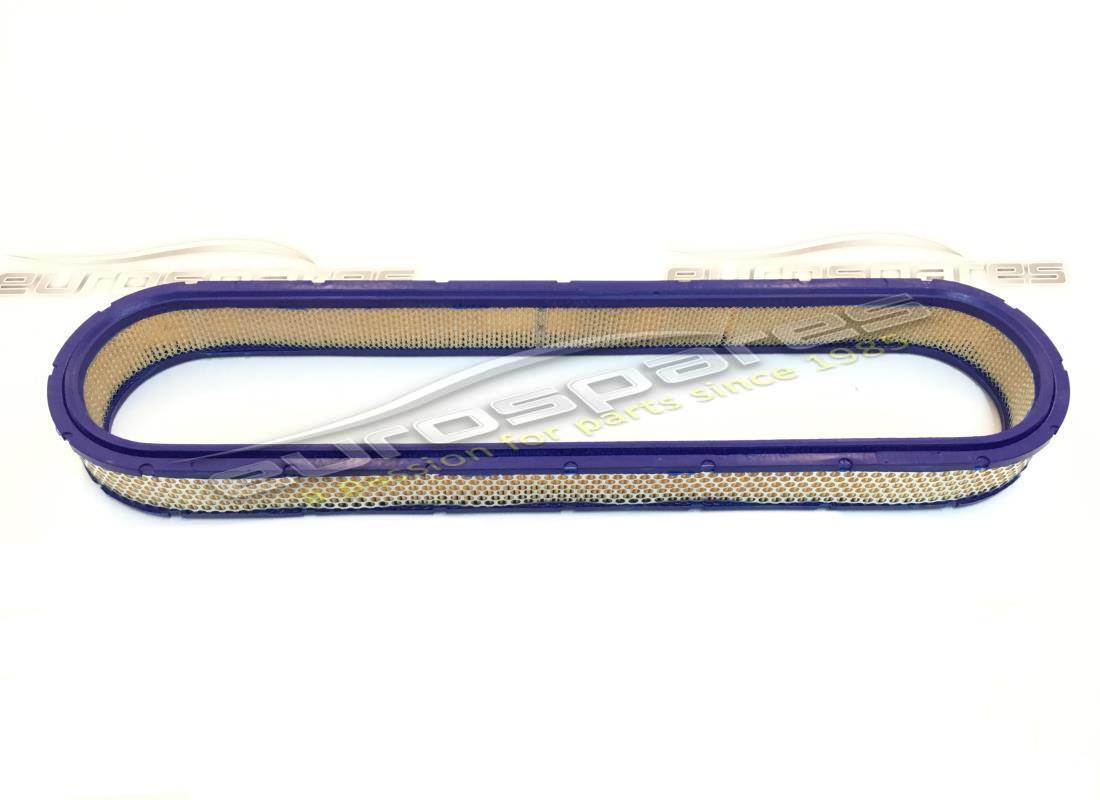

    AIR FILTER Genuine Lamborghini - New In stock
    AIR FILTER Eurospares Approved Part - New In stock
    # 045
    MPN: 001320161
    PROTECTION
    I nvolucro depurat. aria des.
    PROTECTION Genuine Lamborghini - New (to order)
    # 046
    MPN: 001319433
    T. LEVER
    Cavallotto compl. acceleratore
    from £77.70
    from £77.70
    ACCELERATOR U-BOLT Genuine Lamborghini - New (to order)
    # 047
    MPN: 008604001
    SEAL RING
    ANELLO OR A-466
    from £6.43
    from £6.43
    OR RING Genuine Lamborghini - New (to order)
    # 048
    MPN: 001513944
    FITTIN BOLT
    Raccordo sul coll. asp. des.
    from £88.31
    from £88.31
    UNION ON RH INTAKE MANIFOLD Genuine Lamborghini - New (to order)
    # 049
    MPN: N01100845
    NUT
    Dado M8 UN I 5587-65/8G
    from £0.47
    from £0.47
    This part replaces part number 008200801 - and 2 more. Click to view details
    HEX.NUT Genuine Lamborghini - New In stock
    HEXAGON NUT Genuine Porsche Part - New (to order)
