lamborghini countach 5000 s (1984) crankshaft parts diagram

004 - crankshaft

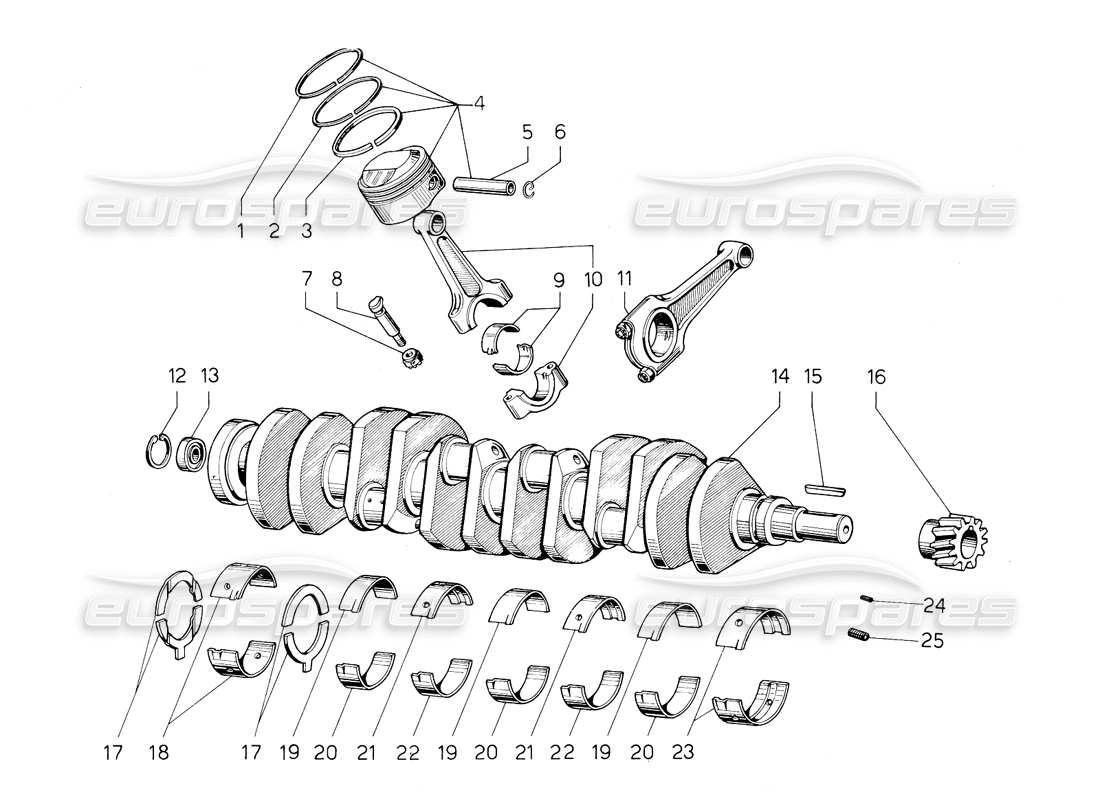

Lamborghini Countach 5000 S (1984) Crankshaft Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 000
        MPN: 001436805
        MAIN BEARINGS & BIG ENDS SET
        (standard)
        from £4,075.24
        from £4,075.24
        MAINS & BIG ENDS BEARINGS SET Genuine Lamborghini - New (to order)
        # 001
        MPN: 001419636
        OIL RING
        SEGMENTO SUPERIORE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 002
        MPN: 001419635
        OIL RING
        SEGMENTO INFERIORE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 003
        MPN: 001422779
        OIL RING
        from £52.58
        from £52.58
        OIL SCRAPER RING Genuine Lamborghini - New (to order)
        # 004
        MPN: 001419434
        PISTON
        Pistoni 85,5
        from £130.58
        from £130.58
        see 001419965 Genuine Lamborghini - New (to order)
        # 004
        MPN: 001419965
        PISTON
        (Valid from chassis No. 435) Pistone cinturato borgo
        from £567.95
        from £567.95
        PISTON & RINGS Genuine Lamborghini - New (to order)
        # 005
        MPN: 001419121
        PISTON PIN
        Spinotto x pistone/S
        from £35.90
        from £35.90
        PISTON PIN Genuine Lamborghini - New (to order)
        # 006
        MPN: 008581901
        RING
        Anello arresto
        from £3.65
        from £3.65
        see 008572101 Genuine Lamborghini - New (to order)
        # 007
        MPN: 001405756

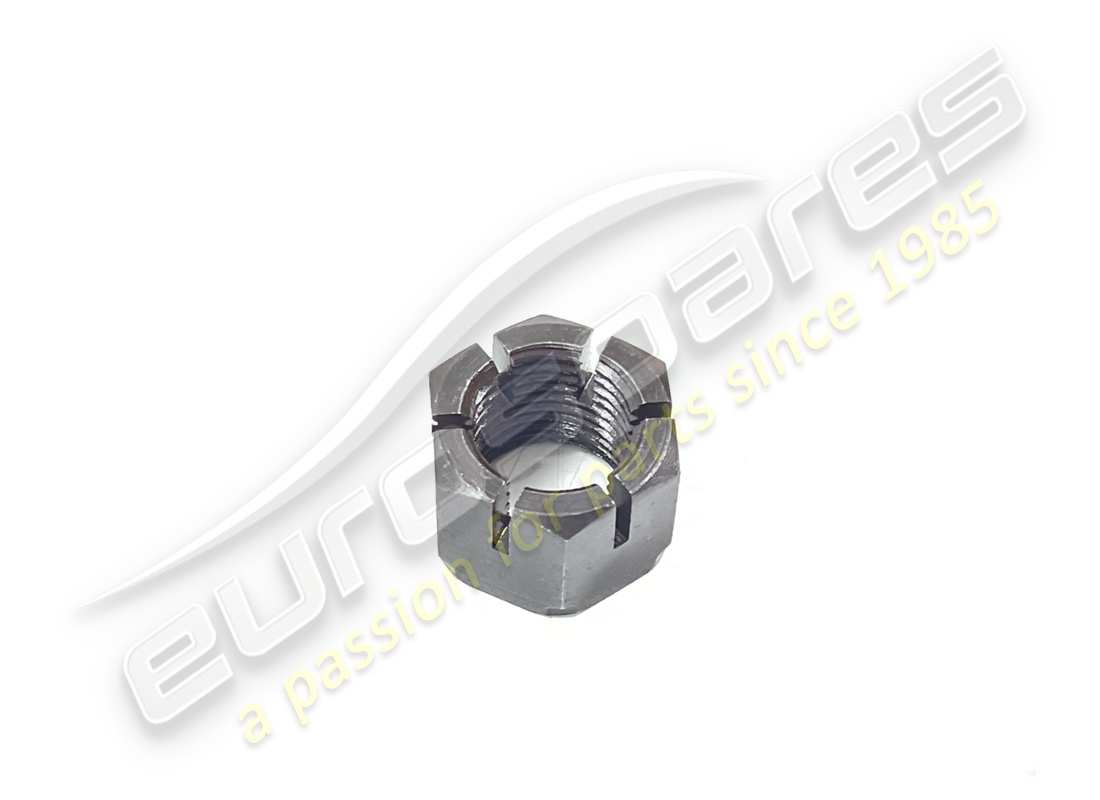

        CON ROD NUT
        Dado marsden fiss. bielle
        from £16.94
        from £16.94
        This part replaces part number 001404419
        CONNECTING ROD NUT Genuine Lamborghini - New In stock
        CONNECTING ROD NUT Original Equipment - New (to order)
        # 008
        MPN: 001405755

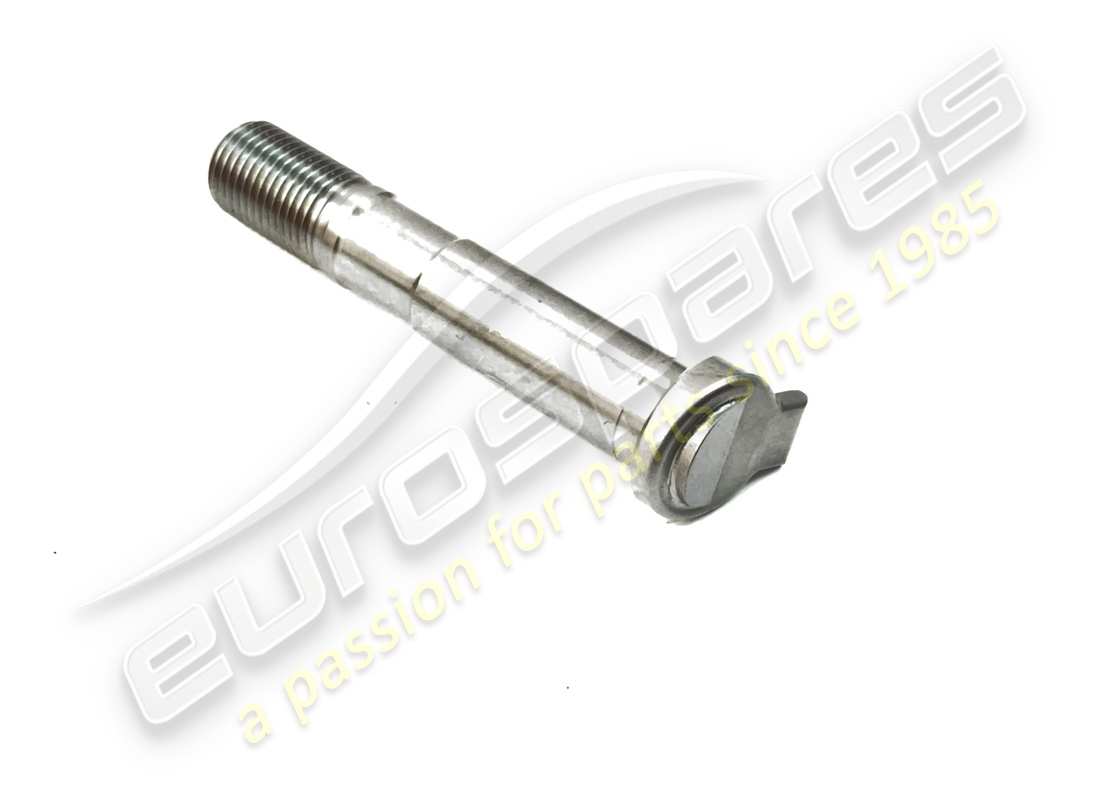

        CON ROD BOLT
        from £110.68
        from £110.68
        This part replaces part number 001400359
        CONNECTING ROD - CAPFASTENING SCREW Genuine Lamborghini - New In stock
        # 009
        MPN: 001419898

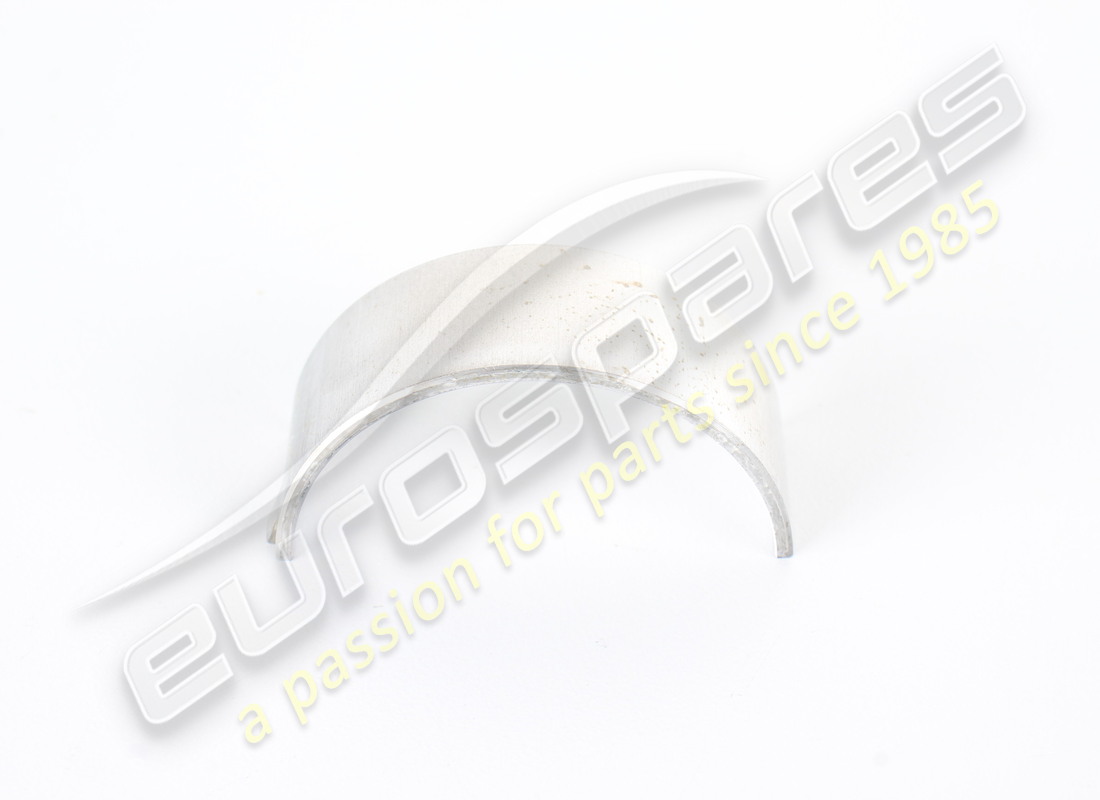

        BEARING - BIG END
        from £41.01
        from £41.01
        BUSHING Genuine Lamborghini - New In stock
        # 010
        MPN: 001419441
        HALF BEARING
        Compl. biella con cappello
        from £199.82
        from £199.82
        CONNECTING ROD & CAPASSEMBLY Genuine Lamborghini - New (to order)
        # 011
        MPN: 001419169
        CON ROD UNI
        Biella (complessivo)
        CON ROD UNI Genuine Lamborghini - New (to order)
        # 012
        MPN: 07M109381
        LOCK RING
        Seeger 35 I
        from £1.16
        from £1.16
        This part replaces part number 008573501 - and 1 more. Click to view details
        SEEGER Ring I 35 UNI 3654 Genuine Lamborghini - New In stock
        # 013
        MPN: 410109264
        BEARING
        Cusc. 6202-2RS exalnl 5
        from £17.08
        from £17.08
        This part replaces part number 008501501 - and 2 more. Click to view details
        BEARING Genuine Lamborghini - New (to order)
        # 014
        MPN: 001419435
        CRANK SHAFT
        ALBERO MOTORE
        from £4,448.18
        from £4,448.18
        crankshaft Genuine Lamborghini - New (to order)
        # 015
        MPN: 008860801
        Key
        LINGUETTA 8x7x20 UNIM 92
        from £6.43
        from £6.43
        TAB 8X7X20 UNIM 92 Genuine Lamborghini - New (to order)
        # 016
        MPN: 001407354
        Main Shaft
        Ingr. ant. alb. motore
        from £146.33
        from £146.33
        FRONT CRANKSHAFT GEAR Genuine Lamborghini - New (to order)
        # 017
        MPN: 07M105532
        THRUST WASHER (PRICE EACH)
        use:2x 07M105531A & 2x 07M105532
        from £196.28
        from £196.28
        THRUST SHIM Genuine Lamborghini - New In stock
        # 018
        MPN: 001419440
        MAIN BEARING
        Semicusc. di banco post. inf. sup.
        from £214.01
        from £214.01
        LOWER REAR MAIN HALFFRONT BEAR ING Genuine Lamborghini - New (to order)
        # 018
        MPN: 001420739
        MAIN BEARINGS SET +10
        from £1,845.93
        from £1,845.93
        BUSHING SET Genuine Lamborghini - New (to order)
        # 018
        MPN: 001420740
        MAIN & BIG END BEARINGS SET +20
        from £1,605.16
        from £1,605.16
        BUSHING SET Genuine Lamborghini - New (to order)
        # 019
        MPN: 001419438
        MAIN BEARING
        Semicusc. di banco intermedio
        from £85.17
        from £85.17
        BEARING Genuine Lamborghini - New (to order)
        # 020
        MPN: 001419439
        MAIN BEARING
        Semicusc. di banco intermedio
        from £147.87
        from £147.87
        BUSHING Genuine Lamborghini - New (to order)
        # 021
        MPN: 001419899
        BEARING
        Semicuscinetto di banco
        from £86.65
        from £86.65
        BUSHING Genuine Lamborghini - New (to order)
        # 022
        MPN: 001419968
        BEARING
        Semiguscio inf. sui supporti
        from £213.92
        from £213.92
        BUSHING Genuine Lamborghini - New (to order)
        # 023
        MPN: 001419436
        MAIN BEARING
        Semicusc. di banco sup. inf. ant.
        from £88.31
        from £88.31
        UPPER LOWER MAIN HALF FRONT BEARING Genuine Lamborghini - New (to order)
        # 024
        MPN: 008930603
        PLUG
        Tappo 6x1
        from £4.36
        from £4.36
        PLUGS 6X1 Genuine Lamborghini - New (to order)
        # 025
        MPN: 008931205
        PLUG
        Tappo 12x1
        from £22.56
        from £22.56
        PLUG 12X1 Genuine Lamborghini - New (to order)
