lamborghini countach 5000 s (1984) oil pump and system parts diagram

005 - oil pump and system

Lamborghini Countach 5000 S (1984) Oil Pump and System Parts Diagram

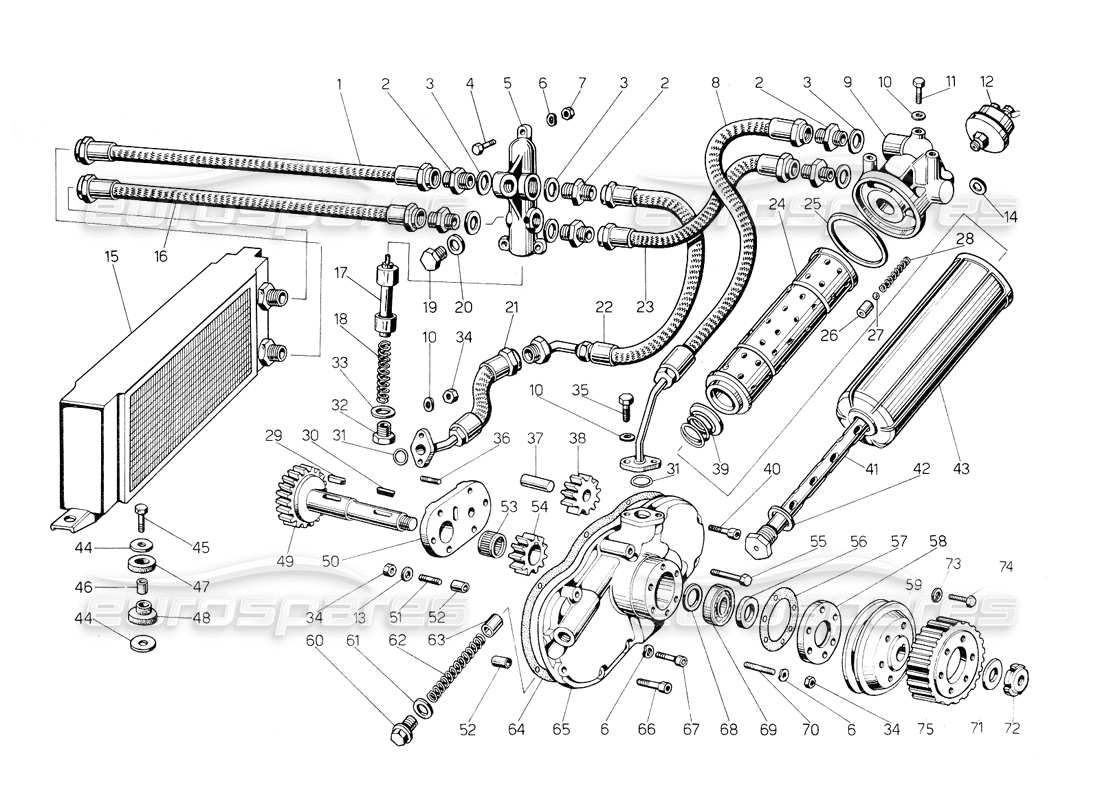

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 001511334
          RADIAL PIPE
          Tubo rad/termost. olio 1C
          from £678.75
          from £678.75
          OIL RADIATOR/THERMOSTAT PIPE Genuine Lamborghini - New (to order)
          # 002
          MPN: 001510474
          TERMOS FITT
          Race, termost. olio 1C
          from £78.17
          from £78.17
          OIL THERMOSTAT UNION Genuine Lamborghini - New (to order)
          # 003
          MPN: 008402604
          WASHER
          Rond. 26,25x35x1 ,5 rame
          from £2.32
          from £2.32
          COPPER WASHER 26.25X35X1.5 Genuine Lamborghini - New In stock
          # 004
          MPN: 008100632
          BOLT
          Bull. M6x30 UNI 5739-65A 5S
          from £1.62
          from £1.62
          SCREW M6X30 UNI 5739-65A 5 Genuine Lamborghini - New In stock
          # 005
          MPN: 001510095
          TERMOS HOUS
          Conten. termost. olio 1C
          from £199.82
          from £199.82
          OIL THERMOSTAT HOUSING Genuine Lamborghini - New (to order)
          # 006
          MPN: WHT001197
          LOCK WASHER
          Ros. el. 6,4x12x0,5
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 007
          MPN: N01100637
          NUT
          Dado M6 UN I 5588-65/8G
          from £0.53
          from £0.53
          This part replaces part number 003303099 - and 1 more. Click to view details
          HEX.NUT Genuine Lamborghini - New In stock
          # 008
          MPN: 001511329
          PUMP PIPE
          Tubo pompa/filtro olio /C
          from £1,361.82
          from £1,361.82
          PUMP PIPE/OIL FILTER Genuine Lamborghini - New (to order)
          # 009
          MPN: 001508118
          FILTER SUPP
          Supp. filtroolio /C
          SUPPORTER FILTRO Genuine Lamborghini - New (to order)
          # 010
          MPN: 008400606
          WASHER
          Rond. 6,4 UNI 1734
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 011
          MPN: 008100625
          BOLT
          Bull. M6x16 UNI 5739/8G
          from £85.16
          from £85.16
          SCREW M6X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
          # 012
          MPN: 001508565
          PRESSU SEND
          Trasm. press, olio
          from £1,163.79
          from £1,163.79
          This part replaces part number 001501494
          OIL PRESSURE TRANSMITTER (001508565) Eurospares Approved Part - New (to order)
          OIL PRESSURE TRANSMITTER Genuine Lamborghini - New (to order)
          # 013
          MPN: WHT001197
          LOCK WASHER
          Ros. el. 6,4x12x0,5
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 014
          MPN: 008401408
          WASHER
          Rond. 14,5x21x1, 5 rame
          from £1.29
          from £1.29
          ANNEALED COPPER WASHER 21X14X1 .5 Genuine Lamborghini - New In stock
          # 015
          MPN: 001510282
          RADIAL
          Radiatore olio 1C
          from £1,683.10
          from £1,683.10
          OIL RADIATOR Genuine Lamborghini - New (to order)
          # 016
          MPN: 001511333
          RADIAL PIPE
          Tubo termost. olio 1C
          from £768.67
          from £768.67
          OIL THERMOSTAT PIPE Genuine Lamborghini - New (to order)
          # 017
          MPN: 001510098
          TERMOS
          Termostato olio 1 0029/20 1C
          Lamborghini PART 001510098 Genuine Lamborghini - New (to order)
          # 018
          MPN: 001510097
          TERMOS SPRI
          Molla termostato olio 1C
          Lamborghini PART 001510097 Genuine Lamborghini - New (to order)
          # 019
          MPN: 008932003
          PLUG
          Tappo D.20x1,5M 5S
          from £11.69
          from £11.69
          PLUG 20X1.5M 5S Genuine Lamborghini - New In stock
          # 020
          MPN: 008402007
          WASHER
          Rond. D.20,2x27x1 ,5 rame
          from £0.54
          from £0.54
          ANNEALED COPPER WASHER D.21X27 X1.5 Genuine Lamborghini - New In stock
          # 021
          MPN: 001511332
          PUMP PIPE
          Tubo basam/termost. olio 1C
          from £874.71
          from £874.71
          CRANKSHAFT/OIL THERMOSTAT PIPE Genuine Lamborghini - New (to order)
          # 022
          MPN: 001511331
          TERMOS PIPE
          Tubo term. olio/basam./C
          from £488.52
          from £488.52
          OIL THERMOSTAT/CRANKSHAFT PIPE Genuine Lamborghini - New (to order)
          # 023
          MPN: 001511330
          FILLER PIPE
          Tubo filtro/term. olio 1C
          from £597.47
          from £597.47
          FILTER PIPE/OIL THERMOSTAT Genuine Lamborghini - New (to order)
          # 024
          MPN: 001501188
          OIL FILTER
          Gasket Required = 001501128
          from £27.16
          from £27.16

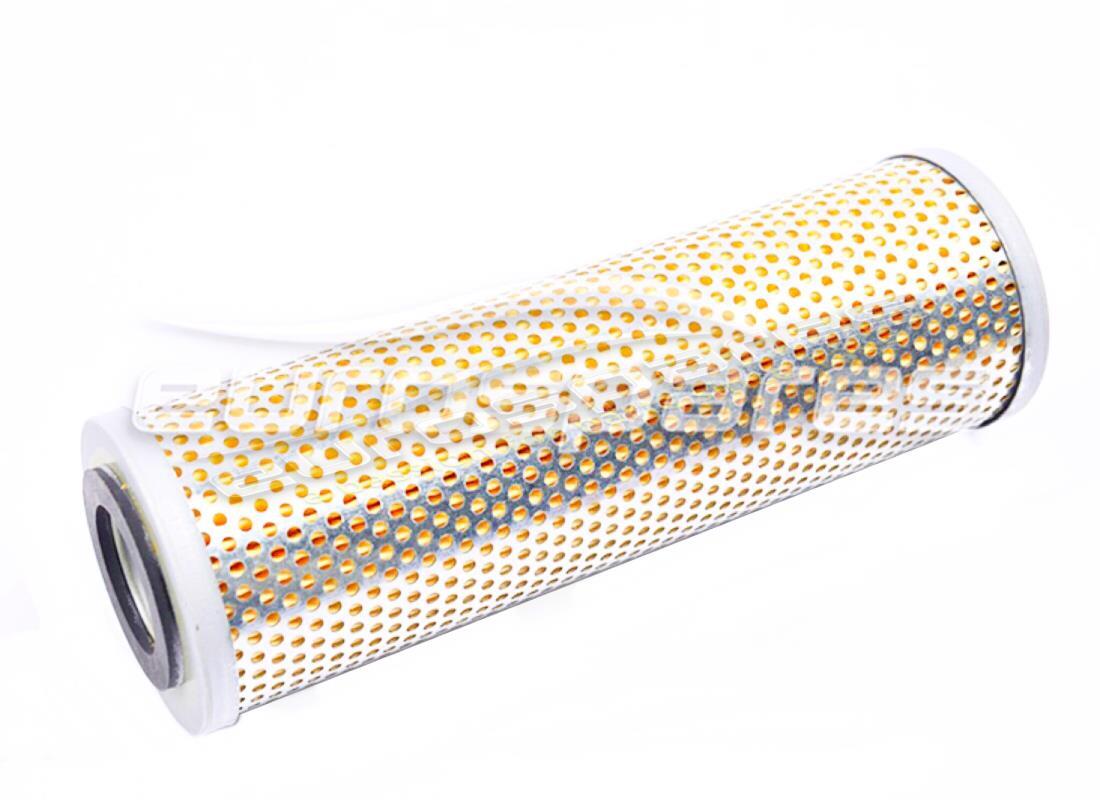

          OIL FILTER CARTRIDGE Genuine Lamborghini - New In stock
          OIL FILTER (001501188) Genuine Maserati Part - New (to order)
          # 025
          MPN: 001501128
          GASKET
          Guam, filtro olio
          from £12.41
          from £12.41
          OIL FILTER SEAL Genuine Lamborghini - New In stock
          # 026
          MPN: 001519896
          VALVE SEAL
          SEDE VALVOLA DI SICUREZZA
          from £5.15
          from £5.15
          SAFETY VALVE SEAT Genuine Lamborghini - New (to order)
          # 027
          MPN: 008911101
          SFERA
          from £3.70
          from £3.70
          VALVE BALL Genuine Lamborghini - New (to order)
          # 028
          MPN: 001501190
          SPRING
          from £5.81
          from £5.81
          OIL SAFETY VALVE SPRING Genuine Lamborghini - New (to order)
          # 030
          MPN: 008860602
          Key
          Linguetta 6x6x30 UNI M 92
          from £26.55
          from £26.55
          This part replaces part number 008860604
          TAB 6X6X30 UNIM 92 Genuine Lamborghini - New (to order)
          # 031
          MPN: 008602304
          O RING
          AnelloOR4093
          from £5.71
          from £5.71
          This part replaces part number 008602302
          O-RING Genuine Lamborghini - New (to order)
          # 032
          MPN: 001510097
          TERMOS SPRI
          Molla termostato olio 1C
          Lamborghini PART 001510097 Genuine Lamborghini - New (to order)
          # 033
          MPN: 008403201
          WASHER
          ROND. 32,25x40x1,5 RAME
          from £3.34
          from £3.34
          COPPER WASHER 32.25X40X1.5 Genuine Lamborghini - New (to order)
          # 034
          MPN: N01100637
          NUL
          DADO M6 UNI 5588-65/8G
          from £0.49
          from £0.49
          This part replaces part number 003303099 - and 1 more. Click to view details
          HEX.NUT Genuine Lamborghini - New In stock
          # 035
          MPN: 008100601
          BOLT
          Bull. M6x18UNI 57398G
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 036
          MPN: 008300623
          BOLL
          Prig. M6x16 UNI 5917 8G
          from £10.53
          from £10.53
          STUD M6X18 UNI 5917 8G ZD Genuine Lamborghini - New (to order)
          # 037
          MPN: 001509938
          GEAR PIN
          Perno ingr. condotto 1C
          from £27.57
          from £27.57
          IDLE GEAR PIN Genuine Lamborghini - New (to order)
          # 038
          MPN: 001519445
          GEAR
          Ingr. condotto pompa olio
          from £258.69
          from £258.69
          OIL PUMP IDLE GEAR Genuine Lamborghini - New (to order)
          # 039
          MPN: 001500892
          PUMP WASHER
          Fond. cart, filtro olio
          from £116.08
          from £116.08
          OIL FILTER CARTRIDGEHOUSING Genuine Lamborghini - New (to order)
          # 040
          MPN: 008700608
          SCREW
          Vile 8,6x1x40 UNI 2383
          from £0.54
          from £0.54
          SCREW 6X40 UNI 5931/8G/Z Genuine Lamborghini - New In stock
          # 041
          MPN: 001509935
          TUBE
          Tubo mand. olio 1C
          from £118.98
          from £118.98
          OIL DELIVERY PIPE Genuine Lamborghini - New (to order)
          # 042
          MPN: 008402401
          WASHER
          ROND. RAME 0.24,5x35x1
          from £9.25
          from £9.25
          COPPER WASHER D.24.5X35X1 Genuine Lamborghini - New (to order)
          # 043
          MPN: 001504611
          OIL FILLER
          Corpo fillro olio
          from £390.60
          from £390.60

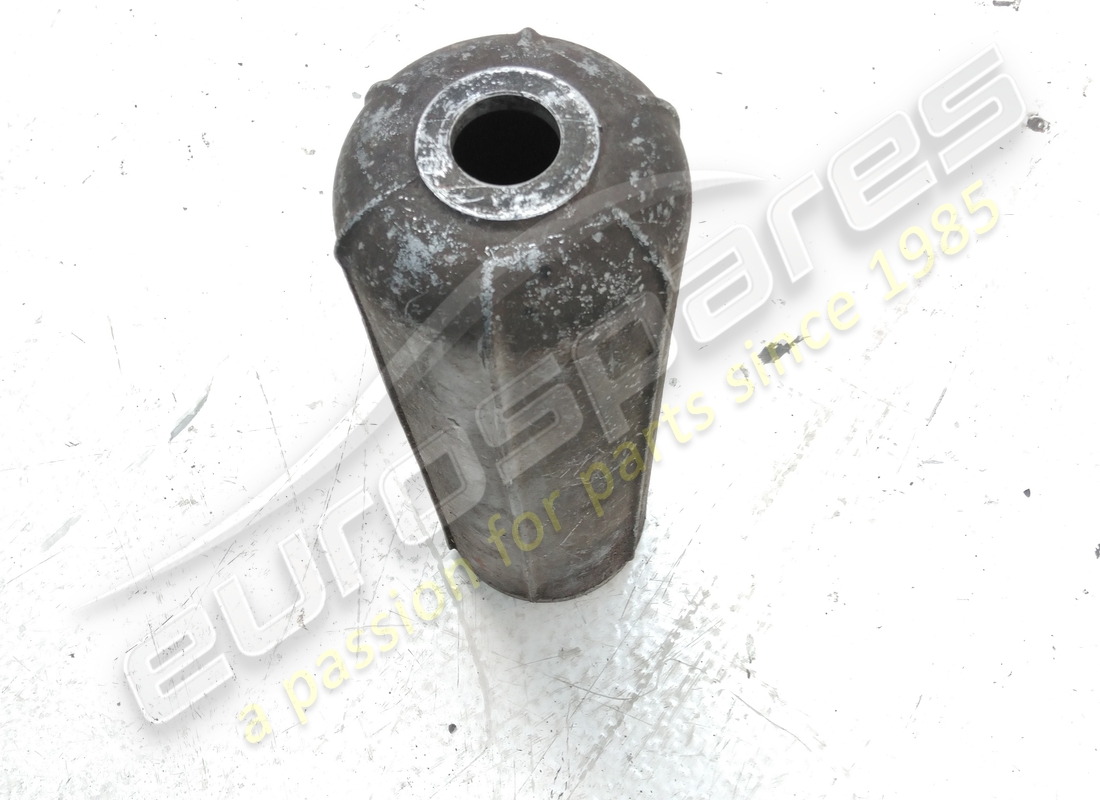

          OIL FILTER Genuine Lamborghini - New (to order)
          OIL FILTER Genuine Lamborghini - Used In stock
          # 044
          MPN: WHT001942
          WASHER
          Rond.D.8,5x32x2,5
          from £2.12
          from £2.12
          WASHER Genuine Lamborghini - New In stock
          # 045
          MPN: 008100831
          BOLL
          Bull.MSxSO UNI 5737/8G
          from £0.53
          from £0.53
          SCREW M8X30 UNI 5737/8G/Z Genuine Lamborghini - New In stock
          # 046
          MPN: 001701592
          SPACER
          Dislan. gomm. radiatore
          from £11.72
          from £11.72
          RADIATOR SHIM Genuine Lamborghini - New In stock
          # 047
          MPN: WHT001189
          RUBBER RING
          from £2.38
          from £2.38
          This part replaces part number 001707163
          WASHER Genuine Lamborghini - New In stock
          # 048
          MPN: 001701495
          RAD. SUPPORT
          Anello x supp. serb. suppl. e. rad. 135680020
          from £32.99
          from £32.99
          SUPPLEMENTARY RESERVOIR BRACKE T RING & Genuine Lamborghini - New In stock
          # 049
          MPN: 001519442
          SHAFT
          Alberino uscila molo dal molore
          from £719.39
          from £719.39
          OUTPUT SHAFT FROM ENGINE Genuine Lamborghini - New (to order)
          # 050
          MPN: 001509933
          PUMP COVER
          Coperchio pompa olio 1C
          from £251.22
          from £251.22
          OIL PUMP COVER Genuine Lamborghini - New (to order)
          # 051
          MPN: 008300625
          BOLT
          Prig. M6x20 UNI 5917 8G
          from £10.53
          from £10.53
          STUD M6X20 UNI 5917 8G ZD Genuine Lamborghini - New (to order)
          # 052
          MPN: 008850605
          DOWEL
          Bocc.C.6,25x8x10 C40
          Lamborghini PART 008850605 Genuine Lamborghini - New (to order)
          # 053
          MPN: 008522401
          BEARING
          Cusc. rullini NK 24/20
          from £24.26
          from £24.26
          NEEDLE BEARING (008522401) Eurospares Approved Part - New In stock
          NEEDLE BEARING Genuine Lamborghini - New In stock
          # 054
          MPN: 001519444
          GEAR
          Ingr. condullore pompa olio
          from £202.32
          from £202.32
          OIL PUMP DRIVE GEAR Genuine Lamborghini - New (to order)
          # 055
          MPN: 008100615
          BOLT
          BULL.M6x50 UNI 5737/8G
          from £3.65
          from £3.65
          SCREW M6X50 UNI 5737/8G Genuine Lamborghini - New (to order)
          # 056
          MPN: 008613002
          SEAL RING
          ANELLO SM 30407
          from £2.20
          from £2.20
          OIL SEAL 30X40X7 MM Genuine Lamborghini - New In stock
          # 057
          MPN: 001509939
          GASKEL
          Guam, conten. paraolio 1C
          from £5.60
          from £5.60
          OIL SEAL GASKET Genuine Lamborghini - New In stock
          # 058
          MPN: 001509490
          SEAL HOUSIN
          Conten. paraolio 1C
          from £69.74
          from £69.74
          OIL SEAL CASE Genuine Lamborghini - New (to order)
          # 059
          MPN: 001513746
          PULLEY
          PULEGGIA TRAINO COMPRESSORE
          from £421.95
          from £421.95
          COMPRESSOR DRIVE PULLEY Genuine Lamborghini - New (to order)
          # 060
          MPN: 001509934
          VALVE PLUG
          Tappo valv. press, olio 1C
          from £194.85
          from £194.85
          OIL PRESSURE VALVE PLUG Genuine Lamborghini - New (to order)
          # 061
          MPN: 008401804
          WASHER
          ROND. RAME 18,2x30x1
          from £2.53
          from £2.53
          ANNEALED COPPER WASHER 18.2X30 X1 Genuine Lamborghini - New In stock
          # 062
          MPN: 001500927
          SPRING
          Molla valv. press, olio
          from £8.50
          from £8.50
          OIL PRESSURE VALVE SPRING Genuine Lamborghini - New (to order)
          # 063
          MPN: 001519446
          SMALL PISLO
          PISTONCINO DI PRESSIONE
          from £45.11
          from £45.11
          PRESSURE PISTON Genuine Lamborghini - New In stock
          # 064
          MPN: 001500898
          GASKET
          from £17.75
          from £17.75
          PUMP SEAL Genuine Lamborghini - New (to order)
          # 065
          MPN: 001519443
          oil pump
          Corpo pompa olio
          from £1,552.05
          from £1,552.05
          OIL PUMP CASING Genuine Lamborghini - New (to order)
          # 066
          MPN: 008700612
          SCREW
          Vile 8,6x1x25 UNI 2383
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 067
          MPN: 008700624
          SCREW
          Vile M6x20 UNI 5931 8G
          from £0.54
          from £0.54
          SCREW 5931 6X1X20 8GZG Genuine Lamborghini - New In stock
          # 068
          MPN: 008402003
          WASHER
          Rond. 38NCD4 ras. CSN
          from £8.42
          from £8.42
          WASHER Genuine Lamborghini - New (to order)
          # 069
          MPN: 008502001
          BEARING
          Cusc. riv3204 EX1AANON20
          from £23.43
          from £23.43
          BEARING Genuine Lamborghini - New In stock
          # 070
          MPN: 008300627
          COVER
          Fiss. cop. paraolio
          from £8.17
          from £8.17
          STUD M6X16 UNI 5917 8G ZD Genuine Lamborghini - New (to order)
          # 071
          MPN: 008401801
          WASHER
          Rond. piana 18x30x2
          from £14.38
          from £14.38
          TEMPERED FLAT WASHER18X30X2 C4 0BON Genuine Lamborghini - New (to order)
          # 072
          MPN: 008251801
          GHIERA
          Ghiera gua 18MB
          from £22.68
          from £22.68
          M18X1.5X28 SELF-LOCKING RING N UT Genuine Lamborghini - New In stock
          # 073
          MPN: 008410603
          LOCK WASHER
          Rond. A6,4 UNI 1751 C72
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 074
          MPN: 008100625
          BOLL
          Bull. M6x16UNI 5739/8G
          from £83.46
          from £83.46
          SCREW M6X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
          # 075
          MPN: 001519300
          PULLEY
          Puleggia traino aliernalore
          from £247.08
          from £247.08
          ALTERNATOR PULLEY Genuine Lamborghini - New (to order)
          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
