lamborghini countach 5000 s (1984) electrical system parts diagram

006 - electrical system

Lamborghini Countach 5000 S (1984) Electrical System Parts Diagram

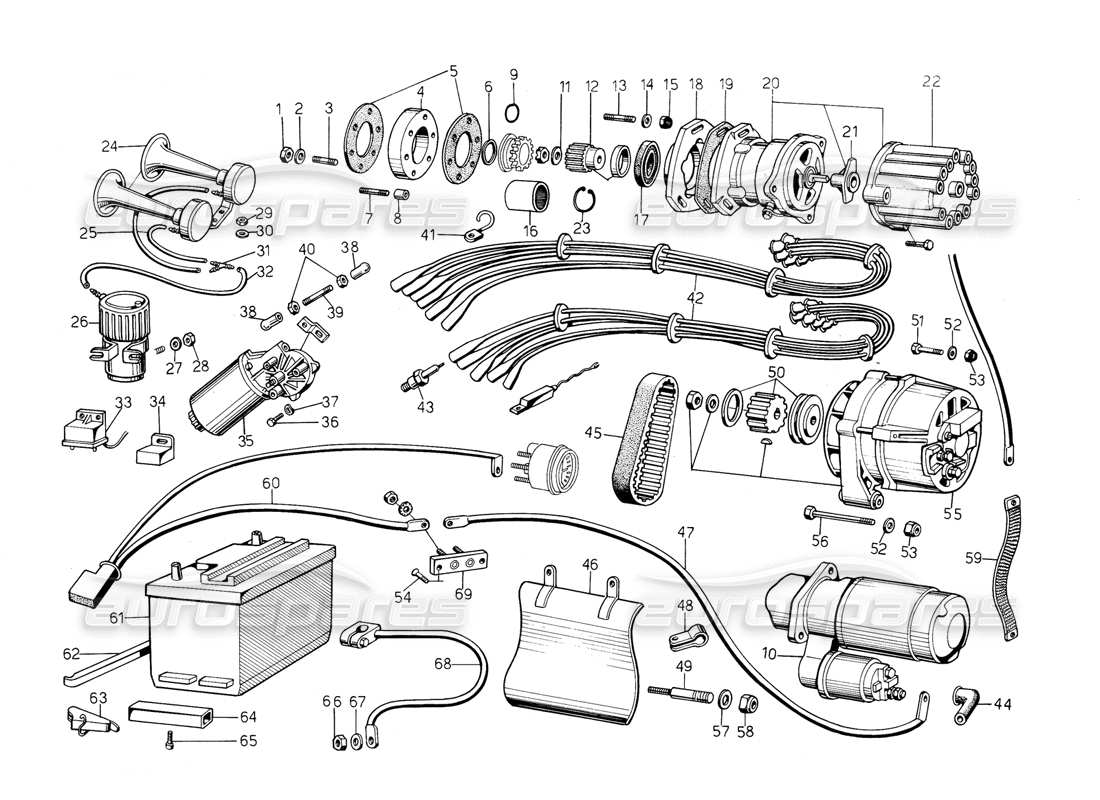

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 000
              MPN: 006990051
              LIGHT MOTOR
              Mot. alzafari sn.401401/C
              from £3,449.10
              from £3,449.10
              # 001
              MPN: N01100637
              NUT
              DADO M6 UNI 5588-65/8G
              from £0.52
              from £0.52
              This part replaces part number 003303099 - and 1 more. Click to view details
              # 002
              MPN: WHT001197
              LOCK WASHER
              Ros. el. 6,4x12x0,5
              Supersession
              Supersession
              # 003
              MPN: 008300631
              BOLT
              PRIGIONIERO
              from £10.64
              from £10.64
              # 004
              MPN: 001613063
              SPACER
              Distanziale x distributore
              from £208.10
              from £208.10
              # 005
              MPN: 001600906
              GASKET
              Guam. supp. spint.
              from £6.53
              from £6.53
              # 006
              MPN: 001605340
              CLAMP WASHER
              Rond. rit. OR PDF spinter.
              from £20.11
              from £20.11
              # 007
              MPN: 008300619
              BOLT
              PRIG. 6x1x32 8G
              # 008
              MPN: 008850811
              DOWEL BOLT
              Grani di centraggio
              from £113.59
              from £113.59
              # 009
              MPN: 008601502
              SEAL RING
              ANELLO OR 2062
              from £1.71
              from £1.71
              # 010
              MPN: 001604460
              STARTER MOTOR
              from £1,995.00
              from £1,995.00
              # 011
              MPN: WHT000768
              LOCK WASHER
              from £1.31
              from £1.31
              This part replaces part number 008410806 - and 1 more. Click to view details
              # 012
              MPN: 001612737
              RING
              ANELLO PARAOLIO
              from £17.59
              from £17.59
              # 013
              MPN: 008300818
              BOLT
              Prig. M8x30UIll 5911 8G
              from £2.85
              from £2.85
              # 014
              MPN: N90179103
              WASHER
              Rond. 8,4 UNI 17348G
              from £1.01
              from £1.01
              This part replaces part number 008400801
              # 015
              MPN: 008200809
              NUT
              DADO B/70/208M
              Supersession
              Supersession
              # 016
              MPN: 001600376
              DISTR. JOINT
              Cannotto PDF Spinterogeno
              from £274.10
              from £274.10
              # 017
              MPN: 008613503
              SEAL RING
              Paraolio DPSM 35477
              from £12.90
              from £12.90
              # 018
              MPN: 001612735
              SUPPORT
              Supporto distributore
              from £280.24
              from £280.24
              # 019
              MPN: 001600371
              SPACER
              Spess. supp. spinterogeno
              from £50.17
              from £50.17
              # 020
              MPN: 001619332
              DISTRIBUTOR
              Distributore Marelli N. 61015805
              from £6,324.85
              from £6,324.85
              # 022
              MPN: 001619316
              DISTRIBUTOR CAP
              from £236.25
              from £236.25
              # 023
              MPN: 008573202
              LOCK RING
              SEEGER AA 30 I
              from £3.48
              from £3.48
              # 024
              MPN: 005935553
              CLAXON
              Avvis. elettropn. fiamm. TA/OGT 165.707.02
              from £49.71
              from £49.71
              # 024
              MPN: 006119070
              HORN
              (Valid for SWITZERLAND - January 1984) Tromba MTA/OZ
              # 025
              MPN: 006111138
              TUBE
              Tubo dal tre vie alia tromba
              from £3.03
              from £3.03
              # 026
              MPN: 006119514
              CLAXON COM
              Elettrocompress. M/1 2000 vs. 163.707.00
              from £68.07
              from £68.07
              # 027
              MPN: N90179103
              WASHER
              Rond. 8,4 UNI 17348G
              from £1.04
              from £1.04
              This part replaces part number 008400801
              # 028
              MPN: N0111849
              NUT
              DADO N/70/108M
              from £1.47
              from £1.47
              This part replaces part number 008200809
              # 029
              MPN: N0111849
              NUT
              DADO N/70/108M
              from £1.47
              from £1.47
              This part replaces part number 008200809
              # 030
              MPN: N90179103
              WASHER
              Rond. 8,4 UNI 1734 8G
              from £1.04
              from £1.04
              This part replaces part number 008400801
              # 031
              MPN: 006108392
              PIPE UNION
              Race, a 3 vie trombe/compre.
              from £2.27
              from £2.27
              # 032
              MPN: 006111139
              TUBE
              Tubo dal compressore al tre vie
              from £8.25
              from £8.25
              # 033
              MPN: 001619270
              RELAY
              Relais x trombe con pulsan. com. sul posit.
              from £11.11
              from £11.11
              # 034
              MPN: 006311152
              RELAY
              Relais 03322041 25 fari
              from £74.88
              from £74.88
              # 035
              MPN: 006990050
              LIGHT MOTOR
              Mot. alzafari ds. 401400/C
              from £2,111.46
              from £2,111.46
              # 036
              MPN: 008100601
              BOLT
              Bull. M6x18 UNI 5739 8G
              Supersession
              Supersession
              # 037
              MPN: 008410603
              LOCK WASHER
              Rond. A6.4UNI 1751 C72
              Supersession
              Supersession
              # 038
              MPN: 007044005
              JOINT
              Giunto AS 10 DIN 71802 /C
              # 039
              MPN: 008300629
              BOLT
              Prig. M6x1x588G
              from £14.43
              from £14.43
              # 040
              MPN: 008200602
              NUT
              Dado M6UNI 55885S
              from £0.53
              from £0.53
              # 041
              MPN: 001601567
              PLUG CABLE
              Supp. Passafili candele
              from £28.49
              from £28.49
              # 042
              MPN: LHT003

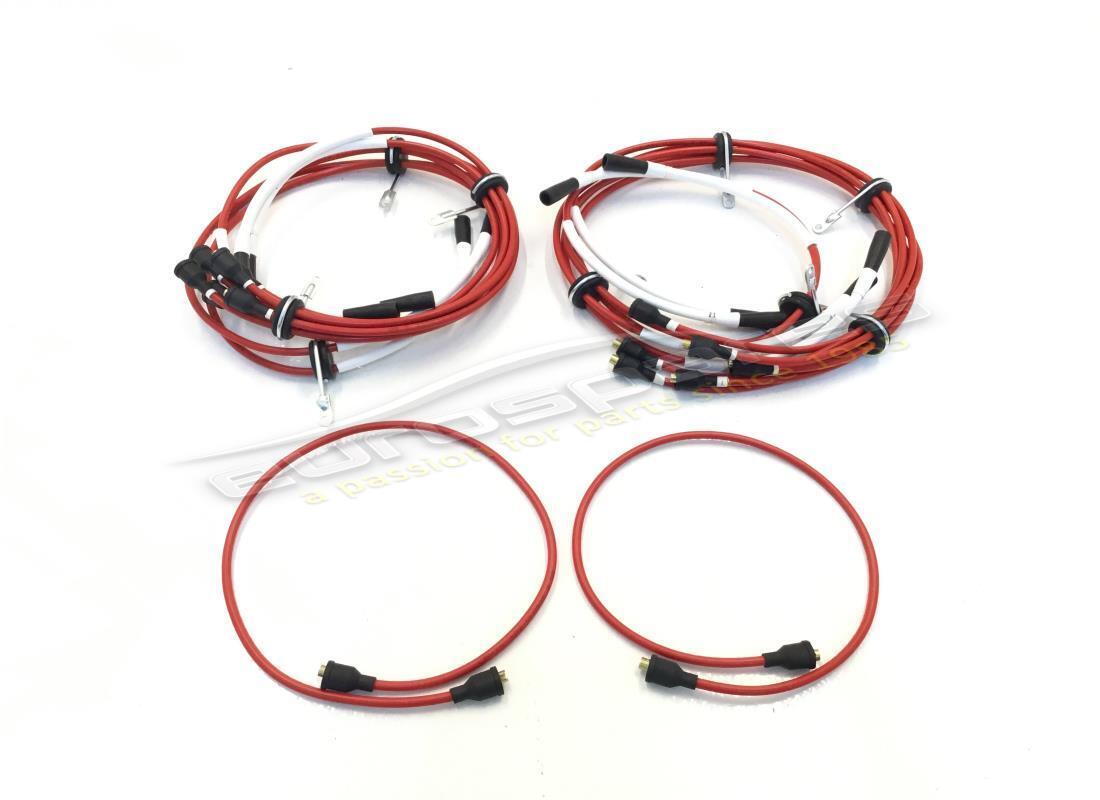

              Complete HT Lead Set
              (valid for single distributor)
              from £394.84
              from £394.84
              # 043
              MPN: 008811403
              SPARK PLUG
              Supersession
              Supersession
              # 044
              MPN: 001606173
              CABLE CAP
              Pipetta cavo mot. aw. to
              from £0.82
              from £0.82
              # 045
              MPN: 001613915
              BELT
              Cinghia traino altern. 210LP100
              from £373.53
              from £373.53
              # 046
              MPN: 001611516
              ST MOTOR GU
              Paratia mot. aw./C
              from £894.91
              from £894.91
              # 047
              MPN: 001605790
              BATTER CABL
              Cavo batt. mot/aw, corto
              # 048
              MPN: 008830114
              CLAMP RING
              Fascetta passacavo
              from £65.89
              from £65.89
              # 049
              MPN: 008301215
              BOLT
              Prig. 12x1,75x75
              from £11.61
              from £11.61
              # 050
              MPN: 001613761
              PULLEY
              Comples. puleggia traino alt. e pompa aria
              from £70.23
              from £70.23
              # 051
              MPN: N01033520
              BOLT
              Bull. M8x35 UNI 5739/8G
              from £1.06
              from £1.06
              # 052
              MPN: 008100801
              BOLT
              Bull
              # 053
              MPN: N0111849
              NUT
              DADO N/70/108M
              from £1.47
              from £1.47
              This part replaces part number 008200809
              # 054
              MPN: 008700801
              SCREW
              Vile M8x16 UNI 5933-67/A
              from £0.53
              from £0.53
              # 055
              MPN: 001613927

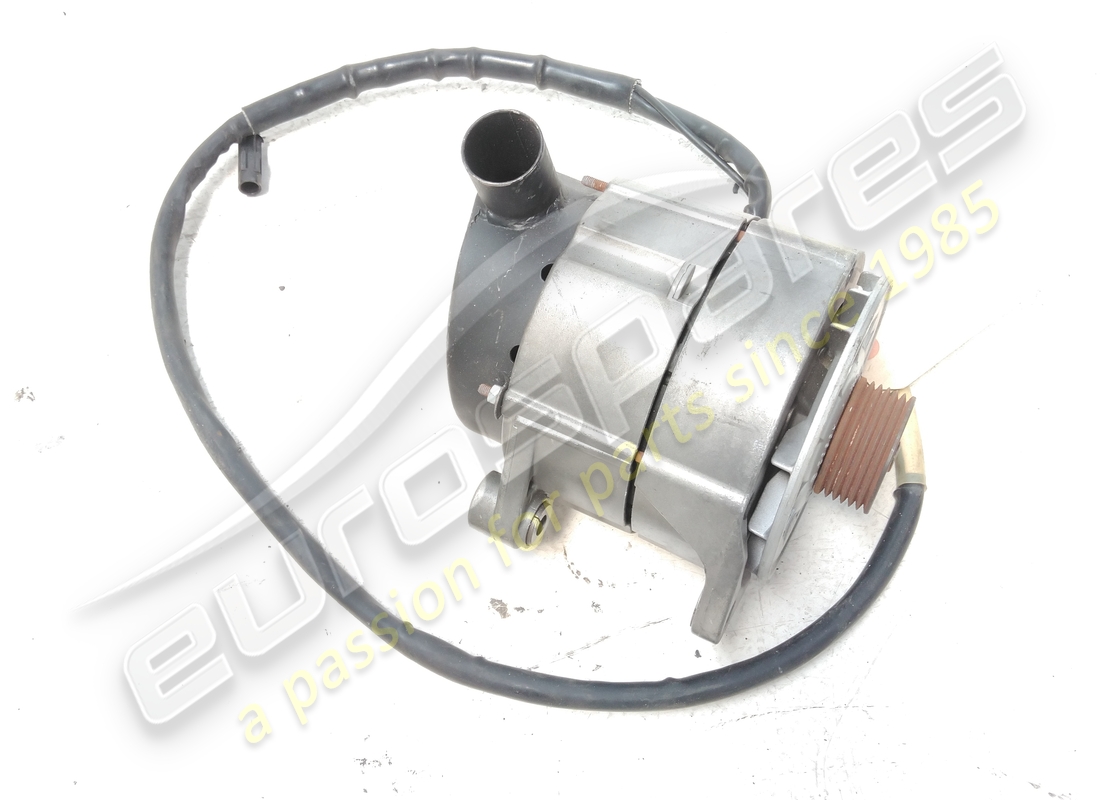

              ALTERNATOR
              from £1,044.75
              from £1,044.75
              # 056
              MPN: 008100824
              BOLT
              Bull. M8x75 UNI 5737 -65A
              from £0.93
              from £0.93
              # 057
              MPN: 008411303
              LOCK WASHER
              Bond. EL. a 13 UNI 1751
              from £1.91
              from £1.91
              # 058
              MPN: 008201211
              NUT
              DADO M12 UNI 5588-65/8G
              from £5.19
              from £5.19
              # 059
              MPN: 001604328
              ST MOTOR CA
              Cavo massa mot/telaio
              Supersession
              Supersession
              # 060
              MPN: 001610771
              BATTER CABLE
              Cavo batt. /mot. aw. 1C
              from £150.45
              from £150.45
              # 062
              MPN: 001624065
              SUPPORT
              Staffa fiss. batteria/C
              from £45.74
              from £45.74
              # 063
              MPN: 001611380
              BA RETAIN
              Gancio batteria USM 325D
              # 064
              MPN: 001619351
              SPACER
              Distanziale per batteria
              # 065
              MPN: 008700512
              SCREW
              Vite brugola 5x0,8x10 8G
              Supersession
              Supersession
              # 066
              MPN: N0111849
              NUT
              DADO N/70/108M
              from £1.51
              from £1.51
              This part replaces part number 008200809
              # 067
              MPN: N90179103
              WASHER
              Rond. 8,4 UN! 17348G
              from £1.06
              from £1.06
              This part replaces part number 008400801
              # 068
              MPN: 001604746
              BATTERY CABLE
              CAVO NEGAT. BATTERIA
              from £51.25
              from £51.25
              # 069
              MPN: 001606170
              BAT. CABLE A
              Mors. colleg. cavi batt.
              from £35.33
              from £35.33
