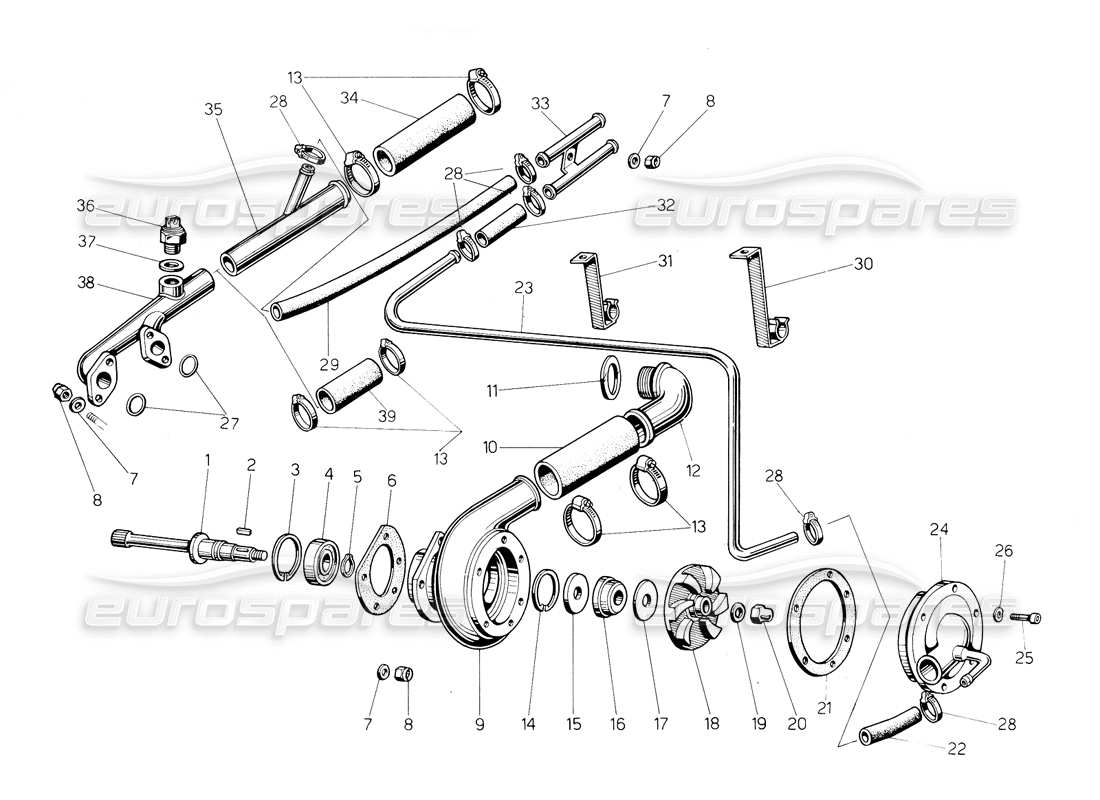

lamborghini countach 5000 s (1984) water pump and system parts diagram

008 - water pump and system

Lamborghini Countach 5000 S (1984) Water Pump and System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 001700395
        PUMP SHAFT
        Alberino com. pompa acqua
        from £226.55
        from £226.55
        # 002
        MPN: 008860401
        Key
        Linguetta 4x4x12
        from £17.77
        from £17.77
        # 003
        MPN: 008574301
        LOCK RING
        Seeger 40 I
        from £1.70
        from £1.70
        # 004
        MPN: 008501705
        BALL BEARING
        Cusc. 6203-2RS EXALN1 7
        from £26.56
        from £26.56
        # 005
        MPN: 008581501
        LOCK RING
        Seeger 1 7 E
        from £0.54
        from £0.54
        # 006
        MPN: 001700391
        GASKET
        Guam, pompa acqua
        from £7.38
        from £7.38
        # 007
        MPN: 008400606
        WASHER
        Rond. 6,4 UNI 1734
        Supersession
        Supersession
        # 008
        MPN: 008200606
        NUT
        DadoJl/70/106M
        Supersession
        Supersession
        # 009
        MPN: 001713339
        PUMP UNIT
        Corpo pompa acqua 1C
        from £1,763.87
        from £1,763.87
        # 010
        MPN: 001701983
        PIPE UNION
        MANICOTTO POMPA ACQUA
        from £38.78
        from £38.78
        # 011
        MPN: 001701783
        GASKET
        Rond. 32x380,5-1-1,5
        from £6.02
        from £6.02
        # 012
        MPN: 001704506
        PIPE
        Tubo entr. acqua
        from £732.35
        from £732.35
        # 013
        MPN: 008835004
        CLAMP RING
        Fasc. royal A/1232/52
        from £6.14
        from £6.14
        This part replaces part number 008830201
        # 014
        MPN: 07M109381
        LOCK RING
        Seeger 35 I
        from £1.16
        from £1.16
        This part replaces part number 008573501 - and 1 more. Click to view details
        # 015
        MPN: 001712753
        WASHER
        Rond. ras. pompa acqua /E
        from £119.32
        from £119.32
        This part replaces part number 001700369 - and 1 more. Click to view details
        # 016
        MPN: 008611703
        WATER PUMP SEAL
        from £225.00
        from £225.00
        # 017
        MPN: 001712752
        WASHER
        Rond. spallam. tenuta acqua/E
        from £20.75
        from £20.75
        This part replaces part number 001700397
        # 018
        MPN: 001712750
        ROTOR
        Girante pompa acqua 1C
        from £219.62
        from £219.62
        This part replaces part number 001709854
        # 019
        MPN: WHT000768
        LOCK WASHER
        from £1.31
        from £1.31
        This part replaces part number 008410806 - and 1 more. Click to view details
        # 020
        MPN: 008261005
        NUT
        DADO M10 UNI 5721 -65/ott
        # 021
        MPN: 001704578
        GASKET
        from £11.46
        from £11.46

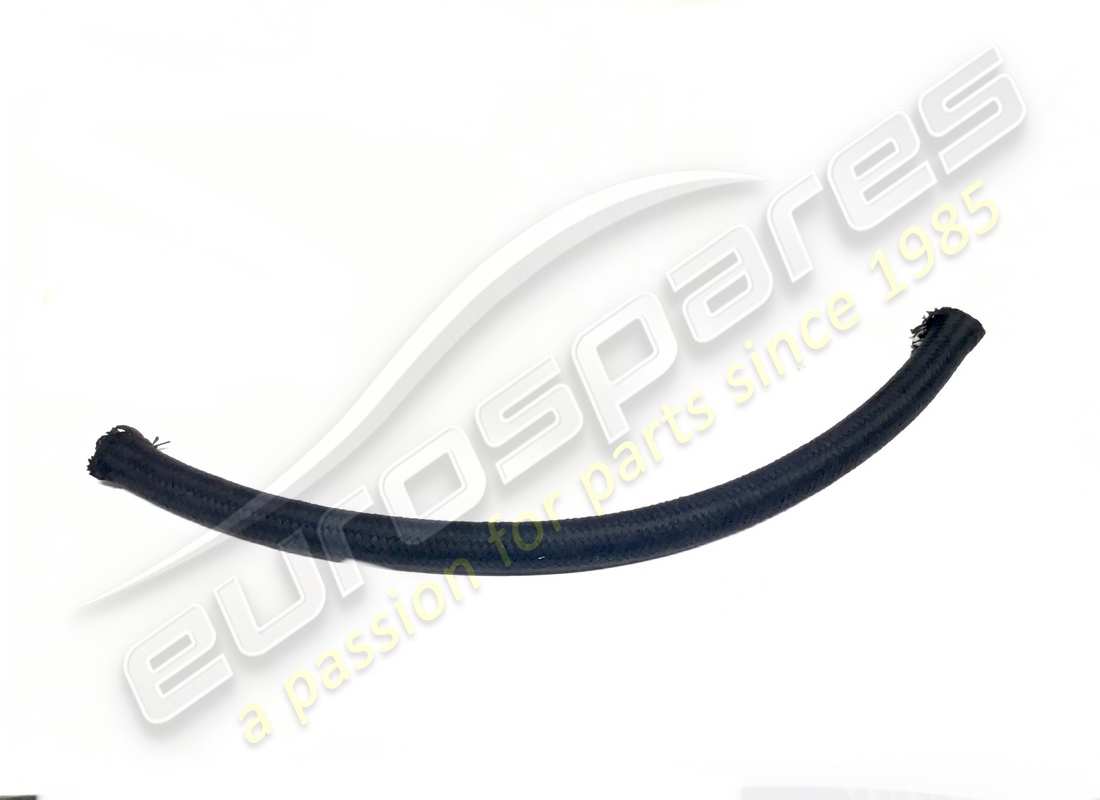

        # 022
        MPN: 001711387
        TUBE
        Tubo pompa/uscita teste/C
        from £14.55
        from £14.55
        # 023
        MPN: 001719372
        TUBE
        Tubo fra le teste pom. acqua x riscaldat.
        from £12.24
        from £12.24
        # 024
        MPN: 001721992
        COVER
        Coperchio pompa acqua /C
        from £3,285.64
        from £3,285.64
        # 025
        MPN: 008100625
        BOLT
        Bull. M6x16 UNI 5739/8G
        from £83.46
        from £83.46
        # 026
        MPN: WHT001197
        LOCK WASHER
        Ros. el. 6,4x12x0,5
        Supersession
        Supersession
        # 027
        MPN: 008602303
        SEAL RING

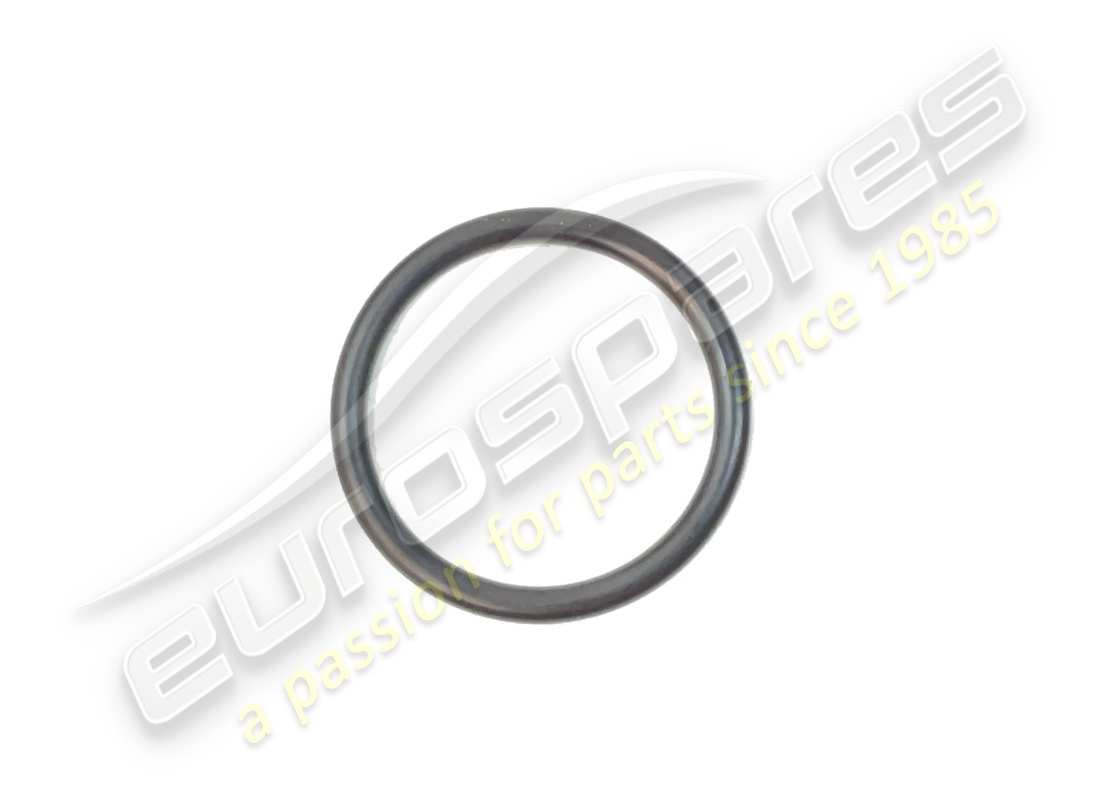

        ANELLO OR 132
        from £0.53
        from £0.53
        This part replaces part number GN-01236
        # 028
        MPN: 008830206
        CLAMP RING
        FASC. ROYAL 00/12 18/30
        from £12.56
        from £12.56
        # 029
        MPN: 001711393
        COOLAN PIPE
        Tubo race, teste/giunto /C
        from £18.37
        from £18.37
        # 030
        MPN: 001711800
        SUPPORT
        Supp. ant. tubo acqua 1C
        from £130.57
        from £130.57
        # 031
        MPN: 001711833
        PIPE SUPPORT
        Supp. post, tubo acqua 1C
        # 032
        MPN: 001711388
        COOLAN PIPE
        Tubo giunto/usc. /teste 1C
        from £24.21
        from £24.21
        # 033
        MPN: 001726817
        PIPE JOINT
        Giunto Tubi riscald./C
        from £140.55
        from £140.55
        # 034
        MPN: 001719369
        PIPE UNION
        Manicotto uscita valvola termostatica
        from £17.52
        from £17.52
        # 035
        MPN: 001719926
        UNION
        Compl. coll. race, uscita acqua teste
        from £48.92
        from £48.92
        # 036
        MPN: 001801333
        TERMOS SEND
        Termocop. temp, olio
        from £126.99
        from £126.99
        # 037
        MPN: 008401610
        WASHER
        Rond. 22x15,5x0,5 rame
        from £6.32
        from £6.32
        # 038
        MPN: 001719465
        UNION
        Raccordo uscita H20 dalle teste
        from £1,223.48
        from £1,223.48
        # 039
        MPN: 001719264
        PIPE UNION
        Manic, gomma 35x43
        from £6.91
        from £6.91
