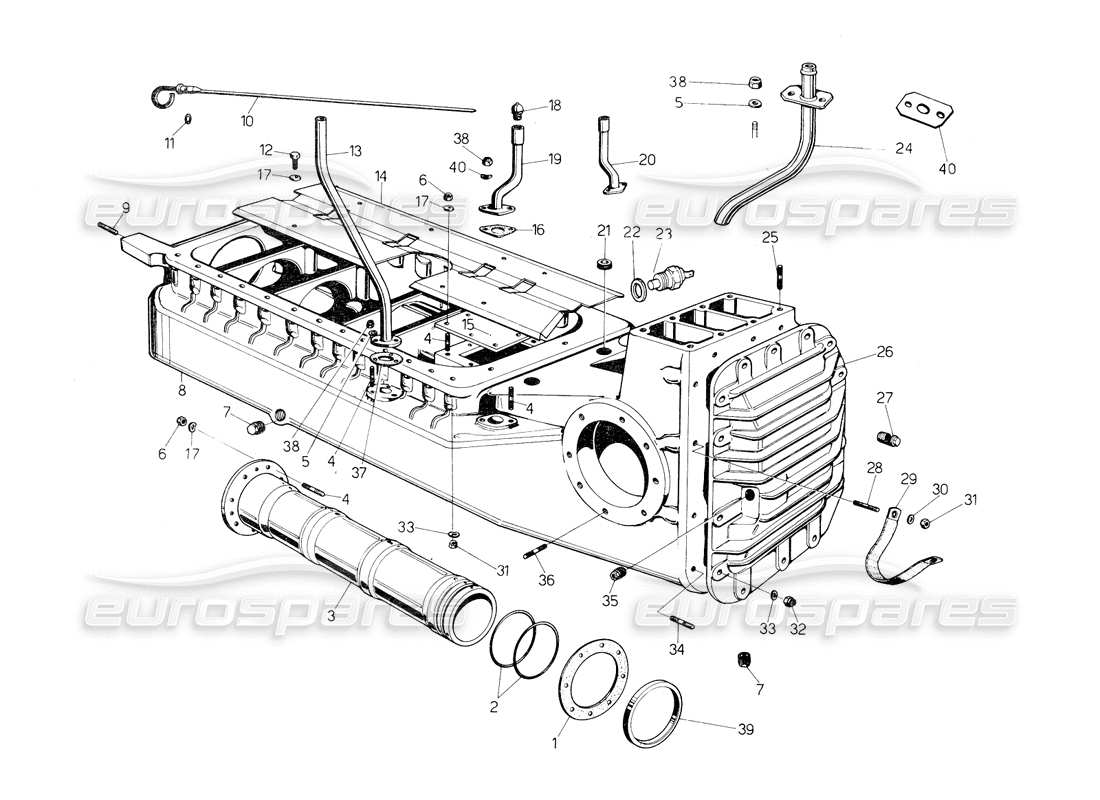

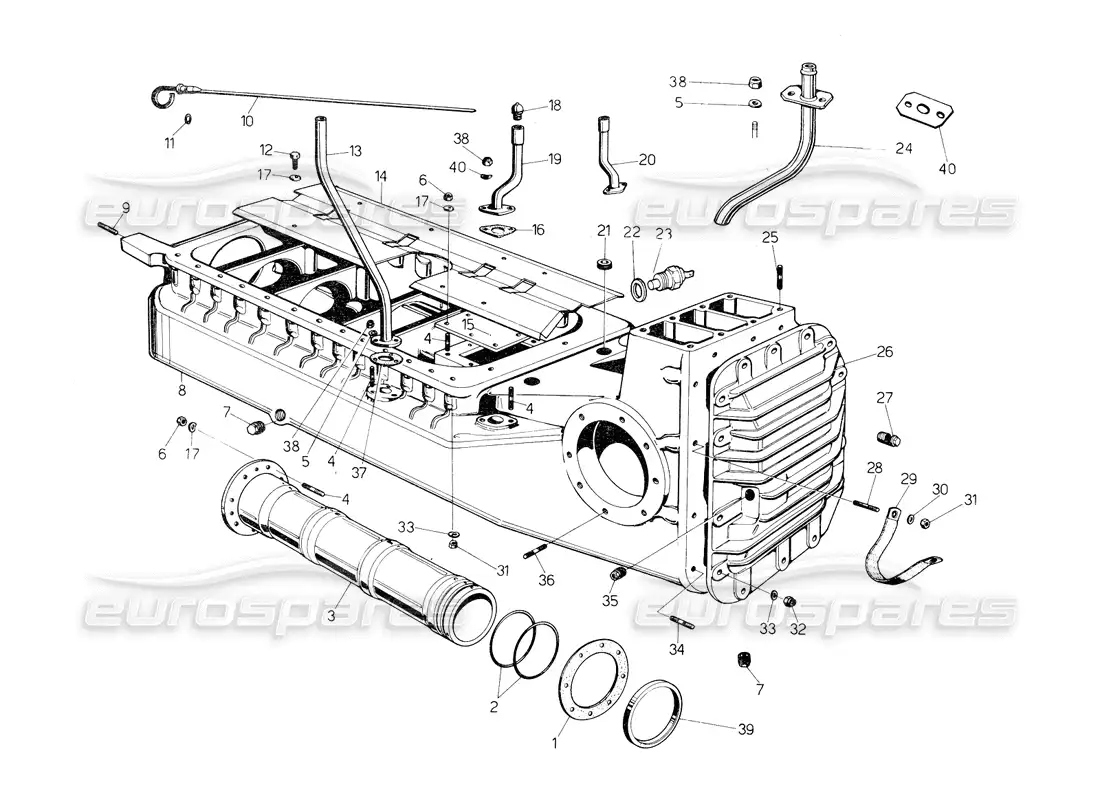

Lamborghini Countach 5000 S (1984) Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search

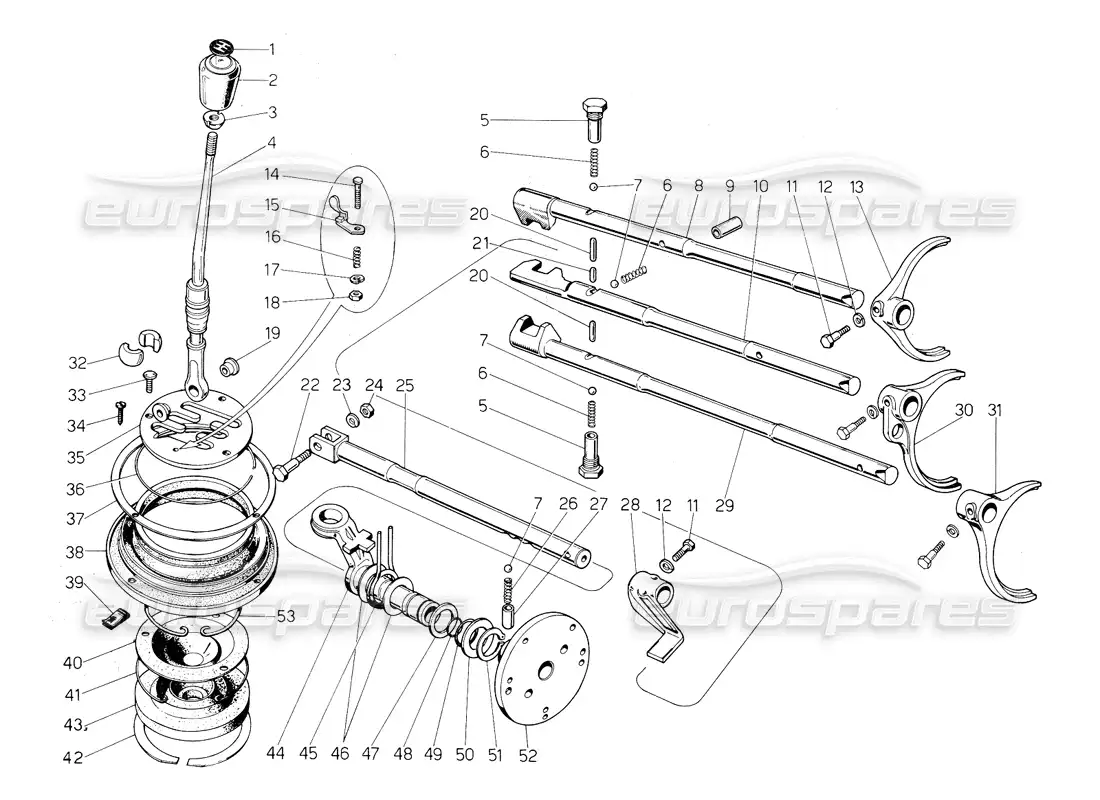

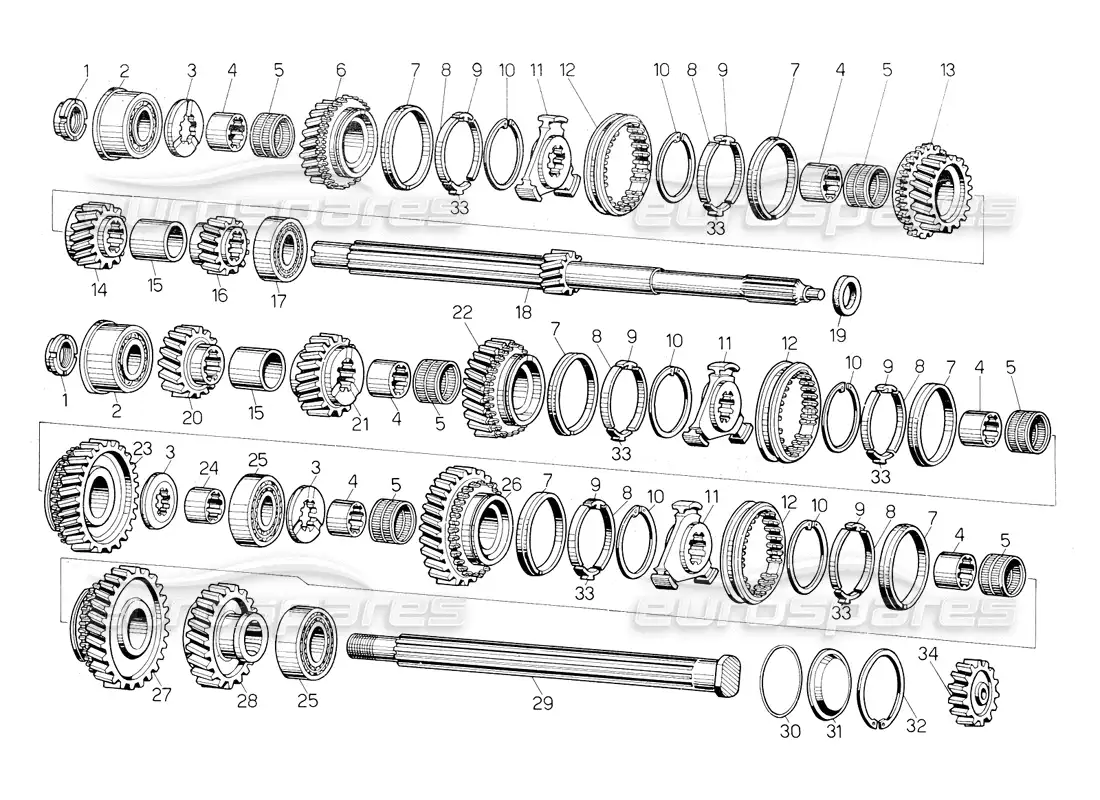

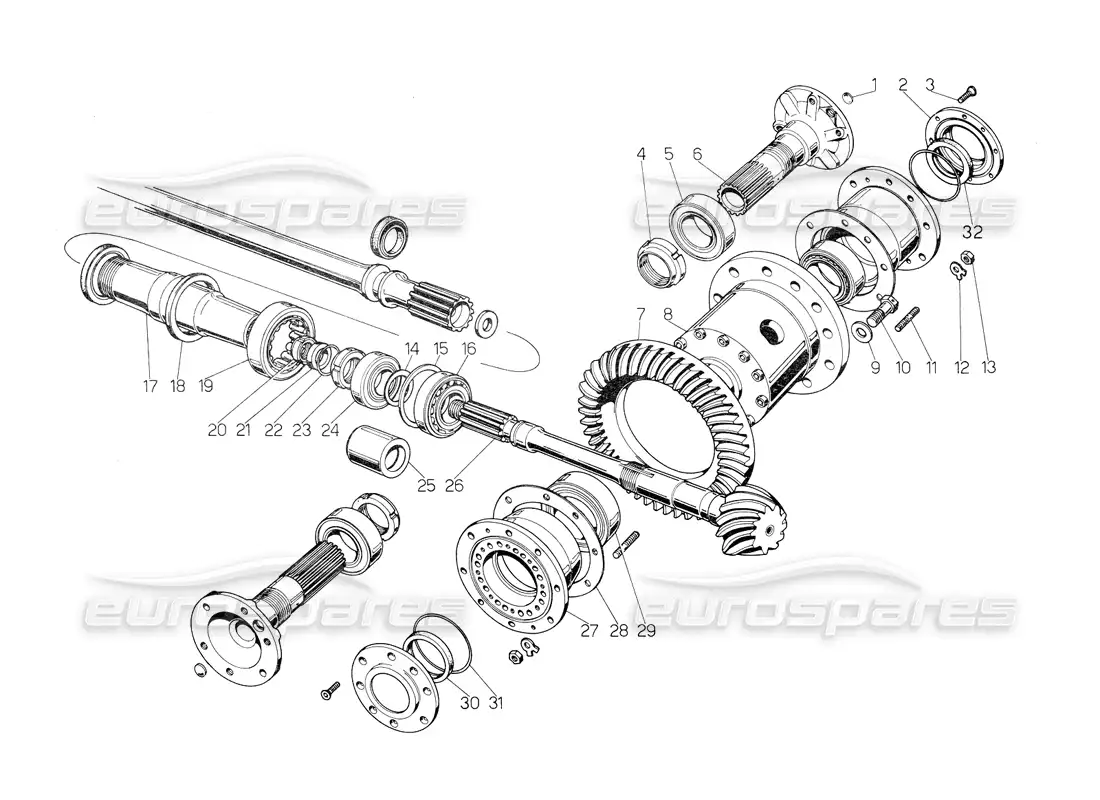

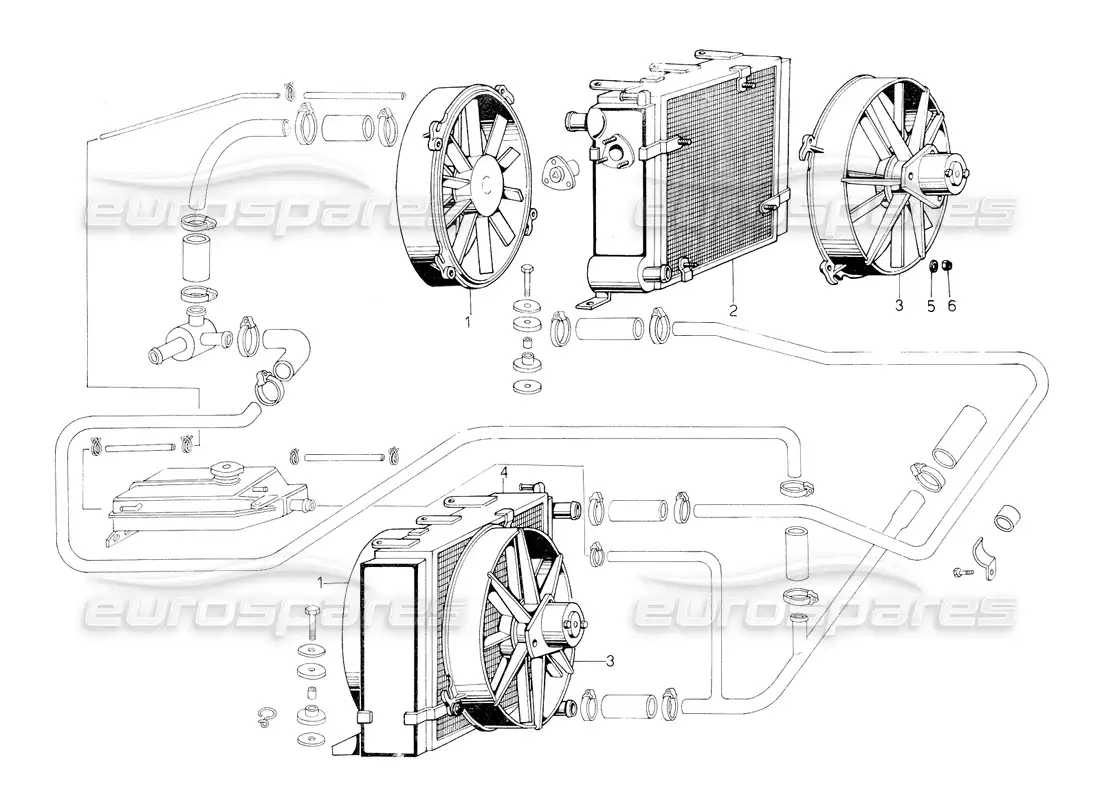

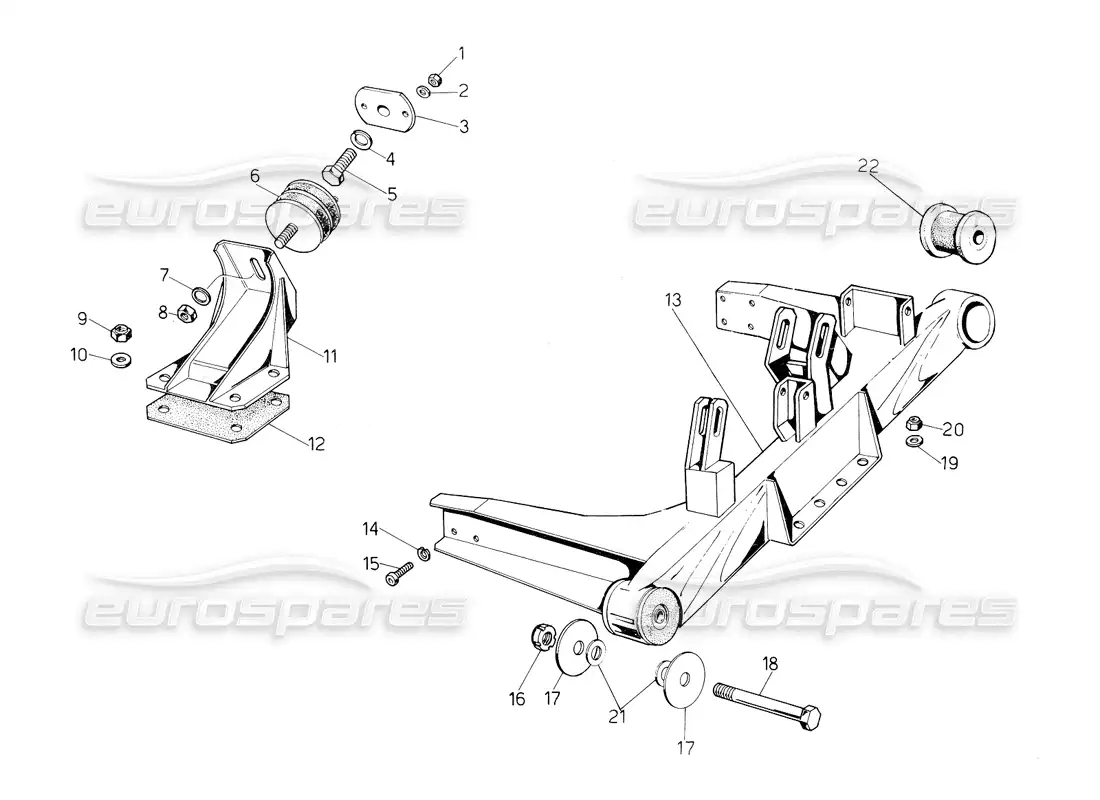

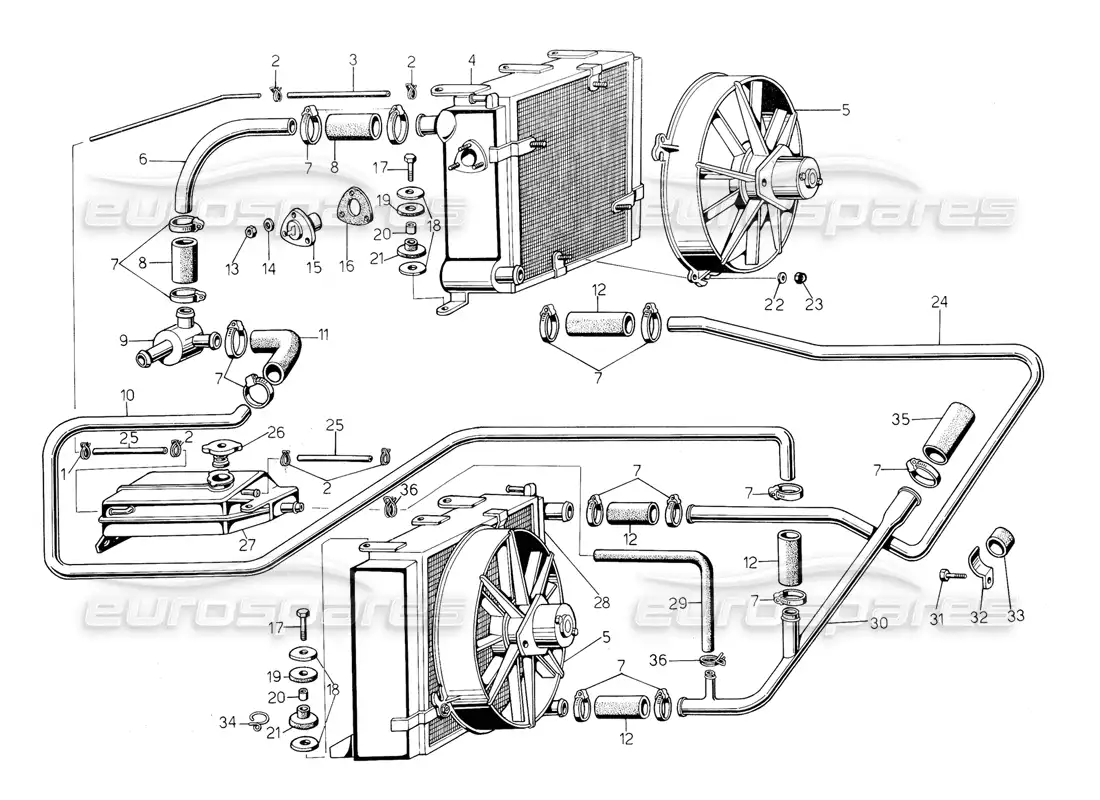

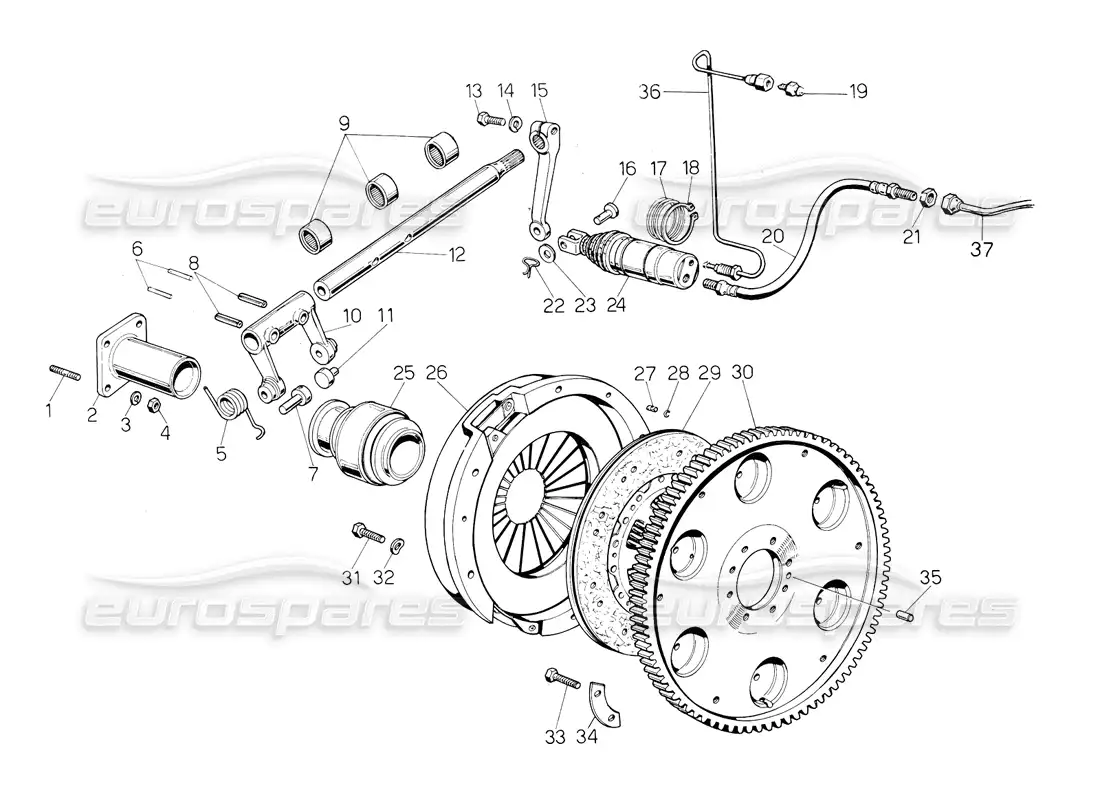

Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price

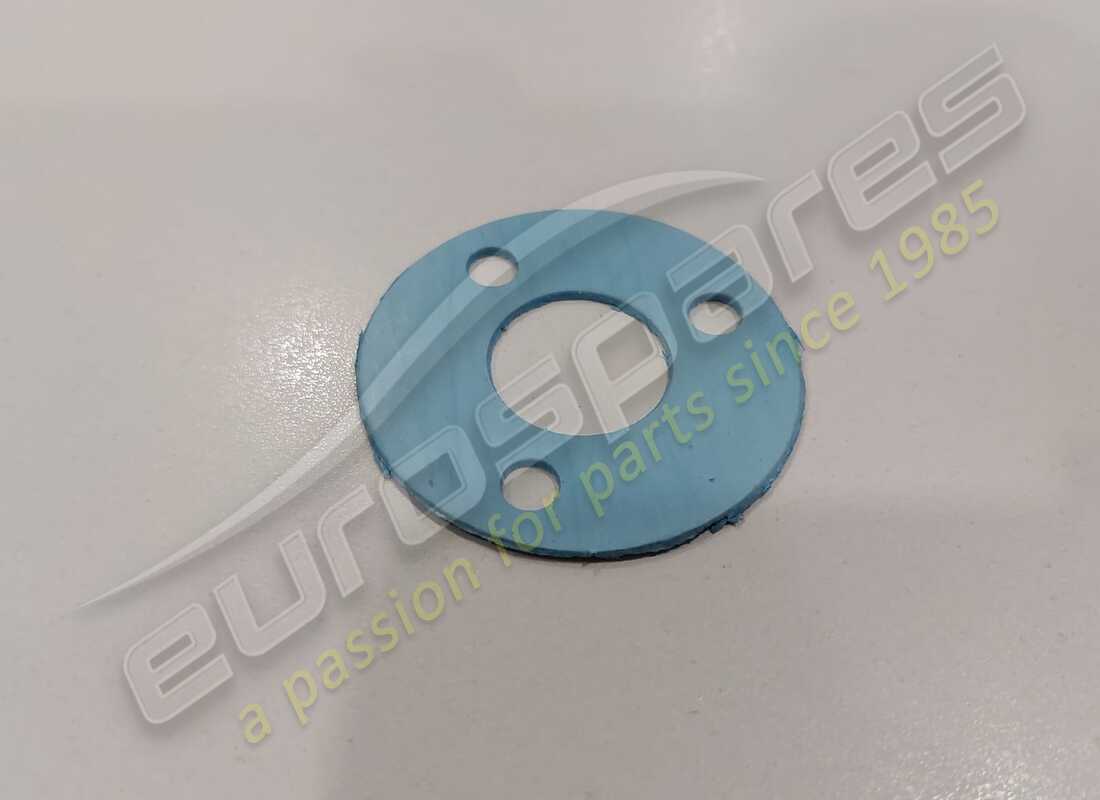

    # 001
    MPN: 001812768
    GASKET
    Guam. Tubo alb. trasm./C
    from £17.52
    from £17.52
    # 002
    MPN: 008607301
    SEAL RING
    AnelloOR176
    from £0.66
    from £0.66
    # 003
    MPN: 001812767
    PIPE
    Compl. tubo alb. trasm./C
    from £1,197.54
    from £1,197.54
    # 004
    MPN: 008300610
    BOLT
    PRIG. 6x1x1 6 8G
    from £15.47
    from £15.47
    # 005
    MPN: 008400606
    WASHER
    Rond. 6,4 UNI 1734
    Supersession
    Supersession
    # 006
    MPN: N01100637
    NUT
    DADO M6 UNI 5588-65/8G
    from £0.48
    from £0.48
    This part replaces part number 003303099 - and 1 more. Click to view details
    # 007
    MPN: 086301141A
    PLUG
    Tappo magnet. 22x1,5
    from £22.53
    from £22.53
    # 008
    MPN: 001813800
    oil sump
    Coppa olio countach
    # 009
    MPN: 008300815
    STUD
    from £10.53
    from £10.53
    # 010
    MPN: 001811229
    LEVEL DISPST
    Asta livello olio compl./C
    from £360.67
    from £360.67
    # 011
    MPN: WHT003057
    SEAL RING
    ANELLO OR 2031
    from £0.91
    from £0.91
    # 012
    MPN: 008100620
    BOLT
    Bull. M6x12 UNI 5739/5S
    from £3.65
    from £3.65
    # 013
    MPN: 001819931
    TUBE
    Tubo portante asta liv. olio
    from £56.72
    from £56.72
    # 014
    MPN: 001808152
    SUMP GUARD
    Paratia coppa olio 1C
    from £155.06
    from £155.06
    # 015
    MPN: 001811732
    COVER
    Coperchio ispez. coppa 1C
    from £124.79
    from £124.79
    # 016
    MPN: 001810045
    DIFFER GASK
    Guam. soff. differenz./C
    from £3.64
    from £3.64
    # 017
    MPN: WHT001197
    LOCK WASHER
    Ros. el. 6,4x12x0,5
    Supersession
    Supersession
    # 018
    MPN: 002302182
    PIPE
    Sfiato olio differ.
    from £143.54
    from £143.54
    # 019
    MPN: 001811040
    BREATH PIPE
    Tubo sfiato olio diff. s./C
    from £22.23
    from £22.23
    # 020
    MPN: 001811041
    BREATH PIPE
    Tubo sfiato olio diff. d./C
    from £22.23
    from £22.23
    # 021
    MPN: 008931901
    PLUG
    Tappo conico sul cambio
    from £3.57
    from £3.57
    # 022
    MPN: 008401610
    WASHER
    Bond. 22x15,5x0,5 rame
    from £6.32
    from £6.32
    # 023
    MPN: 001801333
    TERMOS SEND
    Termocop. temp, olio
    from £126.99
    from £126.99
    # 024
    MPN: 001513929
    PIPE
    Tubo scarico olio in coppa
    from £46.60
    from £46.60
    # 025
    MPN: 008300844
    BOLT
    Prig. M8x158G
    from £1.25
    from £1.25
    # 026
    MPN: 002308058
    COVER
    Coperchio scatola diff. 1C
    from £323.35
    from £323.35
    # 027
    MPN: 002311535
    BREATH PLUG
    Tappo sfiato olio diff. 1C
    from £70.06
    from £70.06
    # 028
    MPN: 008300847
    BOLT
    Prig. M8x26 8G
    from £0.54
    from £0.54
    # 029
    MPN: 001604328
    ST MOTOR CA
    Cavo massa mot/telaio
    Supersession
    Supersession
    # 030
    MPN: N90179103
    WASHER
    Rond. 8,4 UNI 17348G
    from £1.06
    from £1.06
    This part replaces part number 008400801
    # 031
    MPN: N0111849
    NUT
    DADO N/70/108M
    from £1.37
    from £1.37
    This part replaces part number 008200809
    # 032
    MPN: 008200806
    NUT
    Dado MS UNI 5588-65/8G
    Supersession
    Supersession
    # 033
    MPN: WHT001514
    LOCK WASHER
    Ros. el. 8,4x17x0,8
    from £15.09
    from £15.09
    This part replaces part number 008410805
    # 034
    MPN: 008300843
    BOLT
    Prig. M8x22 8G
    from £0.59
    from £0.59
    # 035
    MPN: 01S409965
    PLUG
    Tappo 18x1,5 conico
    from £105.93
    from £105.93
    This part replaces part number 008931802
    # 036
    MPN: 008300814
    BOLT
    Prig. M8x18 UNI 5914 8G
    from £4.15
    from £4.15
    # 037
    MPN: 001803094
    PIPE GASKET
    Guam, tubo livello olio
    from £4.56
    from £4.56
    # 038
    MPN: 008200606
    NUT
    DADO N/70/106M
    Supersession
    Supersession
    # 039
    MPN: 001808102
    SPACER
    Distanz. CSN alb. trasm./C
    from £90.38
    from £90.38
    # 040
    MPN: 001513945
    GASKET
    Guarnizione x tubo olio
    from £5.97
    from £5.97
