lamborghini countach 5000 s (1984) clutch parts diagram

014 - clutch

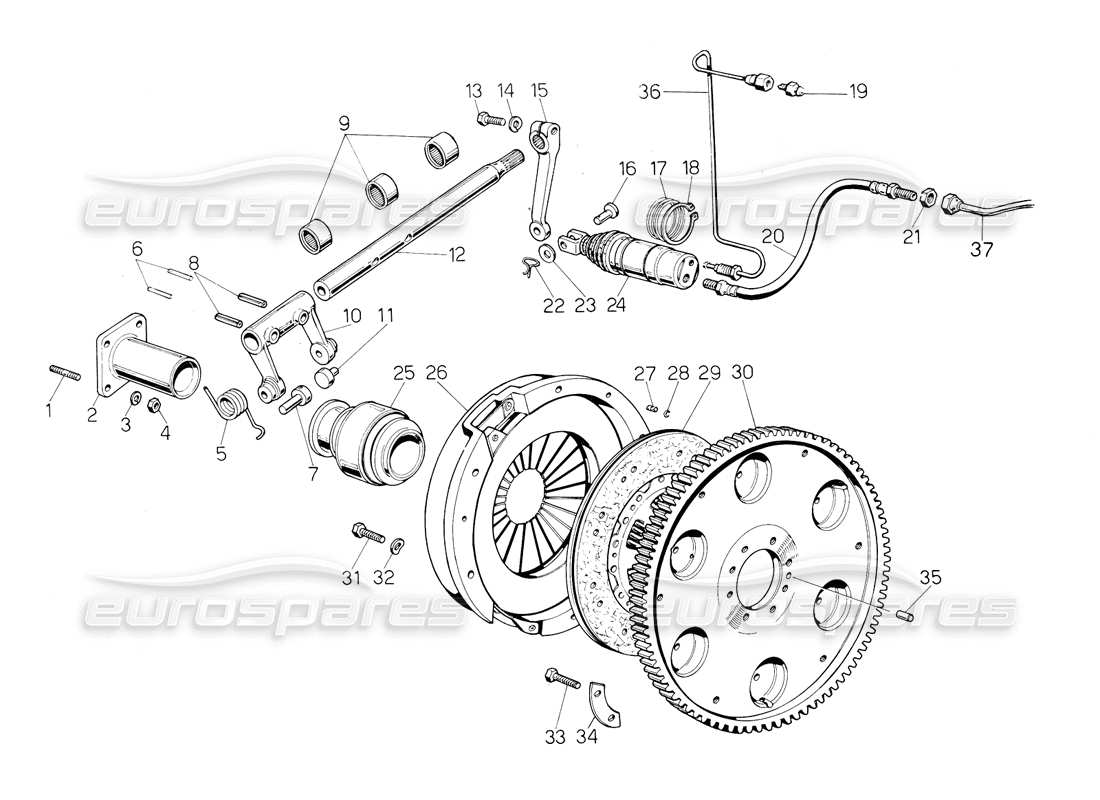

Lamborghini Countach 5000 S (1984) Clutch Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008300624
    BOLT
    Prig. M6x12 UNI 5917 8G
    from £9.73
    from £9.73
    STUD M6X12 UNI 5914 8G ZD Genuine Lamborghini - New (to order)
    # 002
    MPN: 002407938
    SUPPORT
    Manicotto supp. reggisp. frizione
    from £982.50
    from £982.50
    CLUTCH THRUST SLEEVE Genuine Lamborghini - New (to order)
    # 003
    MPN: 008410603
    LOCK WASHER
    Rond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 004
    MPN: N01100637
    NUT
    DADO M6 UNI 5588-65/8G
    from £0.53
    from £0.53
    This part replaces part number 008200604
    HEX.NUT Genuine Lamborghini - New In stock
    # 005
    MPN: 002112708
    SPRING
    Molla reggisp. frizione /C
    from £170.35
    from £170.35
    CLUTCH THRUST SPRING Genuine Lamborghini - New (to order)
    # 005
    MPN: 002119953
    SPRING
    (Valid from chassis No. 475) Molla
    from £7.42
    from £7.42
    CLUTCH ADJUSTING SPRING Genuine Lamborghini - New (to order)
    # 006
    MPN: 008900503
    PIN
    Spina elastica S 1x36
    from £0.72
    from £0.72
    ELASTIC PIN 5X36 DIN1481 Genuine Lamborghini - New In stock
    # 007
    MPN: 002112709
    PIN
    Perno forcella reggisp. /C
    from £41.09
    from £41.09
    THRUST BLOCK FORK PIN Genuine Lamborghini - New In stock
    # 008
    MPN: 008900801
    PIN
    Spina EL. 8x32
    from £6.47
    from £6.47
    ELASTIC PIN 8X32 Genuine Lamborghini - New In stock
    # 008
    MPN: 008900802
    PIN
    (Valid from chassis No. 475) Spina elastica S 1,5x36
    from £4.73
    from £4.73
    PIN DIN 1481 8X36X1.5 Genuine Lamborghini - New (to order)
    # 009
    MPN: 008522204
    BUSH
    (Valid from chassis No. 475) Astucci a rullini
    from £12.61
    from £12.61
    BEARING Genuine Lamborghini - New In stock
    # 009
    MPN: 008802003
    BUSH
    Boccola MB 2025 DU
    from £14.98
    from £14.98
    BUSHING 20X23X25 MM Genuine Lamborghini - New (to order)
    # 010
    MPN: 002109865
    FORK
    Fore. com. frizione /C
    from £252.88
    from £252.88
    CLUTCH CONTROL FORK Genuine Lamborghini - New (to order)
    # 010
    MPN: 002119945
    FORK
    (Valid from chassis No. 475) Forcella comando frizione
    from £282.73
    from £282.73
    CLUTCH CONTROL FORK Genuine Lamborghini - New (to order)
    # 011
    MPN: 002109867
    CLUTCH PIN
    Perno fore. com. friz./C
    from £172.46
    from £172.46
    CLUTCH CONTROL FORK PIN Genuine Lamborghini - New (to order)
    # 012
    MPN: 002109868
    CLUTCH SHAFT
    Alb. com. frizione 1C
    from £524.00
    from £524.00
    CLUTCH CONTROL SHAFT Genuine Lamborghini - New (to order)
    # 012
    MPN: 002119947
    SHAFT CLUTCH
    (Valid from chassis No. 475) Albero comando frizione
    from £273.61
    from £273.61
    CLUTCH DRIVE SHAFT Genuine Lamborghini - New (to order)
    # 013
    MPN: 008100836
    BOLT
    Bull. M8x1, 25x25 8G
    from £4.73
    from £4.73
    SPECIAL SCREW M8X25 Genuine Lamborghini - New (to order)
    # 014
    MPN: 008410806
    LOCK WASHER
    Rond. EL. A8,4 UNI 1751
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 015
    MPN: 002109869
    CLUTCH LEVE
    Leva com. frizione /C
    Lamborghini PART 002109869 Genuine Lamborghini - New (to order)
    # 015
    MPN: 002119946
    LEVER
    (Valid from chassis No. 475) Leva comando frizione
    from £214.74
    from £214.74
    CLUTCH LEVER Genuine Lamborghini - New In stock
    # 016
    MPN: 002109870
    CLUTCH ROD
    Perno puntal. friz. /C
    from £56.21
    from £56.21
    CLUTCH PUSH ROD PIN Genuine Lamborghini - New (to order)
    # 017
    MPN: 002110616
    CLUTCH SHIM
    Spessoraz. cilindr. friz./C
    from £66.75
    from £66.75
    CLUTCH CYLINDER SHIM Genuine Lamborghini - New (to order)
    # 018
    MPN: 008583202

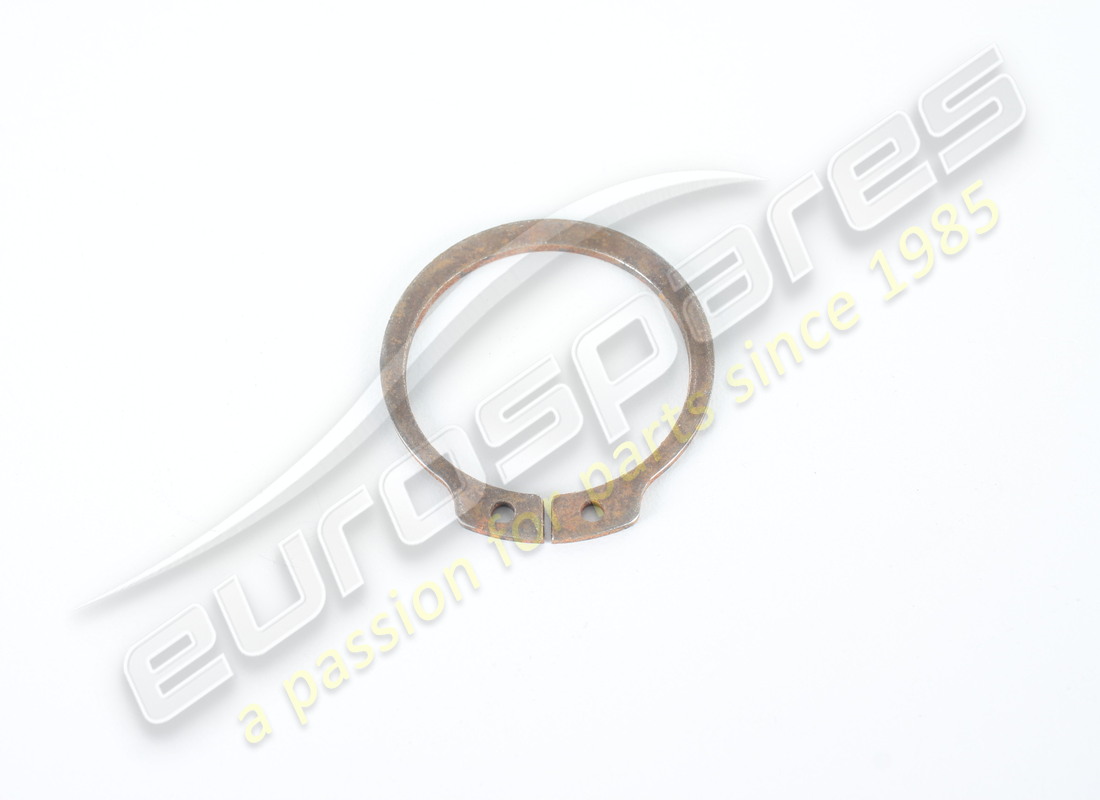

    LOCK RING
    Seeger AA 35 E
    from £0.55
    from £0.55
    O-RING AA 35 E Genuine Lamborghini - New In stock
    # 019
    MPN: 002119312
    TUBE
    Race, per spurgo cilindr. friz.
    TUBE Genuine Lamborghini - New (to order)
    # 020
    MPN: 002110618
    PIPE
    Tubofriz. 111655.1802000
    from £52.23
    from £52.23
    CLUTCH PIPE Genuine Lamborghini - New In stock
    # 021
    MPN: 008201216
    NUT
    Dado M12x1 CH 195S
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 022
    MPN: 004207085
    LEVER
    Fermo perno pompa freno/friz.
    from £48.26
    from £48.26
    BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
    # 023
    MPN: 008400816
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 024
    MPN: 002119311
    CLUTCH CYLIN.
    Cilindret. friz, completo di puntalino
    from £259.40
    from £259.40
    RH CLUTCH CYLINDER &ROD Genuine Lamborghini - New In stock
    # 025
    MPN: 002109864
    Clutch Bearing
    Reggisp. 313151053001 1C
    from £4,075.07
    from £4,075.07
    THRUST BEARING Genuine Lamborghini - New (to order)
    # 026
    MPN: 002109863
    PRESSURE PLATE
    Piatto + spingidisco frizione
    from £7,909.71
    from £7,909.71
    PRESSURE PLATE WITH ADJUSTING SLEEVE Genuine Lamborghini - New (to order)
    # 027
    MPN: 008850609
    DOWEL
    Perno D.6x16 .bonif./U
    from £16.26
    from £16.26
    TEMPERED PIN 6X16 MM Genuine Lamborghini - New In stock
    # 028
    MPN: 008580501
    CIRCLP
    Anello arresto grano rif.
    from £0.55
    from £0.55
    CIRCLIP D.6 UNI 3656 Genuine Lamborghini - New In stock
    # 029
    MPN: 002109862

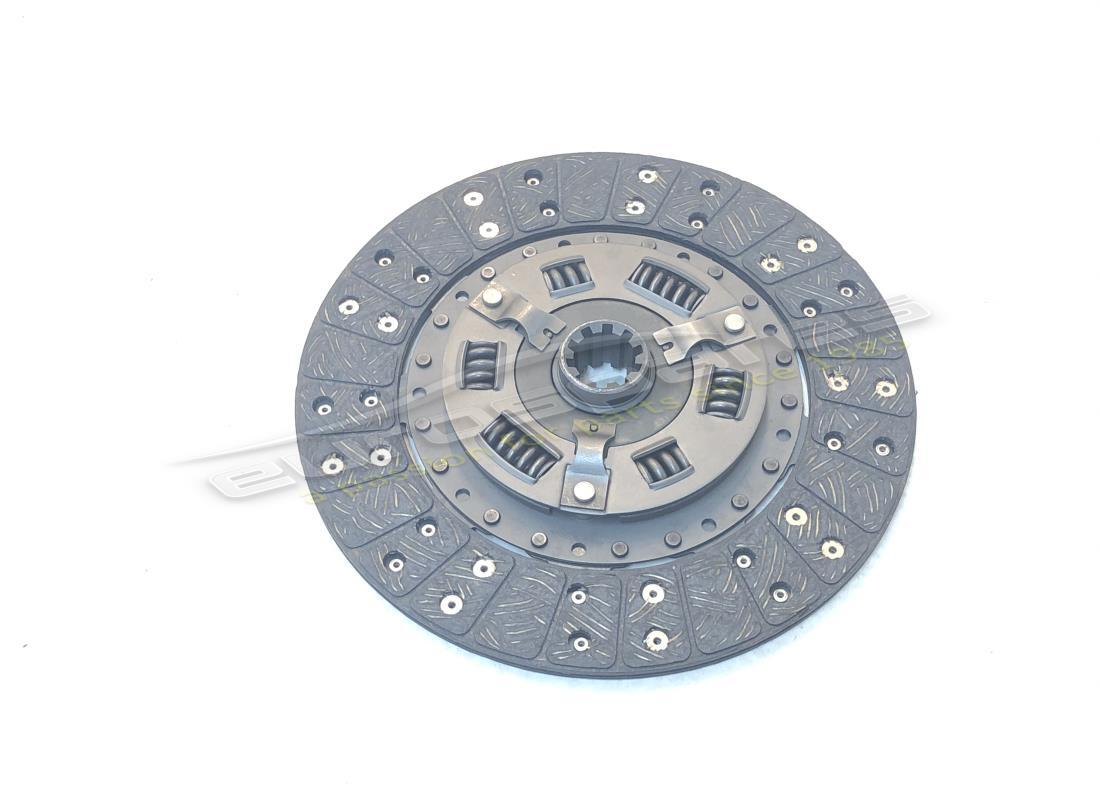

    CLUTCH DISC
    Disco 201861561001 friz.
    from £677.96
    from £677.96
    CLUTCH PLATE Genuine Lamborghini - New (to order)
    CLUTCH DISC Eurospares Approved Part - New In stock
    # 030
    MPN: 002109861

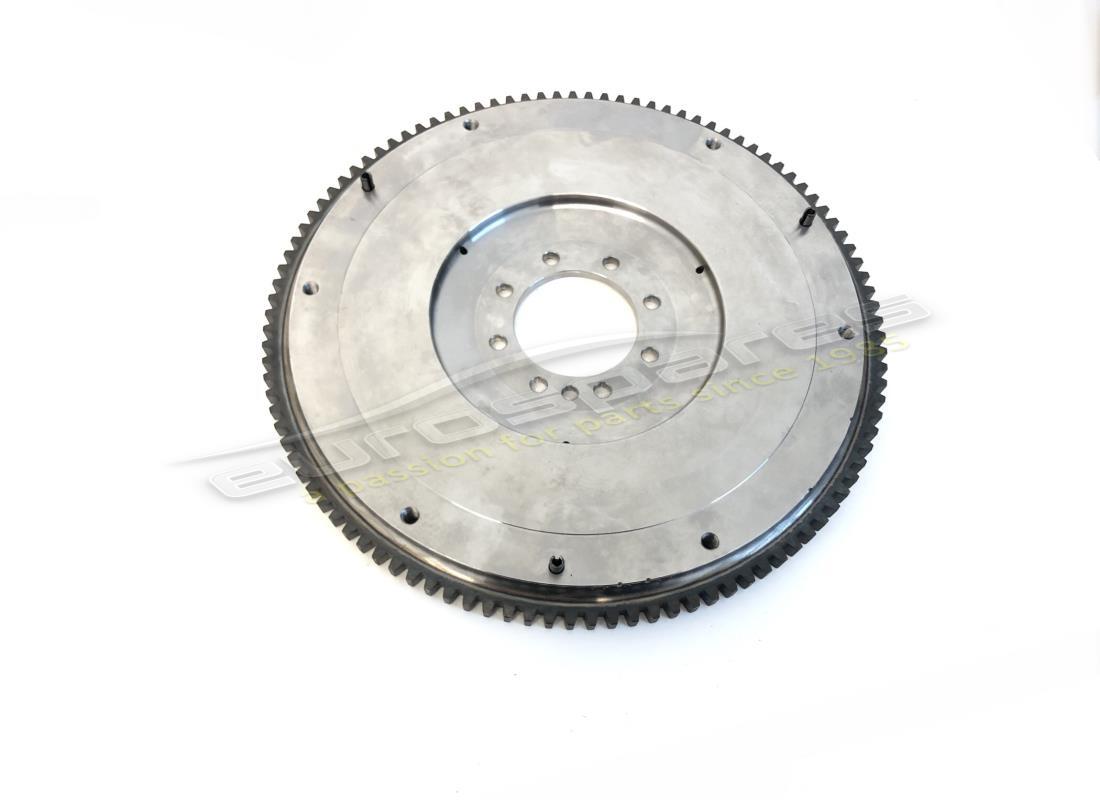

    FLY WHEEL
    Volano motore 1C
    from £1,687.24
    from £1,687.24
    engine flywheel Genuine Lamborghini - New (to order)
    # 031
    MPN: 008100841
    BOLT
    Bull. M8x30 UNI 5737/10K
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 032
    MPN: 008410810
    LOCK WASHER
    Rond. EL. 8x15
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 033
    MPN: 008100838
    BOLT
    Bull. 8x1,25x25 10K
    from £15.00
    from £15.00
    This part replaces part number BN-00368
    SPECIAL SCREW M8X25 Genuine Lamborghini - New In stock
    # 034
    MPN: 410141179
    LOCKPLATE
    from £38.40
    from £38.40
    This part replaces part number 008410811 - and 1 more. Click to view details
    RETAINING PART Genuine Lamborghini - New (to order)
    # 035
    MPN: 008850806
    DOWEL
    Grano 8x1 6 C40
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 036
    MPN: 003105378
    BRAKE PIPE
    Tubo spurgo cilindr. friz.
    from £47.81
    from £47.81
    CLUTCH CYLINDER DRAIN PIPE Genuine Lamborghini - New (to order)
    # 037
    MPN: 002110619
    PIPE
    Tubo pompa/fless. Cilindri.
    from £170.81
    from £170.81
    CYLINDER HOSE PIPE Genuine Lamborghini - New (to order)
    # 037
    MPN: 002112693
    CLUTCH PIPE
    (Valid for GB - January 1984) Tubo pompa friz/fless. gad
    from £12.11
    from £12.11
    CLUTCH CYLINDER PIPE/HOSE Genuine Lamborghini - New (to order)
