lamborghini countach 5000 s (1984) gear shift lever parts diagram

016 - Gear shift lever

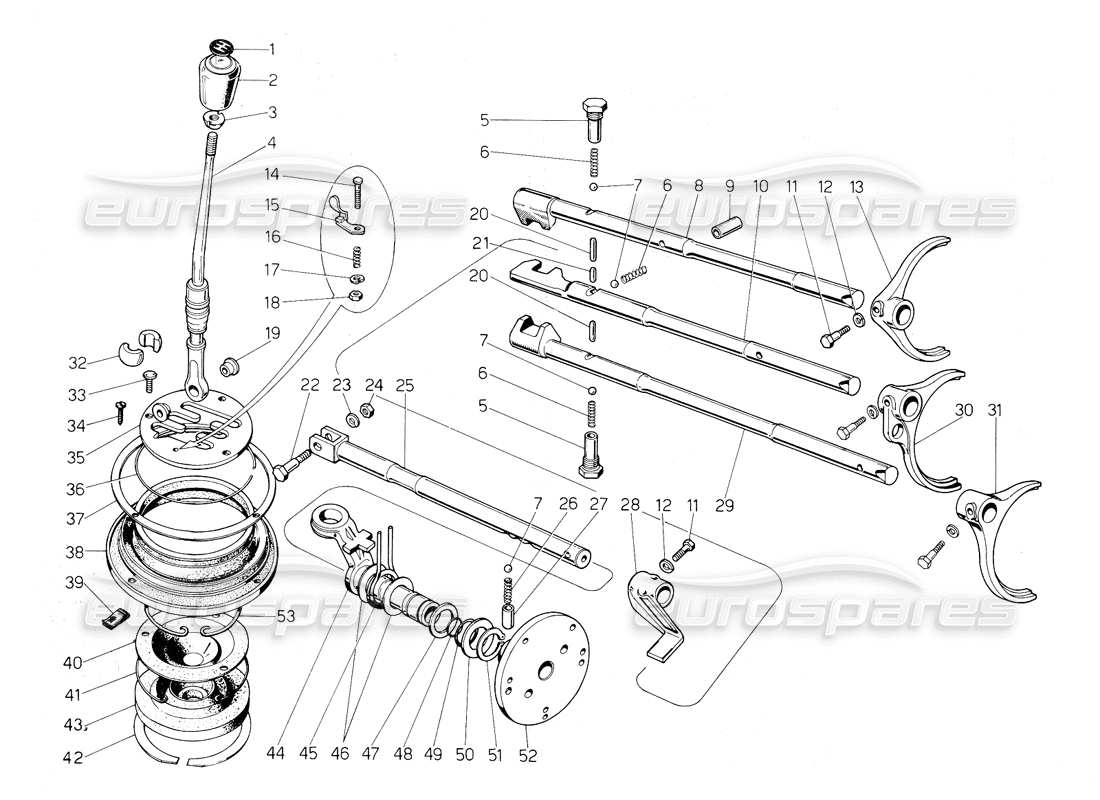

Lamborghini Countach 5000 S (1984) Gear Shift Lever Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 002410655

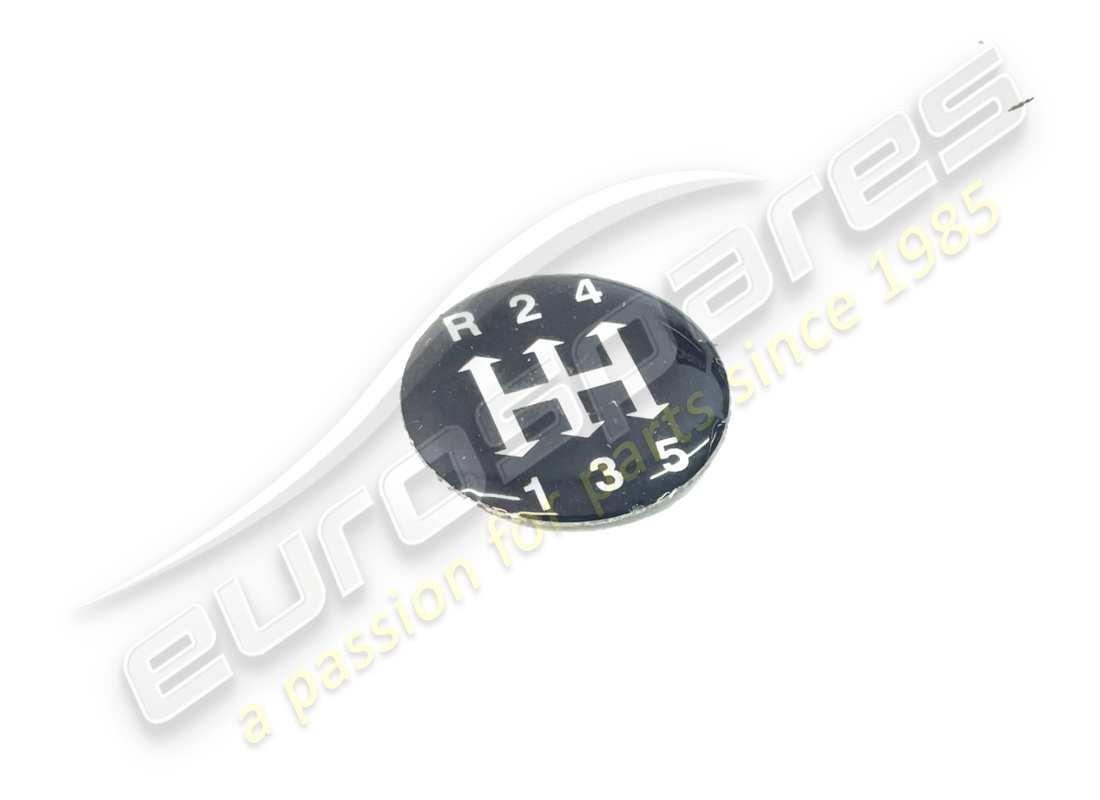

    LEVER BADGE
    Fregio indie, marce 1C
    from £47.21
    from £47.21
    # 002
    MPN: 002410654
    KNOB
    Pomello leva camb. art. 0721 1 000
    from £346.72
    from £346.72
    This part replaces part number 002410134 which we have in stock
    # 003
    MPN: 002410653
    RING NUT
    from £27.28
    from £27.28
    # 004
    MPN: 002410440
    LEVER
    Compl. leva com. cambio 1C
    from £458.26
    from £458.26
    # 005
    MPN: 002409896

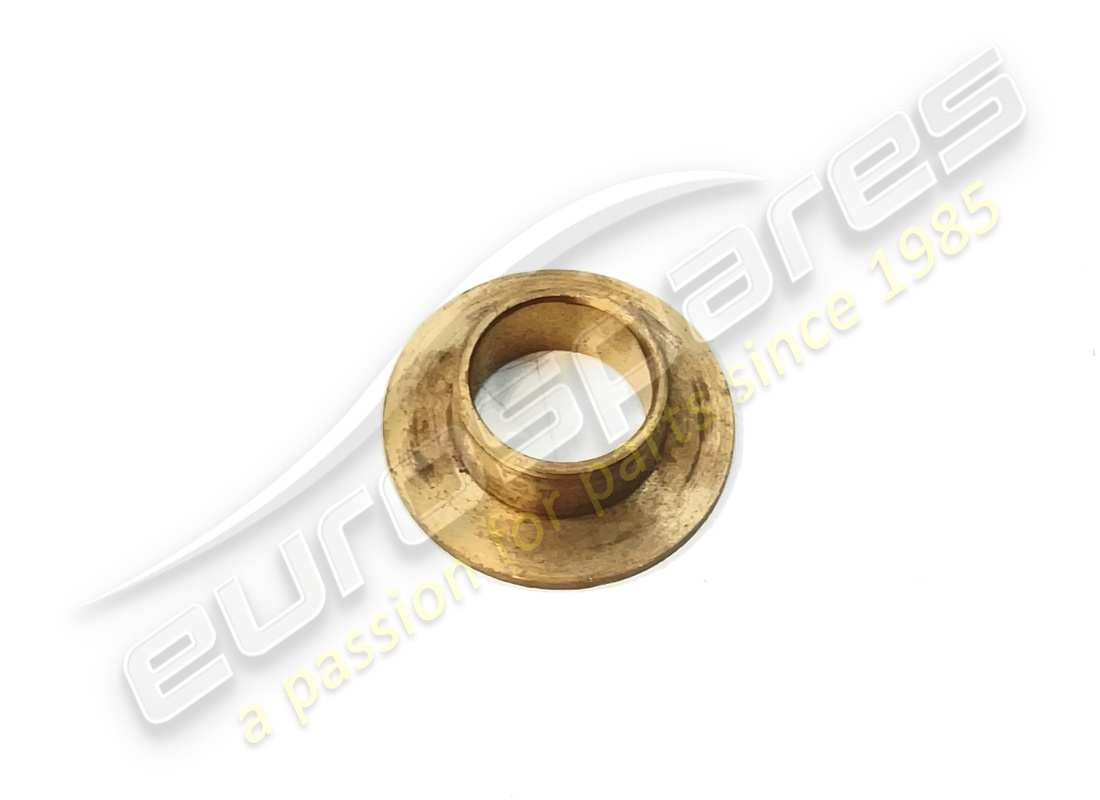

    BUSH
    Bussola sfere arr. aste 1C
    from £196.92
    from £196.92
    # 006
    MPN: 086311249
    SPRING
    Molle scatto aste
    from £3.07
    from £3.07
    This part replaces part number 002402242 - and 1 more. Click to view details
    # 007
    MPN: 008910701
    BALL
    Sf era rivrb-7, 938/1 205
    Supersession
    Supersession
    # 008
    MPN: 002409893
    ROD
    Asta com. 4 e 5 vel. 1C
    # 009
    MPN: 002401765
    BUSH
    Bocc. sfera aste cambio
    from £10.95
    from £10.95
    # 010
    MPN: 002409892
    ROD
    Asta com. 2 e 3 vel. 1C
    from £255.36
    from £255.36
    # 011
    MPN: 008100628
    BOLT
    Bull. 6x1x24 CH10 10K
    Supersession
    Supersession
    # 012
    MPN: 008410603
    LOCK WASHER
    Rond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    # 013
    MPN: 002419708
    FORK
    Forcella comand. 4° e 5° velocita
    from £349.07
    from £349.07
    # 014
    MPN: 008700635
    SCREW
    Vite selettore marce 1C
    from £14.38
    from £14.38
    # 015
    MPN: 002410634
    LEVER
    Fermo leva in RM /U/C
    from £53.31
    from £53.31
    # 016
    MPN: 002403369
    SPRING
    Molla arr. leva in RM
    from £20.81
    from £20.81
    # 017
    MPN: WHT001197
    LOCK WASHER
    Ros. el. 6,4x12x0,5
    Supersession
    Supersession
    # 018
    MPN: 008200606
    NUT
    DADO N/70/106M
    Supersession
    Supersession
    # 019
    MPN: 002403702
    BUSH
    Boccola guida leva cambio
    from £41.09
    from £41.09
    # 020
    MPN: 002407979
    PIN
    Puntal. aste lat. cambio /C
    from £19.37
    from £19.37
    # 021
    MPN: 002409897
    PIN ROD
    Puntal. arr. asta centr. 1C
    from £173.80
    from £173.80
    # 022
    MPN: 002402934
    SCREW
    Vite leva comando cambio
    from £18.17
    from £18.17
    # 023
    MPN: 008410806
    LOCK WASHER
    Rond. EL. A8,4 UNI 1751
    Supersession
    Supersession
    # 024
    MPN: 008200806
    NUT
    Dado MS UNI 5588-65/8G
    Supersession
    Supersession
    # 025
    MPN: 002409876
    PIN
    Perno centr. com. aste 1C
    from £236.30
    from £236.30
    # 026
    MPN: 002403246
    ROD SPRING
    Molla sfera albero cambio
    from £3.62
    from £3.62
    # 027
    MPN: 002403245
    ROD BUSH
    Bocc. sfera albero cambio
    from £33.74
    from £33.74
    # 028
    MPN: 002409887
    SHIFT CONTR.
    Leva selez. marce /C
    from £531.47
    from £531.47
    # 029
    MPN: 002411681
    ROD
    Asta com. 1 e RM 1C
    from £226.35
    from £226.35
    # 030
    MPN: 002419709
    FORK
    Forcella com. 2° e 3° velocita
    from £407.93
    from £407.93
    # 031
    MPN: 002419710
    FORK
    Forcella comando 1° e RM
    from £181.99
    from £181.99
    # 032
    MPN: 002409875
    SHIFT BALL
    Sfera leva com. cambio 1C
    from £111.94
    from £111.94
    # 033
    MPN: 008700634
    SCREW
    Vite fiss. selett. marce 1C
    from £22.97
    from £22.97
    # 034
    MPN: 008700506
    SCREW
    Viteknip4,8x16DIN 7971
    from £0.53
    from £0.53
    # 035
    MPN: 002409437
    SELECTOR
    Selettore com. cambio 1C
    from £281.08
    from £281.08
    # 036
    MPN: 002409438
    RING
    Anello cuffia est. leva /C
    from £8.96
    from £8.96
    # 037
    MPN: 002409922
    LEVER CLAMP
    Anello fiss. cuff ia cambio
    from £55.97
    from £55.97
    # 038
    MPN: 002410638
    GEAR BOX CA
    Cuffia est. supp. cahnbio 1C
    from £44.27
    from £44.27
    # 039
    MPN: 002412243
    NUT
    Piast. x viti cod. 0500 053x6
    from £2.12
    from £2.12
    # 040
    MPN: 002412784
    SHIFT COVER
    Cuffia sup. leva cambio 1C
    from £39.35
    from £39.35
    # 041
    MPN: 002412670
    CAP RING
    Anello el. cuffia cambio 1C
    from £15.25
    from £15.25
    # 042
    MPN: 002412671
    SPACER
    Segm. rit. cuffia cambio 1C
    from £14.38
    from £14.38
    # 043
    MPN: 002412672
    SHIFT
    CUFFIA
    Supersession
    Supersession
    # 044
    MPN: 002410314
    SUPPORT
    Supp. leva com. cambio 1C
    from £344.91
    from £344.91
    # 045
    MPN: 002410451
    LEVER SPRING
    Molla rit. leva cambio /C
    from £30.55
    from £30.55
    # 046
    MPN: 008403302
    WASHER
    Rond. ras. molla leva camb.
    from £9.66
    from £9.66
    # 047
    MPN: 008402601
    WASHER
    Rond. D. 26x40x2
    from £14.98
    from £14.98
    # 048
    MPN: 008601705

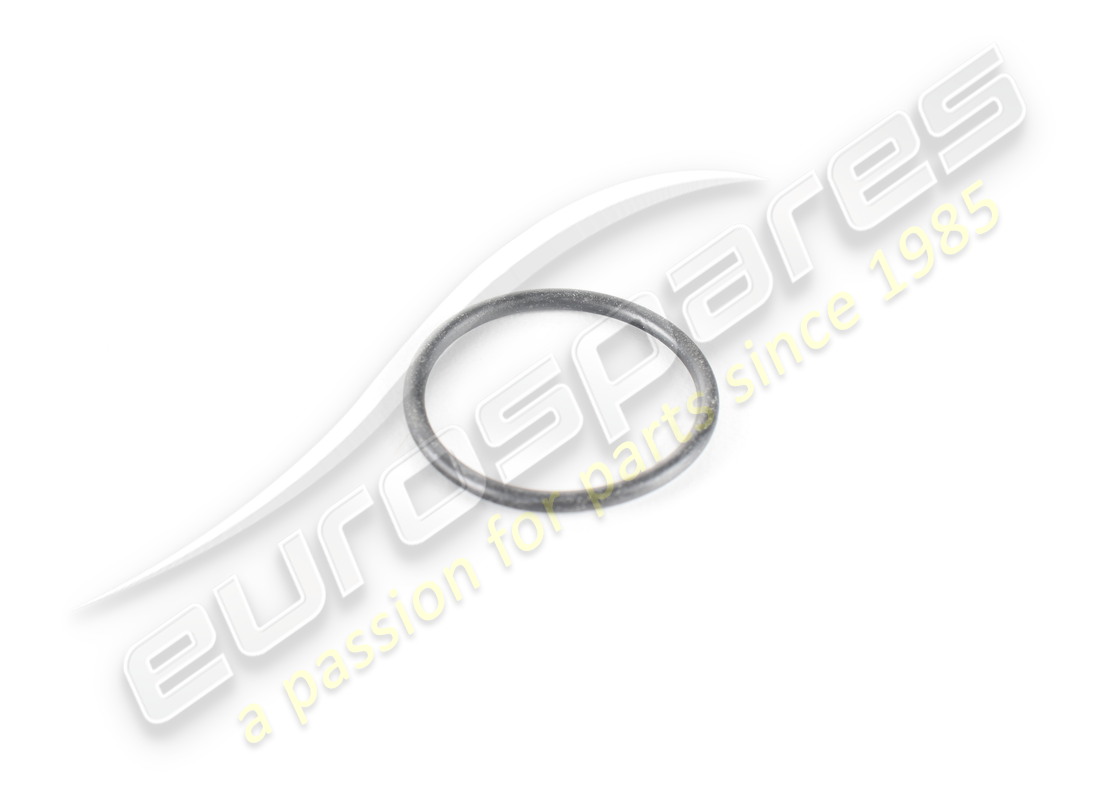

    SEAL RING
    ANELLO OR 2068
    from £0.51
    from £0.51
    # 049
    MPN: 008602101

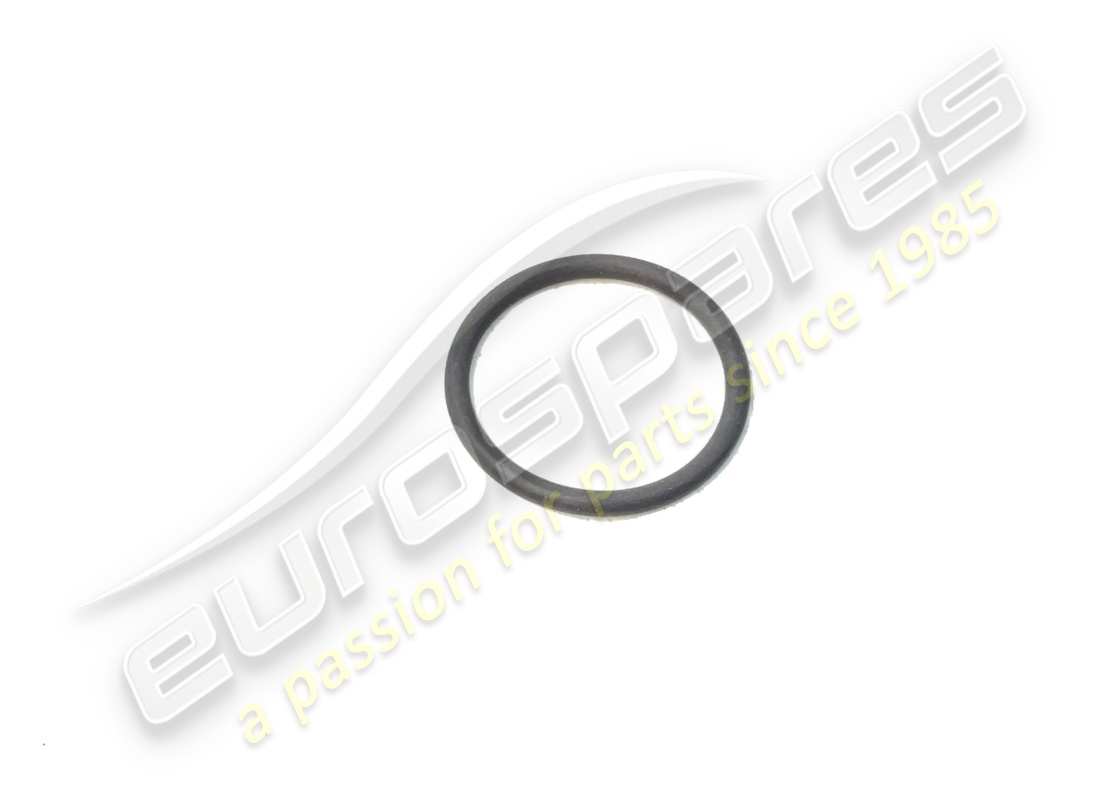

    SEAL RING
    ANELLO OR 2087
    from £1.71
    from £1.71
    # 050
    MPN: 008402602
    WASHER
    Rond. 26x35x2-2,1-2,2-2,3
    from £6.97
    from £6.97
    # 051
    MPN: 008582601
    CIRCLP
    Seeger D.26 F UN I 3653
    from £3.65
    from £3.65
    # 052
    MPN: 002409791
    SPACER
    Distanz. supp. asta cambio
    from £232.99
    from £232.99
    # 053
    MPN: 002410637
    LEVER RING
    Anello cuffia int. leva 1C
    from £12.15
    from £12.15
