lamborghini countach 5000 s (1984) air conditioning parts diagram

029 - Air Conditioning

Lamborghini Countach 5000 S (1984) Air Conditioning Parts Diagram

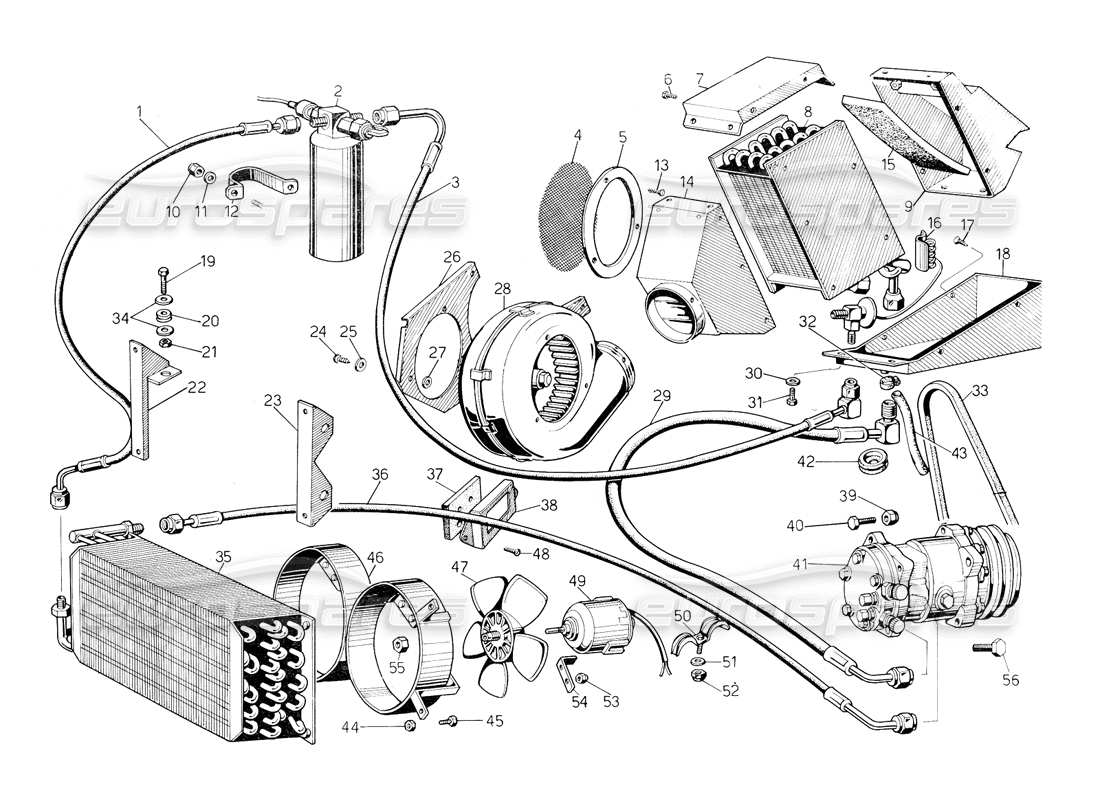

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004511342
PIPE
Tubo condens. /depur. 1C
from £181.57
from £181.57
# 002
MPN: 004535411

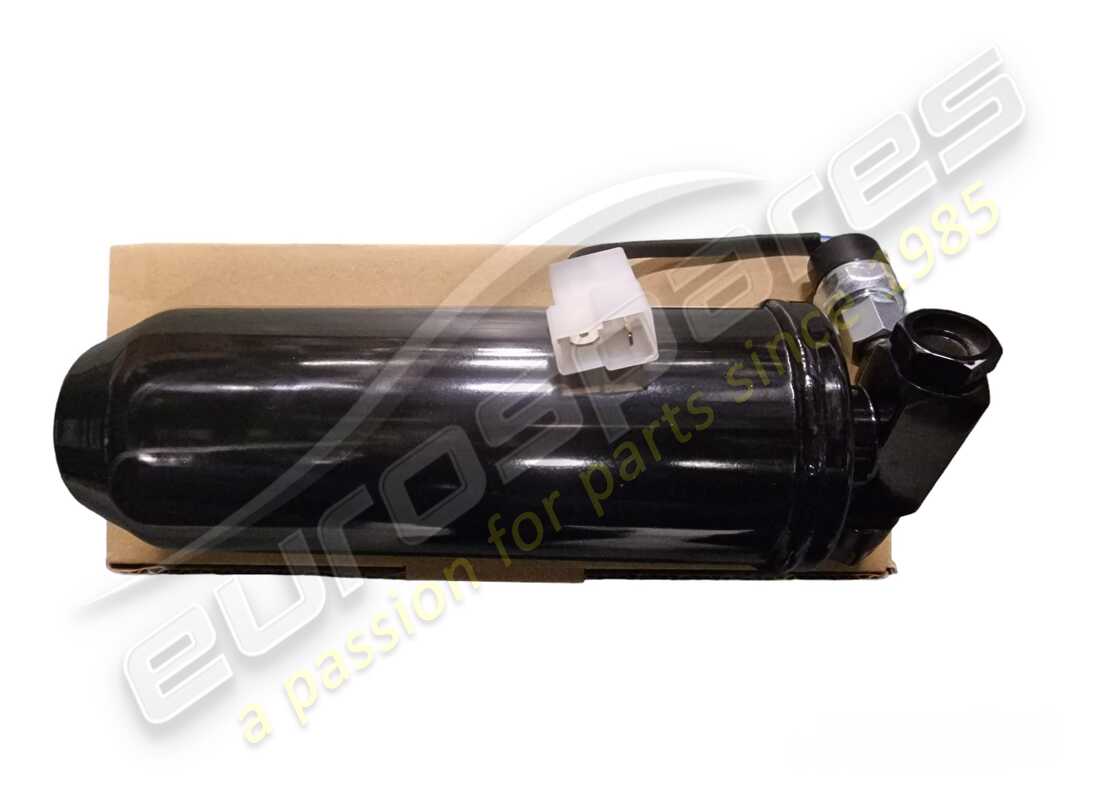

FILTER
FILTRO DEIDRATORE
from £220.49
from £220.49
This part replaces part number 004534692
# 003
MPN: 004513937
PIPE
Tubo dal depur. alia valv.
from £408.98
from £408.98
# 004
MPN: 004513146
MESH
Rete x chiocciola /C
from £61.03
from £61.03
# 005
MPN: 004513145
RING
Anello fermo rete chiocc. 1C
from £38.98
from £38.98
# 006
MPN: 008700414

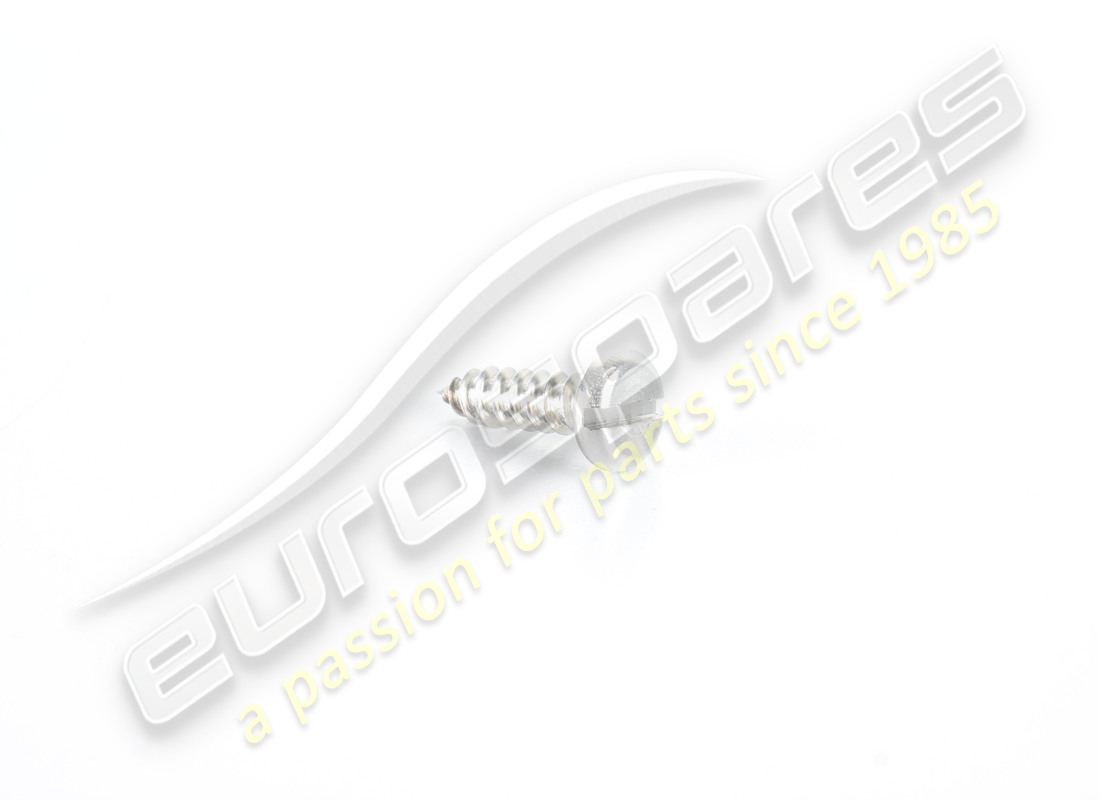

SCREW
Vite 4,2x9,5 DIN 7976/BZ
from £1.55
from £1.55
# 007
MPN: 004508820
SUPPORT COVE
Cop. sup. evaporatore /U
from £79.81
from £79.81
# 008
MPN: 004510897
COND RADIA
Evaporatore countach
from £1,876.28
from £1,876.28
# 009
MPN: 004519623
SHIELD
Carenatura evaporatore condizionatore
# 009
MPN: 004520754
SUPPORT
(Valid from chassis No. 511) Supp. bocch. aria sull'evap.
# 010
MPN: 008200606
NUT
DADO N/70/106M
Supersession
Supersession
# 011
MPN: 008400606
WASHER
Rond. 6,4 UNI 1734
Supersession
Supersession
# 012
MPN: 004508813
CLAMP
Fasc. fiss. depur. /U
from £8.58
from £8.58
# 013
MPN: 008700414
SCREW
Vite 4,2x9,5 DIN 7976/BZ
from £1.62
from £1.62
# 014
MPN: 004513150
AIR DUCT
Convogliat. evapor. /C
from £62.43
from £62.43
# 015
MPN: 004508824
CONDEN. GASK
Feltro per condensa evap.
# 016
MPN: 004506860
CONDIT VALV
Valv. esp. ev. egelhof tec— 2
from £59.40
from £59.40
# 017
MPN: 008700414
SCREW
Vite 4,2x9,5 DIN 7976/BZ
from £1.55
from £1.55
# 018
MPN: 004513147
GUARD
Contenit. condensa evap. 1C
from £121.88
from £121.88
# 019
MPN: 008100618
BOLT
Bull. M6x20 UNI 5739-8G
Supersession
Supersession
# 020
MPN: 008610701
SEAL RING
Gommino 0.7x13x10
from £18.62
from £18.62
# 021
MPN: N01100637
NUT
DADO M6 UNI 5588-65/8G
from £0.53
from £0.53
This part replaces part number 003303099 - and 1 more. Click to view details
# 022
MPN: 004511115
PLATE
Staffa fiss. condens. /C
from £15.46
from £15.46
# 023
MPN: 004511114
PLATE
Staffa fiss. condens. /C
from £36.85
from £36.85
# 024
MPN: 008700306
SCREW
Viteknip B3,5x16DIN 7971
from £1.62
from £1.62
# 025
MPN: 008400608
WASHER
Rond. 6,4x11x3,5
from £11.53
from £11.53
# 026
MPN: 004513148
SUPPORT
Supp. elettrov. condiz. 1C
from £21.15
from £21.15
# 027
MPN: WHT001187
WASHER
Rond. 5,3 UNI 17345S
from £0.53
from £0.53
This part replaces part number 008400502
# 028
MPN: 004513144
FAN
Elettrov. sin. riscald. /S/C
# 029
MPN: 004513936
PIPE
Tubo dal evap. al compress.
# 030
MPN: WHT002961
WASHER
Rond. 6,5x18x1,5
from £0.54
from £0.54
This part replaces part number 008400607
# 031
MPN: 008100622
BOLT
Bull. M6x12 UNI 5739/8G
from £3.65
from £3.65
# 032
MPN: 008830901
CLAMP RING
Fasc. royal 0000/9
from £4.07
from £4.07
# 033
MPN: 004513741
BELT
Cinghia com. cond. CTA 4703
from £98.25
from £98.25
# 034
MPN: WHT002961
WASHER
Bond. 6,5x18x1,5
from £0.52
from £0.52
This part replaces part number 008400607
# 035
MPN: 004510564
COND. RADIA
Condensatore countach
from £444.41
from £444.41
# 036
MPN: 004513938
PIPE
Tubo dal compress, al cond.
from £153.91
from £153.91
# 037
MPN: 004519129
GASKET
Guarnizione tenuta Tubi freno cond.
# 038
MPN: 004519130
COVER
Cornice per guar. Tubi freno cond.
# 039
MPN: 008201008
NUT
DADO B/70/210M
from £0.55
from £0.55
# 040
MPN: 008101034
BOLT
Bull. M10x130 UNI 5737 10K
from £43.41
from £43.41
# 041
MPN: 004513470
COMPR
Compress, rot. abacus 508 /U
from £1,081.99
from £1,081.99
# 042
MPN: 008611002
SEAL RING
Gommino dur S 458
from £13.87
from £13.87
# 043
MPN: 004511004
PIPE
Tubo scar, condensa /C
# 044
MPN: 008200609
NUT
Dado M6 UNI 5596-65/A 5S
Supersession
Supersession
# 045
MPN: 008100613
BOLT
Bull. M6x10 UNI 5739 5S
from £0.50
from £0.50
# 046
MPN: 004510563
FAN SUPPORT
Supp. mot. condens. 1C
from £500.63
from £500.63
# 047
MPN: 004504908
CONDIT FAN
Vent. 78513241 mot. cond.
from £354.51
from £354.51
# 048
MPN: 008700506
SCREW
Viteknip4,8x16DIN7971
from £0.53
from £0.53
# 049
MPN: 004508071
CONDIT FAN
Mot. condens. 69401 138 con ventola
from £538.67
from £538.67
# 050
MPN: 004505977
PIPE
Fasc. fiss. Tubi cohdiz.
from £9.52
from £9.52
# 051
MPN: 008400501
WASHER
Bond. 5,8 UNI 1737 AQ45
from £0.54
from £0.54
# 052
MPN: N0211963
NUT
DadoN/70/105M
from £0.53
from £0.53
# 053
MPN: N0211963
NUT
DadoN/70/105M
from £0.48
from £0.48
# 054
MPN: 004508088
PLATE
Piastr. fiss. mot. cond. MIURA
from £16.50
from £16.50
# 055
MPN: 004504909
NUT
Dado 78516479 fiss. vent.
from £7.10
from £7.10
# 056
MPN: 008101008
BOLT
Bull. M10x30UNI 5739 8G
from £9.69
from £9.69
