lamborghini countach 5000 s (1984) rear suspension parts diagram

034 - Rear Suspension

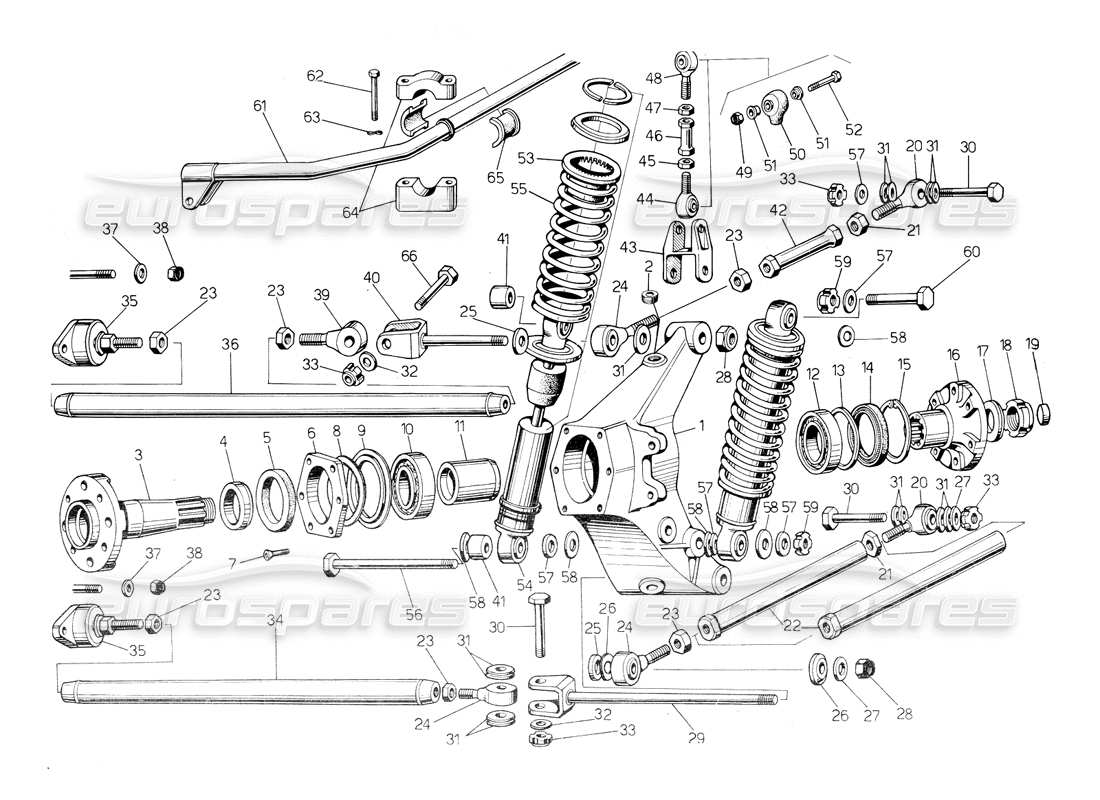

Lamborghini Countach 5000 S (1984) Rear Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 005219538
    REAR HUB
    Portamozzo posteriore destro
    # 001
    MPN: 005219539
    HUB CARRIER
    Portamozzo posteriore sinistro
    # 002
    MPN: 008932002
    PLUG
    Tappo conico 1/2 gas 5S
    from £16.80
    from £16.80
    # 003
    MPN: 005212869
    HUB
    Mozzo post, d/s 1C
    from £1,687.24
    from £1,687.24
    # 004
    MPN: 005219294
    SPACER
    Pist. cusc. est.
    from £103.65
    from £103.65
    # 005
    MPN: 008617501
    RING
    An. ten. 11673 90x75x8 r
    from £289.36
    from £289.36
    # 006
    MPN: 005212870
    SUPPORT
    Supp. anel. ten. e CSN pos.
    from £493.32
    from £493.32
    # 007
    MPN: 008700809
    SCREW
    Vite brugola 8x25
    from £0.52
    from £0.52
    # 008
    MPN: 008408601
    WASHER
    Rond. spess. vari 99,5x86
    from £4.73
    from £4.73
    # 009
    MPN: 008879901
    RING
    Anel. nilos6211 ZJV 1C
    from £28.86
    from £28.86
    # 010
    MPN: 008505504
    BEARING
    CSN riv 62211 2RS
    from £152.56
    from £152.56
    # 011
    MPN: 005212871
    SPACER
    Distanz. CSN mozzo post. 1C
    from £266.31
    from £266.31
    # 012
    MPN: 008505505
    BEARING
    CSN riv 601 1 2RS/est. mozz.
    from £171.36
    from £171.36
    # 013
    MPN: 005213567
    SPACER
    Anello distanziale
    from £67.16
    from £67.16
    # 014
    MPN: 008616801
    RING
    An. ten. 5283/936R90x68x10
    from £6.10
    from £6.10
    # 015
    MPN: 008579002
    RING
    Anello spall. BR 92
    from £37.44
    from £37.44
    # 016
    MPN: 005212868
    FLANGE
    Flangia semiassi /C
    from £103.75
    from £103.75
    # 017
    MPN: 005219295
    SCREW
    Rond. f iss. flangia mozzo post.
    from £31.15
    from £31.15
    # 018
    MPN: 008253501
    RING NUT
    Ghiera autobl. GT 35x1,5x13
    from £37.11
    from £37.11
    # 019
    MPN: 005219288
    NUT
    Tappo per mozzo post.
    from £16.80
    from £16.80
    # 020
    MPN: 005209538
    BALL JOINT
    Snodo 42501 4802351 2 sup.
    from £152.54
    from £152.54
    # 021
    MPN: 008201412
    NUT
    Dado M14 :,UNI 5589 sin. 8G
    from £11.53
    from £11.53
    # 022
    MPN: 005213175
    PIPE
    Tubo x braccio inf. post. 1C
    from £736.68
    from £736.68
    # 023
    MPN: 008201411
    NUT
    DADO M14 UNI 5589 8G
    from £10.57
    from £10.57
    # 024
    MPN: 005209535
    LOWER BALL JOINT
    Snodo 32501 48023512 inf.
    from £152.54
    from £152.54
    # 025
    MPN: 008401402
    WASHER
    Rond. ras. bracci sosp. 1C
    from £16.80
    from £16.80
    # 026
    MPN: 005213186
    SPACER
    Distanz. portamozzo snodi 1C
    from £81.84
    from £81.84
    # 027
    MPN: 008401413
    WASHER
    Rond; 14,4x26x3
    from £0.58
    from £0.58
    # 028
    MPN: 008201414
    NUT
    Dado autoblocc. 14x1,5x13,8 (14)
    from £12.98
    from £12.98
    # 029
    MPN: 005218985
    FORK
    Forcella bracci inf.
    from £232.15
    from £232.15
    # 030
    MPN: 008101419
    BOLT
    Bull. 14x1,5x57 10K
    from £62.69
    from £62.69
    # 031
    MPN: 008401421
    WASHER
    Rond. ras. bracci sosp. 1C
    from £0.49
    from £0.49
    # 032
    MPN: 008401417
    WASHER
    Rond. 15x25x2
    from £1.99
    from £1.99
    # 033
    MPN: 008251401
    RING NUT
    Ghiera autobl. gua 14MB
    from £15.23
    from £15.23
    # 034
    MPN: 005213574
    PIPE UNIT
    Compless. tubo punt. sup. 1C
    from £612.17
    from £612.17
    # 035
    MPN: 005109558
    BALL JOINT
    Snodo 0270145033512 1C
    from £114.41
    from £114.41
    # 036
    MPN: 005213572
    PIPE UNIT
    Compless. tubo punt. inf. 1C
    from £201.10
    from £201.10
    # 037
    MPN: N90179103
    WASHER
    Rond. 8,4 UNI 17348G
    from £0.98
    from £0.98
    This part replaces part number 008400801
    # 038
    MPN: N0111849
    NUT
    DADO N/70/108M
    from £1.39
    from £1.39
    This part replaces part number 008200809
    # 039
    MPN: 005109521
    BALL JOINT
    Snodo 3250148013512 sosp.
    from £127.12
    from £127.12
    # 040
    MPN: 005209688
    FORK
    Fore, f iss. braccio sup. 1C
    from £475.09
    from £475.09
    # 041
    MPN: 008921704
    BOLT
    Estendbloc x ammortizzatori
    from £78.36
    from £78.36
    # 042
    MPN: 005209537
    REAR ARM RO
    Reg. braccio sup. post, 1C
    from £101.69
    from £101.69
    # 043
    MPN: 005209771
    FORK
    Forcella att. barra 1C
    from £89.61
    from £89.61
    # 044
    MPN: 005206964
    BALL JOINT
    SEE 005227295/005227298
    from £72.47
    from £72.47
    # 045
    MPN: 008201016
    NUT
    DadoMIO UNI 5589 5S
    from £14.30
    from £14.30
    This part replaces part number 008201034
    # 046
    MPN: 005209770
    TIE ROD
    Tirante barra tors. 1C
    from £154.04
    from £154.04
    # 047
    MPN: 008201014
    NUT
    Dado M 10x1x655
    from £3.86
    from £3.86
    # 048
    MPN: 005206963
    BALL JOINT
    SEE 005227296/005227298
    Supersession
    Supersession
    # 049
    MPN: 008200809
    NUT
    Dado B/70/208 M
    Supersession
    Supersession
    # 050
    MPN: 005109714
    GUARD
    Protez. snodo unibal BD8 1C
    from £16.55
    from £16.55
    # 051
    MPN: 005109713
    BUSH
    Boccola snodo unibal BD8
    from £5.15
    from £5.15
    # 052
    MPN: 008100807
    BOLT
    Bull. M8x40 UNI 5737 8G
    from £0.51
    from £0.51
    # 053
    MPN: 410512385
    RUBBER RING
    from £32.94
    from £32.94
    # 054
    MPN: 005219387
    SHOCK
    AMMORTIZZATORE POSTERIORE
    from £585.77
    from £585.77
    # 055
    MPN: 005219298
    SPRING
    Molla sospensione
    from £488.35
    from £488.35
    # 056
    MPN: 005209718
    PIN
    Perno f iss. ammortizz. 1C
    from £224.69
    from £224.69
    # 057
    MPN: 008401708
    WASHER
    Rond. 17,5x26x3
    from £1.58
    from £1.58
    # 058
    MPN: 008401710
    WASHER
    Rond. ras. bracci — ammort. 1C
    from £26.12
    from £26.12
    # 059
    MPN: 008251702
    RING NUT
    Ghiera guk 17 MC 8G
    from £2.41
    from £2.41
    This part replaces part number 008251701
    # 060
    MPN: 008101702
    BOLT
    Bull. 17x1x59 10K
    from £58.41
    from £58.41
    # 061
    MPN: 005212935
    ROLL IBAR
    Barra torsione post. 1C
    # 062
    MPN: 008700609
    SCREW
    VITE 8,6x1x45 UNI 2383
    Supersession
    Supersession
    # 063
    MPN: WHT001197
    LOCK WASHER
    Ros. el. 6,4x12x0,5
    Supersession
    Supersession
    # 064
    MPN: 005213569
    SUPPORT
    Supp. barra tors. post. 1C
    from £333.31
    from £333.31
    # 065
    MPN: 005212934
    BOLT
    Boccola barra torsione post. 1C
    from £165.00
    from £165.00
    # 066
    MPN: 008101420
    BOLT
    Bull. 14x1,5x51 10K
    from £33.43
    from £33.43
