lamborghini countach 5000 s (1984) fibreglass inner coverings parts diagram

042 - Fibreglass Inner Coverings

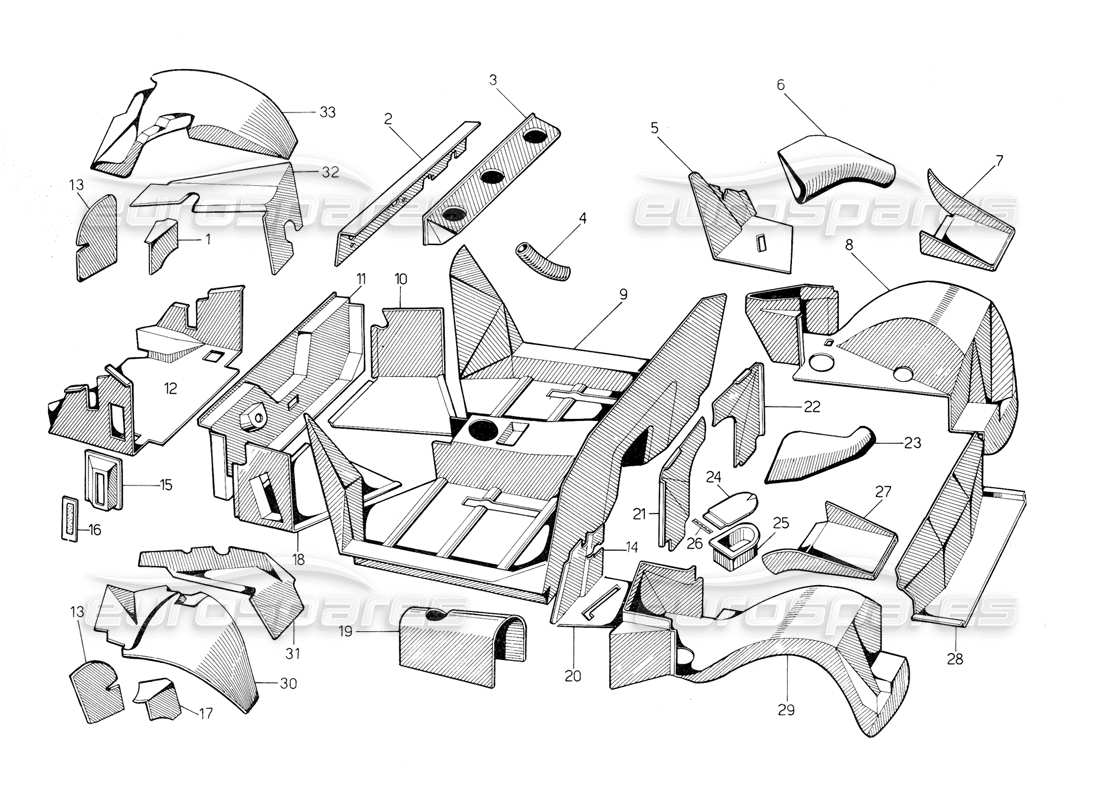

Lamborghini Countach 5000 S (1984) Fibreglass Inner Coverings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 007009074
BULK HEAD
Paratia passa ruota des.
# 002
MPN: 007011026
GUARD
Parafiamma ant. sup.
from £636.76
from £636.76
# 003
MPN: 007011030
AIR DUCT
Convogl. aria palpebra
from £1,660.12
from £1,660.12
# 004
MPN: 004711726
TUBE
Tubo corrug. mand. aria
from £26.63
from £26.63
# 005
MPN: 007011033
PANEL
Rivest. vano motore des.
# 006
MPN: 007053011
AIR
Presa aria super, dex.
# 007
MPN: 007011079
AIR INLET
Convogliatore aria des.
from £542.14
from £542.14
# 008
MPN: 007011113
UNIT WHEEL
Compless. passaruota post. dex.
# 009
MPN: 007011008
PANEL
Pianale countach
# 010
MPN: 007011028
RIGHT PANEL
Fianchetto int. des.
from £1,882.08
from £1,882.08
# 010
MPN: 007011130
FIBER GLASS
(Valid for GB - January 1984) Fianchetto in vetroresina vano piedi lato dex.
from £118.56
from £118.56
# 011
MPN: 007011027
GUARD
Parafiamma ant. inf.
from £1,173.15
from £1,173.15
# 012
MPN: 007011001
SPARE WHEEL
Contenitore ruota scorta
from £3,851.99
from £3,851.99
# 013
MPN: 007009045
SHIELD
Paratia sul passaruota ant. des.
# 014
MPN: 007009104
SPACER
Paratia prot. serb. benz. sup. sin.
from £1,330.72
from £1,330.72
# 015
MPN: 007011004
GUARD
Protez. des. cremagliera
# 015
MPN: 007011005
GUARD
Protez. sin. cremagliera
# 016
MPN: 007011108
UNIT WHEEL
Compl. paratia scatl. x pass, asta cremagliera dex e sin.
from £444.43
from £444.43
# 017
MPN: 007009075
BULK HEAD
Paratia passa ruota sin.
from £569.61
from £569.61
# 018
MPN: 007011029
LEFT PANEL
Fianchetto int. sin.
from £1,019.80
from £1,019.80
# 019
MPN: 007011009
COVER
Rivest. tunnel x isolamento
from £1,193.93
from £1,193.93
# 020
MPN: 007009098
SPACER
Paratia fra AB e vano motore lat. sin.
from £1,330.72
from £1,330.72
# 021
MPN: 007011035
PANEL
Rivest. zona sin. frizione
from £416.22
from £416.22
# 022
MPN: 007011034
PANEL
Rivest. zona des. frizione
from £416.22
from £416.22
# 023
MPN: 007053012
UNIT AIR
Presa aria super, sin.
# 024
MPN: 006211538
FILLER CAP
Port, bocchett. benz./C
from £17.75
from £17.75
# 025
MPN: 007011015
HOUSIN
Caren. bocchett. benzina
# 026
MPN: 006211537
HINGE
Cerniera port. benz./C
from £21.56
from £21.56
# 027
MPN: 007011078
AIR INLET
Convogliatore aria sin.
from £461.82
from £461.82
# 028
MPN: 007011024
GUARD
Paratia vano mot/baule
from £2,134.96
from £2,134.96
# 029
MPN: 007011114
UNIT REAR
Compl. passaruota post. sin.
from £4,008.75
from £4,008.75
# 030
MPN: 007011089
FRONT PANEL
Passaruota ant. sin.
from £974.20
from £974.20
# 031
MPN: 007011083
PIPE GUARD
Protez. Tubi passaruota ant.
from £692.31
from £692.31
# 032
MPN: 007011082
PIPE GUARD
Protez. Tubi passaruota ant.
from £692.31
from £692.31
# 033
MPN: 007011088
FRONT .PANEL
Passaruota ant. des.
from £974.20
from £974.20
